Description

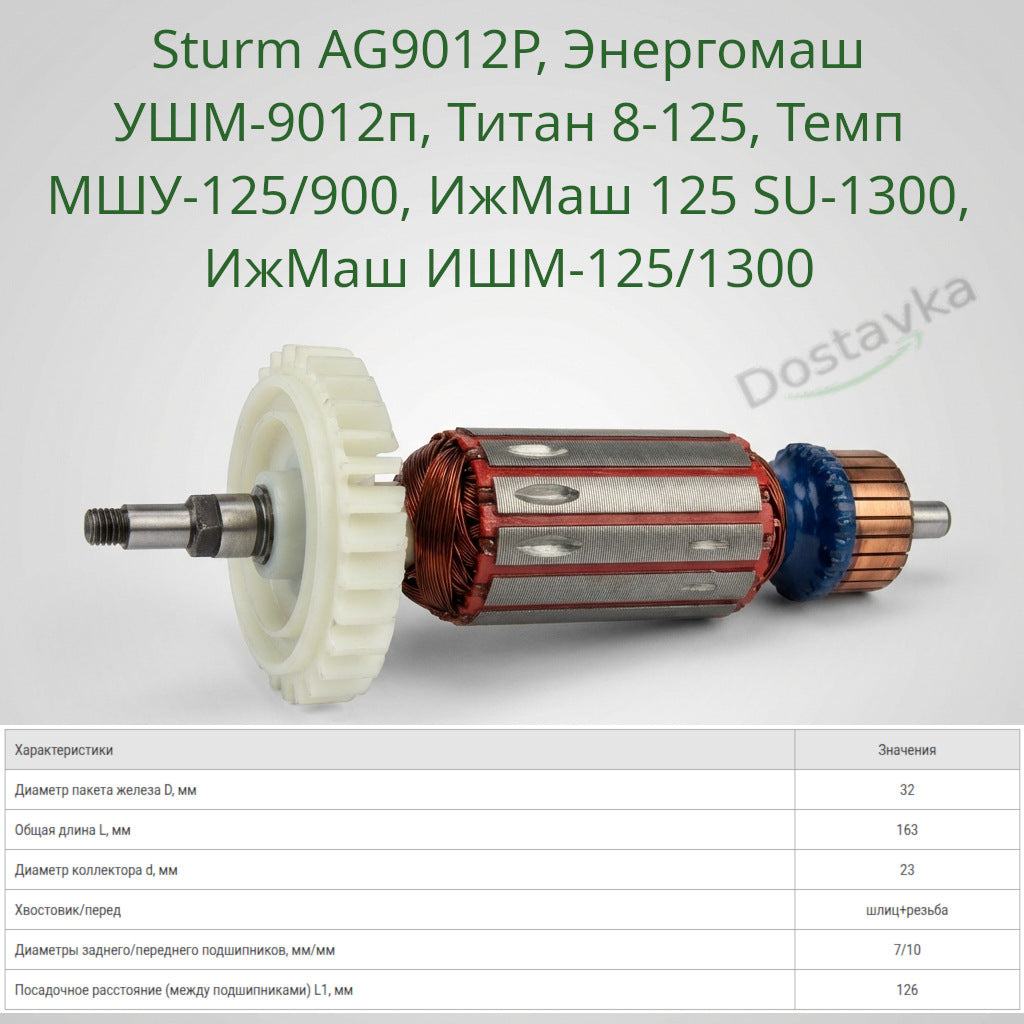

Angle grinder motor anchor Sturm AG9012P, Energomash UShM-9012p, Titan 8-125, Temp MShU-125/900, IzhMash 125 SU-1300, IzhMash IShM-125/1300, winding package diameter 32 mm, total shaft length 163 mm, 7 mm wide side cuts on the shank for fixing the drive gear, + 7 mm thread
| Iron package diameter D1, mm |
32 |
| Total length L1, mm |
163 |
| Collector diameter d2, mm |
23 |
| Shank/front |
spline + thread |
| Rear/front bearing diameters, d3 mm/ d2 mm |
7/10 |
| Landing distance (between bearings) L2, mm |
126 |
