Description

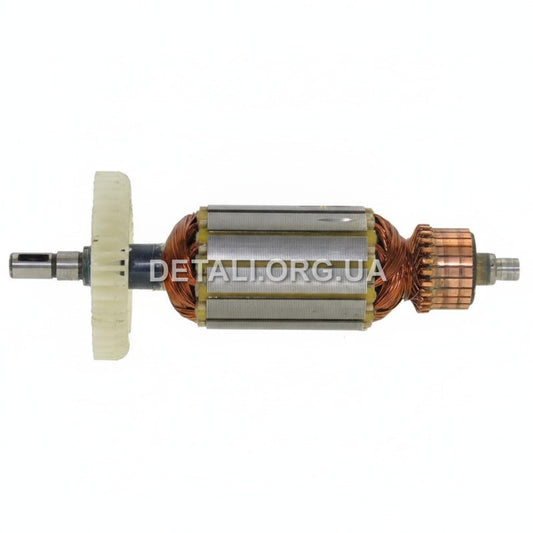

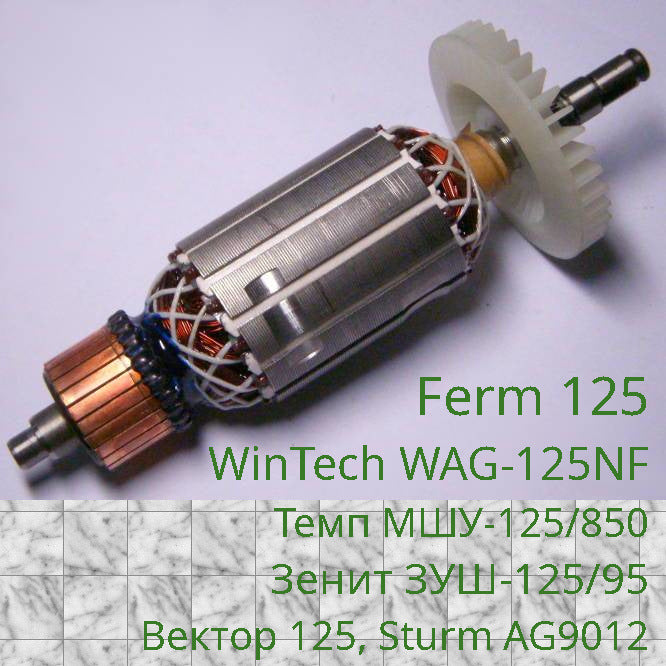

Armature (rotor) for angle grinder (AG) Ferm 125, WinTech WAG-125NF, Temp MSHU-125/850, Zenit ZUSH-125/95, Sturm AG9012, Vektor VUSHM-125/1300 (155*38 keyway 8 mm)
- shank – 8mm keyway, gear fixation with a snap ring
- total length – 155 mm
- core diameter - 38 mm
- core length - 46 mm
- commutator diameter - 25 mm
- lower bearing seat - 7 mm
- upper bearing seat - 9 mm
- distance between bearing seats - 128 mm
Specifications
| commutator diameter | 25 |
| upper bearing | 9 |
| between bearings | 128 |
| shank | 8mm keyway |
| total length | 155 |
| core length | 46 |
| lower bearing | 7 |
| core diameter | 38 |
| Application | Angle Grinders (AG) |
| Part type | Armatures |
| Model | AG9012 |
| Type | For power tools |
-
Sturm Grinder Armature AG9012 (L154, d38, 8mm keyway, 190524T)
Regular price €15.16 EURRegular price
