Description

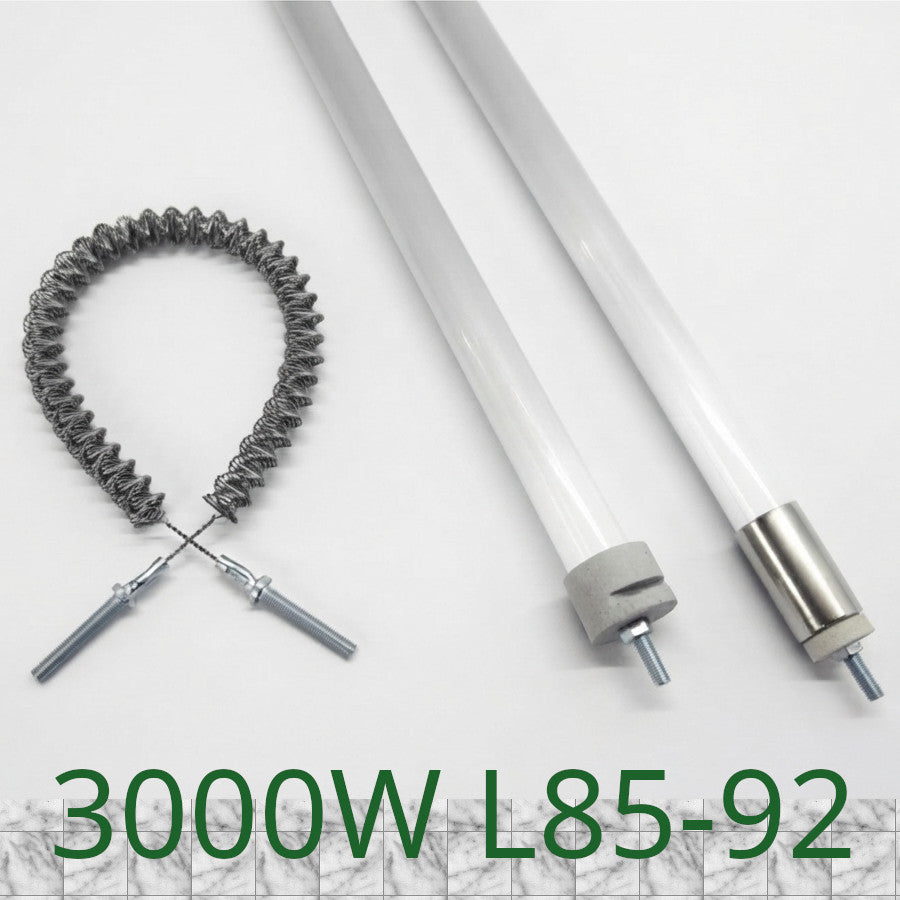

Quartz lamp assembly with heating coil for UFO infrared heaters and equivalents (85 cm / 3000 W)

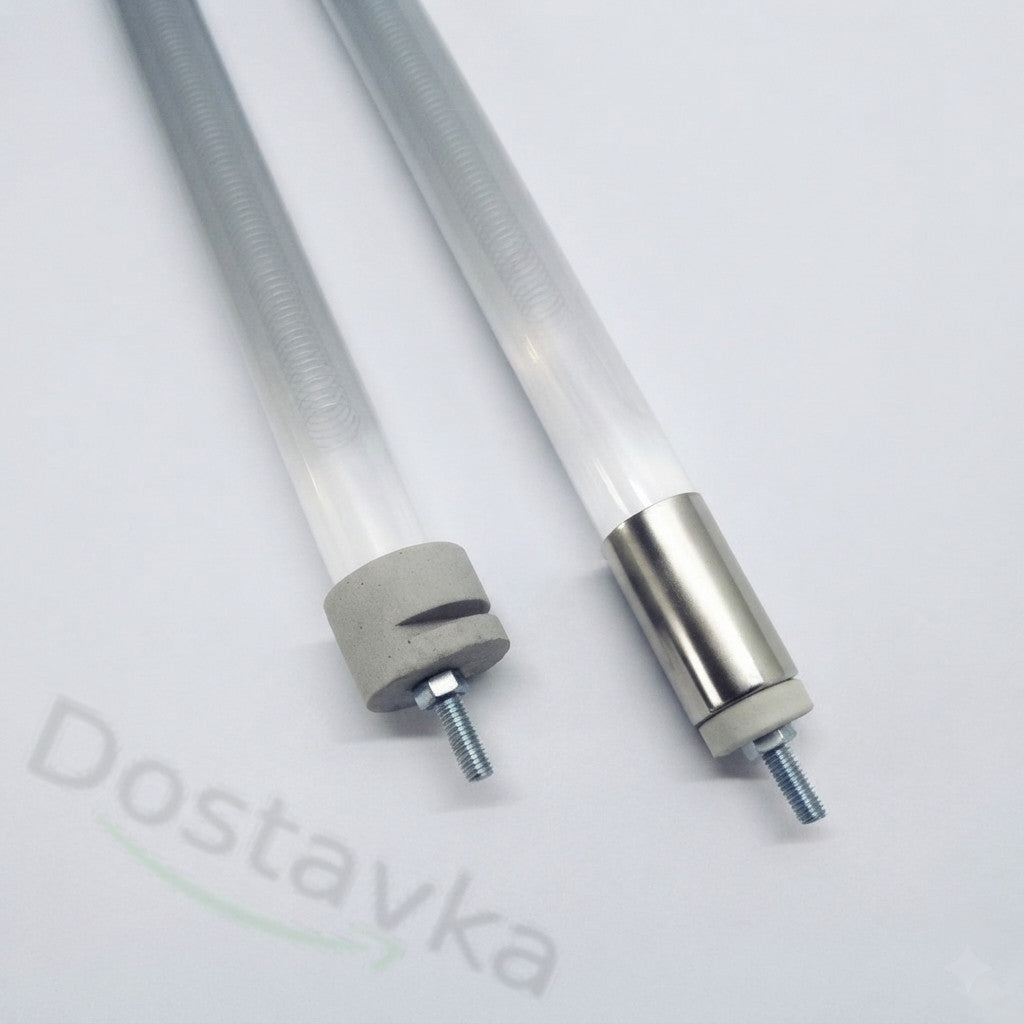

Universal 3000 W (3.0 kW) quartz heating lamp, 85 cm long, comes complete with a high-resistance alloy heating coil. Designed for quick replacement of a burnt-out or damaged heating element in UFO-type infrared heaters. Made of heat-resistant quartz glass with high-quality ceramic insulators and metal end caps.
Key Advantages and Features:
- High heat output and fast heating: The tungsten-chromium coil instantly reaches operating temperature, providing efficient infrared heating.
- Heat-resistant quartz glass: Withstands intense heat and temperature fluctuations without losing strength or transparency.
- Factory quality (Turkey): Metal end caps and reliable M6 threaded studs ensure solid electrical contact without burning.
Important! This heating element is intended strictly for horizontal-type heaters.
Compatibility and Application:
Suitable for most 3000 W infrared heaters with a similar lamp length:
- UFO: UFO Star, UFO Home, UFO Basic.
- Other brands: Saturn, Scarlet, Sinbo, Orion, Daewoo, Ergo, Ballu, Calore, Kumtel, Veito, Soler, etc.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part type | Quartz lamp assembly with coil (IR heater) |
| Rated power | 3000 W (3.0 kW) |
| Operating voltage | 220 – 240 V |
| Glass tube length (without end caps) | 85 cm |
| Visible glass part length | 79.5 cm |
| Length from ceramic to ceramic | 88 cm |
| Total length (including studs) | 92 cm |
| Quartz glass diameter | 23 mm |
| Metal end caps diameter | 24.5 mm |
| Metal end caps height | 36.5 mm |
| Contact stud thread | M6 (for M10 nut / wrench) |
| Country of manufacture | Turkey |
Package Includes:
- Quartz lamp assembly with coil 85-92 cm — 1 pc.
Technician's tip: When replacing the lamp, avoid touching the quartz glass with bare hands. Fingerprint grease burns off at high temperatures, causing local overheating and clouding of the glass. Use clean gloves or a cloth. Due to the fragility of the glass, shipping is handled by the "Nova Poshta" courier service with mandatory additional packaging in a protective frame/tube.
