Rubber rigid V-belt Z-750 (0-750) for vibrating knives, honey extractors, circular saws, and washing machines

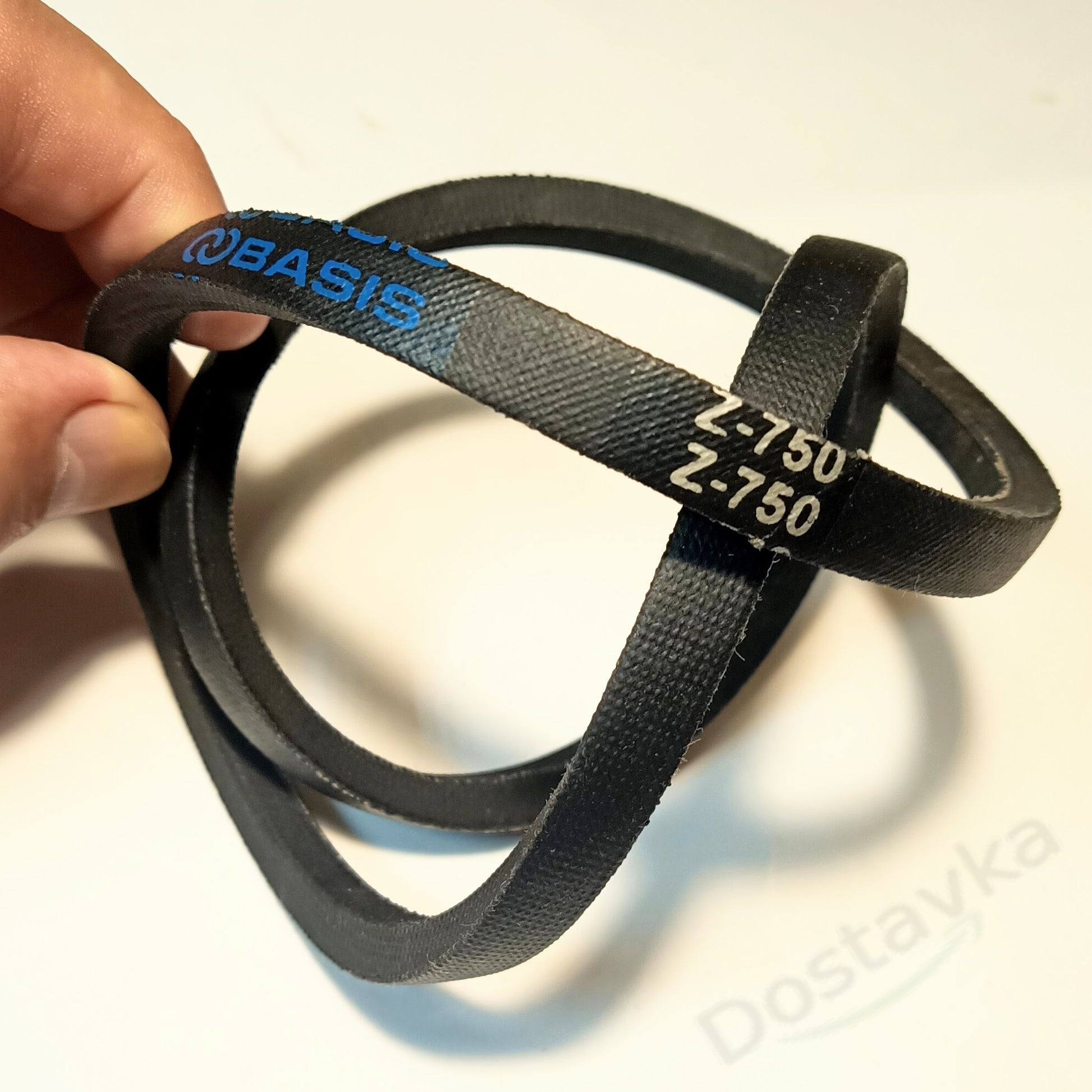

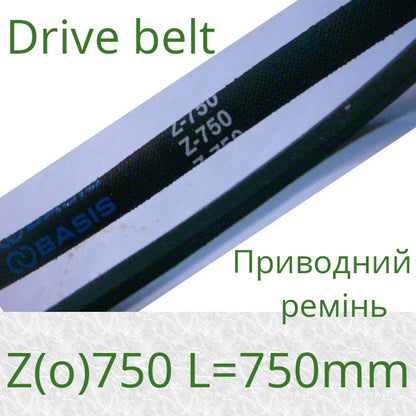

Drive V-belt Z-750 / 0-750 (Z / 0 profile, length 750 mm)
The classic Z-profile drive V-belt (profile "0" in domestic marking) with a pitch length of 750 mm is designed for torque transmission in power units and mechanisms due to the friction force between the side faces of the belt and the pulley grooves. Z-750 profile belts are widely used in industrial equipment, agricultural machinery, compressors, concrete mixers, lathes and drilling machines, as well as in household appliances and walk-behind tractors.
Key Advantages and Features:
- High transmission capacity: The trapezoidal profile shape ensures reliable grip with the pulley, preventing slippage under load.
- Reinforced power cord: The internal frame made of polyester or aramid threads prevents the belt from stretching during continuous operation.
- Resistance to external influences: Made of oil- and heat-resistant rubber compound, protected by a special wrapping fabric against wear, dust, and dirt.
- Smooth and quiet operation: Effectively dampens vibrations and reduces dynamic loads on motor shafts and bearings.
- Standardized dimensions: Interchangeable with belts of international standards ISO / DIN 2215 and GOST 1284.1-89.
Technical Specifications:
| Parameter | Value / Characteristic |
|---|---|
| Product type | Classic profile drive V-belt |
| Profile (designation) | Z (international) / 0 (GOST) |
| Pitch length (Lw / Ld) | 750 mm |
| Top width | 10 mm |
| Belt section height (thickness) | 6 mm |
| V-angle | 40° |
| Material | Wear-resistant rubber with wrapping, polyester/PES cord |
| Application area | Machine tools, compressors, concrete mixers, walk-behind tractors, agricultural and industrial equipment |
Package Contents:
- Drive V-belt Z-750 (0-750) — 1 pc.
Selection and replacement tip: When choosing a V-belt, pay attention to the marking. The letter Z (or number 0) indicates a width of 10 mm and a height of 6 mm, while the number 750 indicates the pitch length along the cord in millimeters. Before installation, check the pulley alignment and adjust the belt tension.
