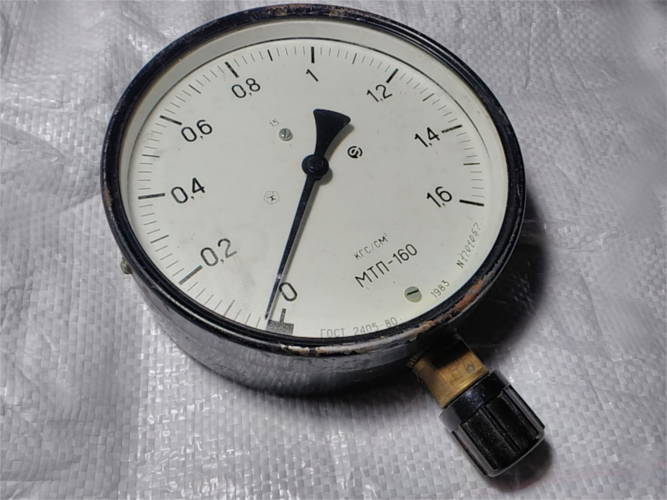

Technical Indicating Pressure Gauge MTP-160 (GOST 2405-80, ∅160 mm, Accuracy Class 1.5)
The industrial indicating pressure gauge of the large MTP-100/160 series (model MTP-160) is designed for continuous measurement of the gauge pressure of liquid and gaseous non-crystallizing media that are non-aggressive to copper alloys (water, saturated and superheated steam, dry air, natural gas, technical oils, nitrogen, etc.). It is manufactured in a durable large-diameter steel case (160 mm) with cast protective glass and a brass fitting with M20x1.5 thread. The enlarged dial and high accuracy class of 1.5 make it an ideal solution for critical metering units and operator consoles.
Key Advantages and Features:
- Large 160 mm Dial: The increased case diameter and high-contrast scale allow the operator to easily monitor pressure readings from a distance without approaching the equipment.
- Increased Accuracy Class (1.5): Provides more accurate measurements compared to standard general-purpose pressure gauges of class 2.5.
- High-Quality Components: A tubular spring made of wear-resistant copper/iron-nickel alloy, along with a mechanism made of stainless steel and brass, ensures stable readings and minimal pointer backlash.
- Protective Cast Glass: Resistant to scratches, fading, and thermal effects of the working medium.
- Wide Temperature Range: Operates reliably at ambient temperatures from -50 °C to +60 °C, allowing installation in unheated workshops and outdoor areas.
Compatibility and Application:
- Industrial boiler houses, thermal stations (CHP/IHP), and main steam pipelines.
- Compressor and pump stations, hydraulic test benches.
- Gas distribution points (GDP/GDU) and process lines of chemical/food enterprises.
Technical Specifications:
| Parameter | Value / Characteristic |
|---|---|
| Device Type | Technical indicating pressure gauge (deformation type) |
| Marking / Model | MTP-160 |
| Manufacturing Standard | GOST 2405-80 |
| Case Diameter | 160 mm |
| Measuring Range (Scale) | 0 … 1.6 kgf/cm² (160 kPa / 0.16 MPa) |
| Accuracy Class | 1.5 |
| Fitting Location | Radial (bottom) |
| Connection Thread | M20x1.5 |
| Case Design | Without flange |
| Operating Temperature | from -50 °C to +60 °C |
