Description

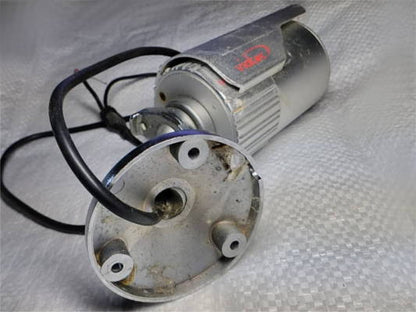

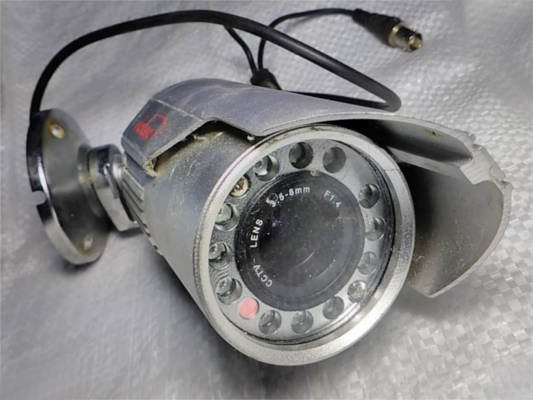

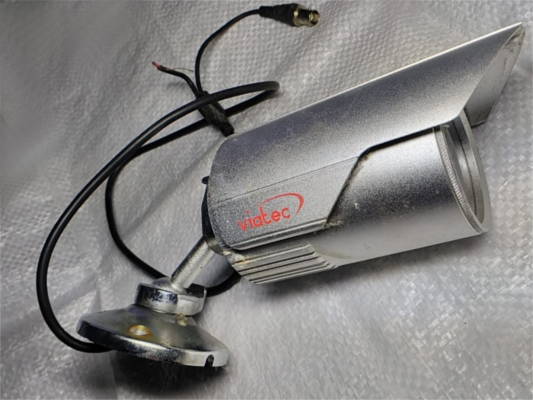

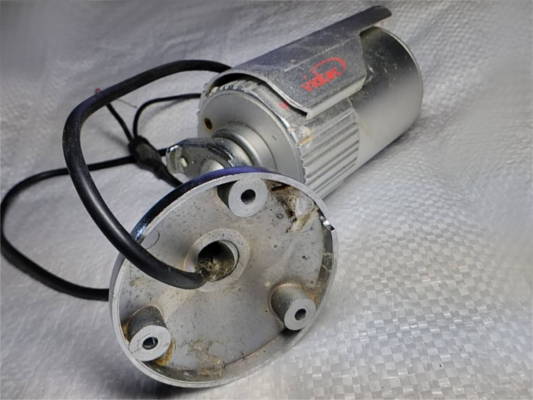

Viatec CCTV Outdoor Analog Security Camera with 3.5ā8 mm Varifocal Lens and IR Illumination
The Viatec CCTV outdoor analog bullet security camera is designed for 24/7 monitoring of territories, private houses, warehouses, and commercial facilities. The camera body is made of durable aluminum alloy with a protective sun and rain shield. The model is equipped with a 3.5ā8 mm (F1.4) varifocal lens with manual field-of-view adjustment, a built-in light sensor, and powerful infrared illumination for filming in complete darkness.
Key Advantages and Features:
- Varifocal Lens (3.5ā8 mm, F1.4): Allows manual adjustment of the required viewing angle ā from wide coverage of the surrounding area to precise focusing on a driveway or entrance zone.
- Infrared Illumination and Day/Night Mode: A built-in array of IR LEDs with an automatic light sensor provides a clear black-and-white image in conditions of absolute darkness.
- Metal Dust- and Waterproof Housing: The reliable aluminum bullet body with a top sun shield is resistant to weather conditions and temperature fluctuations.
- Ball-and-Socket Swivel Bracket: Allows for easy adjustment and fixation of the required tilt and rotation angle when mounting on a wall or ceiling (3-screw/bolt mounting).
- Standard Analog Connection: BNC connector for video signal transmission via coaxial cable and a standard 12V (DC) power plug.
Compatibility and Application:
- Connection to analog (CCTV / CVBS) and hybrid video recorders (XVR / DVR) with analog signal support.
- Setup of outdoor video surveillance for courtyards, parking lots, building facades, checkpoints, and warehouse premises.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Brand / Manufacturer | Viatec |
| Camera Type | Outdoor Bullet Analog CCTV |
| Lens | Varifocal 3.5 ā 8 mm (F1.4) |
| Night Mode | IR Illumination (with automatic light sensor) |
| Housing Material | Aluminum alloy (with protective shield) |
| Bracket Type | Ball-and-socket swivel with 3-hole locking mechanism |
| Connection Interfaces | BNC (video) + 12V DC Power Connector |
Package Contents:
- Viatec CCTV security camera with connection cable ā 1 pc.
- Swivel metal bracket ā 1 pc.
Pro Tip: When installing outdoors, be sure to seal the BNC connector and power plug with electrical tape or adhesive-lined heat shrink, or place them inside a waterproof junction box. Adjust the focus and viewing angle (3.5ā8 mm) using a monitor immediately before final tightening of the locking screws on the lens and the ball-and-socket joint.
