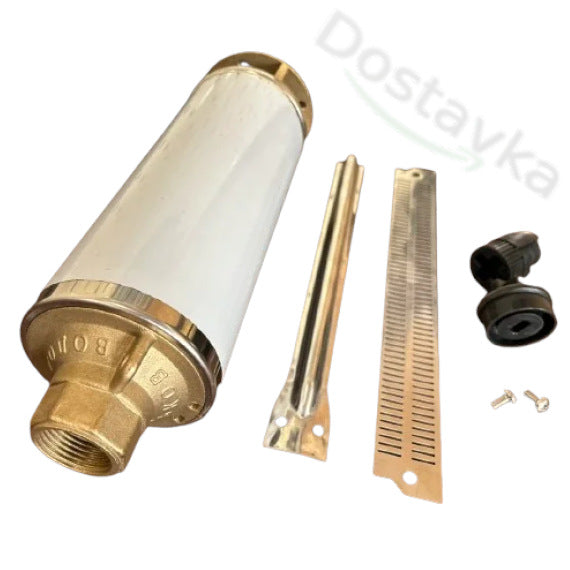

Vodoley Submersible Pump Pump End BTsPE 0.5-63U

Pump part of the Vodoley BTsPE 0.5-63U submersible centrifugal pump, featuring a full impeller section, couplings, and connecting hardware

FACTORY KIT

Pump part for the Vodoley BTsPE 0.5-63U pump

The pump part assembly for the Vodoley pump is the upper part of the pump located above the motor. Water is drawn through the filter mesh located in the central part of the pump, lifted by the impellers, and discharged through the upper outlet from the borehole or well for irrigation or domestic water supply.

The BTsPE 0.5-63U pump part consists of:

• Pump housing for Vodoley BTsPE 0.5-63

• Cable guard for Vodoley BTsPE 0.5-63 pump

• Rubber ring D3 for Vodoley BTsPE 0.5-63 pump

• Screw M5x10 for Vodoley BTsPE 0.5-63 pump

• Brass cover 1" for Vodoley BTsPE 0.5-63 pump

• Rubber ring D10 (buffer) for Vodoley BTsPE 0.5-63 pump

• Bearing support (reinforced) for Vodoley BTsPE 0.5-63 pump

• Rubber bearing for Vodoley BTsPE 0.5-63 pump

• Washer D17 for Vodoley BTsPE 0.5-63 pump shaft

• Vane outlet (diffuser) Vodoley BTsPE 0.5-63

• Impeller for Vodoley BTsPE 0.5-63 pump

• Stainless steel disc for Vodoley BTsPE 0.5-63 pump

• Vodoley BTsPE 0.5-63 pump part shaft

• Coupling half set for Vodoley BTsPE 0.5-63 pump

• Guide flange (plastic) Vodoley BTsPE 0.5-63

• Retaining ring (locking ring) for Vodoley BTsPE 0.5-63 pump

• Brass adapter flange for Vodoley BTsPE 0.5-63 pump

• Bolt M6x12 for Vodoley BTsPE 0.5-63 pump

• Coarse mesh filter for Vodoley BTsPE 0.5-63 submersible pump
