Description
Complete pump module for the Vodoley BTsPE 0.5-16U submersible pump
FACTORY KIT!
The complete pump unit is the upper part of the pump located above the motor. Water is drawn through a filter mesh located in the central part of the pump, lifted by impellers, and discharged through the upper outlet from the borehole or well for irrigation or domestic water supply.
The BTsPE 0.5-16U pump unit consists of:
- Pump housing for Vodoley BTsPE 0.5-16
- Cable guard (cable protection) for Vodoley BTsPE 0.5-16 pump
- Rubber O-ring D3 for Vodoley BTsPE 0.5-16 pump
- Screw M5x10 for Vodoley BTsPE 0.5-16 pump
- Plastic pump cover (Noryl) 1 inch for Vodoley BTsPE 0.5-16 pump
- Rubber O-ring D10 (buffer) for Vodoley BTsPE 0.5-16 pump
- Bearing support for Vodoley BTsPE 0.5-16 pump
- Rubber bearing for Vodoley BTsPE 0.5-16 pump
- Washer D17 for the Vodoley BTsPE 0.5-16 pump shaft
- Vane outlet (diffuser) Vodoley BTsPE 0.5-16
- Impeller for Vodoley BTsPE 0.5-16 pump
- Stainless steel disc for Vodoley BTsPE 0.5-16 pump
- Pump unit shaft Vodoley BTsPE 0.5-16
- Coupling half-set for Vodoley BTsPE 0.5-16 pump
- Guide flange (plastic) Vodoley BTsPE 0.5-16
- Retaining ring (locking ring) for Vodoley BTsPE 0.5-16 pump
- Brass adapter flange for Vodoley BTsPE 0.5-16 pump
- Bolt M6x12 for Vodoley BTsPE 0.5-16 pump
- Coarse mesh filter for Vodoley BTsPE 0.5-16 deep well pump
Related products:
-
Wire protection casing 130 mm for Vodolay BCPE-0.5-16U pump
Regular price €4.17 EURRegular price -

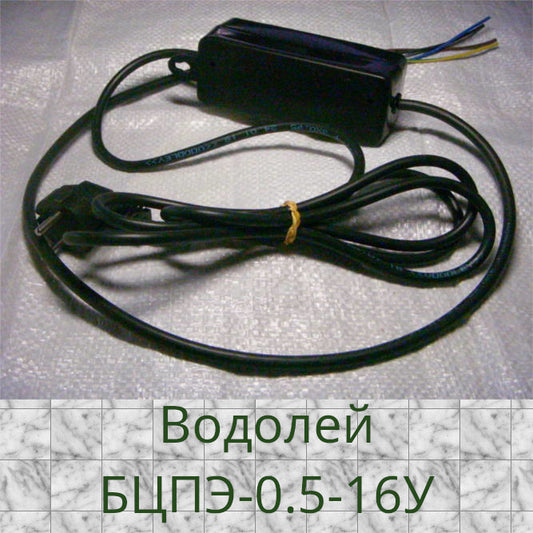

Vodoley Submersible Pump Capacitor Box БЦПЭ-0.5-16У
