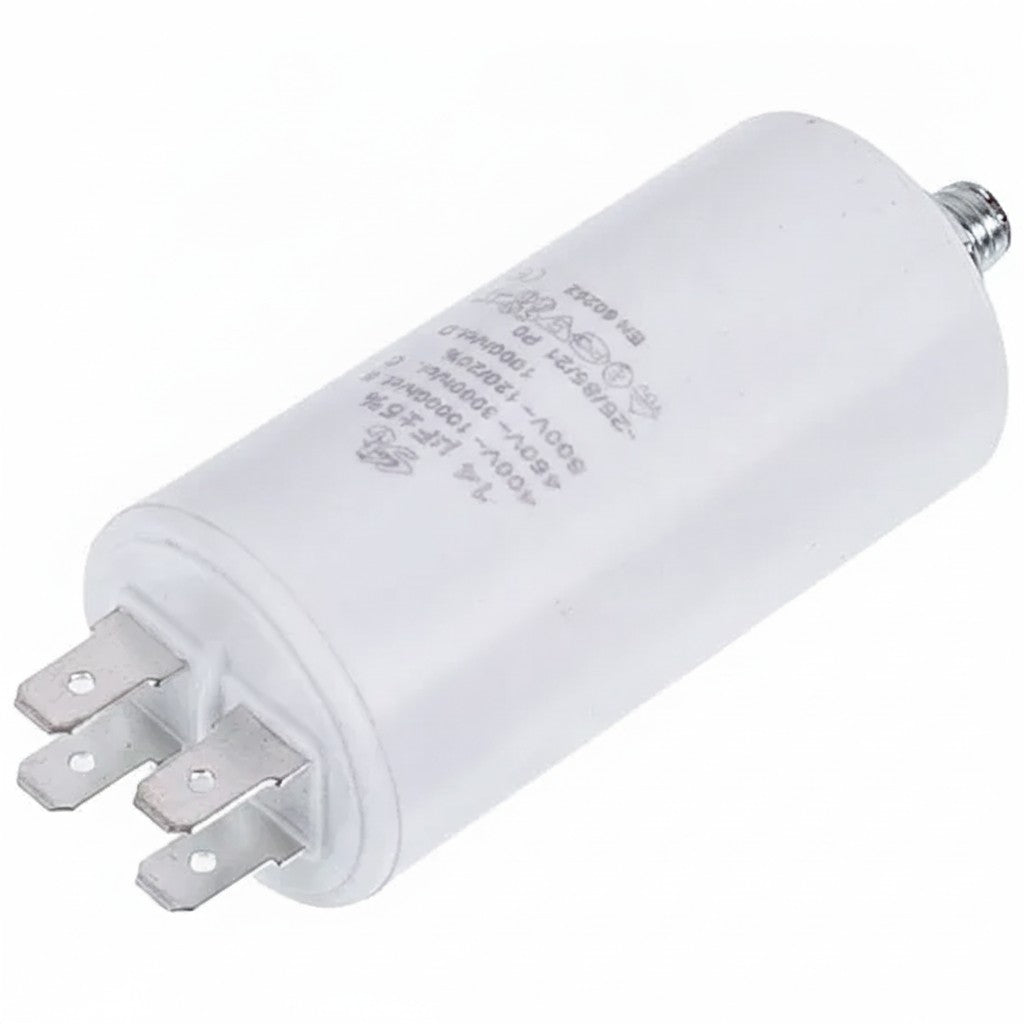

CBB60 Run Capacitor 14 µF 450V with Terminals and M8 Mounting (LPA)
The CBB60 start-run capacitor with a capacity of 14 µF and a rated voltage of 450V is designed for phase shifting and ensuring stable operation of single-phase asynchronous electric motors. It is used in the construction of domestic and industrial water pumps, pumping stations, air compressors, generators, lawn mowers, concrete mixers, and other equipment.
The capacitor is a Run Capacitor, meaning it is constantly energized—it actively participates both during startup and throughout the entire motor operation cycle. The model is housed in a sealed plastic casing with a standard M8 threaded stud and comes with a locking nut.
Key Advantages and Features:
- Double flat terminals (4 contacts): Equipped with four standard Faston flat connectors (6.3 mm). This allows for the parallel connection of multiple circuits without additional splitters, reducing electrical load and heating at contact points.
- 450V voltage margin: Perfectly replaces capacitors rated at 400V. The increased safety margin protects the component from voltage surges in the network and ensures stable operation at elevated temperatures.
- Non-polar connection: The capacitor does not require strict polarity observance ("plus" / "minus"), which significantly simplifies the installation process and eliminates connection errors.
- Moisture-resistant plastic housing: The housing made of self-extinguishing polymer is fully protected against corrosion, moisture, and condensation.
- Secure mounting: The M8 stud with a nut on the bottom end allows for secure fixation of the capacitor on a bracket or inside the motor's protective casing to protect against vibrations.
Compatibility and Application:
- Pumping equipment: Submersible, surface, and drainage pumps, pumping stations (Aquatica, Pedrollo, Optima, Vodoley, etc.).
- Garden and construction equipment: Lawn mowers, aerators, concrete mixers, woodworking machines.
- Power equipment and compressors: Gasoline and diesel generators, reciprocating air compressors, high-pressure washers.
- Household appliances: Classic-type washing machines, range hoods, ventilation units.
Technical Specifications:
| Parameter | Value / Characteristic |
|---|---|
| Brand / Series | CBB60 (LPA) |
| Part Type | Phase-shift capacitor (run capacitor) |
| Rated Capacity | 14 µF (uF) ±5% |
| Rated Voltage | 450V AC (Alternating Current) |
| Operating Frequency | 50 / 60 Hz |
| Terminal Type | 4 flat terminals (Faston 6.3 mm) |
| Mounting Type | M8 threaded stud + nut |
| Housing Diameter | 35 mm |
| Housing Height (excluding terminals and stud) | 68 mm |
| Overall Height (total) | 93 mm |
| Housing Material | Moisture-resistant plastic |
