Description

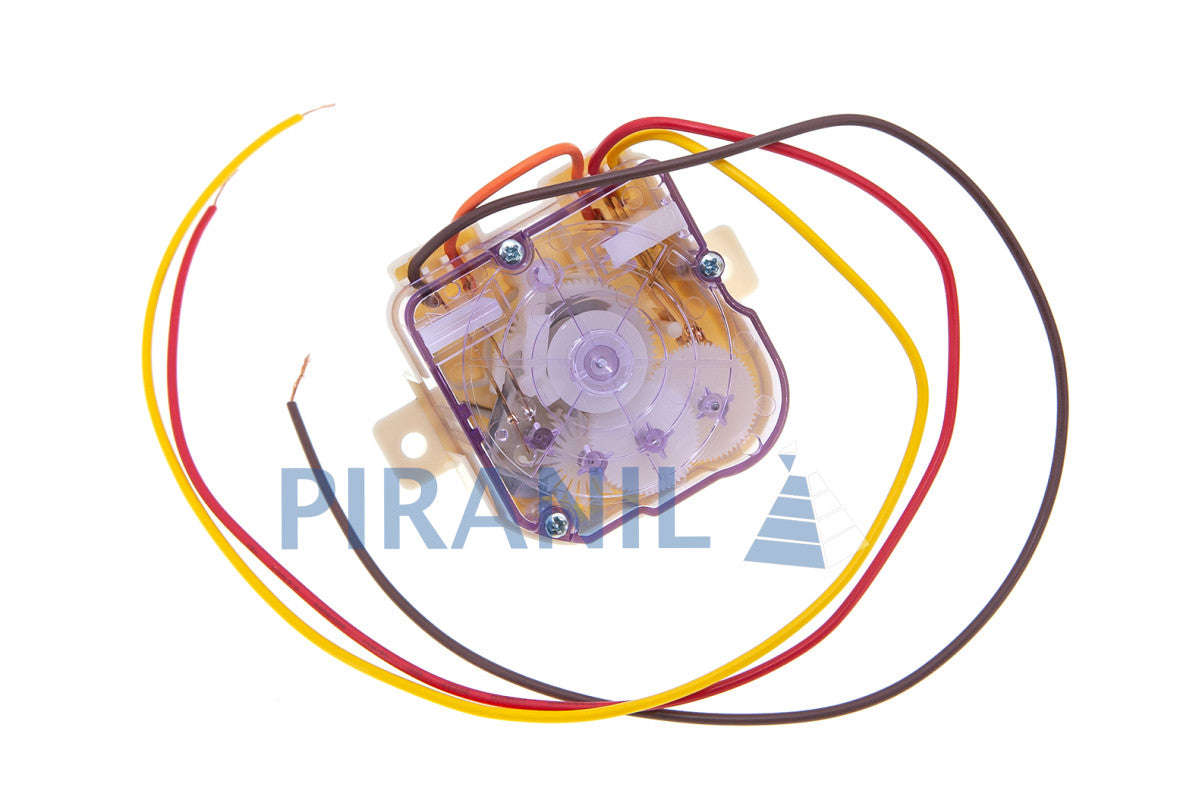

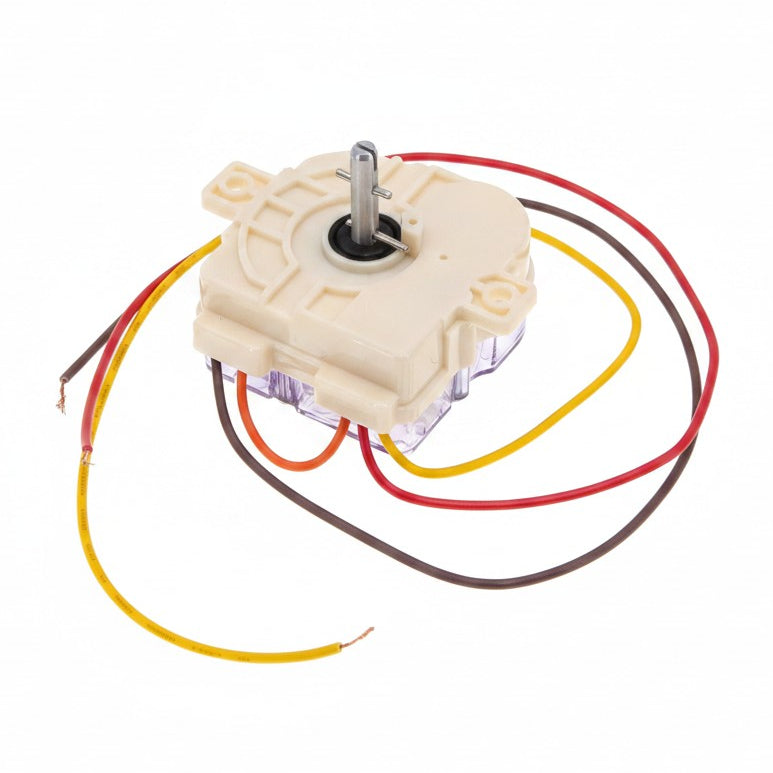

The WX-15-042 3W mechanical timer (time relay) is designed for installation in semi-automatic washing machines such as Hilton, Belson Alena, Alpari, Kupava, Vimar VWM-42, VWM 44 BS, VWM-706W, VWM-30G, VWM-30B, Alezi SW3001, Alpari WP 1512 CRB, WP-14345, Clatronic Mwa 3101, Donbas-3, Digital DW 681, DW-68W, 11254, DW-30WS, Saturn ST-Mini, ST-WM 1615, 1616, ST 1602, DXT 15, Fresh, Milano XPBS-80, and Saturn Malyutka.
The device is used to control the wash cycle and ensures the reliable operation of household appliances.
- Device type: mechanical time relay;
- Modes: up to 15 minutes;
- Model: WX-15-042;
- Number of wires: 3;
- Body dimensions (excluding protrusions): 61x58x32 mm;
- Distance between mounting hole centers: 68 mm;
- Handle shaft: with 14 mm pin;
- Handle shaft height: 22 mm;
- Handle shaft diameter: 6 mm;
- Wire length: 370 mm;
The operation mode is shown in the diagram:
