Description
A-650 E V-belt for drilling machines and washing machines, internal belt length approximately 645 mm

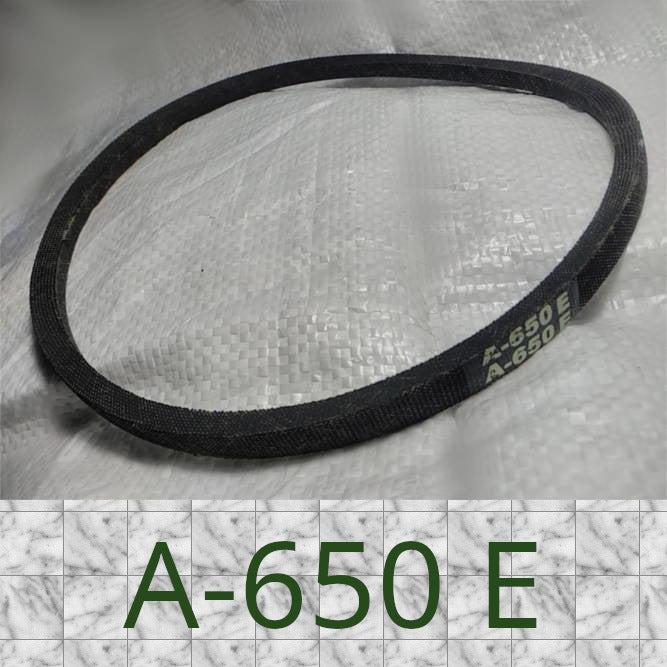

A-650 E / A-650 E Drive V-belt (Profile A, length 650 mm, cord structure)
The A-650 E (A-650 E) drive V-belt is designed for torque transmission in washing machine units (including semi-automatic types like Saturn, Daewoo, Zanussi, etc.), household appliances, as well as industrial and agricultural machinery. The "E" index in the marking indicates a cord-string/cord-fabric structure with increased elasticity and bending resistance, which guarantees a smooth start and long service life on small-diameter pulleys.
Key Advantages and Features:
- High Elasticity Index (E): The "E" cord construction allows the belt to bend easily when operating on small pulleys without delamination or cracking.
- Enhanced Grip: The trapezoidal cross-section of Profile A (13x8 mm) guarantees reliable power transmission without slipping.
- Resistance to Harsh Environments: Made from an oil- and heat-resistant rubber compound, protected by a wrapping fabric against detergents, moisture, and dust.
- Minimal Stretching: The internal power cord maintains the design length of 650 mm throughout its service life.
- Wide Applicability: Used in semi-automatic and automatic washing machines, compressors, machine tools, and small agricultural machinery.
Application Area and Compatibility:
- Washing Machines: Saturn (ST-WK, ST-WM), Daewoo, Liberton, Vimar, Nord, Digital, Rotex, Delfa, and similar activator/semi-automatic models.
- Industry and Agriculture: Low-power drives for machine tools, fans, pumps, lawnmowers, and walk-behind tractors designed for the A-650 / A26 belt.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Product Type | Drive V-belt |
| Marking / Profile | A-650 E (A-650 E) / A26 E / Li 650 |
| Pitch Length (Lw / Ld) | 650 mm |
| Top Width | 13 mm |
| Profile Height (Thickness) | 8 mm |
| Design Feature (E) | Cord-fabric / elastic power layer |
| Wedge Angle | 40Ā° |
| Material | Oil-resistant rubber, synthetic cord string |
Package Includes:
- A-650 E Drive V-belt ā 1 pc.
Replacement Tip: The letter "E" in the name indicates improved flexibility. If your old belt was marked A-650 or A-650 E, this belt is fully interchangeable with both versions.
