Description
Heating Element Block (Stainless Steel) "Clip" Type 9 kW, 2" Thread SANAL (Turkey) — Power and Reliability

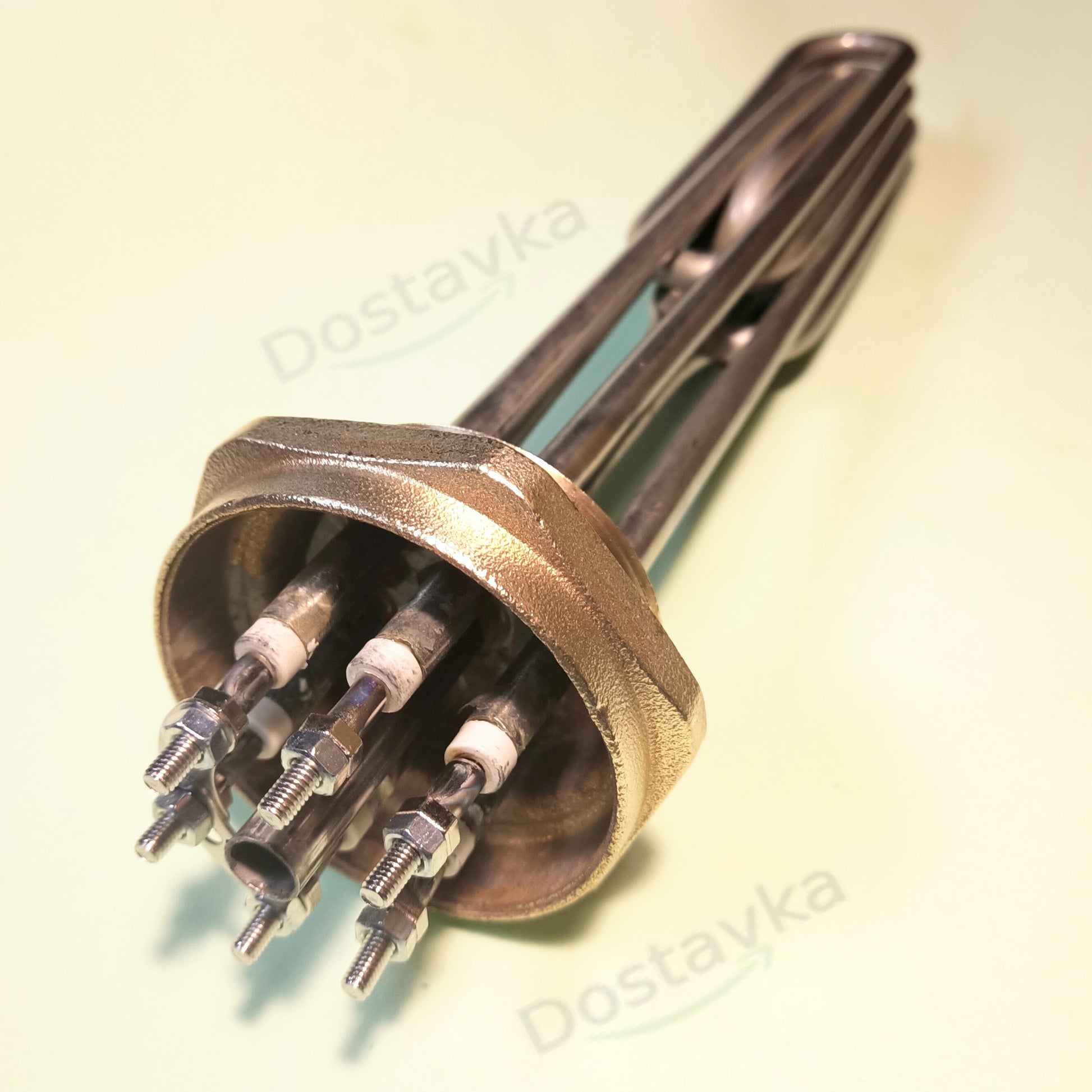

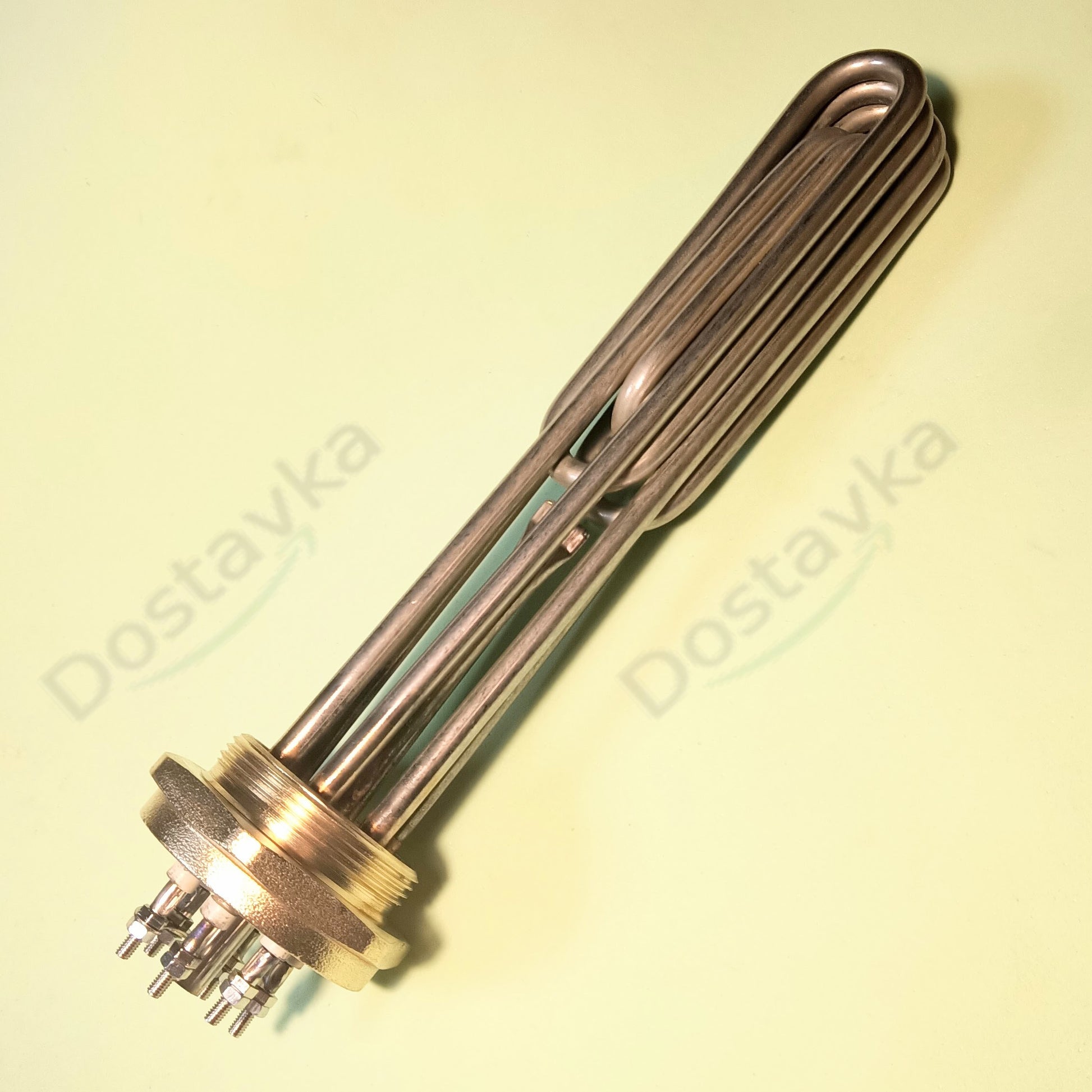

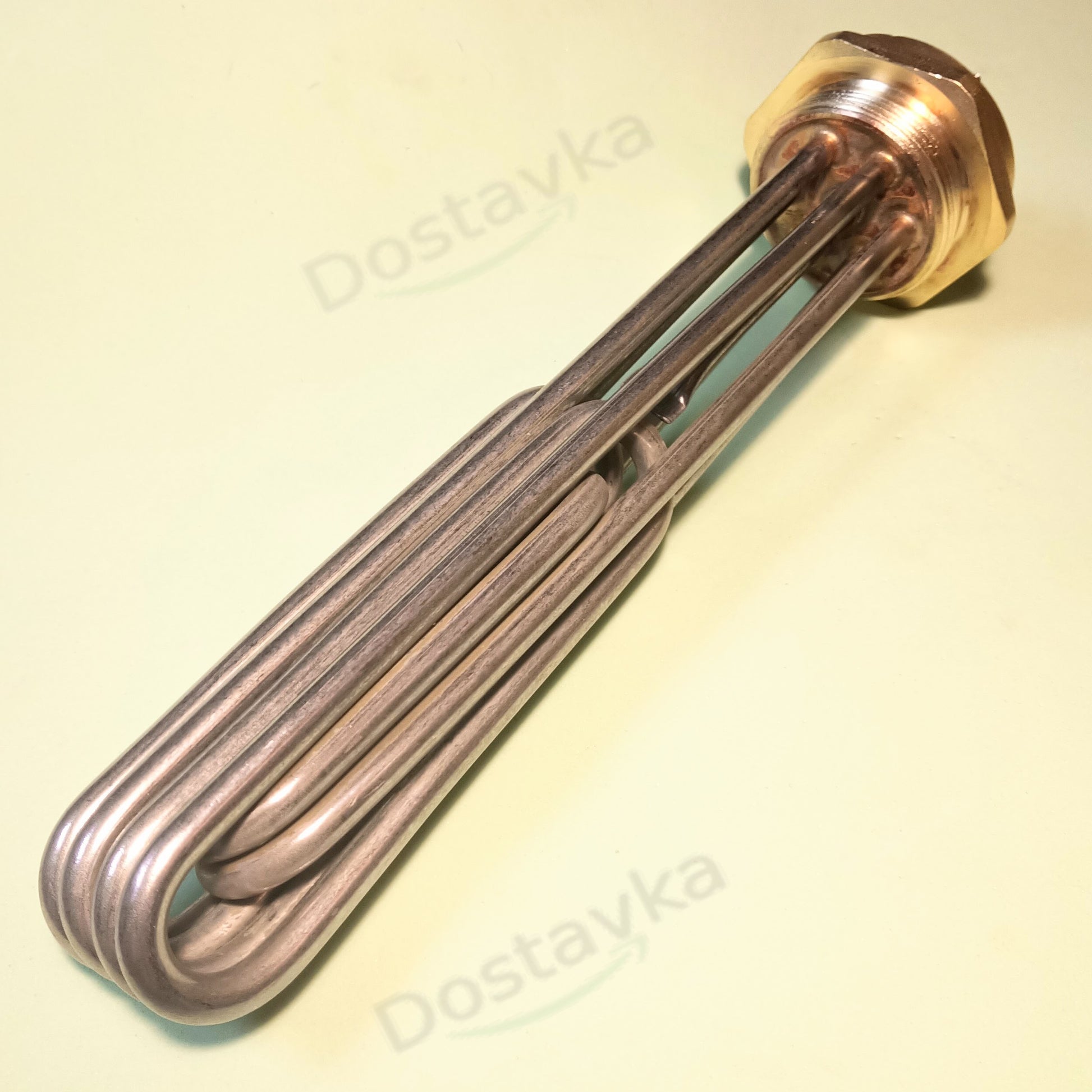

The 9 kW heating element block from the leading Turkish manufacturer SANAL is a high-efficiency tubular electric heating element designed for installation in electric boilers, heating systems, industrial equipment, and liquid heating tanks. The design consists of three individual U-shaped heaters ("clips") made of high-quality stainless steel, 3000 W each, mounted on a durable brass flange with a 2-inch thread.
Main Advantages and Features:
- High-Quality Materials: The heating tubes are made of high-quality stainless steel, resistant to corrosion, scale formation, and high thermal loads.
- Three-Element Design: The block contains 3 independent heating elements of 3000 W each with individual brass contacts, allowing for flexible power regulation.

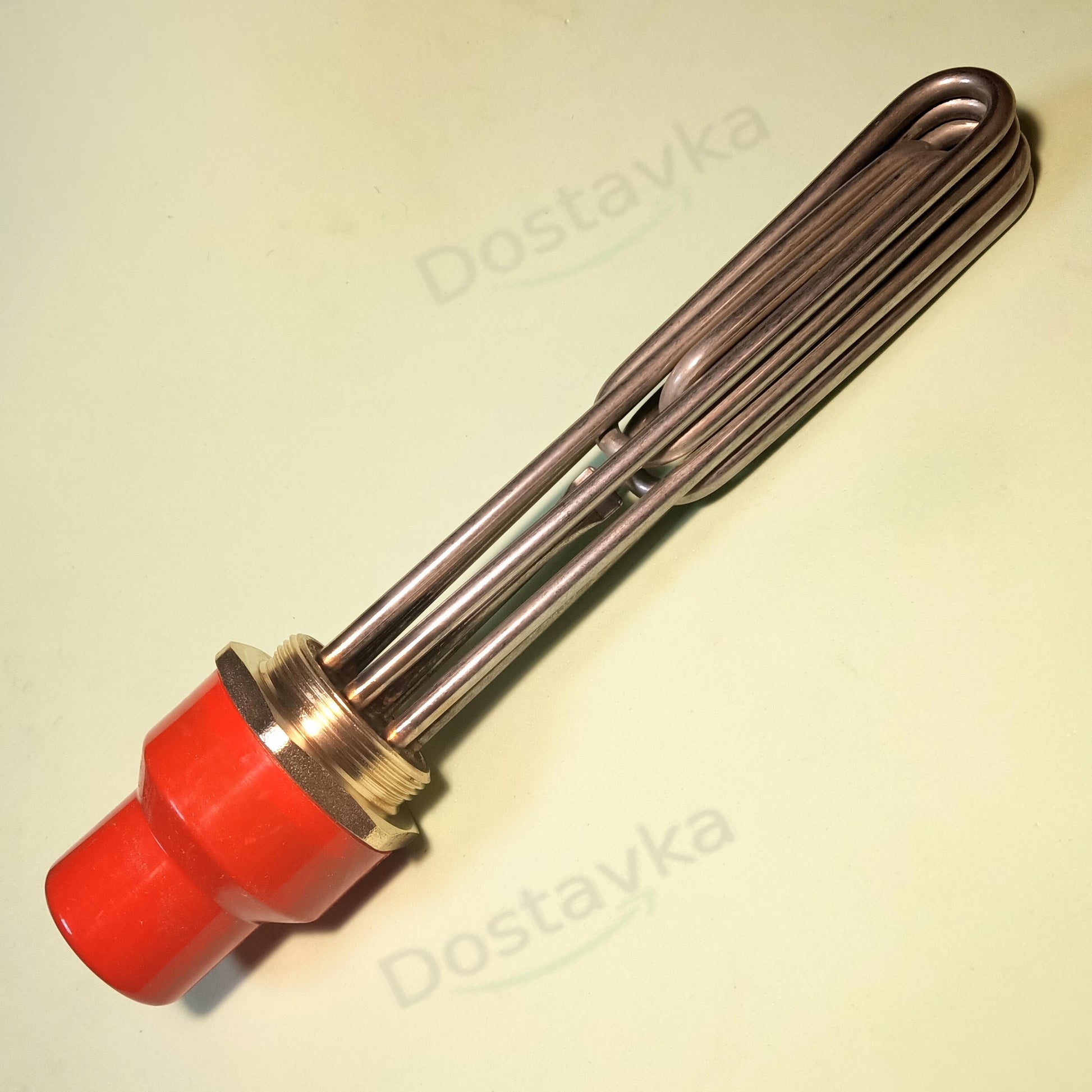

- Protective Cap: The lower contact part is covered by a durable red protective cap with a cable entry hole, reliably protecting electrical connections from external influences, dust, and accidental splashes.
- 2" Brass Thread: The threaded fitting is made of durable brass, ensuring a leak-proof, reliable, and long-lasting installation in the boiler or tank body.
- Connection Versatility: Can be connected to both a single-phase 220 V network and a three-phase 380 V network ("star" connection scheme).
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Manufacturer | Sanal |
| Country of Manufacture | Turkey |
| Total Power | 9000 W (9 kW) |
| Element Design | 3 heating elements of 3000 W each ("clip" shape) |
| Length from Flange | 27 cm |
| Heating Element Material | Stainless steel |
| Fitting / Thread Material | Brass |
| Thread Size | 2" (two inches) (60 mm) |
| Rated Voltage | 220 V / 380 V |
| Connection Type at 380 V | "Star" |
| Application | For electric boilers, heating systems, industrial equipment, and liquid heating |
Package Includes:
- 9 kW 2" Sanal Heating Element Block (stainless steel).
- Protective plastic cap (red).
Installation Tip: When connecting the heating element block to a three-phase network (380 V), follow the "star" scheme. To ensure the longevity of the heating element, regular descaling and the use of protective anodes or water softening filters are recommended.
