Description

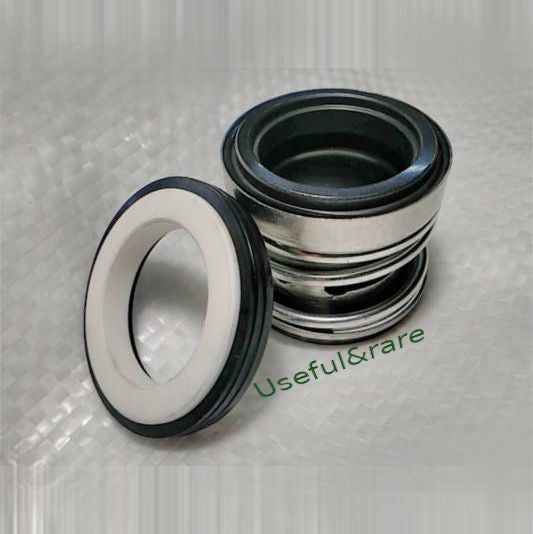

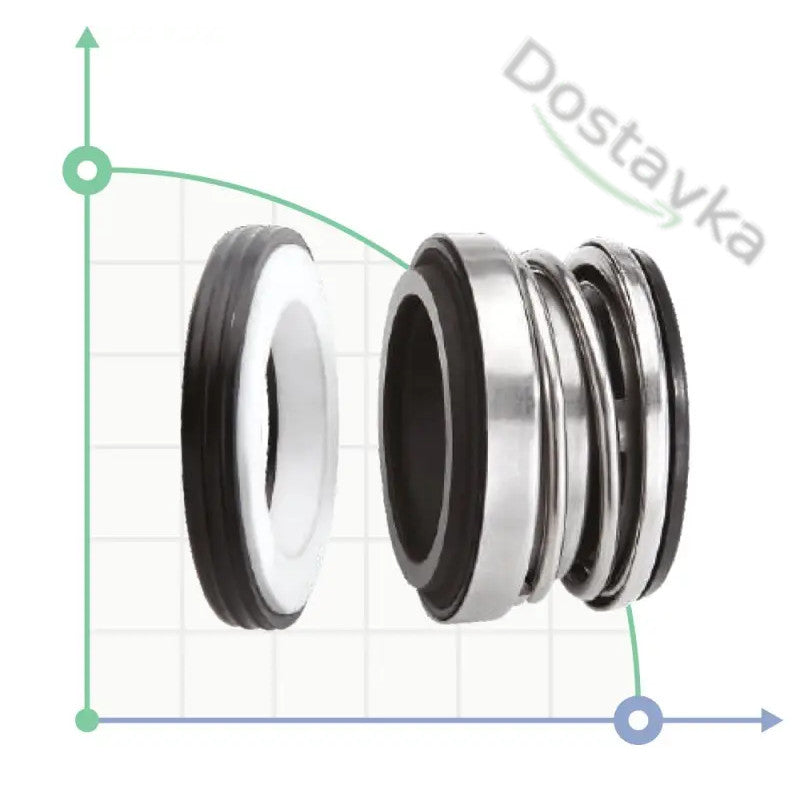

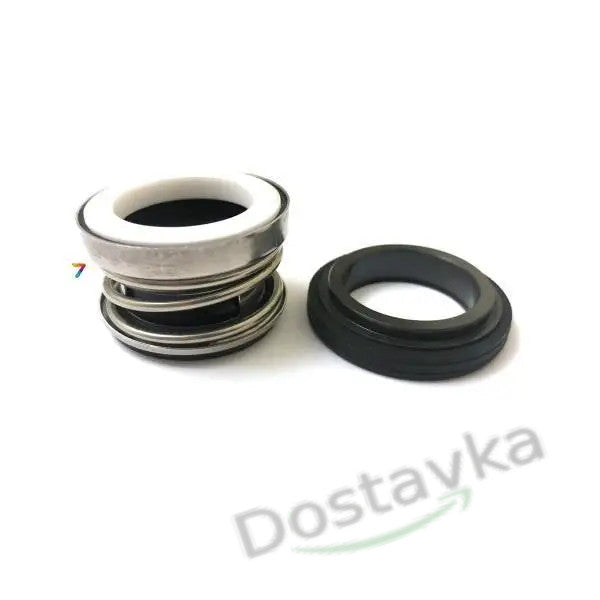

Mechanical ceramic-graphite seal 104-25 for replace in Pedrollo submersible pump, Gnome pump, ice maker, etc. On shaft 25 mm, with ceramic ring (in elastic) 41 mm, main body length 30 mm, outer diameter 39, total height with rings 40 mm

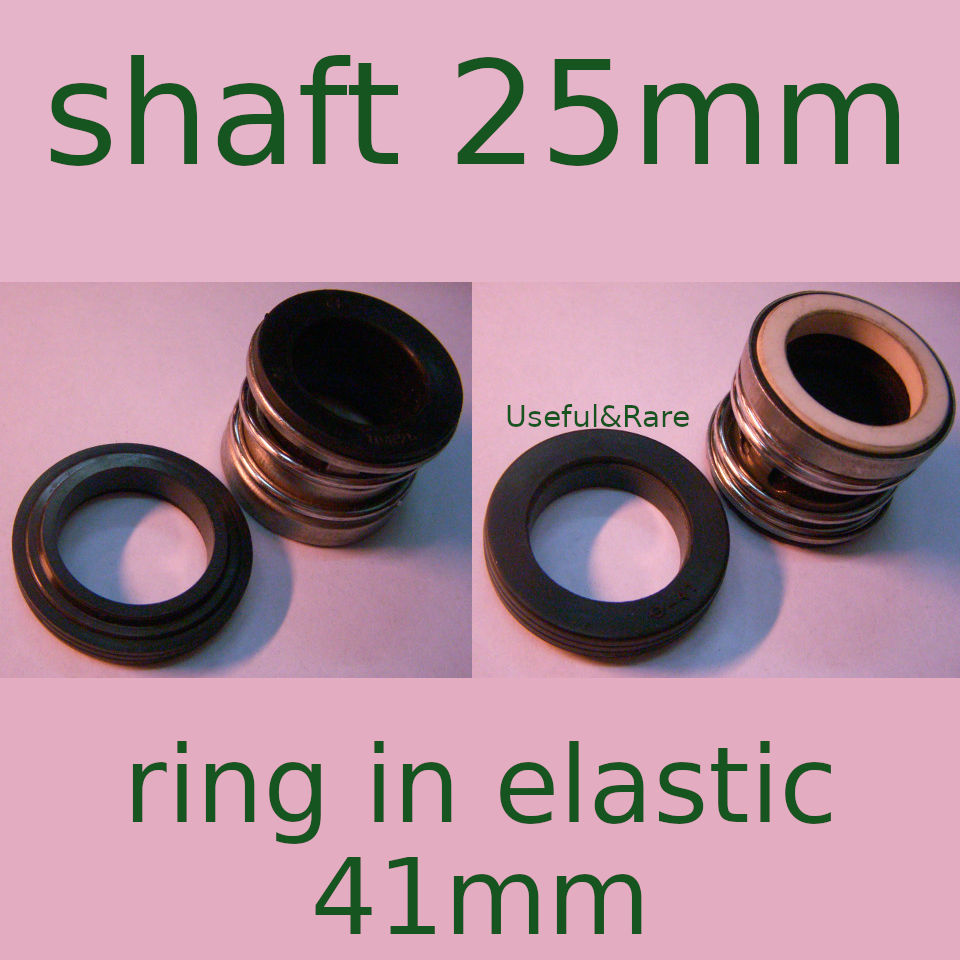

On shaft 25 mm
Stationary ring 41 mm
Length (height) of movable part 30 mm
Outer body diameter 39
Total height with ring 40 mm
Friction pair ceramics/ graphite
