Description

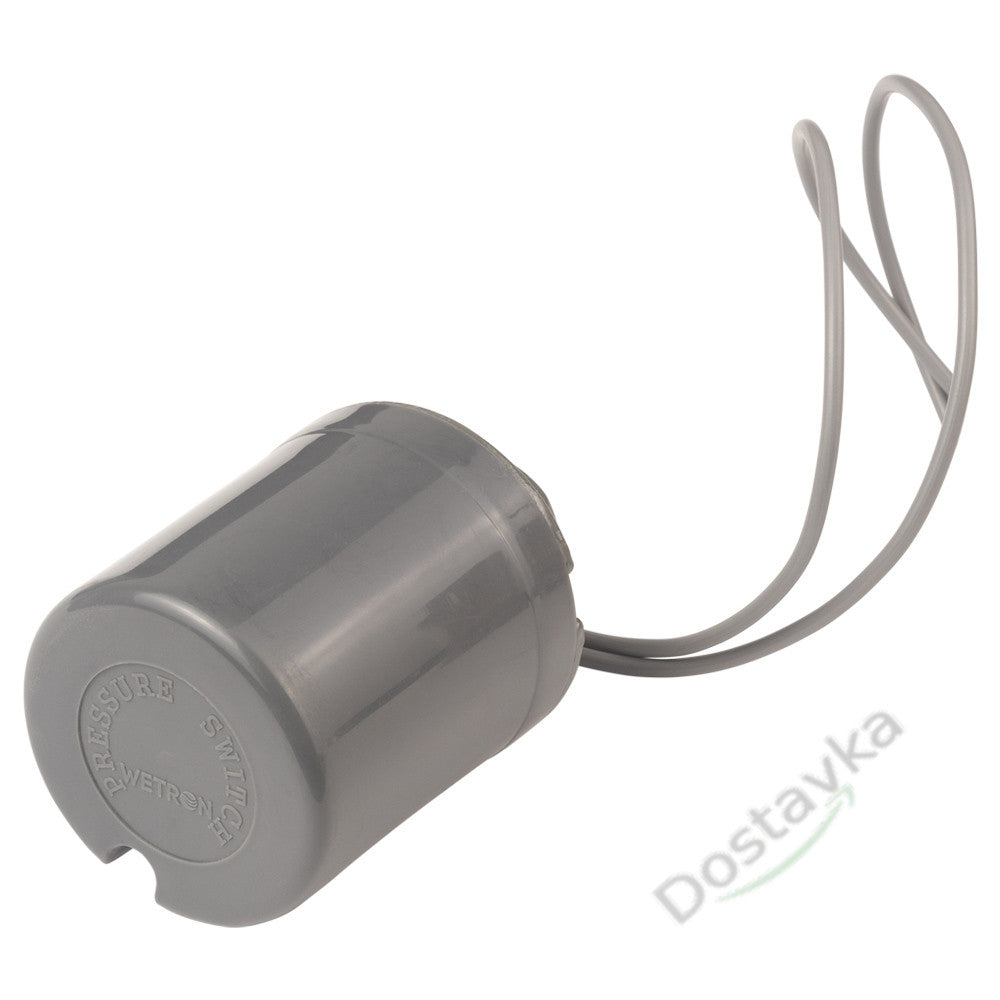

The 1.5 kW 1.4-2.2 bar cylinder (nut) pressure switch WETRON (779729) allows you to maintain stable pressure in the water supply system, which is important for the proper operation of plumbing devices and protection against excess pressure.
The use of a pressure switch helps reduce energy and water consumption and protects pumps from over-operation and premature failure.
The relay contactors are silver plated, ensuring high reliability and a long service life.
Functions:
- automatic switching on and off of the pump depending on the set pressure
- adjustable pressure range on/off
Specifications:
- Maximum power, kW: 1.5
- Maximum operating current, A: 10
- Response pressure, bar: 1.4-2.2
- Maximum allowable pressure, bar: 10
- The contactor is silver plated
- Body material: polypropylene
- Maximum temperature of pumped liquid °C: +60
- Maximum ambient temperature, °C: +40
- Protection class: IP20
- Thread: 1/4" F
- Voltage U 1 ~ 230 ± 10% V
- Frequency, Hz: 50
Voltage U 1 ~ 230 ± 10% V
Frequency, Hz 50
Maximum power, kW 1.5
Protection class IP20
Maximum allowable pressure, bar 10
Housing material: polypropylene
Thread 1/4" F
Maximum temperature of pumped liquid, °C +60
Maximum ambient temperature, °C +40
