Description

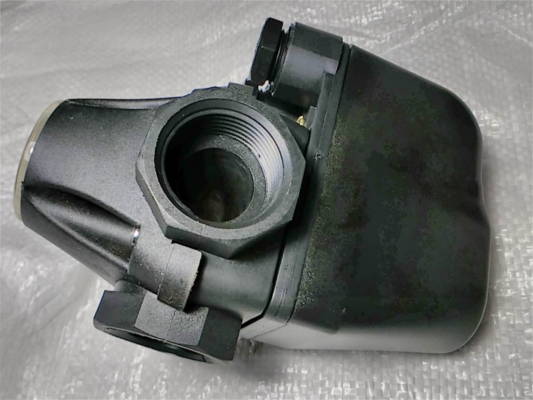

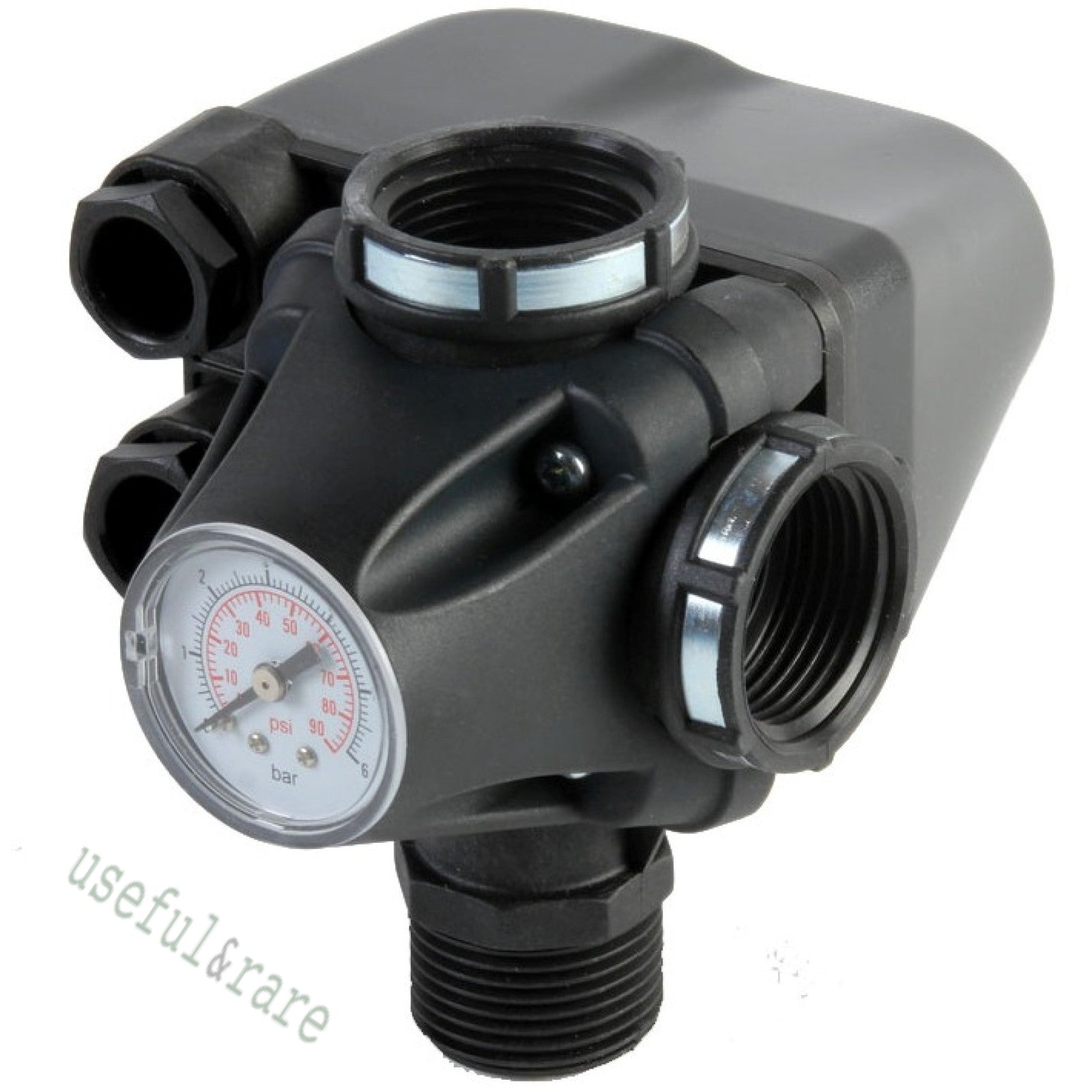

PC-9C automatic pressure relay for 5 BAR (5 atm) with F1/4" switching for two wires, connection of three pipes via external and internal 32 mm threads, on-board pressure gauge, for Kenle, Euroaqua, Pumps+ pumping stations
Used in pressure boosting systems. Depending on whether the system pressure increases or decreases, the PM/5-3W relay closes or opens the pump's power supply circuit, thereby turning the pump on or off. The device is equipped with a built-in pressure gauge, a five-port connector, and threaded ports fitted with reinforced steel rings.

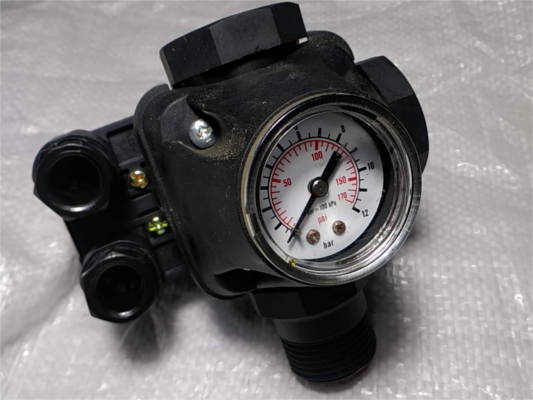

Built-in pressure gauge
A durable plastic coupling reinforced with a steel ring that replaces the traditional brass coupling.
Technical specifications
Standard settings: 1.4-2.8 bar
Thread diameter: 1"
Voltage: 230 V, 50 Hz
Maximum current: 16 A
Working pressure: 5 bar
Liquid temperature: +55 °C
Manufacturer: OEM/ Italtecnica-Italy
