Wintech WCS--2100 Craft-Men CTS-221 Circular saw motor armature d52 L194 t8

Wintech WCS--2100 Craft-Men CTS-221 Circular saw motor armature d52 L194 t8

SKU: 10558 1
€22.42 EUR
₴1,098.81 UAH
Sale Sold out
Possible shipping in the coming days/ weeks
Shipping costs are calculated when placing your order.

diameter_1 : 52
diameter_2 : 36
diameter_3 : 12
diameter_4 : 10
diameter_5 : 11.5
length_1 : 194
length_2 : 149
length_3 : 54
teeth : 8
View all information

Description

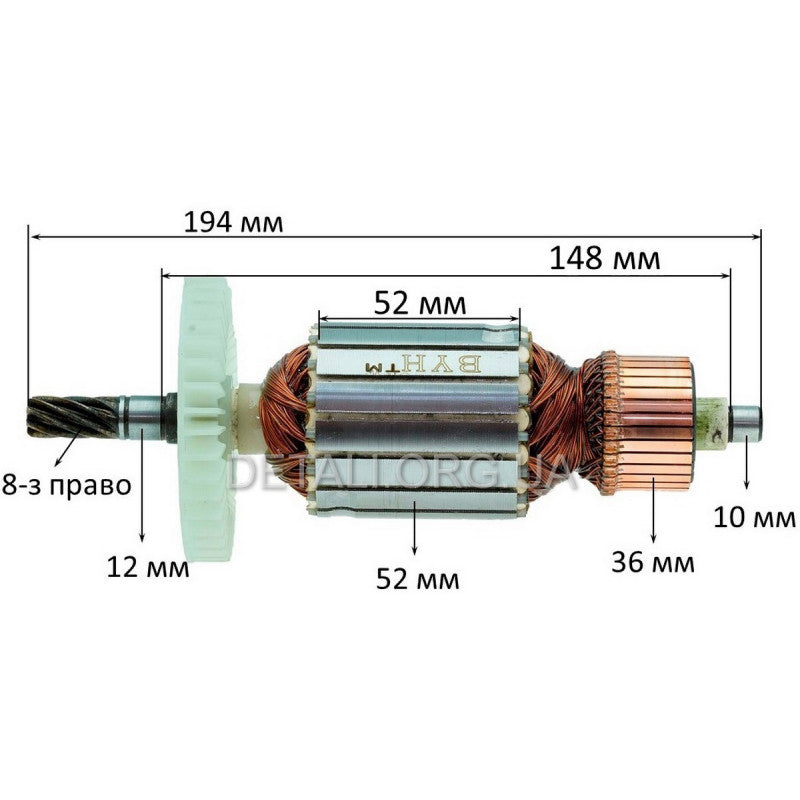

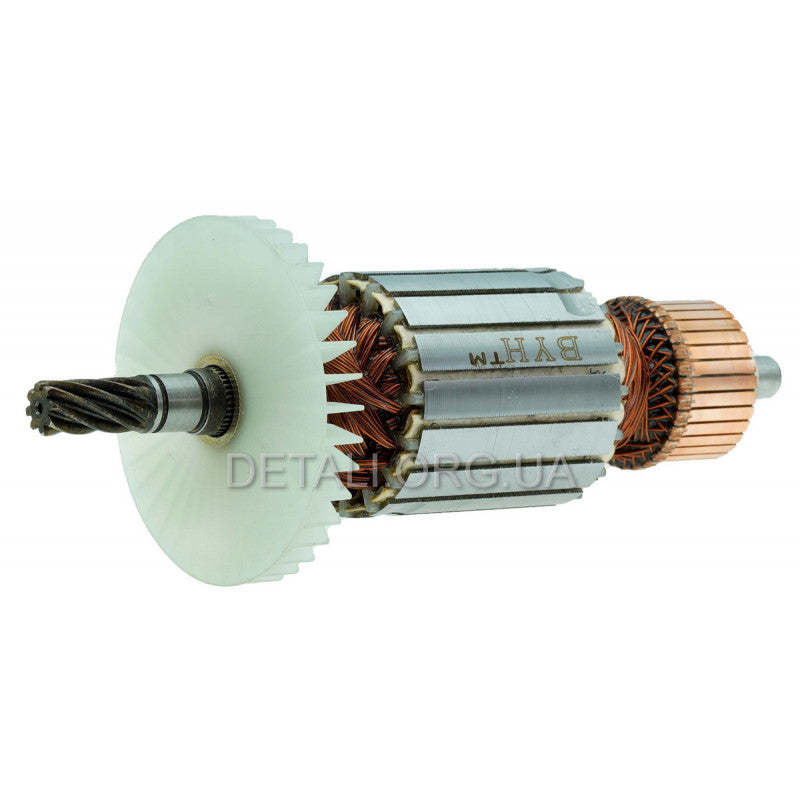

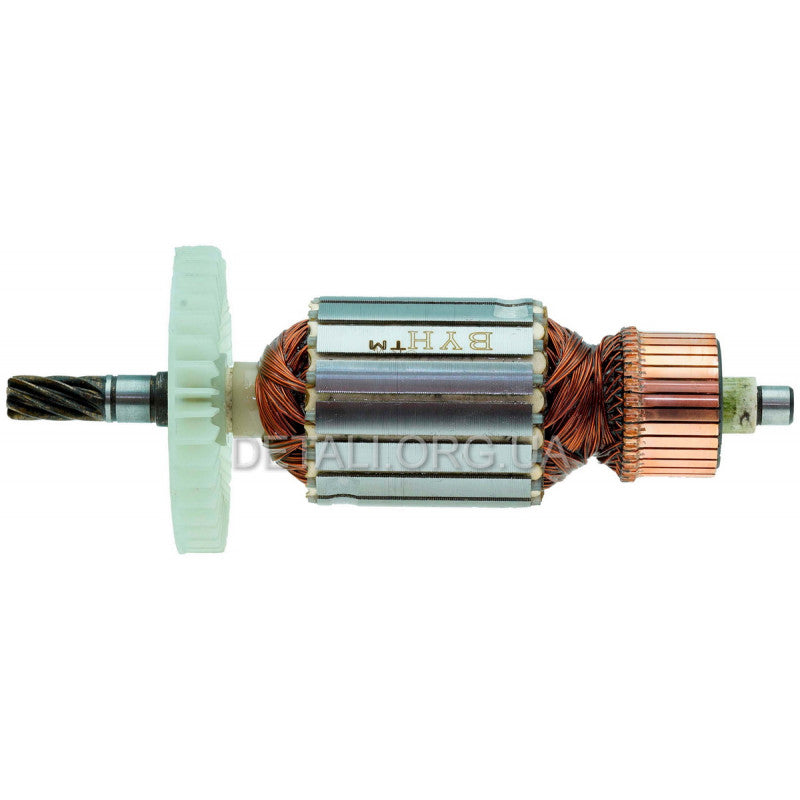

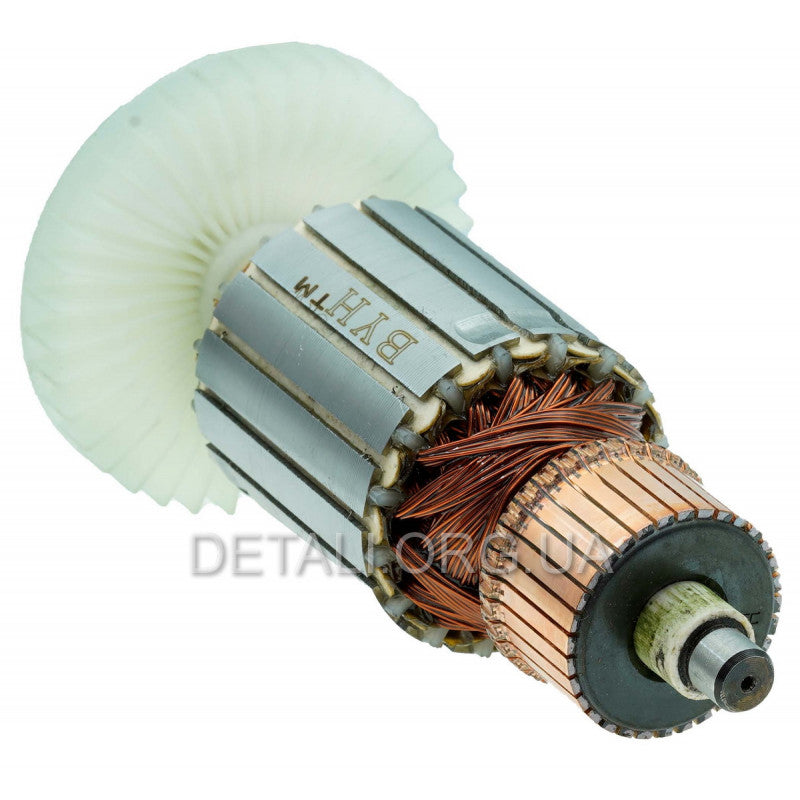

Electric motor armature (rotor) with windings diameter 52 and total length 194, 8 teeth, for repair circular saw Bautec 3250, PXCS221, Wintech WCS--2100, Craft-Men CTS-221, Grand ПД-210-2400, Pro Craft KR250.. Armature windings length 53, bearings 10 and 12 mm, notched shank diameter 11.5 mm, distance between bearings positions is 148 mm.

Parameters:

  • commutator diameter 36
  • upper (front) bearing 12
  • between bearings 149
  • shank 8-teeth right
  • total length 194
  • winding package length 60
  • lower (rear) bearing 10
  • winding package diameter 52
  • Weight, kg 0.938
  • Purpose Circular saws
  • Model CS-2200
  • Type For tool
  • Country of origin China
  • Country of brand Ukraine
  • Purpose Circular saws
  • Tool type Circular saw

Make sure to check your measurements before ordering!
