Description

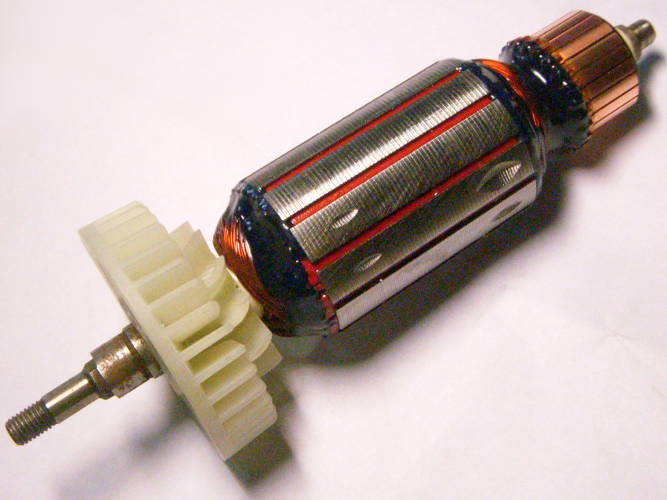

Anchor KC-150 of the wall chaser ELPROM EMRSH-150-1700, EMRSH-950-125, length 181 mm
The diameter and length of the winding package are 41 mm and 55 mm
Between bearings 142 mm
For gear, thread with two cuts
Overall length of anchor (overall dimensions), mm - 181
Diameter of laminated frame, mm - 41
Length of laminated frame, mm - 56
Collector diameter, mm - 28
Front shaft thread, mm - 7
Front shaft fit under gear, mm - 7
Front bearing fit, mm - 12
Rear bearing fit, mm - 7
Distance between bearing seats, mm - 142
The small gear on the armature shaft is splined and is secured to the shaft with a nut.
