Description

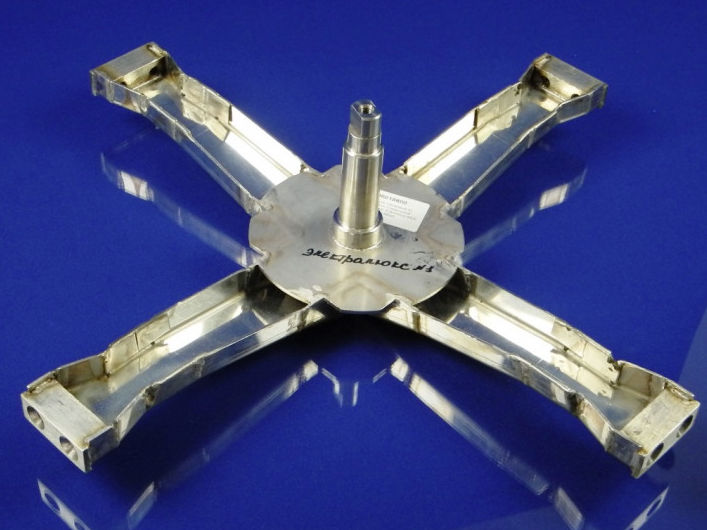

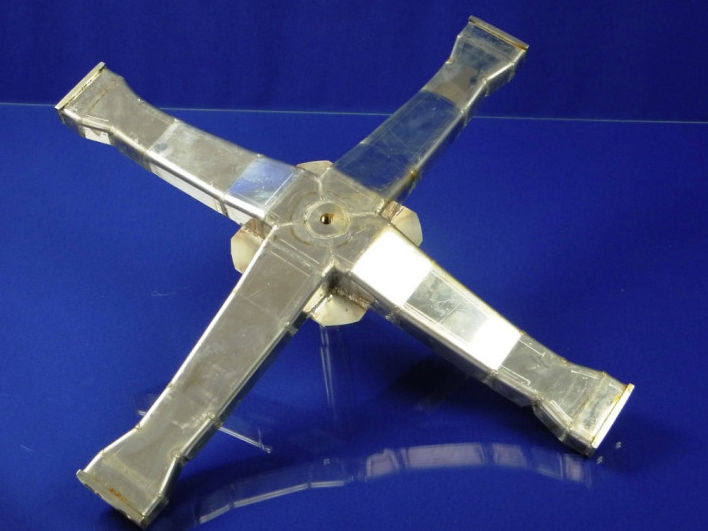

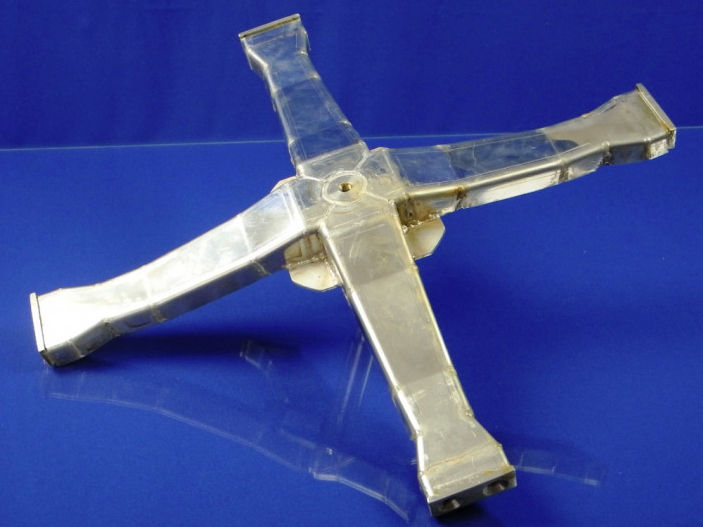

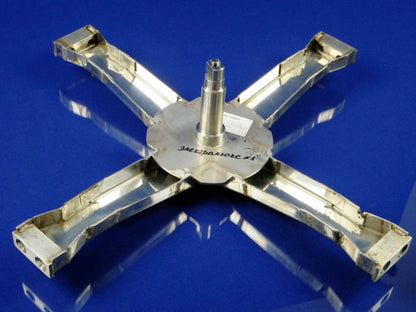

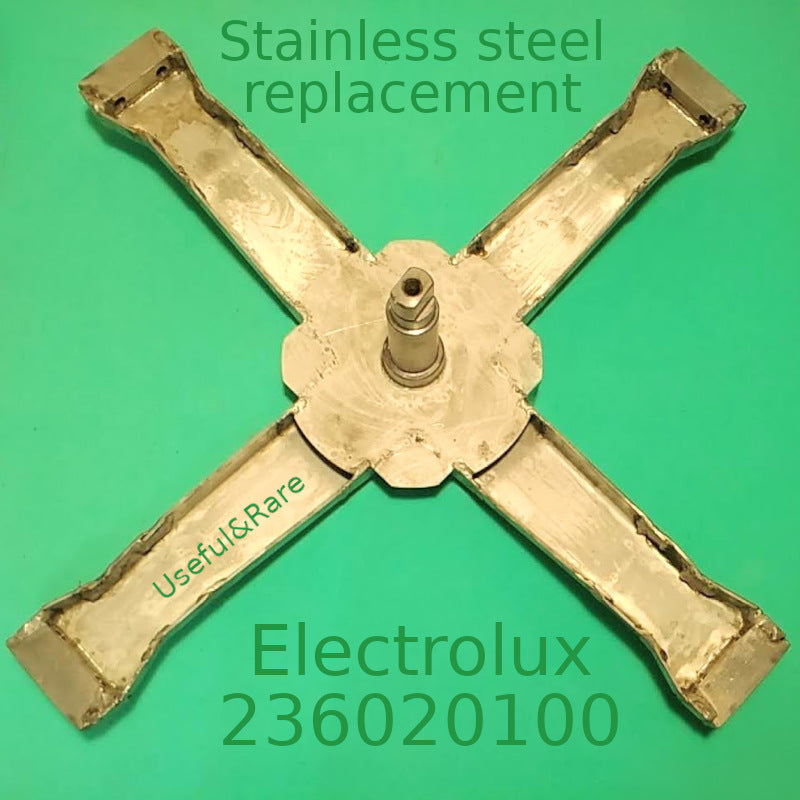

High-strength custom made Drum support replacement spider (236020100) for Zanussi-Electrolux-AEG washing machine, with long 100 mm shaft. Made in the custom factory from solid stainless steel for the durable work purpose
Parameters:

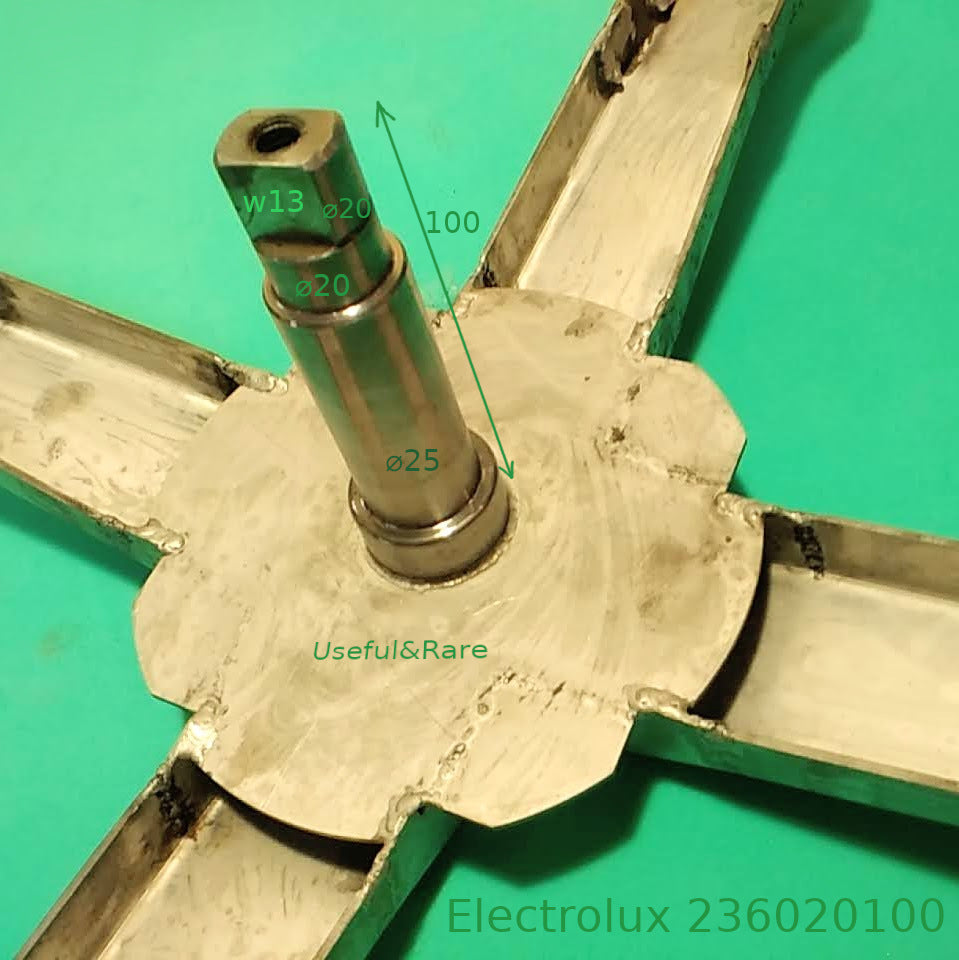

| Inner bearing diameter | 25 mm (6205) |
| Outer bearing diameter | 20 mm (6204) |
| The distance from the sleeve to the outer bearing | 60 mm |
| The distance from the seat of the outer bearing to the end of the shaft | 27 mm |
| Material | Stainless Steel |
| Bushing height | 14 mm |
| Beam length | 240 mm |
| Pulley mounting type | bolt M8 |
| The diameter of the sleeve for the stuffing box | 32.5mm |
| The length of the shaft from the stuffing box sleeve to the pulley | 86 mm |
| The diameter of the landing of the pulley | 20x13 mm |

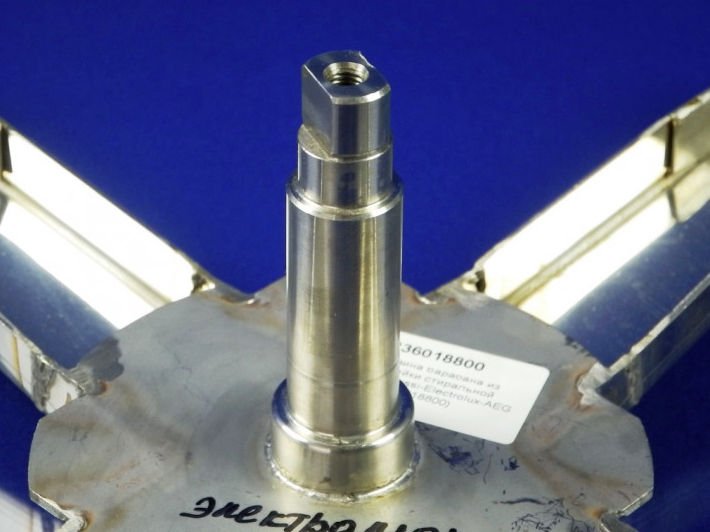

| Shaft length | 100 mm |
