Description

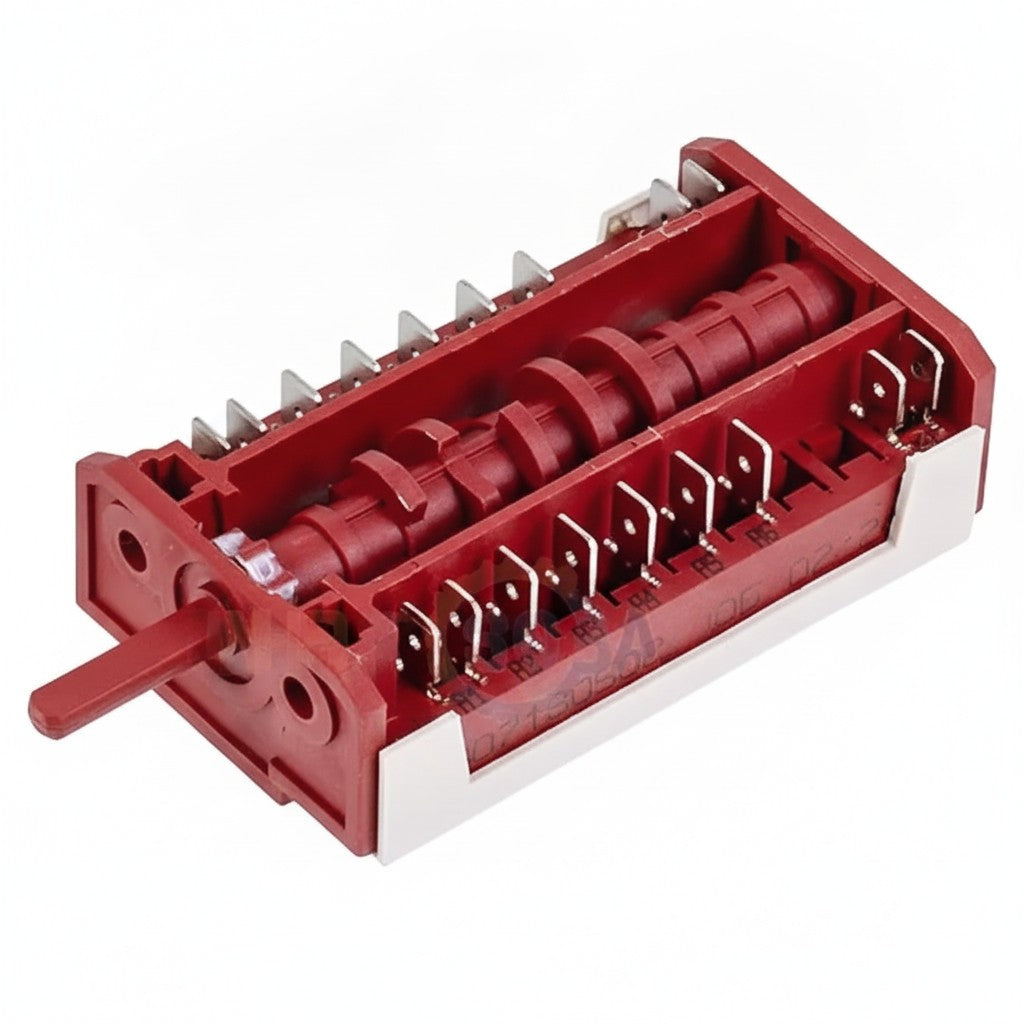

Zanussi T150 (3570598015) 8-Position Oven Function Selector Switch
The original T150 multi-position function selector switch (part number 3570598015) is designed to control heating functions and operating modes for electric ovens and cookers from the Electrolux Group (Zanussi, Electrolux, AEG, Zanker). The part switches electrical circuits, connecting the upper, lower, or circular heating elements (heating elements), grill, and convection according to the selected control knob position.
The switch housing is made of heat-resistant, non-flammable plastic, and the contacts are made of highly conductive alloys resistant to burning and high current heating, ensuring a long and safe service life for the part.
Key Advantages and Features:
- Original Electrolux Group Part: Guarantees 100% compatibility with factory connectors, correct contact group distribution, and long service life.
- T150 Heat-Resistant Housing: Designed for continuous operation in high-temperature conditions (up to +150 °C) inside the cooker body.
- Precise Position Detent: A reliable cam shaft ensures smooth switching and clear locking in each of the 8 positions.
- High Contact Wear Resistance: The contact group is resistant to electrical arcing and prevents terminal melting during frequent switching.
Compatibility and Application:
The 8-position switch (7 operating modes + zero position "0") is used in cookers and built-in ovens of the following brands:
- Zanussi
- Electrolux
- AEG
- Zanker
Before ordering, be sure to check the original part code (3570598015 / T150), the switch brand on the old housing, as well as the number of operating positions and terminal layout.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part Type | Function selector switch (power selector) |
| Article / Part Code | 3570598015 (replaces 357059801) |
| Housing Marking | T150 |
| Number of Switching Positions | 8 (7 operating modes + "0") |
| Compatible Brands | Zanussi, Electrolux, AEG, Zanker |
| Maximum Operating Temperature | T150 (up to +150 °C) |
| Connection Type | Faston terminals (flat spade connectors) |
Package Includes:
- Zanussi T150 3570598015 Oven Function Selector Switch — 1 pc.
Technician's Tip: Before removing the old switch, be sure to disconnect the oven from the power supply. Take a clear photo of the wire connections to the old selector's contacts—this will prevent errors when reconnecting phases and heating elements. If the connectors (fastons) on the wires are burnt or loose, be sure to clean them or crimp new terminals, otherwise poor contact will lead to premature failure of the new switch.
Compatible Models
AEG BOB35702XV 944064861 03; Electrolux EOB3712W 949711548 00; EOB3712X 949711549 00; EOB3712X 949712258 00; EOB50000X 949712648 00; EOB50000X 949712868 04; EOB50000X 949713107 04; EOB53003X 949712634 00; EOB53003X 949712727 02; EOB53004X 949713061 04; EOB53004X 949713967 00; EOB6711X 949711673 01; EOB6711X 949712087 00; EON6701FIX 949721417 00; EON6701FIX 949721738 00; EON6701FXN 949721494 00; EON6701FXN 949721739 00; EON6701FXP 949721495 00; EON6701FXP 949721740 00; EZA5420AOK 944064669 01; EZA5420AOW 944064668 01; EZA5420AOX 944064670 01; EZB3400AOX 944064619 01; EZB3410AOK 944064666 01; EZB3410AOW 944064667 02; EZB3410AOX 944064622 01; EZB3411AOX 944064800 00; EZB3430AOK 944064665 01; EZB3430AOX 944064748 01; EZB53400AX 944064630 01; EZB53410AK 944064654 01; EZB53410AW 944064651 01; EZB53410AX 944064631 01; EZB53430AB 944064656 01; EZB53430AK 944064653 01; EZB53430AW 944064650 01; EZB53430AX 944064633 01; EZB5430ANX 944064753 00; EZB55420AK 944064649 01; EZB55420AW 944064648 01; F6650EX 944064580 00; FQ72XEV 949713178 02; OE6MX 949712817 00; OE6MX 949713003 06; OEEB4330K 944064784 00; OEEB4330W 944064785 00; OEEB4330X 944064783 00; OPEA4300X 944064744 01; OPEB4300X 944064931 00; RZB3400AOX 944064638 02; SU4400W 949711772 00; SU4400W 949712212 00; SU4400X 949711773 00; SU4400X 949712213 00; SU4500W 949712804 02; SU4500W 949713108 02; SU4500W 949713939 00; SU4500X 949712805 02; SU4500X 949713109 02; SU4500X 949713940 01; ZOB865QXR 949712228 00; ZOU653FTIW 949721421 00; Zanker ZKB7528X 949711807 00; ZOB581XQ 949713105 01; Zanussi OPZB2300C 949716447 01; OPZB2300C 949716562 01; OPZB2300P 949716449 01; OPZB2300R 949716448 01; OPZB2300R 949716563 01; ZBC749N 949711693 00; ZBC749N 949712210 00; ZBM761N 949710853 00; ZBM761N/1 949711024 03; ZBM761W 949710854 00; ZBM761W/1 949711025 03; ZBM761X/1 949711026 04; ZCM760GX 943169009 00; ZH84N/ZHM 949720846 00; ZH84W/ZHM 949720845 01; ZH84X/ZHM 949720847 01; ZHM733IN 949720880 01; ZHM733IN 949720598 00; ZHM733IX 949720599 00; ZHM733IX 949720881 00; ZHM733N 949720878 01; ZHM733N 949720595 00; ZHM733N 949720880 00; ZHM733W 949720594 00; ZHM733X 949720879 01; ZHM733X 949720596 00; ZHM761PN 949720736 00; ZHM761PN 949720768 00; ZHM761PN/1 949720870 00; ZHM761PN/I 949720870 02; ZHM761PW 949720737 00; ZHM761PW 949720769 00; ZHM761PW/1 949720871 02; ZHM761PW/I 949720871 01; ZHM761PX/I 949720872 03; ZHM763N 949721384 00; ZHM763W 949721383 00; ZHM763X 949721385 00; ZHM833IN 949720883 01; ZHM833IN 949720731 00; ZHM833IN 949720775 00; ZHM833IW 949720882 01; ZHM833IW 949720730 00; ZHM833IW 949720774 00; ZHM833IWA 949720985 02; ZHM833IX 949720884 01; ZHM833IX 949720732 00; ZHM833IX 949720776 00; ZHM833IXA 949720986 02; ZHM834IW 949721549 00; ZHM834IW 949721844 00; ZHM834IX 949721550 00; ZHM834IX 949721845 00; ZHM835X 949722134 02; ZHM835X 949722210 00; ZHM835X 949722294 00; ZOA35701XK 949716903 06; ZOA35722XV 944064746 02; ZOB182NC 949712784 00; ZOB32701BK 949716239 06; ZOB32701WK 949716401 00; ZOB32701XK 949716240 06; ZOB32701XK 949716263 03; ZOB32702BK 949716241 08; ZOB32702BK 949716293 08; ZOB32702WK 949716319 08; ZOB32702XD 949716242 08; ZOB32702XD 949716256 10; ZOB32707XK 949716528 02; ZOB334W 949711686 00; ZOB334W 949712204 00; ZOB334X 949711687 00; ZOB334X 949712205 00; ZOB33701CR 949716321 04; ZOB33701CR 949716553 01; ZOB33701MR 949716320 04; ZOB33701MR 949716552 01; ZOB33701PR 949716322 05; ZOB33701PR 949716554 00; ZOB35701XK 949716211 08; ZOB35701XK 949716261 07; ZOB35701XV 944064720 01; ZOB35702BV 944064722 01; ZOB35702WV 944064723 01; ZOB35702XV 944064721 01; ZOB35722XV 944064745 01; ZOB35809XK 944064518 04; ZOB382W 949712778 02; ZOB382X 949712779 02; ZOB382X 949713106 02; ZOB382X 949713938 01; ZOB471X 949712673 04; ZOB472W 949712622 05; ZOB472X 949712623 06; ZOB481NQ 949712781 03; ZOB481NQ 949713103 02; ZOB481NQ 949713935 00; ZOB481WQ 949712780 03; ZOB481XQ 949712782 03; ZOB481XQ 949713104 03; ZOB481XQ 949713936 00; ZOB532702B 949716298 08; ZOB581XQ 949712783 03; ZOB581XQ 949713105 03; ZOB581XQ 949713937 00; ZOB647QN 949711689 00; ZOB647QN 949712207 00; ZOB647QW 949711688 01; ZOB647QW 949712206 00; ZOB647QX 949711690 01; ZOB647QX 949712208 00; ZOB667QA 949711692 00; ZOB667QX 949711691 01; ZOB667QX 949712209 00; ZOB680XS 949712742 01; ZOB689SW 949711737 00; ZOB689SX 949711736 01; ZOB689SX 949712331 00; ZOB689W 949711731 00; ZOB689W 949712326 00; ZOB689X 949711730 00; ZOB689X 949712327 00; ZOB735701X 949716301 03; ZOB765X 949711988 00; ZOB765X 949712231 00; ZOB780W 949712735 01; ZOB780X 949712736 05; ZOB780X 949713903 01; ZOB865QA 949711534 00; ZOB865QA 949711824 00; ZOB865QAR 949711536 00; ZOB865QAR 949711826 00; ZOB865QAR 949712229 00; ZOB865QX 949711533 00; ZOB865QX 949711823 01; ZOB865QX 949712226 00; ZOB865QXR 949711535 00; ZOB865QXR 949711825 01; ZOB891X 949711476 02; ZOB891X 949711857 00; ZOB891X 949712243 00; ZOB892QN 949711663 00; ZOB892QW 949711662 00; ZOB892QW 949712074 00; ZOB892QX 949711664 01; ZOB892QX 949712076 00; ZOB892X 949711661 00; ZOB892X 949712073 00; ZOB892X 949712411 00; ZOB893QA 949711666 00; ZOB893QX 949711665 01; ZOB893QX 949712077 00; ZOG645IX 949721371 00; ZOG645IX 949721874 00; ZOU334W 949721431 00; ZOU334W 949721823 00; ZOU334X 949721432 00; ZOU334X 949721824 00; ZOU379FTX 949722218 00; ZOU379FX 949722074 01; ZOU481NQ 949722102 00; ZOU481NQ 949722225 01; ZOU481XQ 949722103 04; ZOU481XQ 949722226 02; ZOU481XQ 949722278 00; ZOU581XQ 949722104 02; ZOU592X 949722102 02; ZOU647QN 949721434 00; ZOU647QN 949721790 00; ZOU647QW 949721433 00; ZOU647QX 949721435 01; ZOU647QX 949721791 00; ZOU652IN 949721173 00; ZOU652INH 949721195 00; ZOU652IW 949721172 01; ZOU652IWH 949721194 01; ZOU652IX 949721174 01; ZOU652IXH 949721196 01; ZOU653FTIW 949721411 00; ZOU653FTIW 949721421 01; ZOU653FTIX 949721412 00; ZOU653FTIX 949721422 00; ZOU653FTIX 949721735 00; ZOU660IX 949721233 01; ZOU660XI 949721081 00; ZOU667QN 949721486 00; ZOU667QX 949721436 01; ZOU667QX 949721792 00; ZOU891W 949721271 01; ZOU891X 949721272 02; ZOU891X 949721801 00; ZOU984FTX 949721270 01; ZOU984FTX 949721457 00
