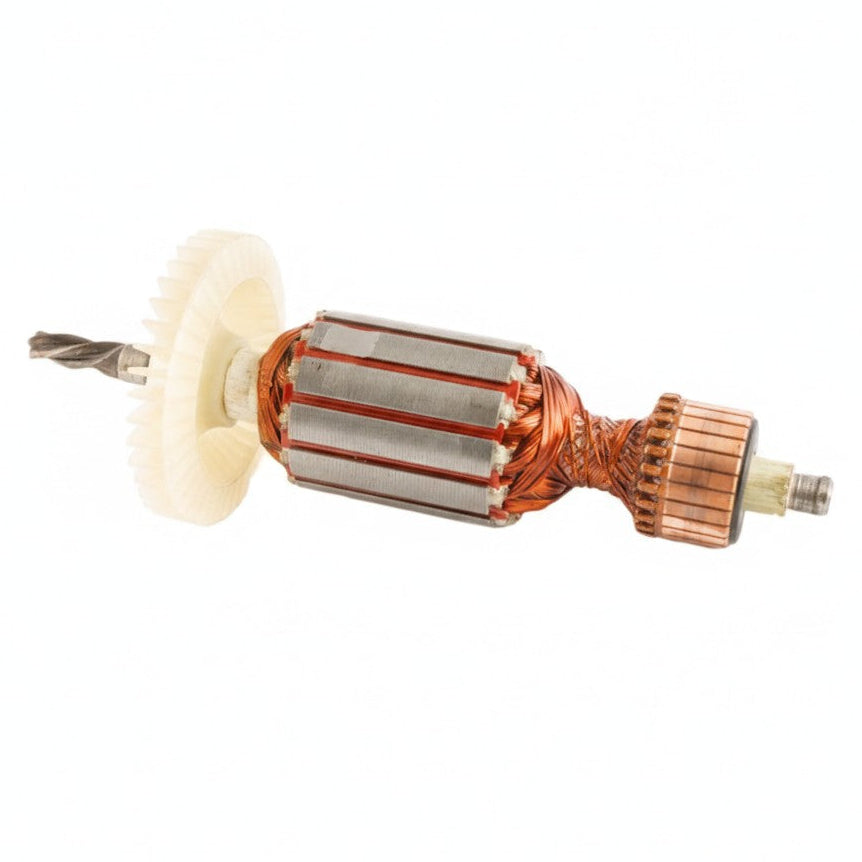

Zenit Drill Armature ZD-1100 M (35x159 mm, 4 teeth left)

The armature (rotor) is designed to restore the functionality of the Zenit ZD-1100 M electric drill. The part is manufactured in strict accordance with all geometric parameters and technical requirements of the manufacturer.

• Iron core (winding) diameter (D1): 35 mm;
• Winding core length: 38 mm
• Total length (L1): 159 mm;
• Number of teeth and slant (T): 4 teeth left;
• Commutator diameter (d2): 25 mm;
• Shank / front part: teeth;
• Rear and front bearing diameters (d3/ d4): 7 / 8 mm;
• Distance between bearings (L2): 125 mm;
