Zenit ZPC-1950 circular electric saw Shaft L51 d8*12*(15*10)

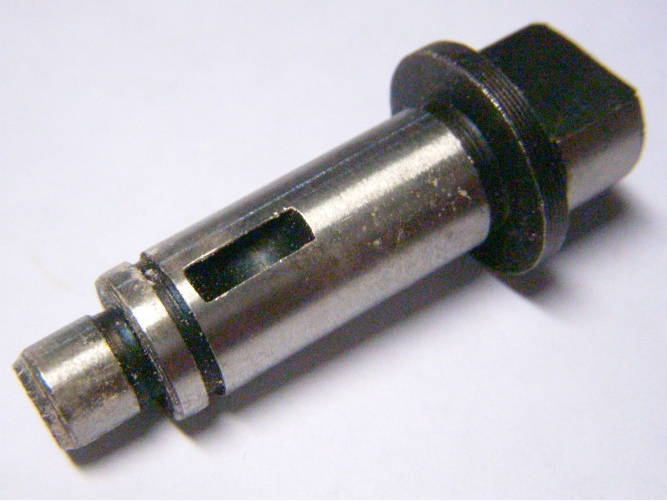

Spindle shaft for the Arsenal PD-190, FORTE CS 185, and Zenit ZPC-1950 M (834313) circular electric saw

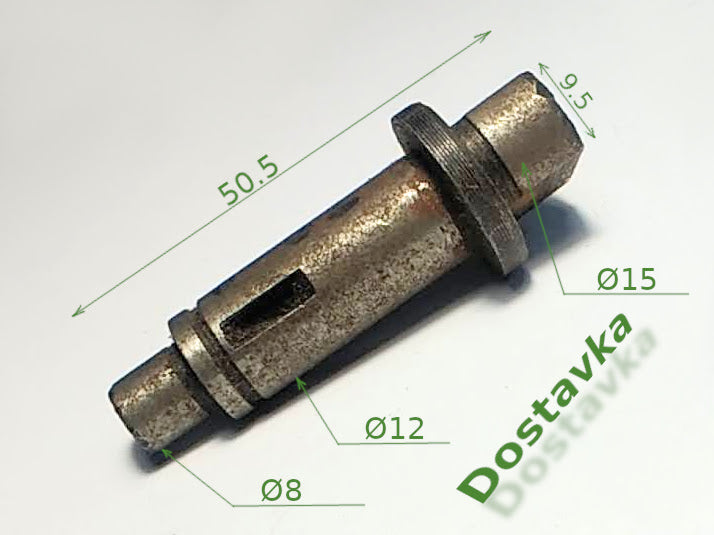

Installation dimensions:

• overall length 51 mm,
• diameters 8, 12, 15
• between cuts 10 mm (oval 9.5*15 mm)
• Bearing seat diameter 8 mm
• The diameter of the gear space is 12 mm
