Description

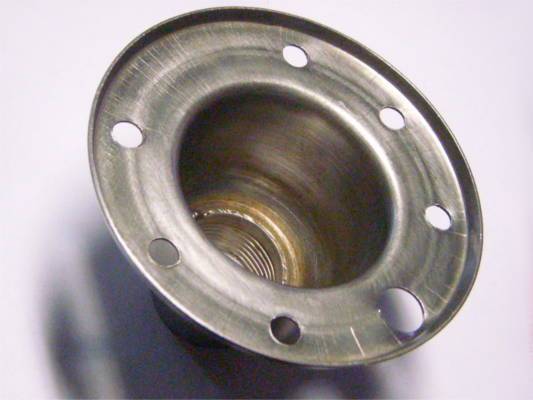

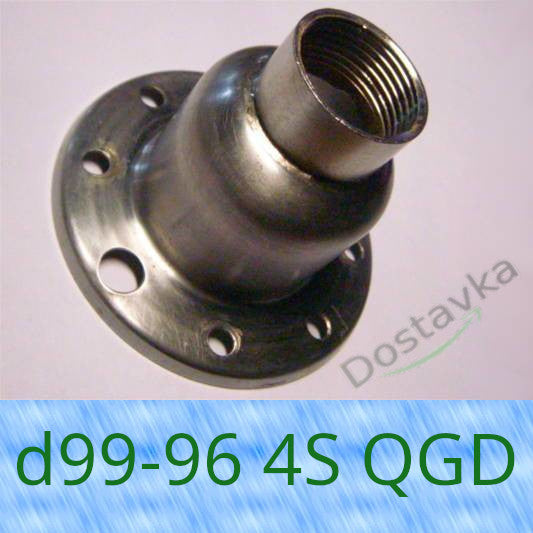

Upper pressure flange-pipe of the submersible pump series 4SQGD (d99*h70) (G1-B) (stainless) Sprut (A36): 4SQGD1,2-50; 1.2-45-0.28; 4SQGD2.5-60-0.75; 4SQGD2,5-140-1,1: Sprut 4SQGD1,2-50; 4SQGD2.5-60-0.75; 4SQGD1.8-50-0.5 4SQGD2.5-60-0.75; 4SQGD 2.5-140-1.1; 4SQGD 1.8-100-0.75; 4S QGD 1.2-50-0.37, 4SQGD 1.2-45-0.28 increased power 2.6 kW
Outer diameter 99 mm
Inner seat diameter 96 mm
For 7 mounting holes
Inner diameter of the thread with a caliper 31 mm
Overall height 69 mm
Discharge pipe 4SQGD (Ø99*Ø96*68) (G1-B) (stainless steel) NPO/Sprut (A36)
Suitable for models:
(A36): 4SQGD1,2-50-0,37; 4SQGD1,8-50-0,5 4SQGD2,5-60-0,75; 4SQGD2,5-140-1,1; 4SQGD 1,8-100-0.75
