Description

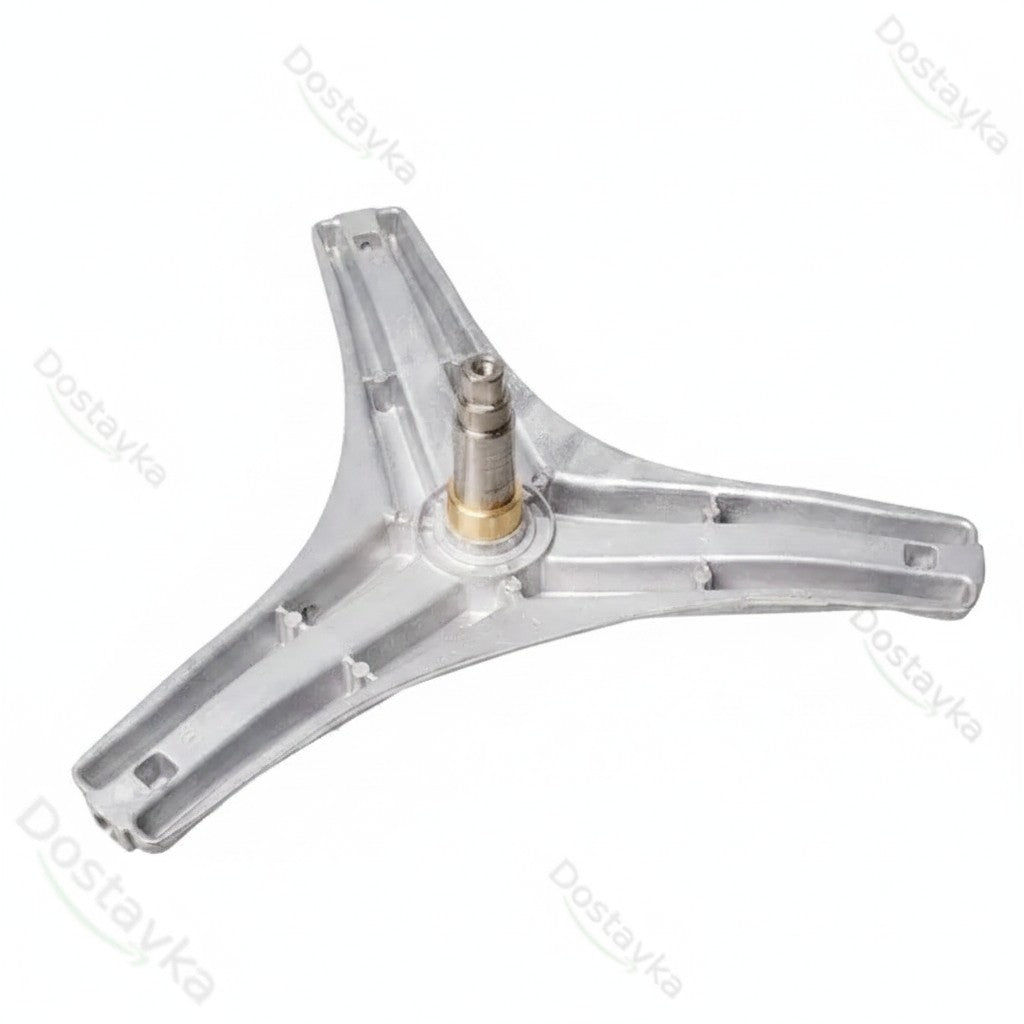

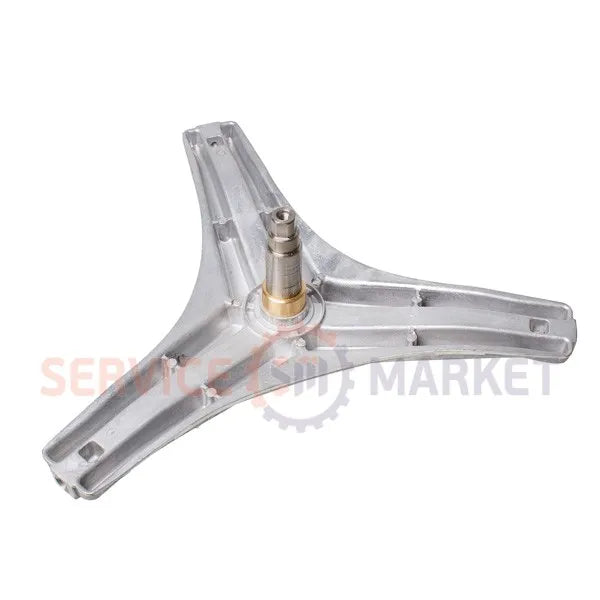

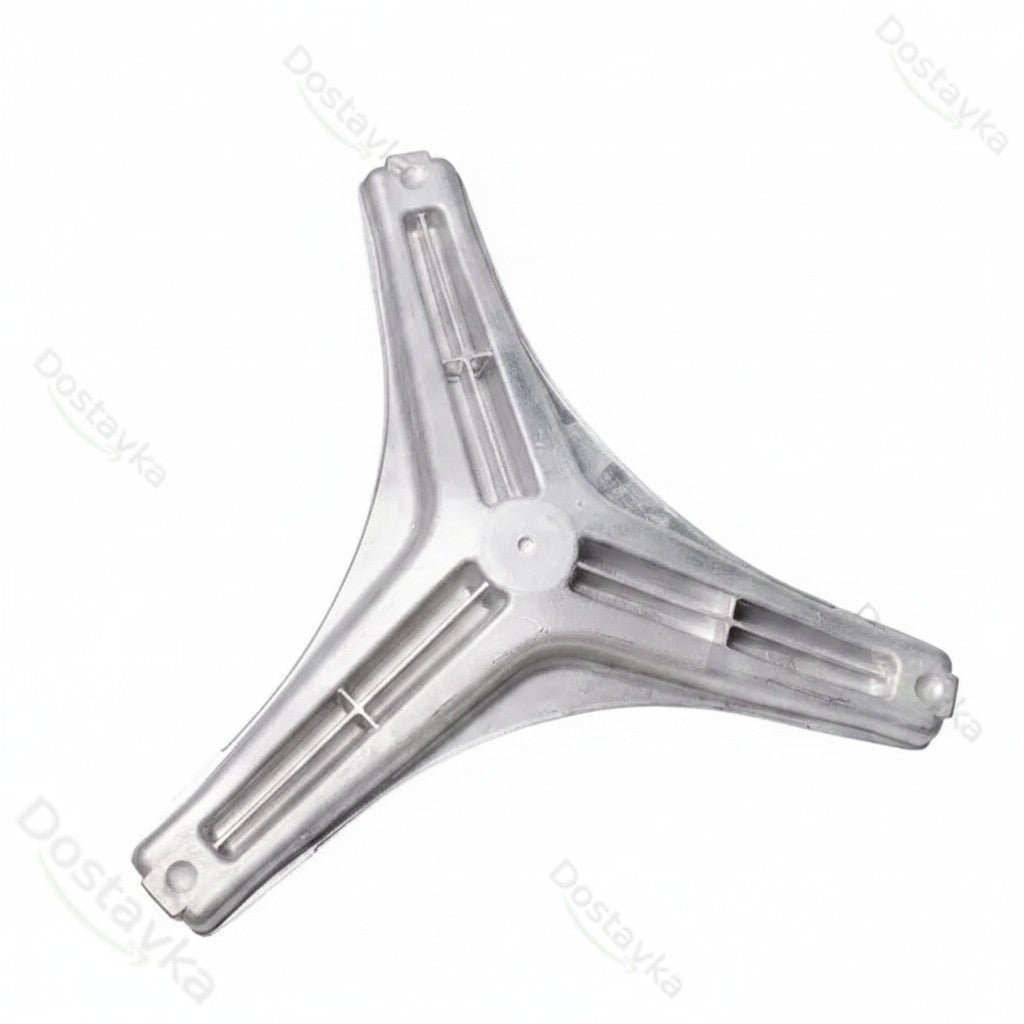

The COD.736 drum spider is designed for installation in Daewoo washing machines. The product is made of a high-quality aluminum alloy with a pressed-in brass bushing, ensuring reliable operation of the rotation assembly.
- Brand: EBI;
- Part type: spider and support units;
- Brand compatibility: Daewoo;
- Article: COD.736;
- Bearing 1 seat diameter: 25 mm;
- Bearing 2 seat diameter: 30 mm;
- Oil seal bushing diameter: 37 mm;
- Oil seal bushing height: 18 mm;
- Bushing material: brass alloy;
- Pulley mounting: shaft fit 20x18 (2 flats) and M10 internal shaft thread;
- Flat height: 16 mm;
- Total shaft length: 100 mm;
- Distance between bearing seats: 49 mm;
- Radius from shaft axis to arm end: 241 mm;
- Drum mounting: 3 holes with M8 thread;
- Material: aluminum alloy;
- Suitable bearings: 6205, 6206;

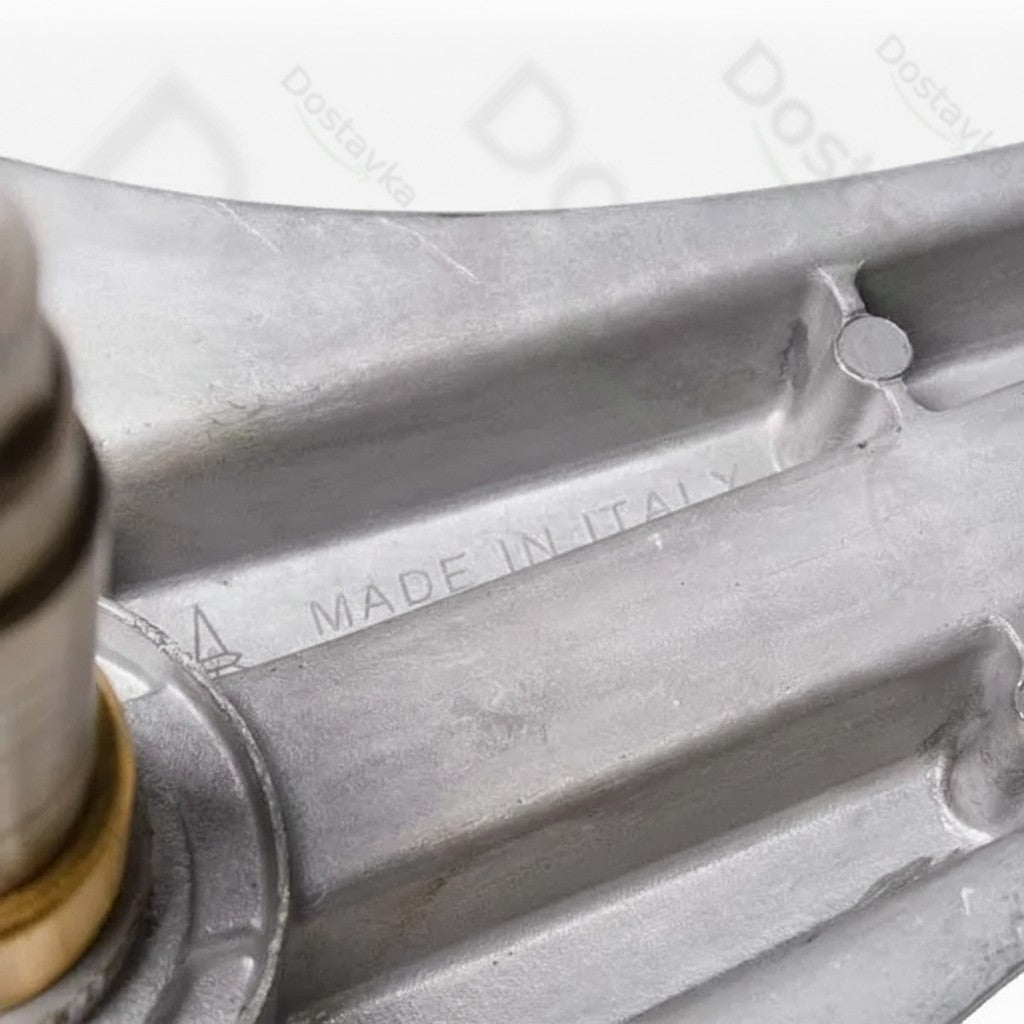

- Country of origin: Italy.
Compatible Models
Daewoo DWD-CV701JC DWD-CV701PC DWD-CV702S DWD-CV702W DWD-F1011 DWD-F1011S DWD-F1011S-IPX4 DWD-F1012 DWD-F1012S DWD-F1013 DWD-F1021 DWD-F1021S DWD-F1022 DWD-F1022S DWD-F1023 DWD-F1031 DWD-F1041 DWD-F1041S DWD-F1041T DWD-F1042S DWD-F1042SP DWD-F1042T DWD-F1043 DWD-F1052 DWD-F1081 DWD-F1082 DWD-F1083 DWD-F1211 DWD-F1212 DWD-F1212F DWD-F1212S DWD-F1213 DWD-F1232 DWD-F1241S DWD-F1242S DWD-F1281 DWD-F1282 DWD-F1283 DWD-FV5241 DWD-M1011 DWD-M1017 DWD-M1017A DWD-M1021 DWD-M1029A DWD-M1031 DWD-M1032 DWD-M1033 DWD-M1051 DWD-M1051U DWD-M1052 DWD-M1053 DWD-M1054 DWD-M8011 DWD-M8021 DWD-M8031 DWD-M8051 DWD-MT1041 DWD-MT8041 DWD-NT1011 DWD-NT1012 DWD-NT1014 DWD-NT1211 DWD-NT1212 DWD-SV6021
