Engine anchor for angle grinder Eurotec, Izhmash, Craft-tec PXAG227 180/1900

Name: Engine anchor for angle grinder Eurotec, Izhmash, Craft-tec PXAG227 180/1900
Brand: Dostavka
SKU: 11031
Price: 647.04 UAH
Availability: InStock
Rating: 5 (11 reviews)

Engine anchor for angle grinder Eurotec, Izhmash, Craft-tec PXAG227 180/1900

SKU: 11031

€13.48 EUR

₴647.04 UAH

Sale It's over

Shipping costs are calculated when placing your order.

Parameters:

diameter_1 : 41

diameter_3 : 12

diameter_4 : 8

diameter_5 : 9

length_1 : 185

length_2 : 147

length_3 : 57

thread : 8

We deliver by regular mail with track number

Return & Warranty policy

View all information

Description

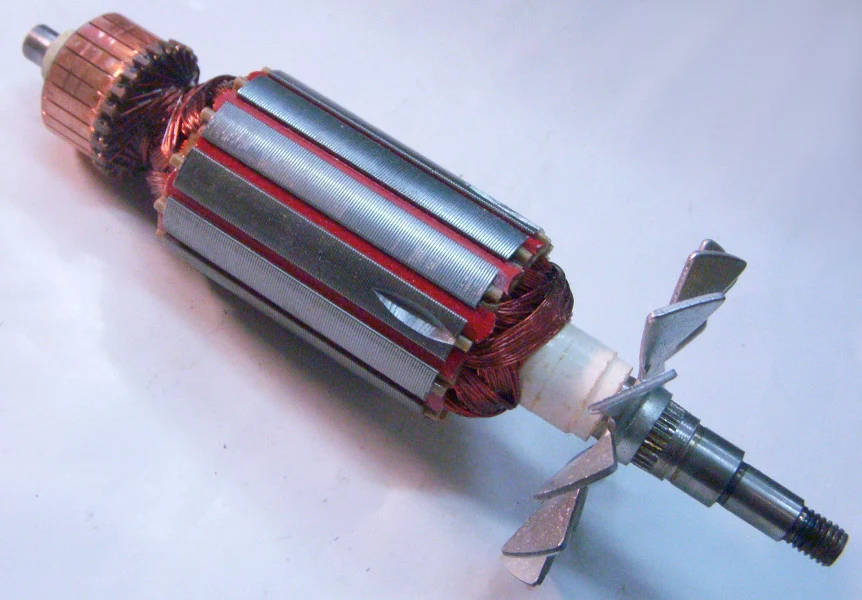

Anchor of the angle grinder for the 180th circle WS180/2Y, Stern AG-180Q, Vityaz MSHU-180/1500, Ritm MSHU-180/1500, Elprom EMSU-180/1500, Proton MSHU-180/1250, Vorskla PMZ1.2-180V, Internool DT-0218, Craft-tec PXAG227 180/1900, Einhell BWS 180/1900, Eurotec AG-309, Zenit, Start, Izhmash IShM 1900-180 size 185 mm, diameter 41 mm, between bearings 147 mm, end thread 8 mm, keyway fixation on the shaft 9 mm, distance from the beginning of the thread to the plane impeller 28.5 mm. Tailpiece (front part) - key + thread, Rear/front bearing diameters 8/12 mm, Iron package length: 57 mm. Seat for gear: 9 mm. If the brushes on the collector spark or you see an arc, then you have incorrectly connected the anchor on the brush holders. This is not a problem, just change the polarity on the brushes. If you do not understand how, send us, we will assemble!
