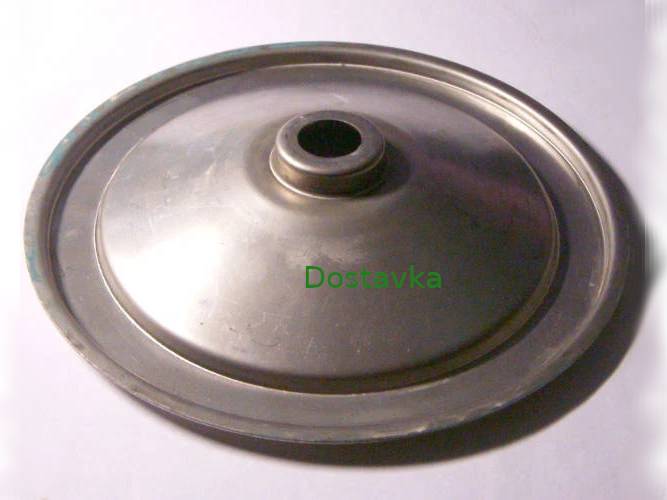

Reflector d173*d18 h8-30 pump Rudes, Rosa, Sprut MJS150 with 8 mm side

Stainless steel reflector for water pump (station) Rosa, Sprut AUJS 1100, MJS150 (stainless steel) (A07), Baffle MJS150 (stainless steel) (A07), Rudes JS100 (B07), Pumps+ JS110X (stainless steel) (A05/015), Rossa JET 100, jy-1000, Gardenlux WPS 0900M, Hydrofor JY-750/3TF

Low side 8 mm
For impeller up to 130 mm

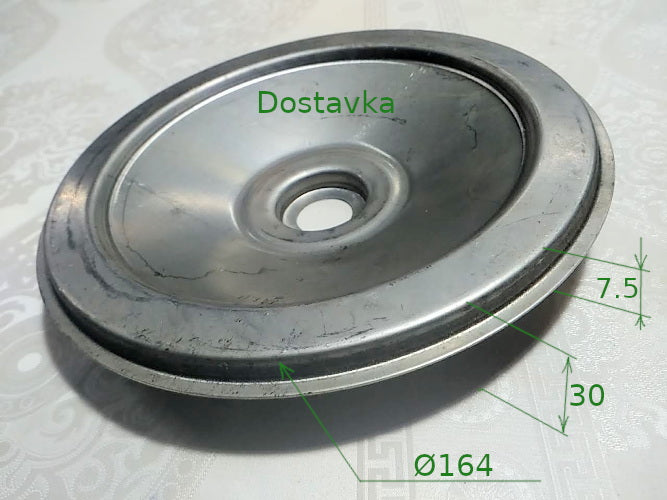

Diameter at the edges 173 mm
Center hole 19mm
Size for fixed counter ring (ceramic in rubber) 30 mm Inner size for wheel ~132 mm

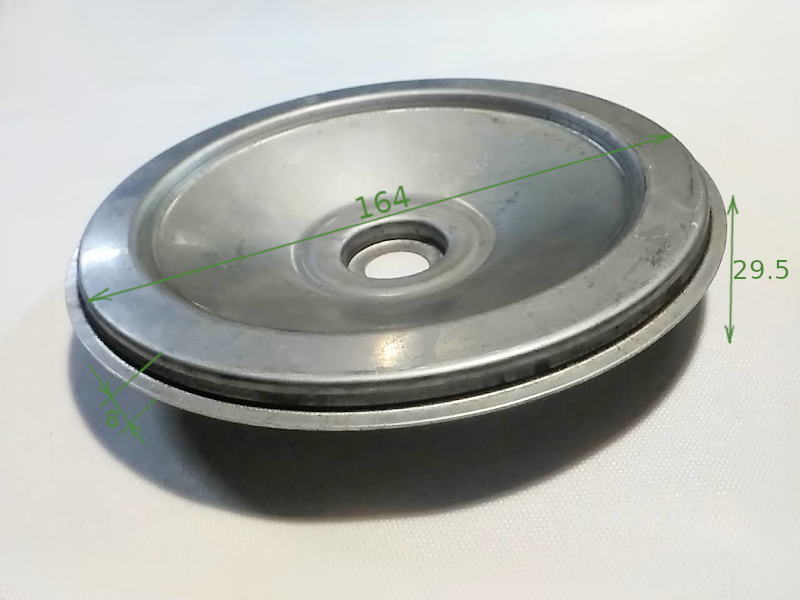

The outer diameter of the flat ring is 163 mm
Flat ring width 18mm
Overall height (depth gauge) ~30 mm
The diameter of the bottom around the central hole is 55 mm
