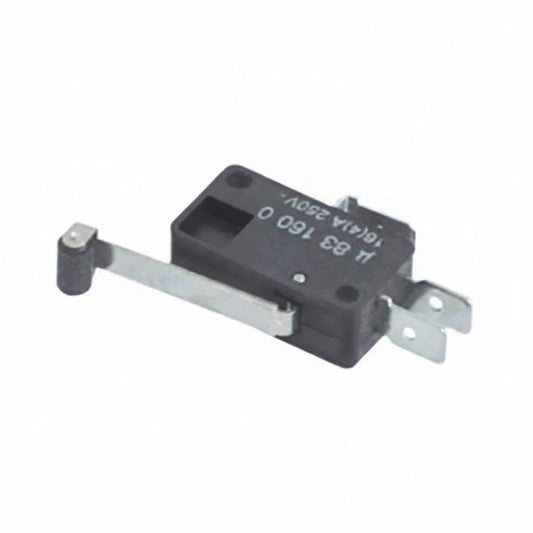

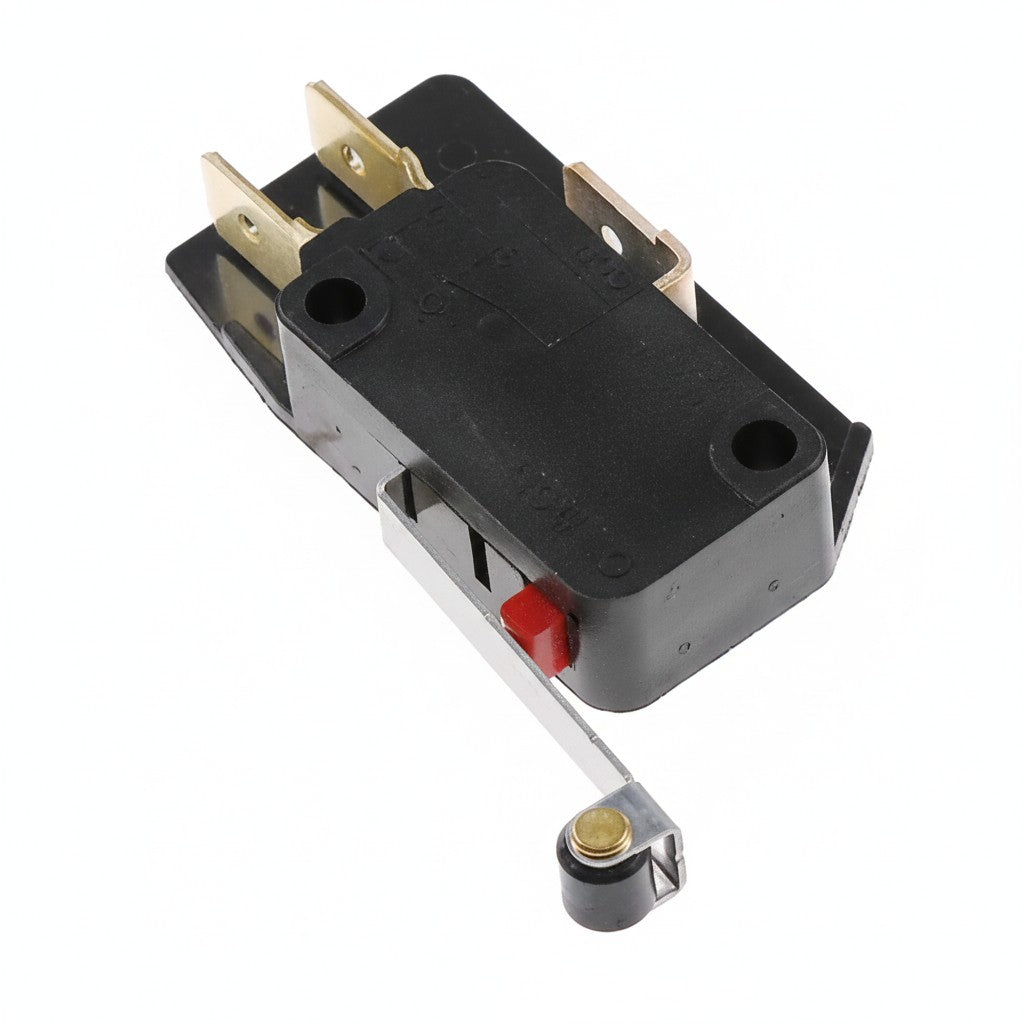

Icematic SF-Maschinen Ice Maker Roller Micro Switch (346876, V-166-1CR5)

Microswitch with a roller for Icematic/Sf-Maschinen 346876 ice maker to control the operation of the device's mechanical units. It performs the function of limiting the movement of moving parts, preventing them from exceeding permissible limits. Thanks to the integrated roller, the switch triggers upon contact with a moving element, ensuring the precision of the mechanism's operation. This increases the reliability and durability of the ice maker, prevents breakdowns, and reduces the risk of overheating or jamming of units. The use of a microswitch contributes to the automation of equipment operation, making its use safer and more efficient.

• Manufacturer part number: 346876;
• Brand compatibility: SF-Maschinen, Icematic, Barline, Scotsman, Simag;
• Type: V-166-1CR5;
• Voltage: 250 V;
• Switching current: 16 A;
• Function: 1CO;
• Model: with roller lever;
• Design: actuated by a roller lever;
• Connection: flat plug;
• Length: 35 mm;
• Length 1: 28 mm;
• Mounting pitch: 22 mm;
• Actuating force: 86 g;
• Maximum ambient temperature: 125 °C;
• Net weight: 0.010 kg;

Compatible Models

Icematic N20L; N20WL; N25BI; N25L; N25LBI; N25LW; N25S; N25SW; N35BI; N35S; N35SW; SF-Maschinen N20; N25
