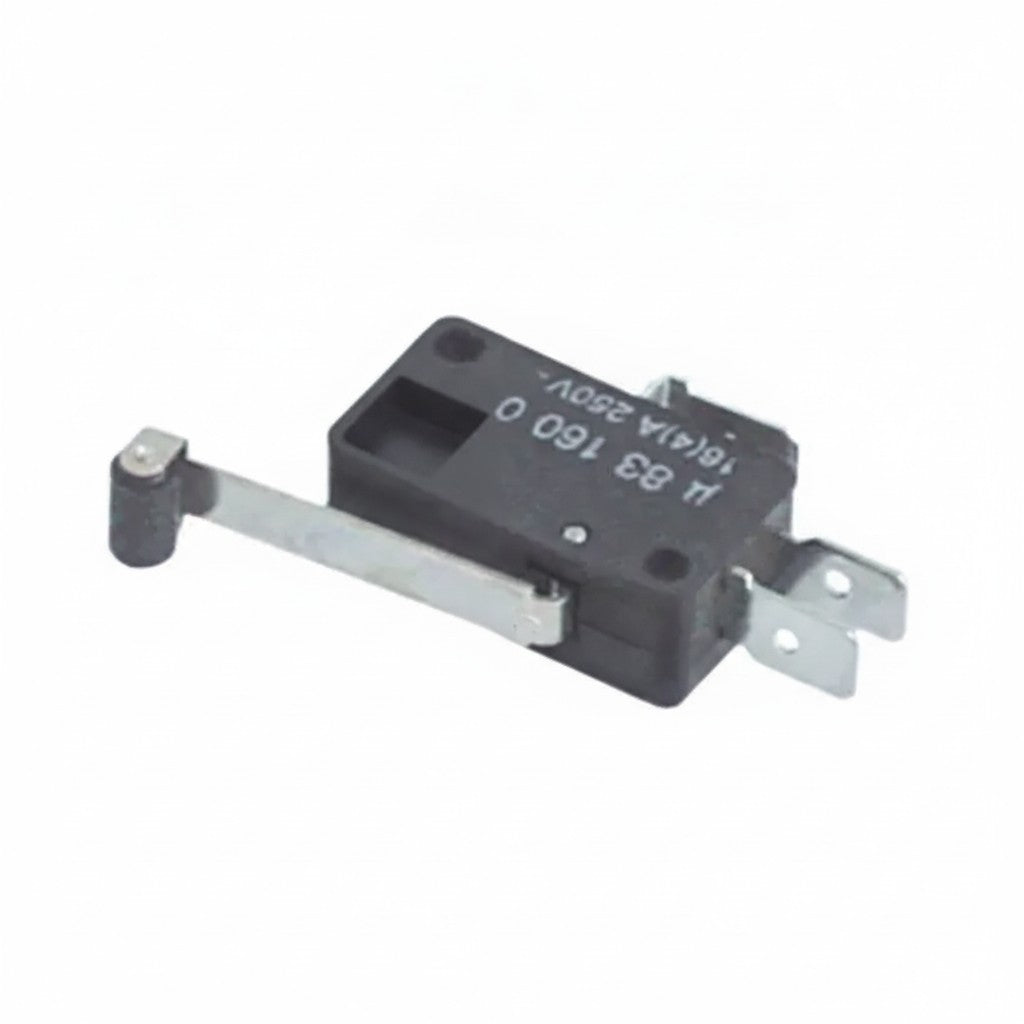

Universal Home Appliance Roller Microswitch (U831606, 345276, 16A, 250V)

The U831606 345276 microswitch with roller is designed to control the operation of a device's mechanical units. It functions as a limit switch, preventing moving parts from exceeding their allowable limits. Thanks to the integrated roller, the switch actuates upon contact with a moving element, ensuring precise mechanism operation. This increases the reliability and durability of the device, prevents breakdowns, and reduces the risk of overheating or jamming of units. Using a microswitch facilitates equipment automation, making its operation safer and more efficient.

• Manufacturer part number: U831606, 345276;
• Brand compatibility: Azkoyen, Domus, ITV, Danube, Silko, Fagor, Gorenje;
• Voltage: 250 V;
• Switching current: 16 A;
• Function: 1CO;
• Connection type: F6.3;
• Model: with roller lever;
• Design: actuated by a roller lever;
• Mounting pitch: 22.2 mm;
• Length: 33 mm / 28 mm;
• Actuating force: 190 g;
• Maximum ambient temperature: 125 °C;
• Color: black;
• Net weight: 0.010 kg;

Compatible Models

Azkoyen M02; Danube DFI27; DFI57; WED13; WED55; Domus DFI13; DFI18; DFI27; DFI57; DFI9; W10; W13; W18; W9; Fagor ACE-061; ACE-101; ACE-102; ACE-201; ACE-202; ACG-061; ACG-101; ACG-102; ACG-201; ACG-202; AE-061; AE-061W; AE-101; AE-101W; AE-102; AE-102W; AE-201; AE-202; AG-061; AG-101; AG-102; AG-201; AG-202; APE-061; APE-061W; APE-101; APE-101W; APE-102; APE-102W; APE-201; APE-202; APG-061; APG-101; APG-102; APG-201; APG-202; COE-061; COE-101; COE-102; COE-201; COE-202; COG-061; COG-101; COG-102; COG-201; COG-202; FE-700; FE-710; FE-720; FE9-00; FE9-05; FE9-05S; FE9-10; FG-710; FG-720; FG9-00; FG9-05; FG9-05S; FG9-10; HEI-10; HEI-10-21; HEI-20; HEM-10; HEM-10-21; HEM-20; HEP-10; HEP-20; HGP-10; HGP-20; HGV-10; HGV-10-21; HGV-20; HMI-1011; HMI-1021; HMI-611; HMM-1011; HMM-1021; HMM-2011; HMM-2021; HMM-611; HVG-10-11; HVG-10-11UL; HVG-10-21; HVG-10-21UL; HVG-1011; HVG-1021; HVG-10UL; HVG-2-20-11; HVG-2.10; HVG-2.10-11; HVG-2.20; HVG-20; HVG-20-11; HVG-20-21; HVG-2011; IF-55; LA-10; LA-10M; LA-10MP; LA-10MPP; LA-11TP; LA-13; LA-13M; LA-13MP; LA-14TP; LA-18; LA-18M; LA-18TP; LA-25; LA-25M; LA-25MP; LA-25MPPS; LA-25TP; LA-35TP; LA10M; LB-10M; LB-13M; LB-18M; LB-25M; LC-13; LC-13M; LC-13MP; LC-18; LC-18M; LC-18P; LC-8; LC-8M; LC-8MP; LF-13; LF-13M; LF-18; LF-18M; LF-25; LF-25M; LF-8; LF-8M; LN-10; LN-11; LN-13; LN-14; LN-18; LN-25; LN-35; LN-60; LR-10; LR-10M; LR-11; LR-13; LR-13M; LR-18; LR-18M; LR-25; LR-25M; MFHVG-10; MFHVG-10-21; VE-061; VE-101; VE-102; VE-201; VE-202; VG-101; VG-102; VG-201; VG-202; VGT-10; VGT-10-21; VGT-2-20-11; VGT-2.20; VGT-20; VGT-20-11; VGT-20-21; VPE-061; VPE-101; VPE-102; VPE-201; VPE-202; VPG-101; VPG-102; VPG-201; VPG-202; Gorenje WR8; ITV ICE TECH PS 122; ICE TECH PS 52; ICE TECH PS 62; ICE TECH PS 82; MQ200; NGQ130; NGQ20; NGQ30; NGQ40; NGQ50; NGQ60; NGQ90; Q130C; Q150C; Q20C; Q30C; Q40C; Q40S; Q50; Q50C; Q60; Q60C; Q90; Q90C; QUASAR-; QUASAR-130CA; QUASAR-130CW; QUASAR-20CA; QUASAR-20CW; QUASAR-30CA; QUASAR-30CW; QUASAR-40CA; QUASAR-40CW; QUASAR-40SCA; QUASAR-40SCW; QUASAR-50CA; QUASAR-50CW; QUASAR-60CA; QUASAR-60CW; QUASAR-90CA; QUASAR-90CW; QUASAR-MQ200A; SIRION DHD; Silko CFE72210; CFE90210; CFE90220
