Description

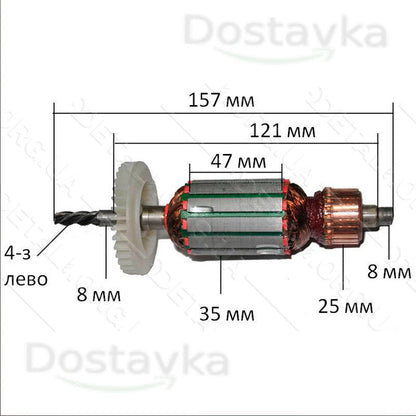

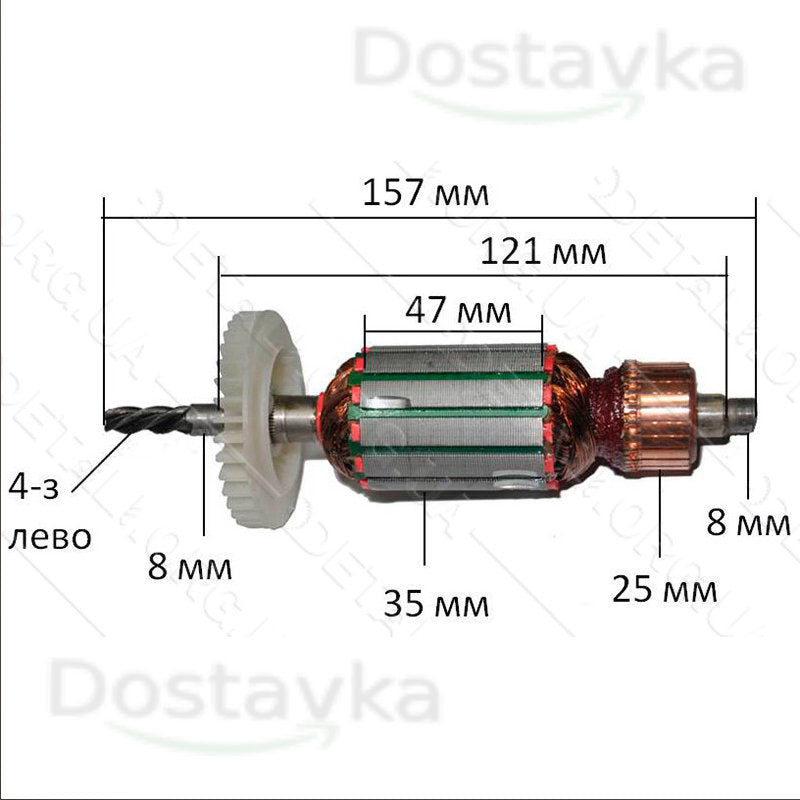

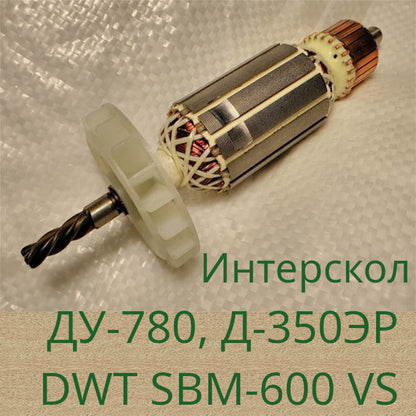

Armature diameter 35, total length 157, 4 teeth left 6.5 (shank diameter) for impact drill Interskol DU-780, D-350ER, Ritm PE-1050, DWT SBM-600 VS. Distance between 8 and 8 mm bearing seats is 120 mm, winding stack length 45 mm
- Drive shank: 4 teeth left.
- Total length: 157 mm.
- Stack diameter: 35 mm.
- Stack length: 42 mm.
- Commutator diameter: 25 mm.
- Lower bearing: 8 mm.
- Upper bearing: 8 mm.
- Distance between bearing positions: 121 mm.
