Description

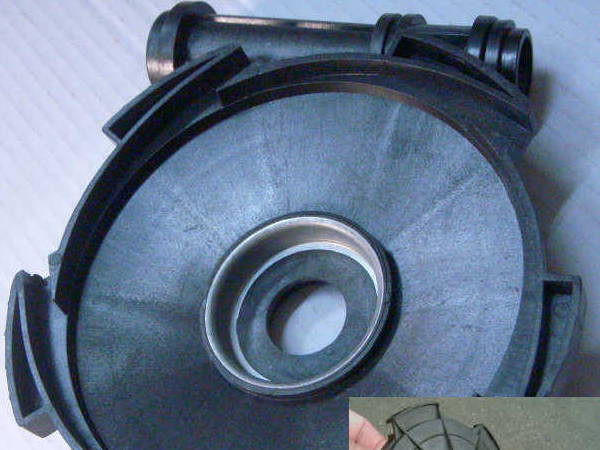

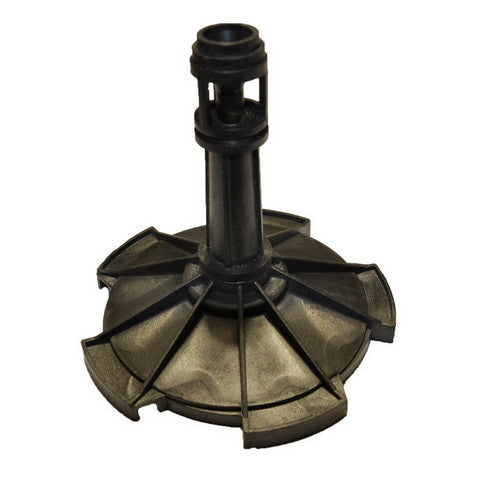

Diffuser for repair water centrifugal pump (station) Marina APM 100/25, Garten Jet 1200, Euroaqua (PL) JET 100 A, Lider, Taifu JET 100 B, IBO, Gidrofor DP 355 as, Taifu TDP370A, TDP505A and many other pumps, size h155xd165 mm, with straight venturi tube
Diffuser outer diameter 164 mm
Total height with tube 155 mm
For using with impeller wheel 125-128 mm with suction branch 47 mm
| Compatibility | Garten, Marina |
| Venturi tube suction nozzle diameter | 20 mm (internal), 30 mm (external) |
| Injector (nozzle) diameter< /td> | 9.5 mm |
| Impeller diameter | 132 mm |
| Outer diameter of the ejector | 164 mm |
| Total width of the ejector | 154 mm |
| Additional characteristics | Collapsible (diffuser + venturi tube). Color may vary |
-
