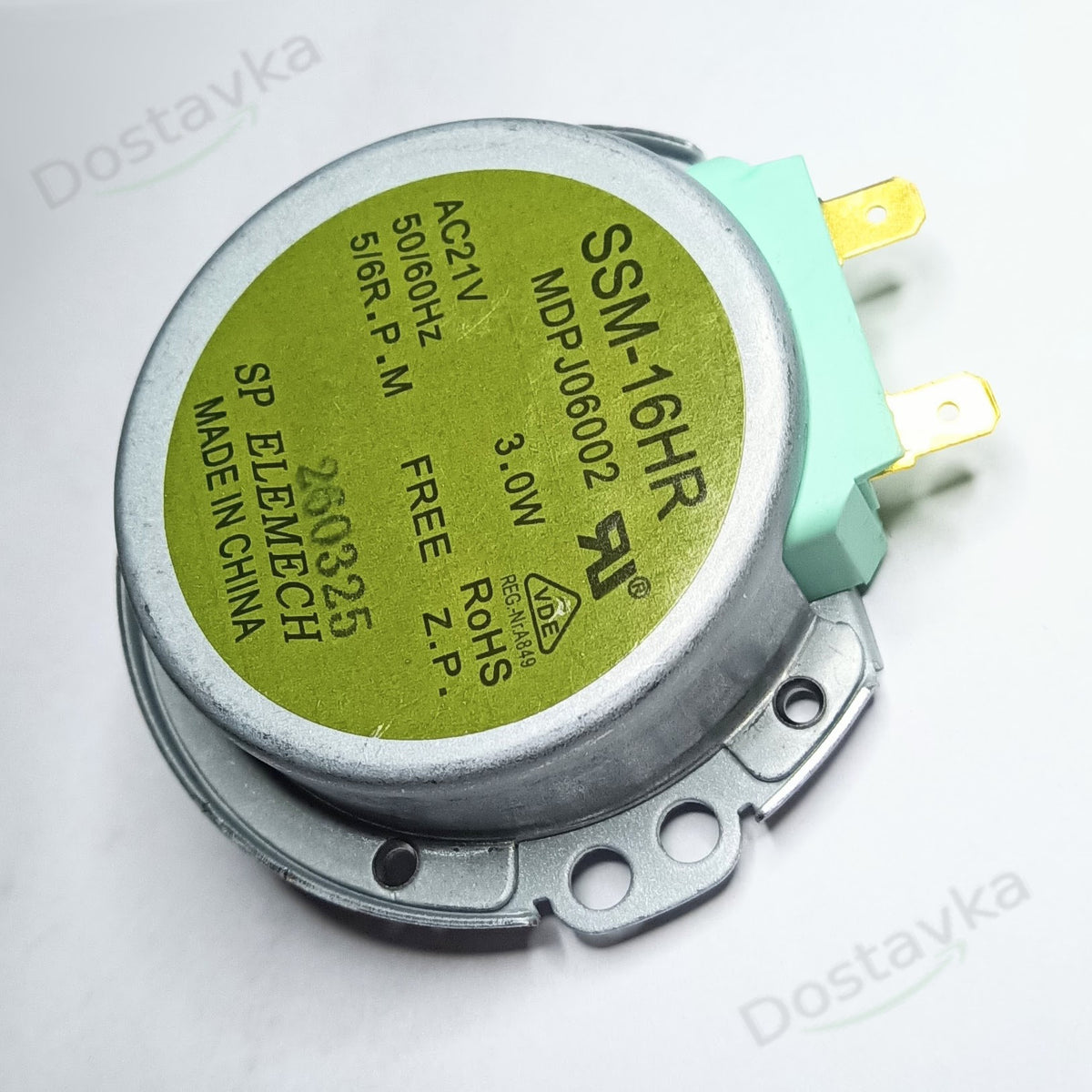

Turntable Motor for LG Microwave Oven SSM-16HR / 6549W1S017A (21V, 3W)
The original SSM-16HR synchronous electric motor (GM-16-2F302, LG 6549W1S011E) is designed to drive the turntable (tray) of LG, GE, Kenmore, and other microwave oven brands. It ensures smooth and even rotation of the dishes during heating, which guarantees uniform distribution of microwave energy and high-quality heating of food.
Key Advantages and Features:
- Stable Rotation Speed: The 2.5/3 RPM speed creates optimal conditions for uniform heat treatment of dishes without overheating specific areas.
- Reliable Metal Construction: A durable steel housing and high-quality internal gearbox protect the part from wear and overheating.
- Universal D-shaped Shaft: The D-shaped shaft ensures a secure connection with the coupler (drive coupling) without slipping.
- Standard Flat Terminals: The 2-pin connector (6.3 mm terminals) allows for quick connection of the motor to the oven's wiring without soldering.
Compatibility and Part Numbers:
Original interchangeable part numbers (P/N): 6549W1S017A, 6549W1S011B, 6549W1S015A, 6549W1S017E, 6549W1S011A, 6549W1S021B, 6549W1S002B.
Suitable for LG microwave oven models:
- MS2041F, MS2042D, MS2042DB, MS2349H
- MS3042G, MS3042X, MS1949G, MA7542W01
- MS3446VR, MS3446VRB, MS3446VRL, MS3446VRW
- MS3448GRK, MS3448GRSK, MS3448XRS, LRM1260SW, LCRT2010ST
Also compatible with GE, Kenmore, Whirlpool models: JES35BJ, JES1460DS3BB, GT4175SPS-3, JES738WJ02, MPDJ030BF, 721.63252301, 721.63254301, etc.
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part Model | SSM-16HR / GM-16-2F302 |
| Operating Voltage | ~21V AC (Alternating Current) |
| Power | 3.0W |
| Frequency | 50/60 Hz |
| Rotation Speed | 2.5 / 3.0 RPM |
| Shaft Shape | D-shaped |
| Connection | 2 flat terminals (Faston) |
Package Includes:
- Microwave turntable motor (21V) — 1 pc.
Technician's Tip: Always disconnect the microwave oven from the power supply before replacing the part! Check the operating voltage of the old motor (the label should say 21V, as similar 220V and 30V motors exist). Also, ensure that the plastic coupler and the roller ring under the tray are not jammed with grease or crumbs.
