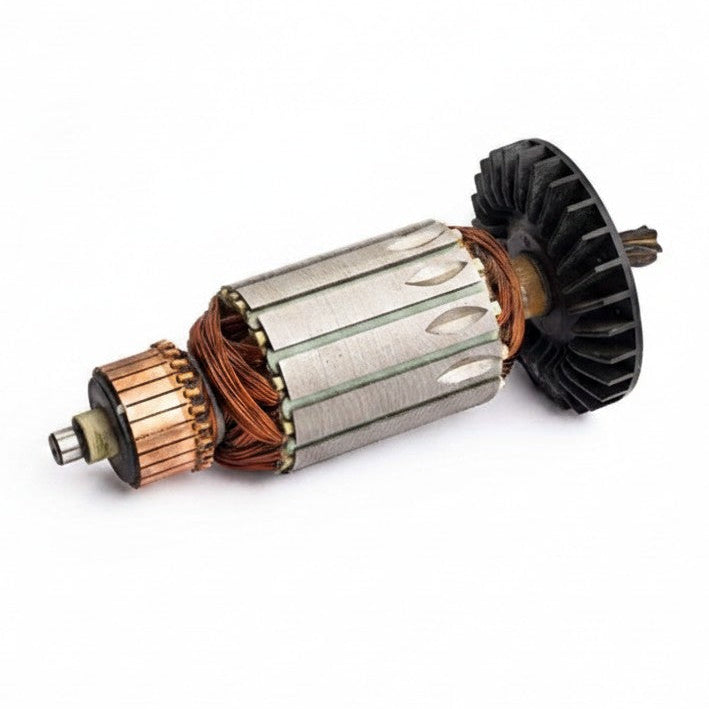

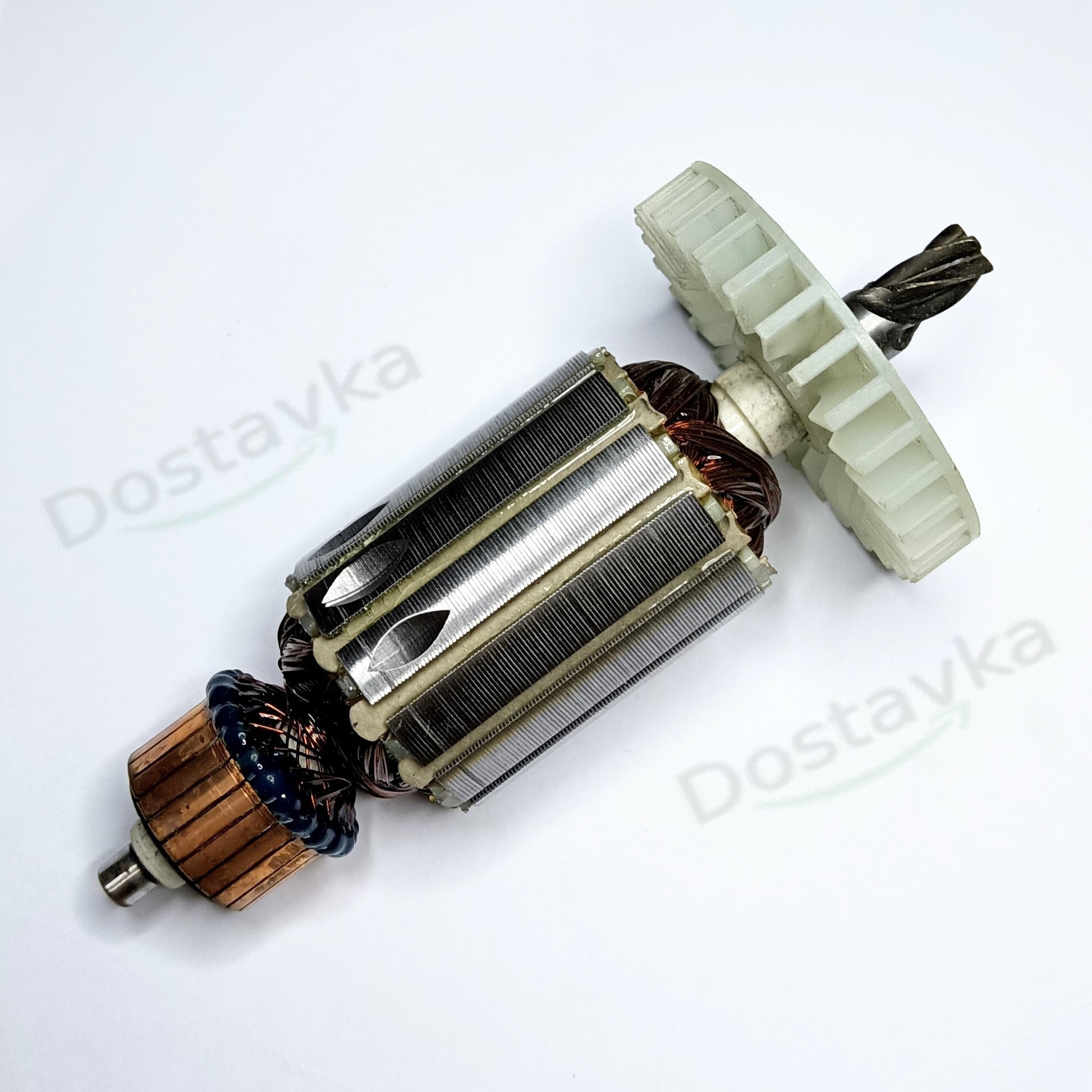

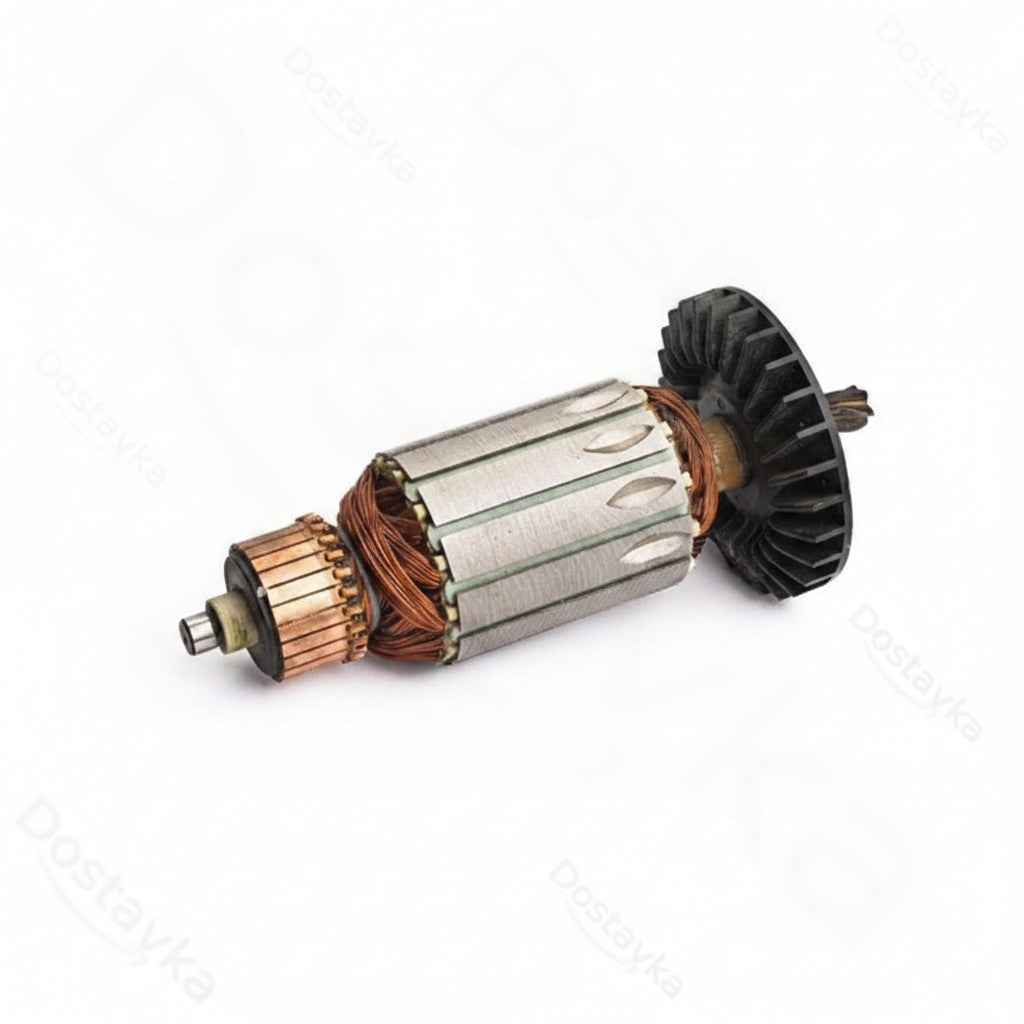

Matrix Ferm Yugra Rotary Hammer Armature FBH 1100 (47.5x165, 5 Teeth)

High-quality armature for the Ferm FBH 1100 rotary hammer, also compatible with Matrix and Yugra power tools. This part is designed to replace a failed rotor, ensuring efficient rotation and power transmission to the mechanism.

Parameters

• Iron core diameter D: 47.5 mm;
• Total length L: 165 mm;
• Number of teeth and slant Z: 5 right;
• Commutator diameter d: 30 mm;
• Shank type: teeth;
• Rear and front bearing diameters: 8/12 mm;
• Distance between bearings L1: 135 mm;
