Miele WMB120/ W5820 WPS 09901010 washing machine Stainless steel drum spider

Miele WMB120/ W5820 WPS 09901010 washing machine Stainless steel drum spider

SKU: 28322

Regular price €95,75 EUR
Regular price Sale price €95,75 EUR
Sale Sold out

Local tax may be applicable

View full details

Description

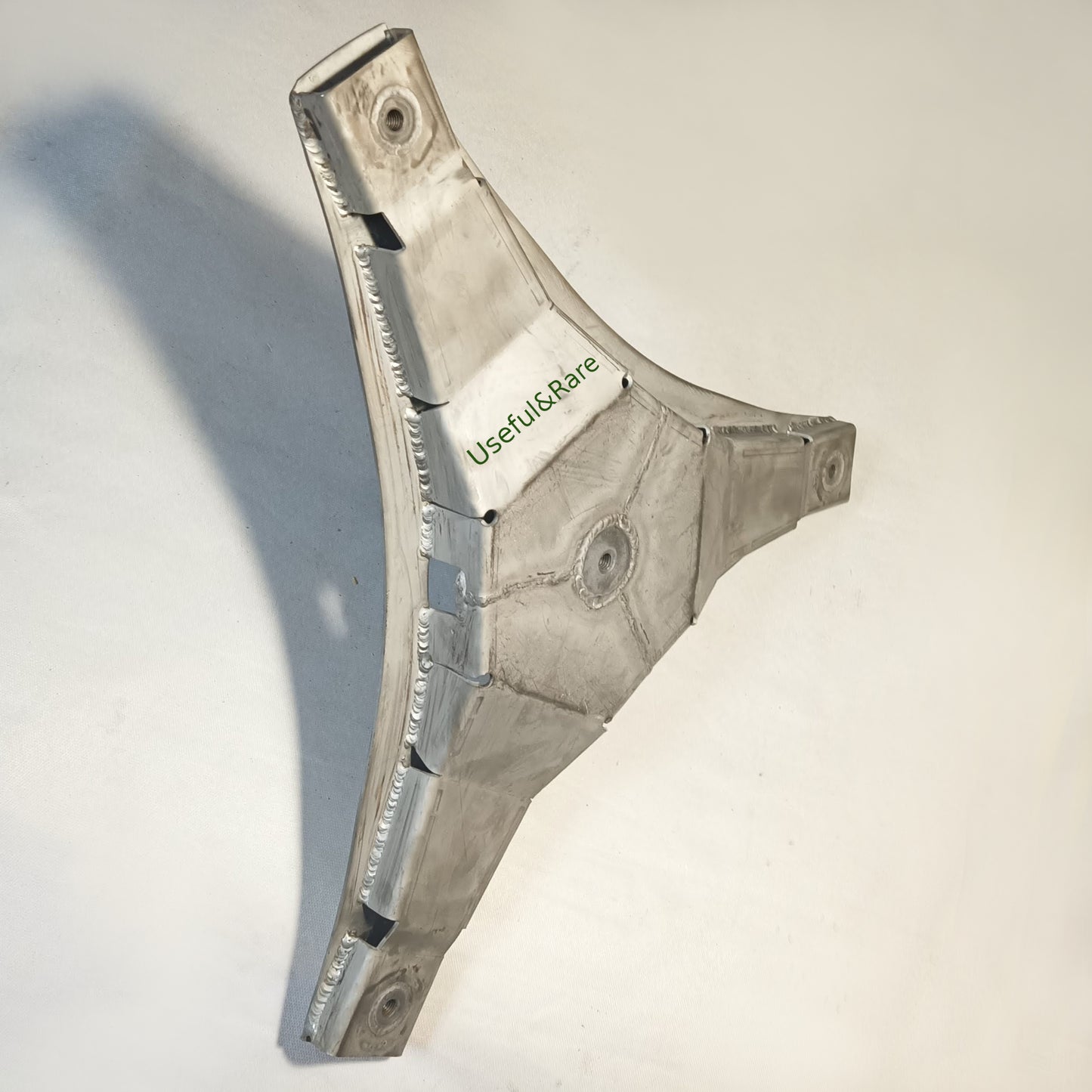

Stainless steel drum support spider No.2 for rebuild Miele WMB120/ W5820 WPS 09901010 washing machine.

  • The distance between the center of the shaft and the attachment to the drum is 205 mm.
  • Shaft height 126 mm.
  • Mounting type M8 bolt
  • The distance from the sleeve to the outer bearing is 74 mm.
  • The distance from the outer bearing seat to the end of the shaft is 34 mm.
  • Shaft diameter 30 mm (6206)
  • The diameter of the sleeve for the oil seal is 35 mm.
  • Outer bearing seat diameter 25 mm (6205)
  • Pulley seat: spline 23 mm 34 teeth
  • Material stainless steel
  • The height of the sleeve is 18 mm.
