Description

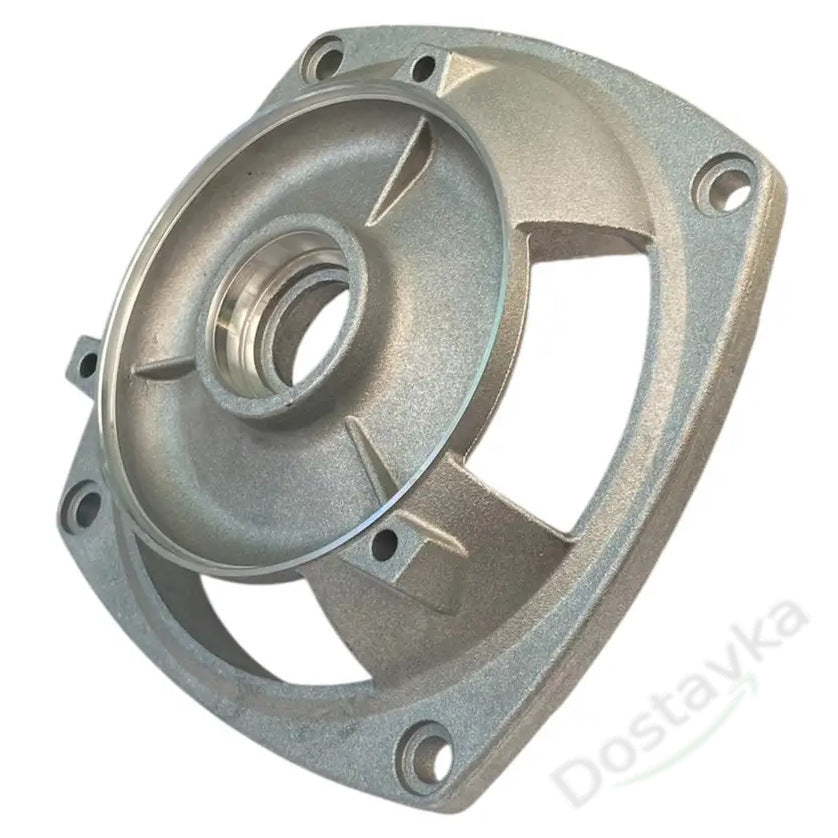

Aluminum flange support (flange shield) for Pedrollo JSW 2Cx, 2Ax pump with a motor connection diameter of Ø114 mm.
Installation dimensions
- Center-to-center distance of pump side mountings 192 mm
- Outer diameter of the deflector projection 162 mm
- Center-to-center distance of motor side mountings 111 mm
- Inner diameter of the motor connection 114 mm
- Bearing seat 40 mm
