Description

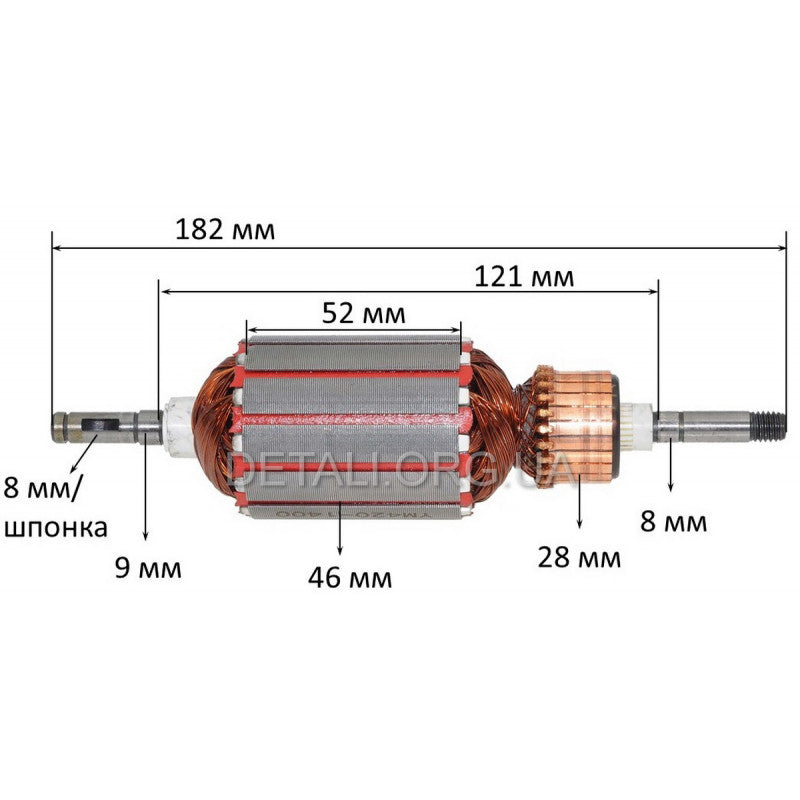

Electric weed trimmer armature Elprom 1500, Tekhmann BCE-2013, Foresta FT-20S, Grunhelm Gr-2000, WBR ETG-2200, Sadko ETR-1400, Craft-Tec CGT-1750, Vitals Master EZT-124vrs (47665 ), Procraft GT-2100, FORTE EMK-420M, EMK-1600, Eltos KG-2400, Foresta Ft16, Ft-20 S, Rostec ERT-42, Brigadier 1200W. Dimensions: anchor diameter - 46 mm; collector - 28 mm; shaft length 182 mm. The shaft is 8 mm, on one side there is a key (and retaining ring), on the other there is an 8 mm thread, between the bearings there are 121 mm. The bearings fit at 8 and 9 mm.

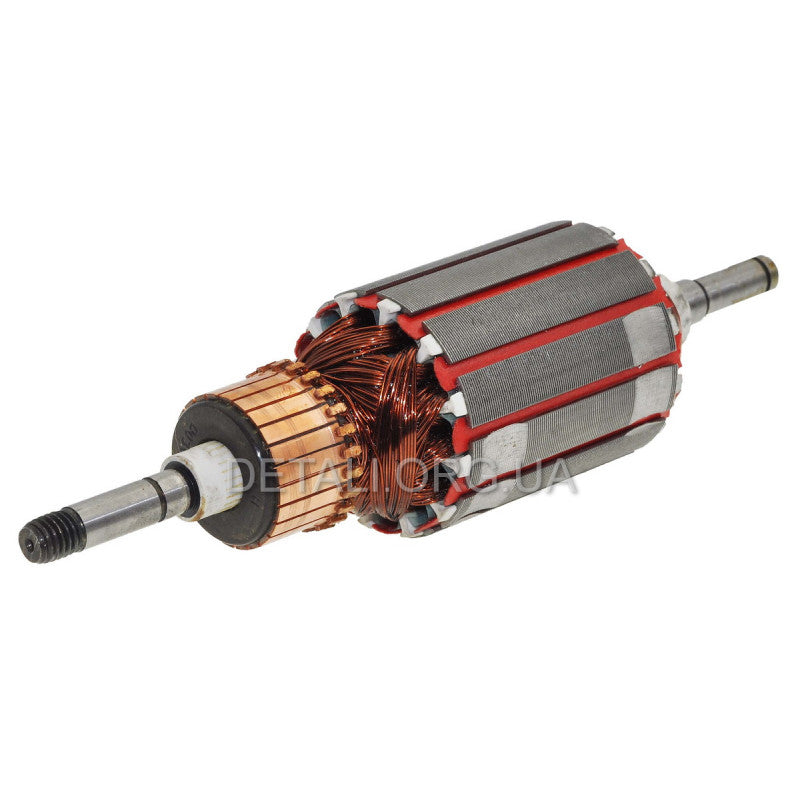

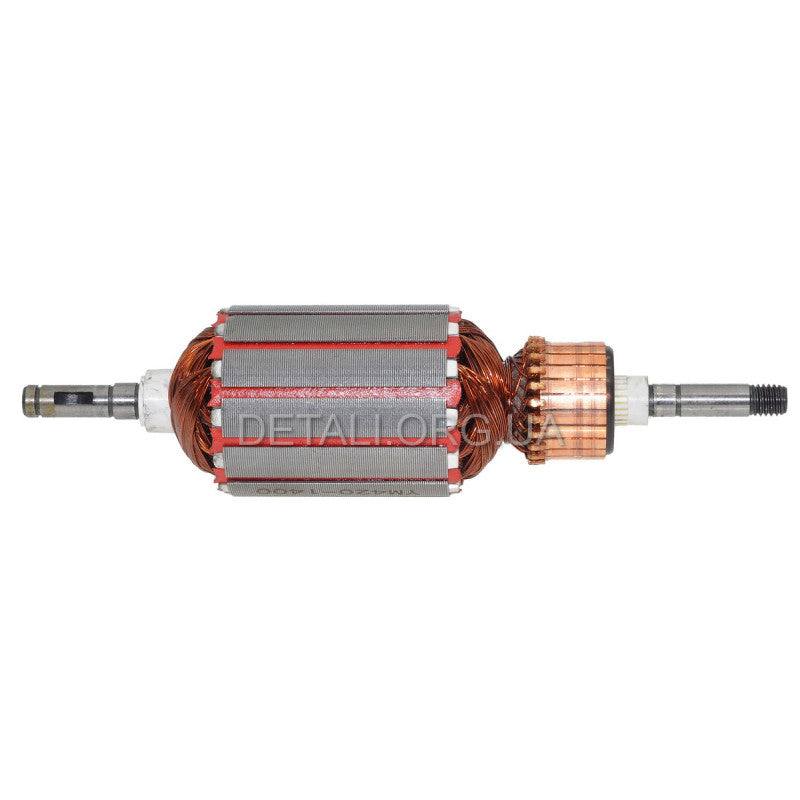

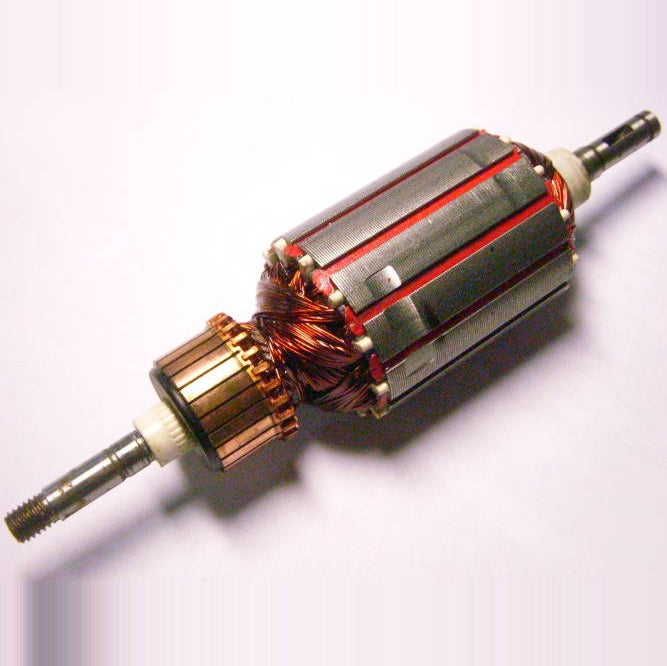

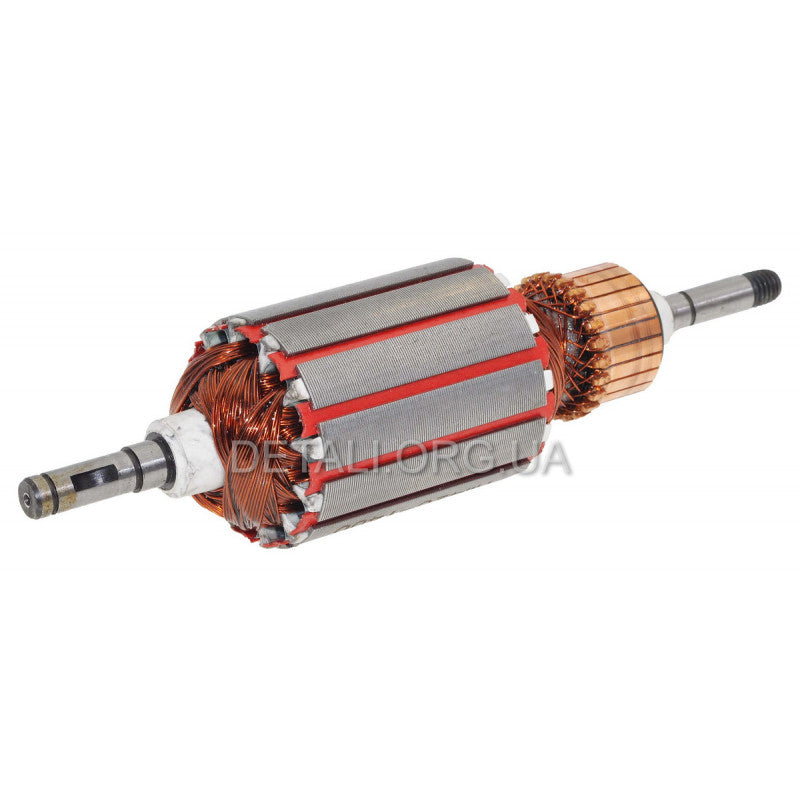

Armature (rotor) (182*46 key 8mm) trimmer of electric mower Craft-Tec 1750, Elprom 1500, Tekhmann BCE-2013.
- Shank: key 8 mm.
- Zagalna dovzhina: 182 mm.
- Bag diameter: 46 mm.
- Package depth: 52 mm.
- Collector diameter: 28 mm.
- Lower bearing: 8 mm.
- Upper bearing: 9 mm.
- Distance between bearings: 121 mm.
Characteristics
commutator diameter | 28 |
top bearing | 9 |
between bearings | 121 |
shank | key 8mm |
total length | 182 |
packet length | 52 |
Lower bearing | 8 |
Winding package diameter | 46 |
Weight, kg | 0.654 |
Purpose | Electric trimmers |
Part type | Anchors |
Model | Craft-Tec 1750, Elprom 1500, Tekhmann BCE-2013 |
View | For tool |
Purpose | Electric trimmers |
Tool type | Trimmer |
