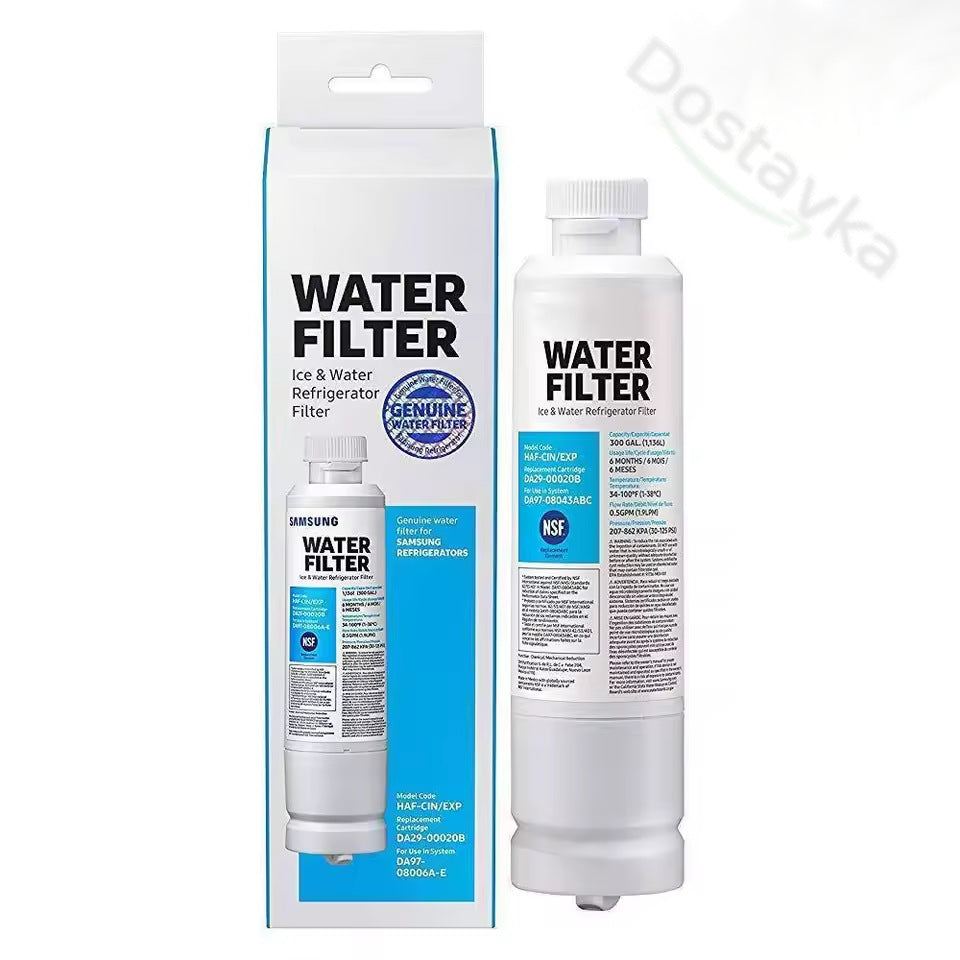

Samsung Refrigerator Water Filter (HAF-CIN/EXP, DA29-00020B)

Water Filter Cartridge for Samsung Refrigerators DA29-00020B / HAF-CIN/EXP

Replacement water filter cartridge designed for installation in the internal unit of the water dispensing and ice making system in Samsung refrigerators. Equipped with a high-efficiency filter element made of compressed coconut shell activated carbon. The filter deeply purifies tap water from organic compounds, active chlorine, odors, heavy metals, and fine mechanical particles (sand, rust, sediment).

Regular cartridge replacement ensures drinking water safety and protects the refrigerator's hydraulic system and ice maker from scale formation and clogs.

Technical Specifications and Key Parameters

• Filter Type: Internal refrigerator water supply cartridge
• Filter Material: High-quality activated carbon
• Filtration Rating: 0.5 micron
• Filter Capacity: Up to 1135 liters (300 gallons) or 6 months of use (depending on source water quality)
• Flow Rate: 1.9 L/min (0.5 gpm)
• Operating Temperature: +1°C to +38°C
• Operating Pressure: 207 to 862 kPa (30 - 125 psi)
• Certification and Safety: Complies with international standards CE, CSA, RoHS, UL

Application and Compatible Interchange Codes

The cartridge is used in modern multi-door refrigerators (Side-by-Side, French Door) by Samsung. Replaces the following original part numbers and filter codes:

• Samsung: DA29-00020B, DA29-00020A, DA29-00020A/B, DA2900020B, DA29-00019A
• Model Code: HAF-CIN, HAF-CIN/EXP, HAF-CINEXP, HAFCIN
• Assembly Service Codes: DA97-08006A, DA97-08006A-B, DA97-08006B, DA99-02131B
• Alternative Cross-codes (Sears/Kenmore): 04609101000, 09101, 46-9101, 469101, 9101

Compatible Refrigerator Models List (Fragment)

The filter is compatible with a wide range of Samsung refrigerator models:

• RF Series: RF28HFEDBSR, RF24FSEDBSR, RF23HCEDBSR, RF28HFEDBSR/AA, RF24HSESBSR, RF56J9040SR, RF31FMESBSR, RF260BEAESR, RF261BEAESR, RF263BEAESR, RF4287HARS, RFG29PHDWP, etc.
• RH Series: RH57H8030SL, RH57H90307F, RH56J6917SL, RH29H9000SR
• RS / RSH / SRF Series: RS267TDBP, RSG307AABP, RSH7UNBP, RSH72NRS, SRF670BFH, SRF671BFH2

Installation and Maintenance Tips

1. Pre-installation Preparation: Shutting off the main water supply before replacing the filter is usually not required (an automatic valve is provided in the mounting socket), but if the system pressure is high, it is recommended to shut off the valve.
2. Installation Process: Remove the old cartridge by turning it 90 degrees counter-clockwise and pulling it toward you. Remove the protective cap from the new filter, insert it into the socket, and turn it 90 degrees clockwise until it locks (the lock icon should align with the mark on the housing).
3. Mandatory Flushing: After installing the new filter, be sure to flush 5–7 liters of water through the refrigerator dispenser. This is necessary to remove air from the system and flush out residual carbon dust particles (during the first few seconds, the water may have a dark tint or sputter air — this is normal).
4. Resetting the Replacement Indicator: After replacing the cartridge, you must manually reset the filter counter on the refrigerator's control panel. Press and hold the "Filter Reset" button (or the "Ice Type / Water" / "Child Lock" combination depending on the model) for 3 seconds until the indicator changes color to blue/green.
5. Replacement Schedule: The filter should be replaced at least once every 6 months. Even with low water usage, activated carbon loses its properties over time and can become a breeding ground for bacteria.
