External Water Filter for Samsung, LG, Bosch Refrigerators (DA29-10105J / BL-9808 / DA97-01469C)
External in-line filter for Side-by-Side refrigerators (DA29-10105J / BL-9808) is designed for effective purification of tap water supplied to the ice maker and cooling system dispenser. The cartridge is installed into the external water supply hose (1/4" / 6.35 mm diameter) behind the rear wall of the refrigerator or in a kitchen cabinet. High-quality activated coconut shell carbon traps chlorine, mechanical impurities, sediment, heavy metals, and eliminates unpleasant odors and tastes.
Key Benefits and Features:
- Certified Deep Purification (NSF/ANSI 42): Cleans water from free chlorine, turbidity, suspended particles, rust, and organic compounds, improving the taste of drinking water and ice.
- Quick Connect Installation: Equipped with built-in collet fittings for 1/4" (6.35 mm) plastic tubing — installation is done manually in a few minutes without the use of special tools.
- Wide Compatibility: The universal design allows for the replacement of original external cartridges for most global appliance brands.
- Hydraulic System Protection: Prevents clogging of the water inlet solenoid valves and the ice maker with sand and scale, extending the service life of the refrigerator.
Compatibility and Application:
Used for Side-by-Side and French Door refrigerators with a built-in ice maker or dispenser that utilize an external filter on a 1/4" (6.35 mm) pipe. Suitable for the following brands: Samsung, LG, Bosch, Siemens, Neff, Daewoo, Beko, Whirlpool, Electrolux, General Electric (GE), Haier.
Compatible Part Numbers and Cross-Codes from Other Manufacturers:
- Samsung: DA29-10105J, DA29-10105K, WSF-100, EF-9603, HAFEX-EXP, Magic Water Filter
- LG: BL-9808, BL-9303, 5231JA2010A, 5231JA2010B, 5231JA2012A, 3650JD8050A, 3890JC2990A, 497818
- Daewoo: DD-7098, 3010541600, 3019974100
- Bosch / Siemens / Neff: C00114417, DD-7098
- General Electric (GE): GXRTDR, GXRTQ, GXRTQR
Technical Specifications:
| Parameter | Value / Specification |
|---|---|
| Part Type | External In-Line Water Filter Cartridge |
| Main Part Number | DA29-10105J / BL-9808 |
| Filter Media | High-activity Granular Activated Carbon (GAC) |
| Connection Type | Quick Connect fitting for 1/4" (6.35 mm) tubing |
| Rated Flow Rate | 1.9 L/min (0.5 gpm) |
| Filter Capacity | 2,464 liters (or 6 months of operation) |
| Operating Temperature | from +4.4°C to +38°C |
| Operating Pressure | from 172 kPa (25 psi) to 862 kPa (125 psi) |
| Quality Standards | NSF/ANSI Standard 42 |
Package Includes:

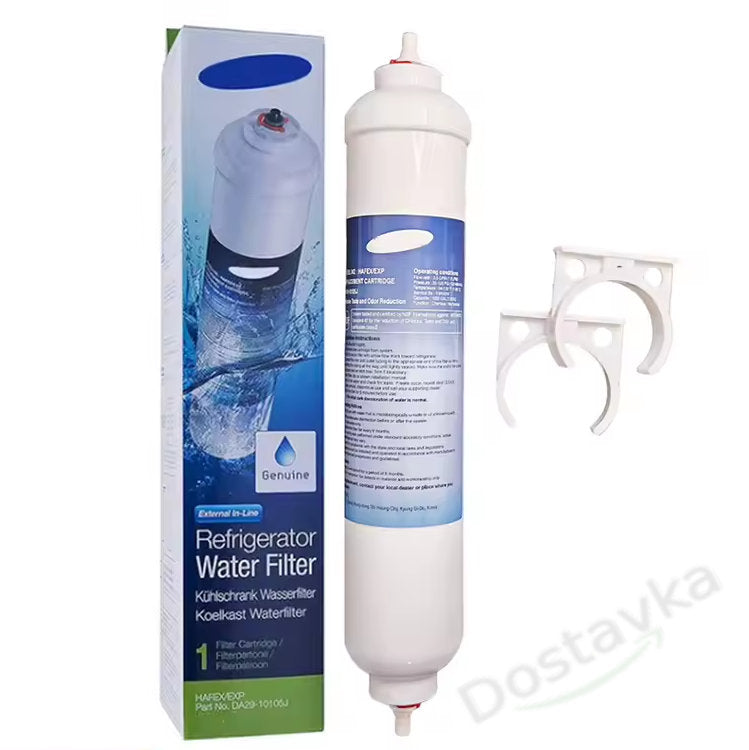

- External water filter DA29-10105J — 1 pc.
- Locking clips for quick-connect fittings — 2 pcs.
Pro Tip: Before installing a new cartridge, be sure to shut off the water supply to the refrigerator. Pay attention to the "FLOW" arrow (water flow direction) on the cartridge body — it should point from the water supply
