Candy AQUA washing machine stainless steel drum spider 92999333

Regular price €57,00 EUR
Regular price €57,00 EUR Sale price €57,00 EUR
SKU: 24185
Tax included.

Description

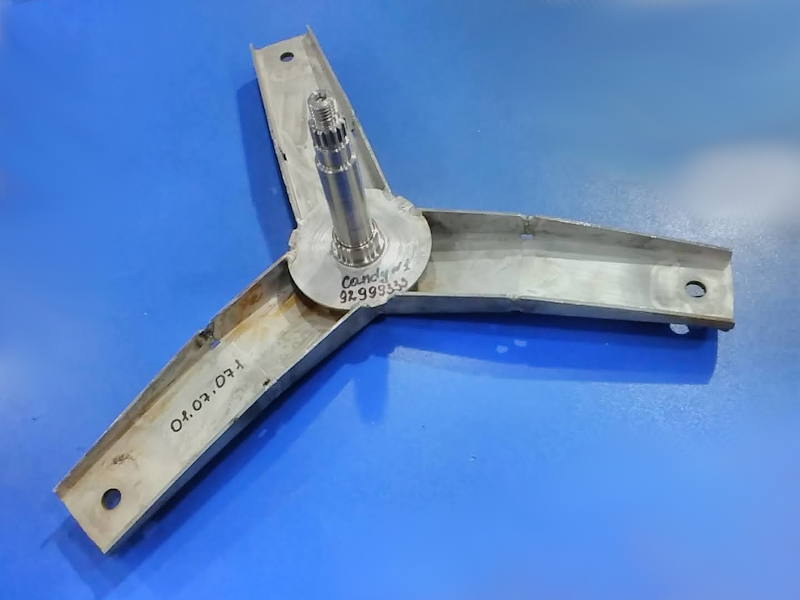

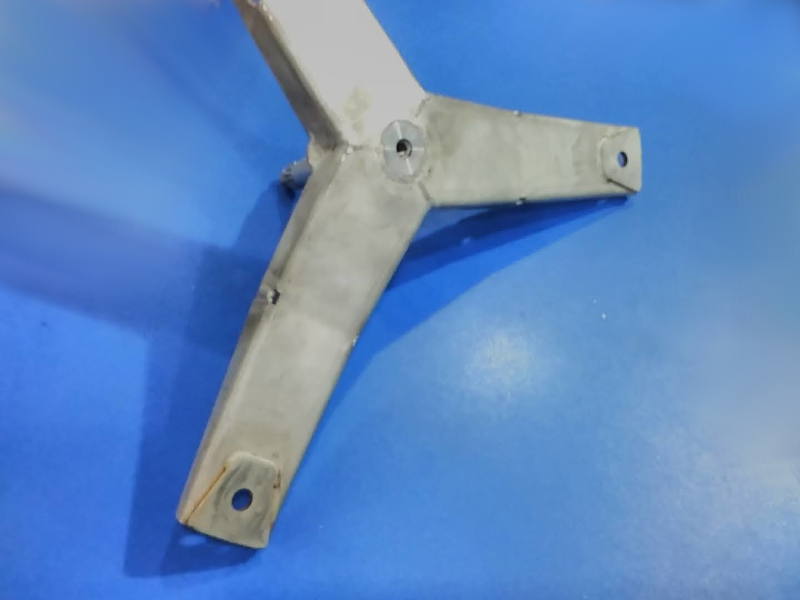

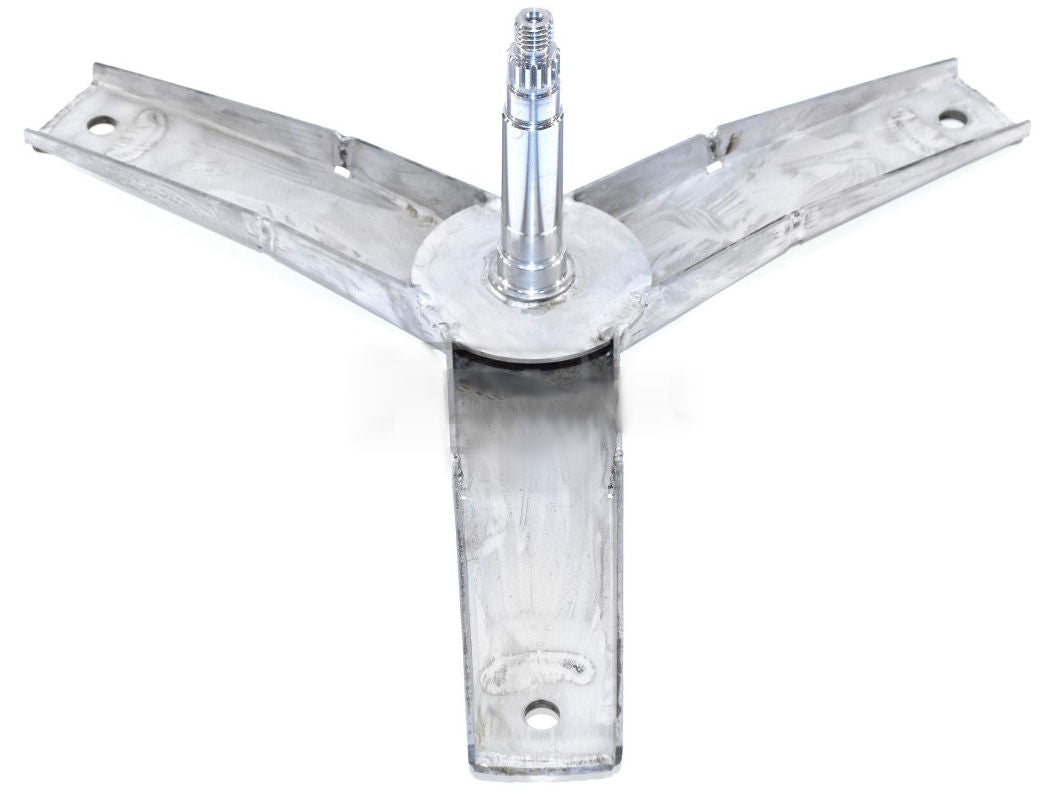

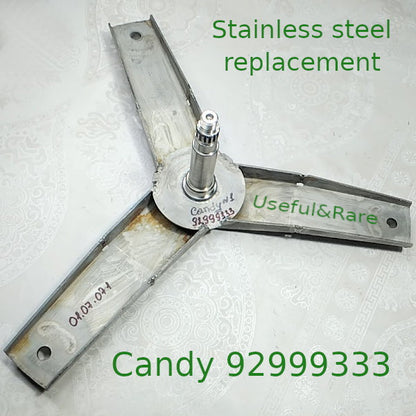

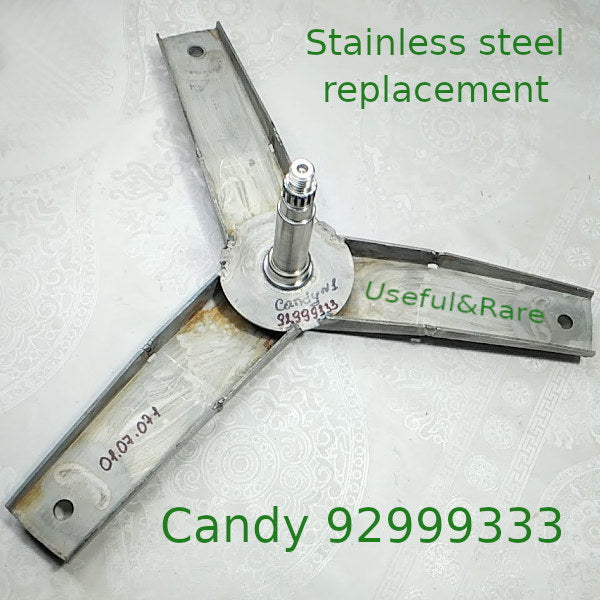

High-strength custom made drum support spider (92999333) for using with  Candy AQUA 800 T (92999333) washing machine. Made in the factory from solid stainless steel for the durable long life work purpose

Parameters:

Manufacturer Custom
Distance between the center of the shaft and the attachment to the drum 240 mm
Shaft length 125 mm
Mount type bolt M10
Material stainless steel
Bearings 6205 (25 mm) and 6206 (30 mm)
Distance from sleeve to outer bearing 73 mm
Distance from outer bearing seat to shaft end 36 mm
Sleeve height 16 mm
Stuffing box 35 mm
Pulley 24 mm

Compatibility:

Candy AQUAMATIC6T Candy LBAQUA6TCH 31079635
Candy AQUAMATIC6 Candy LBAQUA8TCH
Candy AQUAMATIC3TB Candy AQUA6UNI
Candy AQUAMATIC3W Candy AQUA6UNI 31079304
Candy AQUAMATIC10T Candy AQUA8TCE
Candy AQUA10T Candy LBAQUA6CH 31079627
Candy AQUA10T 31081649 Candy LBAQUA6POL
Candy AQUA3WNORD Candy LBAQUA6POL 31079619
Candy LBNOVAMWA163 31079650 Candy AQUA8TCE 31081003
Candy LBNOVAMWA183 Candy AQUA8TMET
Candy LBNOVAMWA183 31081656 Candy AQUA8TMET 31081680
Candy AQUA3WNORD 31027303 Candy LBAQUA3TB
Candy AQUA3WOS Candy LBAQUA3TB 31299001
Candy AQUA3WOS 31027600 Candy LBAQUA6CH
Candy LBAQUA8UK Candy LBAQ10TUK
Candy LBAQUA8UK 31081508 Candy LBAQ10TUK 31081516
Candy LBNOVAMWA163 Candy LBAQ6TRU
Candy AQUA3WUK Candy LBAQUA10TNE 31081110
Candy AQUA3WUK 31027501 Candy LBAQUA10TRU
Candy AQUA6TITES Candy LBAQUA10TRU 31081102
Candy LBAQUA8TCH 31081607 Candy LBAQ6TRU 31079643
Candy LBAQUA8TGIAP Candy LBAQ8T8
Candy LBAQUA8TGIAP 31081615 Candy LBAQ8T8 31081623
Candy AQUA6TITES 31079007 Candy LBAQUA10TMET
Candy AQUA6TUNI Candy LBAQUA10TMET 31081698
Candy AQUA6TUNI 31079601 Candy LBAQUA10TNE
Candy LBAQUA6TCH Candy LBAQ8TRU
Candy LBAQ8TRU 31081631
