Taifu, Euroaqua, Dnipro-M Water Pump Brass Impeller JSW10 (d132*12*34)
Taifu, Euroaqua, Dnipro-M Water Pump Brass Impeller JSW10 (d132*12*34)
SKU: 21722
8
Regular price
€14.85 EUR
Regular price
Discounted price
₴742.50 UAH
Ready for delivery
Shipping costs are calculated when placing your order.
Quantity
Unable to load pickup availability information
diameter_1 : 132
diameter_2 : 34
diameter_3 : 12
height_1 : 36
height_2 : 19
height_3 : 9
height_4 : 5.5
height_5 : 7
Copy product link for share
Description

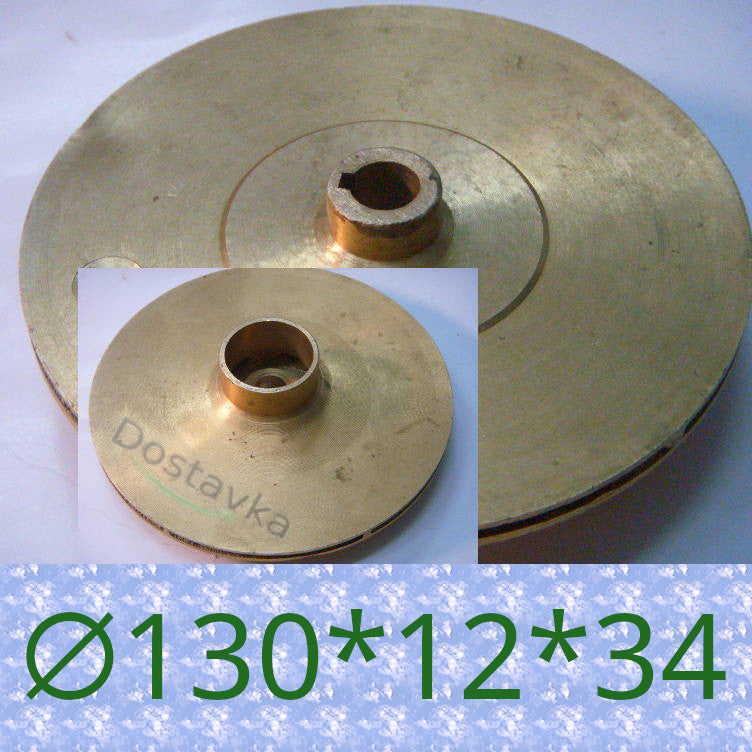

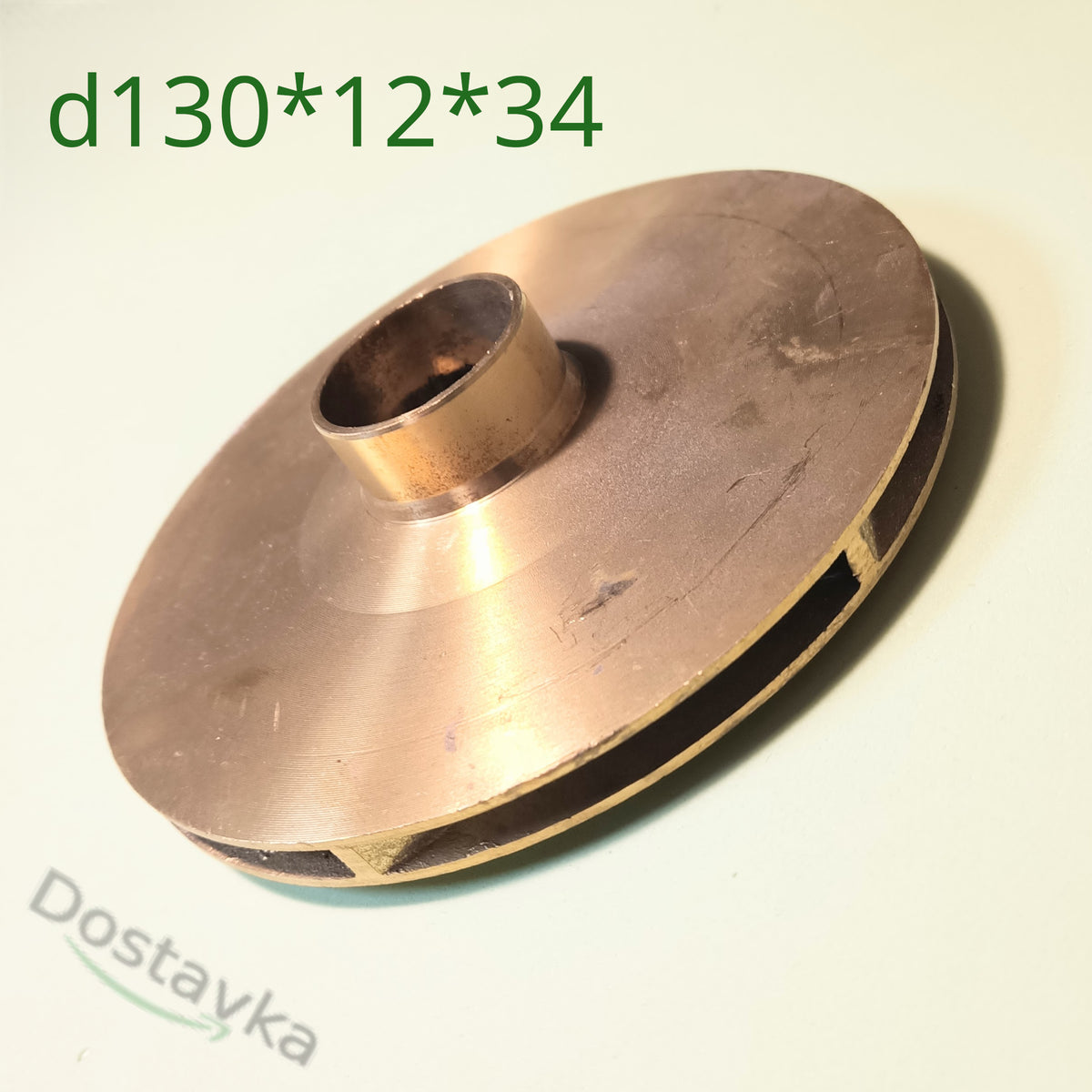

Brass impeller wheel ∅130-132 mm for water pump/station Pedrollo JSW10M, Taifu TDP 505 A, JET100A, Dnipro-M JET-110ST, Omnigena JSW10, for 12 mm shaft with keyway and 33-34 mm inlet pipe
Installation dimensions:
- Outer diameter 132 mm
- Inner mounting hole 12 mm with keyway slot
- Outer diameter of suction inlet 34 mm
- Total height 37 mm
- Central hub depth 19 mm
- Gap between blade discs 6 mm
- Hub protrudes by 6 mm
