Description

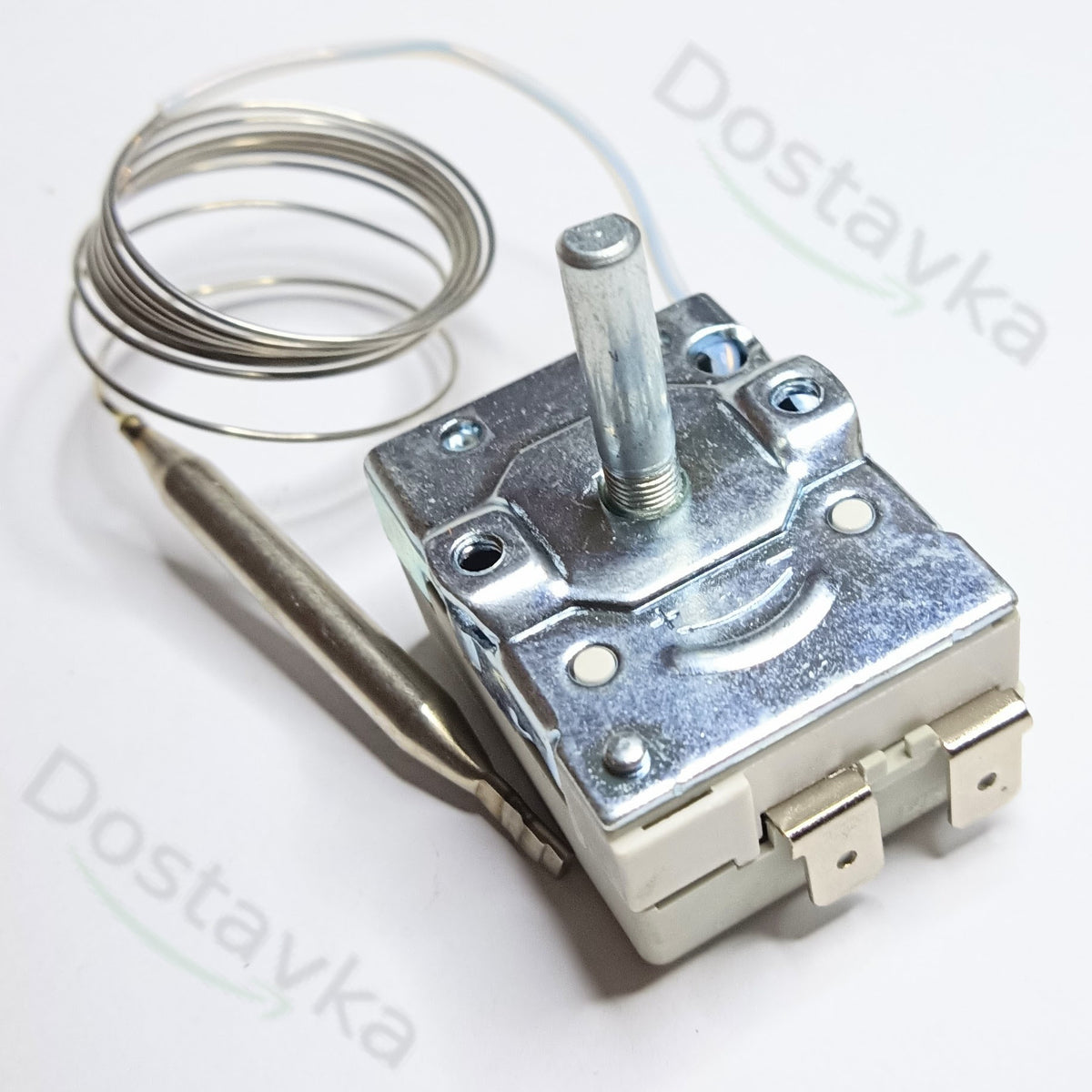

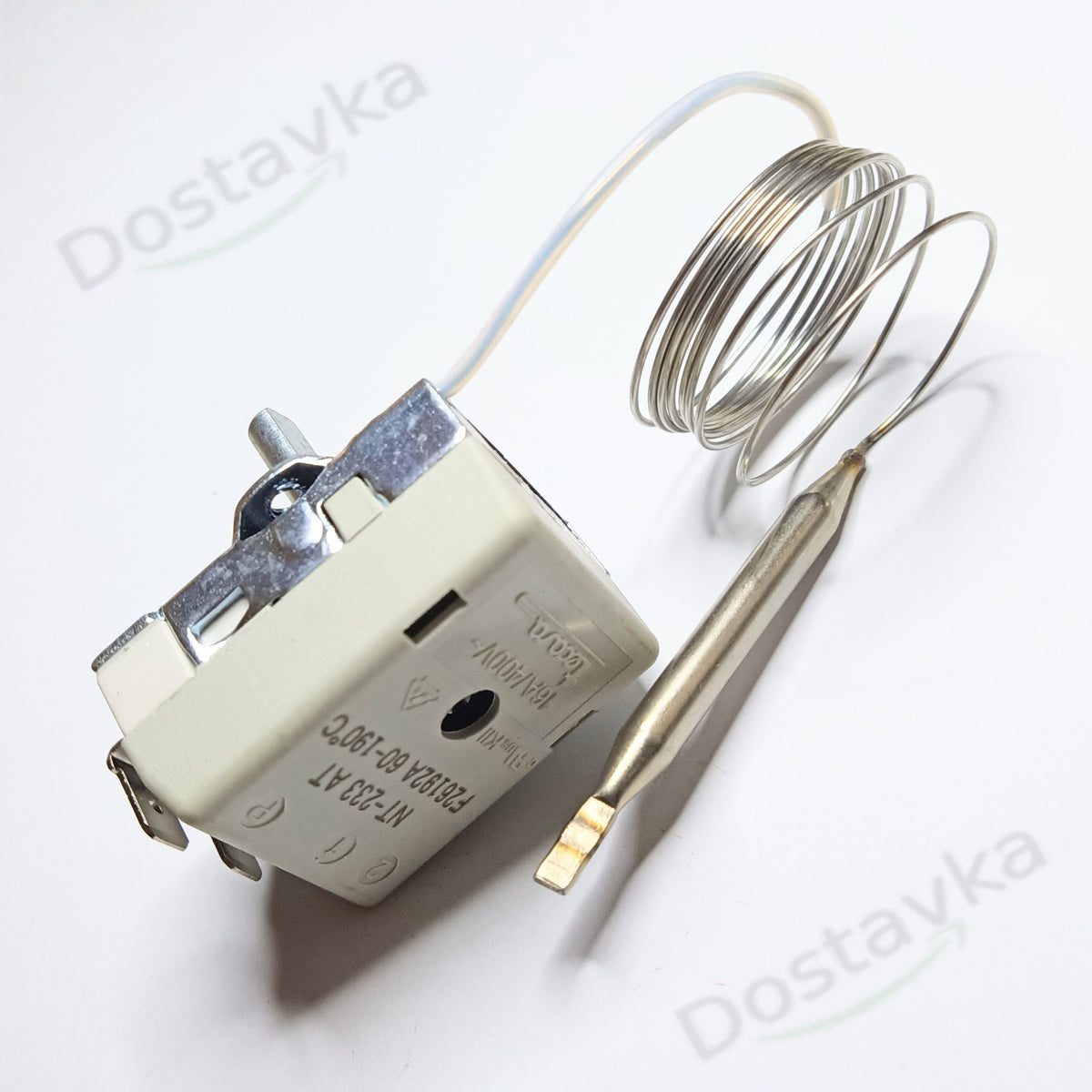

Capillary Mechanical Thermostat Tecasa NT-233 AT (60–190 °C, 16A, 400V, L=100 cm)
The original single-phase capillary thermostat Tecasa NT-233 AT is designed to automatically maintain a set temperature in domestic and industrial heating equipment within the range of +60 °C to +190 °C. The device operates on the principle of volumetric expansion of a liquid filler inside a remote metal probe: when heated to the set value, the liquid pressure is transmitted through a flexible capillary tube to the membrane unit, opening the power electrical contacts, which protects the equipment from overheating and saves energy.
Key Advantages and Features:
- High switching capacity: Rated for load currents up to 16 A at voltages up to 400 V, allowing for the direct connection of powerful tubular heating elements (TEHs) without the need for intermediate relays.
- Long capillary tube (100 cm): The 1-meter flexible capillary ensures easy installation of the sensor directly in the heating zone at a distance from the front control panel.
- European assembly quality by Tecasa: The wear-resistant contact group is resistant to electrical erosion, sparking, and regular cyclic loads.
- Simple two-pin connection: Standard 6.3 mm Faston spade terminals provide quick and reliable wiring installation without soldering.
- Wide adjustment range: Temperature settings from 60 °C to 190 °C are optimal for infrared heating, drying cabinets, and thermal kitchen equipment.
Compatibility and Application:
Used as a standard or universal temperature controller in various heating appliances:
- Infrared heaters: UFO models (UFO Star, UFO Basic, UFO Line, UFO Micatronic), as well as infrared panels by Sinbo, Saturn, Ergo, Ballu, TeploV, etc.
- Culinary and food equipment: Electric deep fryers, griddles, contact grills, bain-maries, roasters, compact electric ovens, dehydrators (dryers) for fruits and vegetables.
- Heating and process equipment: Heat guns, convectors, sterilizers, oil and water heating tanks with a thermowell for the bulb.
Technical Specifications:
| Parameter | Value / Characteristic |
|---|---|
| Component type | Capillary mechanical thermostat (temperature controller) |
| Model / Marking | Tecasa NT-233 AT (B2012BWED) |
| Manufacturer | Tecasa |
| Temperature adjustment range | from +60 °C to +190 °C (Tmax = 190 °C) |
| Rated operating current | 16 A |
| Sensing bulb diameter | 6 mm |
| Rated operating voltage | up to 400 V AC (fully compatible with 220–250 V mains) |
| Capillary length (L) | 1000 mm (100 cm) |
| Number of contacts | 2 contacts (6.3 mm Faston terminals) |
| Probe and tube material | Copper / stainless steel |
| Condition | New part |
