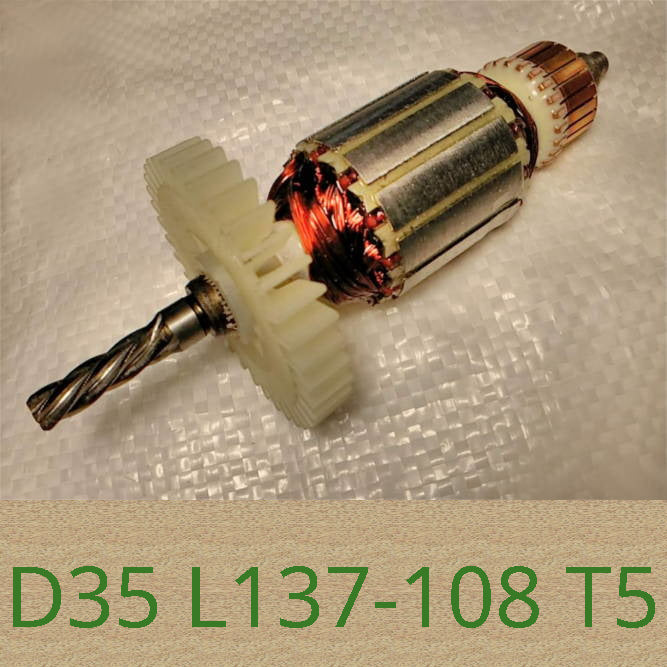

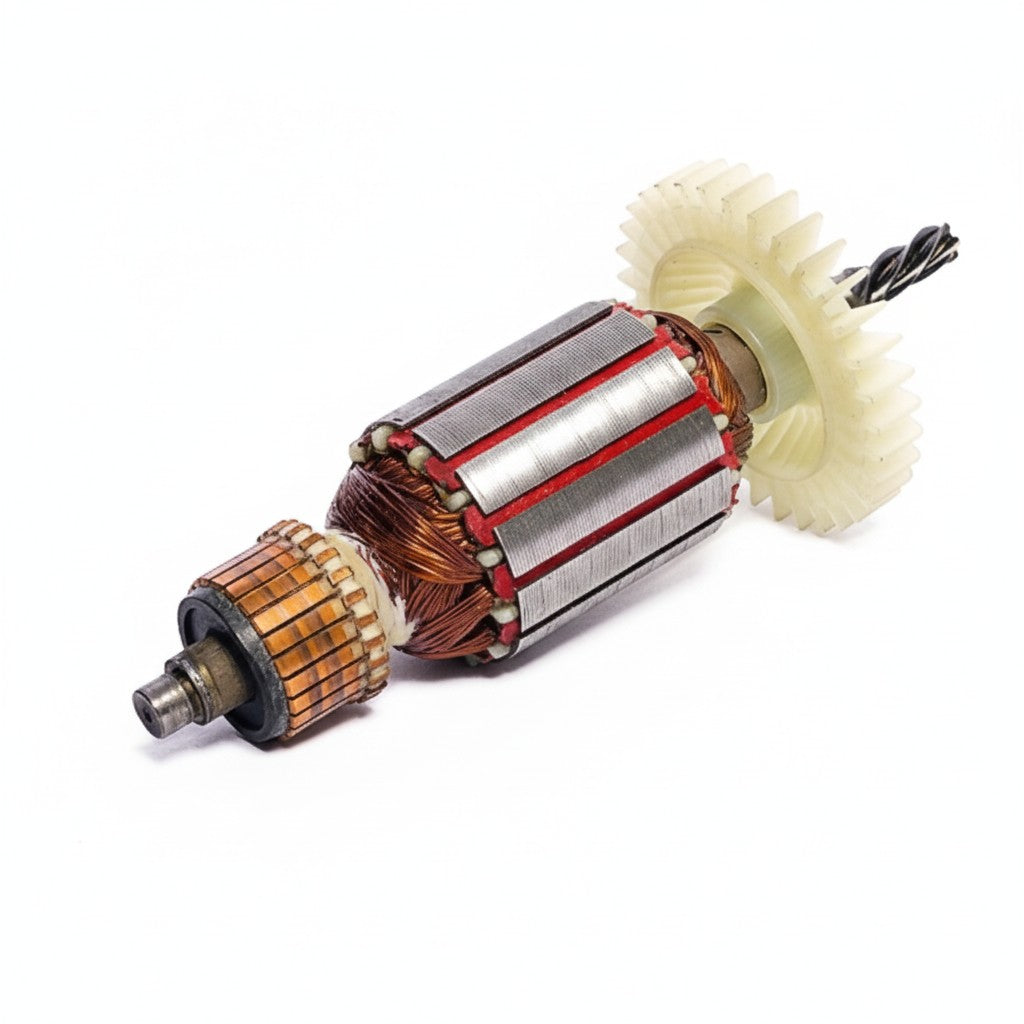

Zenit Interskol Temp Drill Armature ZDP-500, DU-750, 580 (35x137, 5T L)

High-quality rotor (armature) is designed for installation in the motor of electric drills Zenit ZPD-500 Watt Pro, Interskol DU-750, and Temp 580. The part ensures reliable torque transmission and restores the tool's functionality when the original unit fails.

• Winding core diameter: 35 mm;
• Winding core length: 35 mm
• Total length: 137 mm;
• Number of teeth: 5 left;
• Commutator diameter: 23 mm;
• Shank type: teeth;
• Rear bearing diameter: 7 mm;
• Front bearing diameter: 8 mm;
• Distance between bearings: 108 mm;
• Worm gear diameter: 6 mm;
