Description
The Bresser Erudit line of microscopes has high-quality characteristics that correspond to the top level of professional microscopes. All microscopes in this series are supplied in handy plastic cases. Virobnik added that the Breser Erudit Basic Bino 40x-400x microscope ensures good image brightness, which is compatible with wide-angle glasses, lenses that meet the DIN standard, and light-emitting diode Preswitch and Abbe condenser. The handiness of the process is achieved especially by the smooth flow of all loose knots and the provision of all standard adjustments to the powerful microscopes of this level.
Classification:
- Type: optical.
Classification: biological. - Function: professional, basic.
Optical characteristics:
- Increase: from 40x to 400x.
- Increased lenses: 4x, 10x, 40x.
- Increase in eyepieces: 10x.
- Optics: multi-coated from dry coatings to avoid mechanical damage.
Design features:
- Nozzle: binocular (turn 360º, retract 30º).
- Subject table: coordinate with preparation guide and micrometric adjustments along both axes.
- Adjustment of the intersensory area: 54 ÷ 75 mm.
- Diopter correction: +/- 5 diopters.
- Focus: coarse, fine (price 0.05 mm).
- Illumination: light (pass through light).
- Brightness adjustment: smoother.
- Condenser: Abbe NA 1.25 (with adjustable height, allows centering).
- Aperture diaphragm: iris.
- Trimach of filters, mm: 32.
Living
- Batteries 3 x AA (LR6) 1.5V Alkaline.
The binocular attachment, slanted at 30º, rotates easily and smoothly around the horizontal plane and allows for observation at any position without moving the device in a wide area, safely high luminosity stereoscopic images. The inter-photo lens and the diopter correction ring can also be smoothly adjusted, allowing you to adjust the adjustment to suit the particular needs of the user.
The turret has mounting sockets for three lenses according to DIN 4x, 10x and 40x (spring-loaded). The pair of eyepieces included in the kit are mounted behind a wide-cut design and provide a wide field of view. If it is necessary to remove high powers, the microscope can be equipped with additional eyepieces and lenses.
The LED will ensure uniform illumination of the drug with light and correct color rendering. The directness of the illumination is regulated by an Abbe capacitor with a numerical aperture of NA 1.25, which allows for optional high magnification lenses (up to 100x). The condenser is pre-centered at the factory and has two fastening screws, which allow for any necessary adjustments. If it is necessary to carry out precautions near the dark field, you can install a dry Bresser condenser or a Bresser dark-field oil condenser.
The amount of light is regulated by an iris aperture diaphragm (allows you to smoothly, steplessly adjust the light intensity). Under the diaphragm there is a filter outlet for filters with a standard diameter of 32 mm.
A rugged object table with preparation, micrometric fine and coarse adjustments, the ability to attach two eyes at the same time, ensures the most accurate positioning of the object under the microscope lens and its movement in the plain.
The microscope is powered by replaceable batteries of the widest standard size AA (Alcaline) 1.5 V (replacement batteries AA Ni-Mg 1.2 V are allowed. In this way, the microscope can remain in the field drains without connection to the electric current.

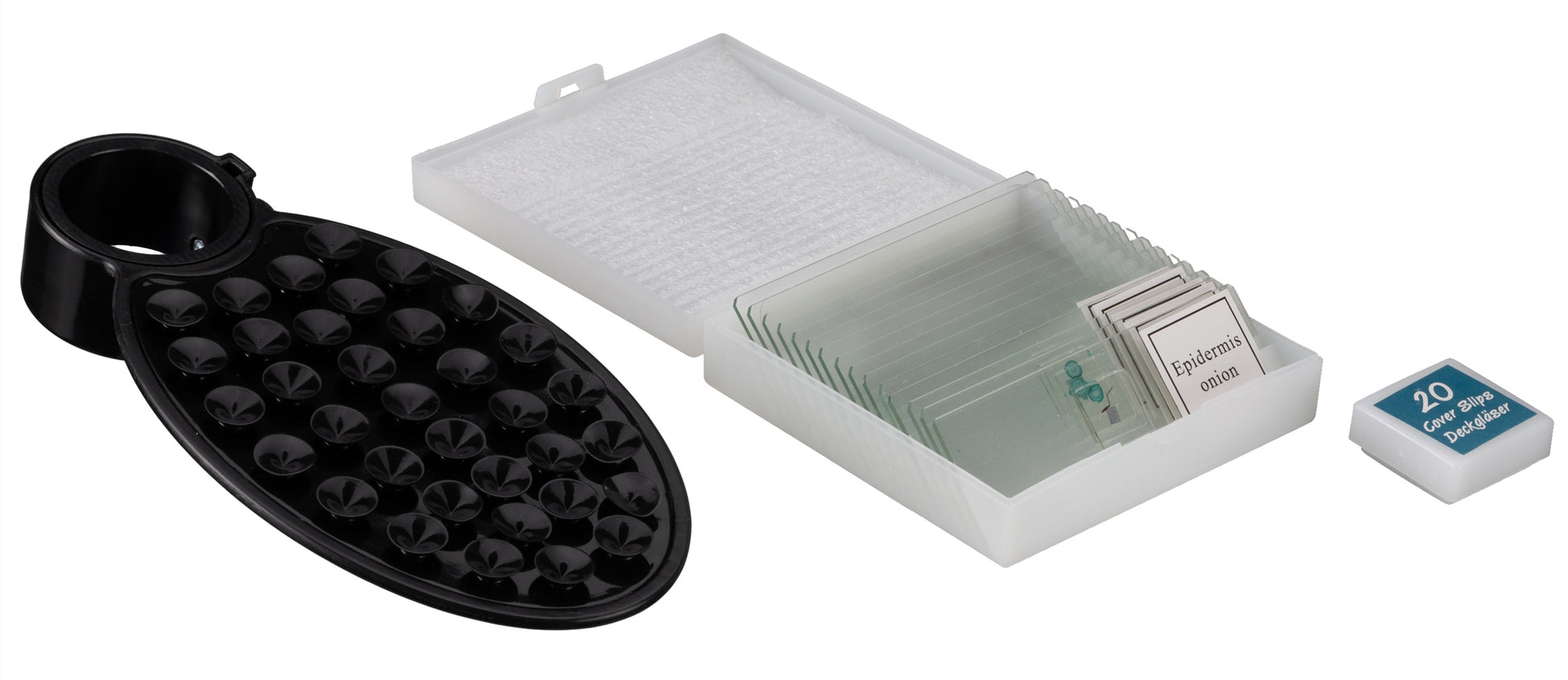

The microscope is supplied in a personal plastic case. The attachment and all accessories are placed in trays carved into a polyurethane foam base. For an easy start, the microscope kit comes with a set of ready-made slides, slides and covers.

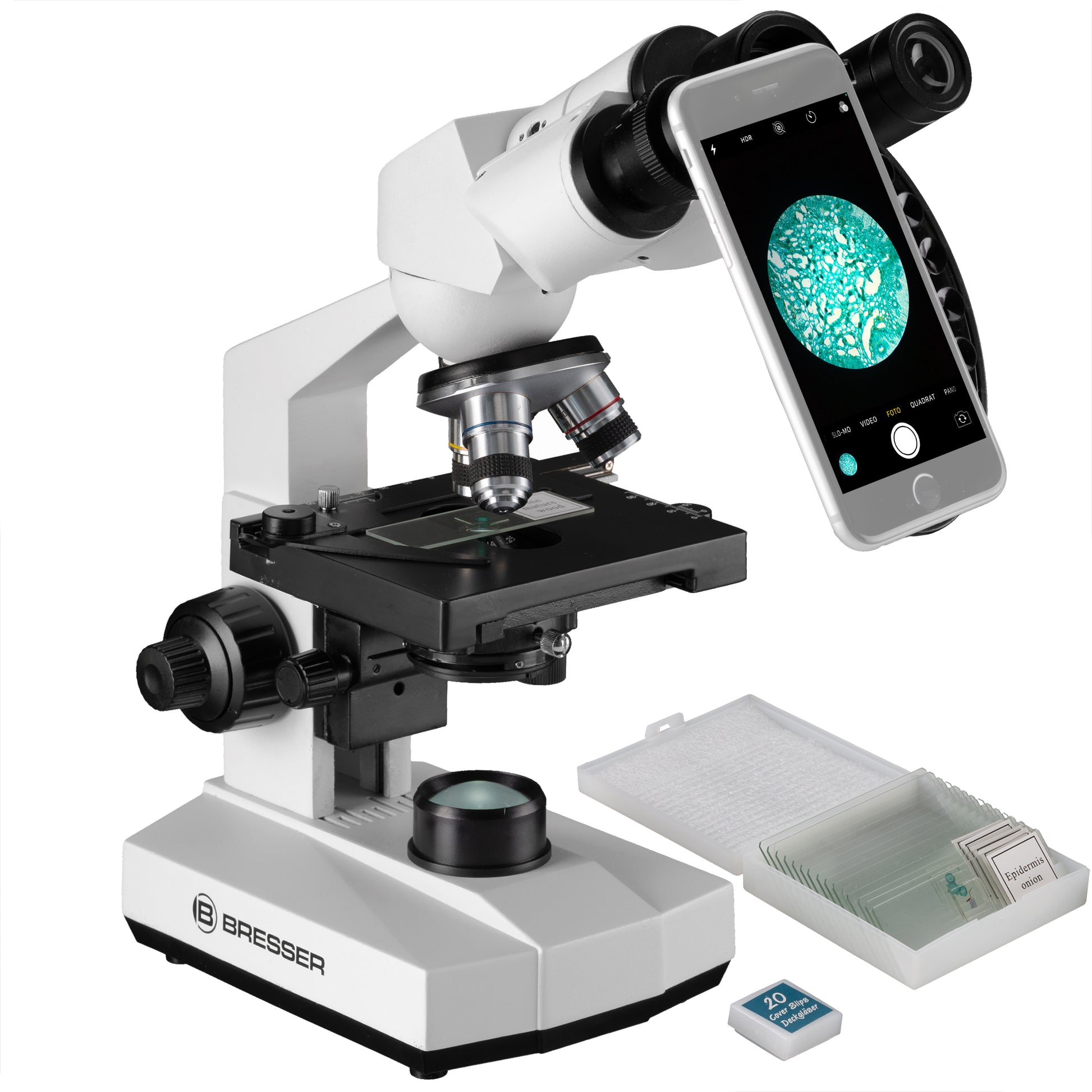

In addition, the package includes an adapter for a smartphone (tablet) camera. The adapter is attached to the microscope tube and allows you to take photos and videos with the head or front camera of the gadget. The smooth back side of the smartphone is securely attached to the adapter without any suction cups (it is recommended to remove the front camera if the smartphone has a corrugated back surface).
| Manufacturer code: 922746
Parameters:
Package dimensions: 30 x 17 x 36 cm
Warranty: 12 months
Brand registration country: Germany
Country of origin for product: China
Equipment: Microscope: metal bodyThe turret has mounting sockets for three lenses according to DIN 4x, 10x and 40x (spring-loaded). The pair of eyepieces included in the kit are mounted behind a wide-cut design and provide a wide field of view. If it is necessary to remove high powers, the microscope can be equipped with additional eyepieces and lenses.
The LED will ensure uniform illumination of the drug with light and correct color rendering. The directness of the illumination is regulated by an Abbe capacitor with a numerical aperture of NA 1.25, which allows for optional high magnification lenses (up to 100x). The condenser is pre-centered at the factory and has two fastening screws, which allow for any necessary adjustments. If it is necessary to carry out precautions near the dark field, you can install a dry Bresser condenser or a Bresser dark-field oil condenser.
The amount of light is regulated by an iris aperture diaphragm (allows you to smoothly, steplessly adjust the light intensity). Under the diaphragm there is a filter outlet for filters with a standard diameter of 32 mm.
A rugged object table with preparation, micrometric fine and coarse adjustments, the ability to attach two eyes at the same time, ensures the most accurate positioning of the object under the microscope lens and its movement in the plain.
The microscope is powered by replaceable batteries of the widest standard size AA (Alcaline) 1.5 V (replacement batteries AA Ni-Mg 1.2 V are allowed. In this way, the microscope can remain in the field drains without connection to the electric current.
The microscope is supplied in a personal plastic case. The attachment and all accessories are placed in trays carved into a polyurethane foam base. For an easy start, the microscope kit comes with a set of ready-made slides, slides and covers.
In addition, the package includes an adapter for a smartphone (tablet) camera. The adapter is attached to the microscope tube and allows you to take photos and videos with the head or front camera of the gadget. The smooth back side of the smartphone is securely attached to the adapter without any suction cups (it is recommended to remove the front camera if the smartphone has a corrugated back surface).
Lenses: (4 / 0.10 160 / -; 10 / 0.25 160 / 0.17; 40 / 0.65 160 / 0.17): 3 pcs.
Eyepieces: 1 pair of wide-cut eyepieces WF10x / 18mm
Adapter for smartphone (tablet) camera
Slides: 5 pcs.
Item storage: 10 pcs.
Covers: 15 pcs. Zhivlennya: Batteries Illumination: LED (pass-through and knock-out light) Focus: Grube Tonke Subject table: Coordinate with a preparation guide and micrometric adjustments along both axes. Nahil: 30º Rotation: 360º Head: Binocular Function: Professional, basic Eyepiece gain: 10x Large lens: 4x, 10x, 40x Microscope magnification: 40x - 400x Class: Biological Type: Optical Type: Microscopes Weight: 2950 g Package weight: 3.5 kg Size: 335 x 130 x 200 mm EAN code: 4007922030777 Number of lenses: 3 Item: 922746 Brand: Bresser
