Description

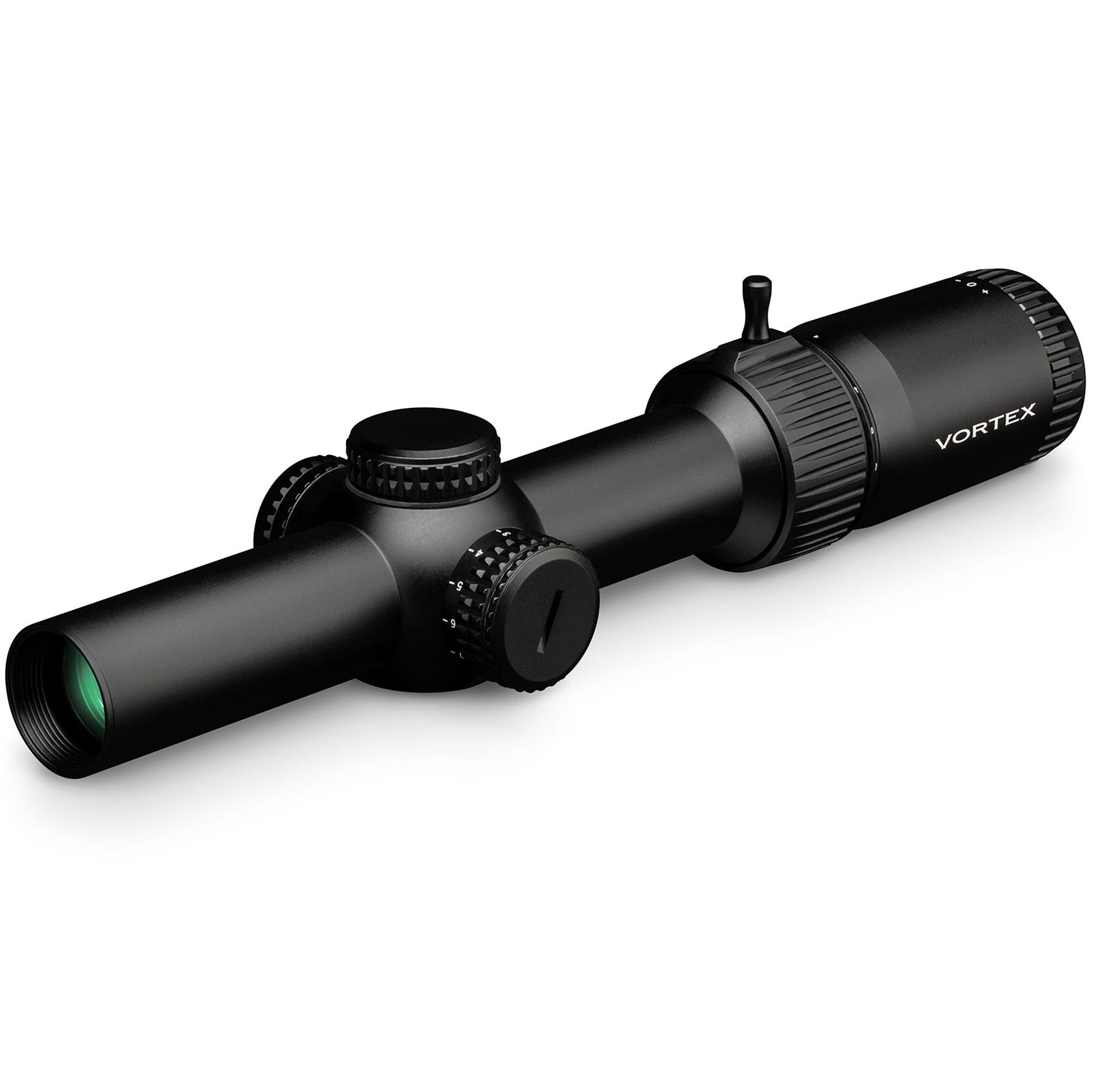

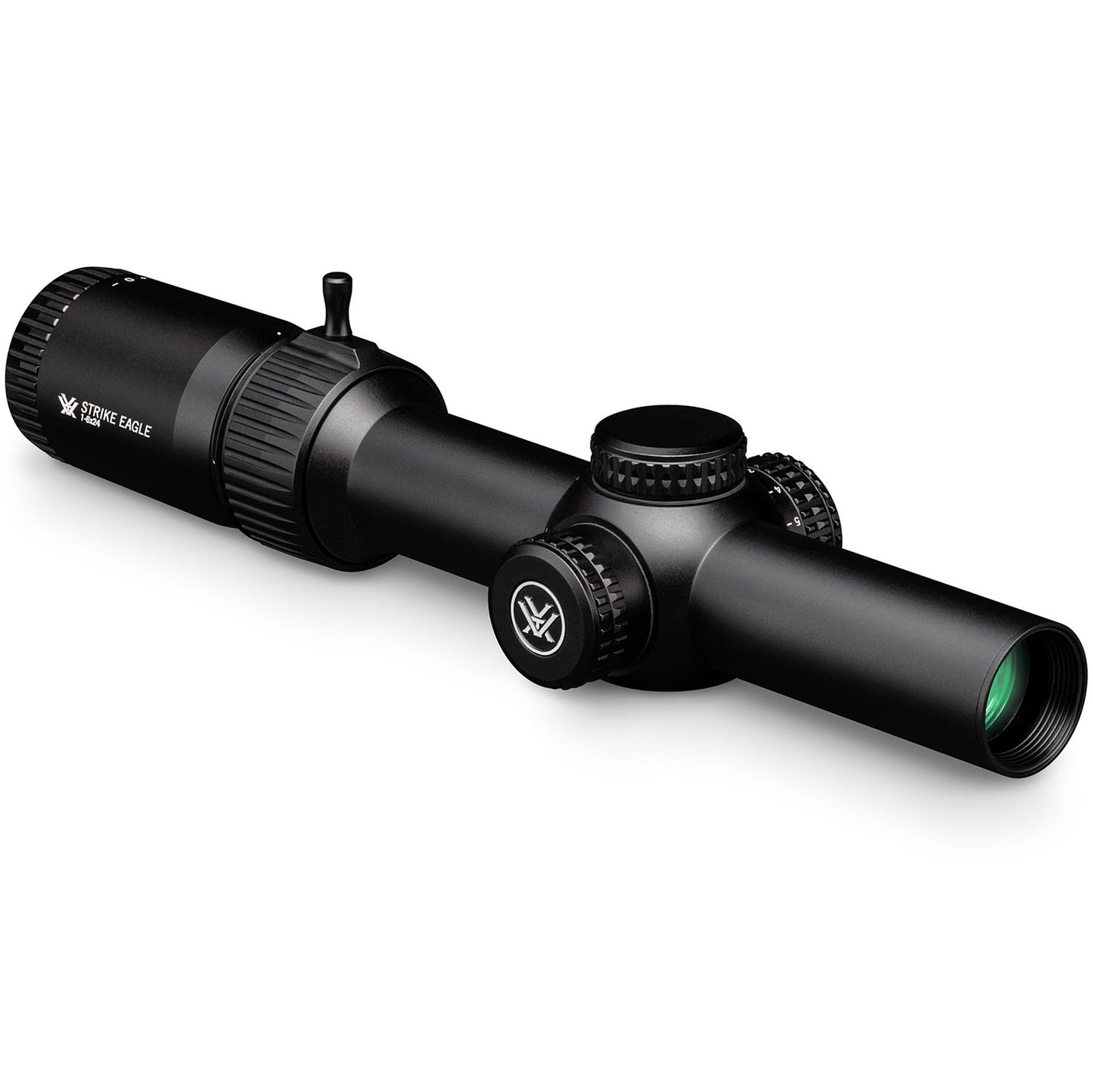

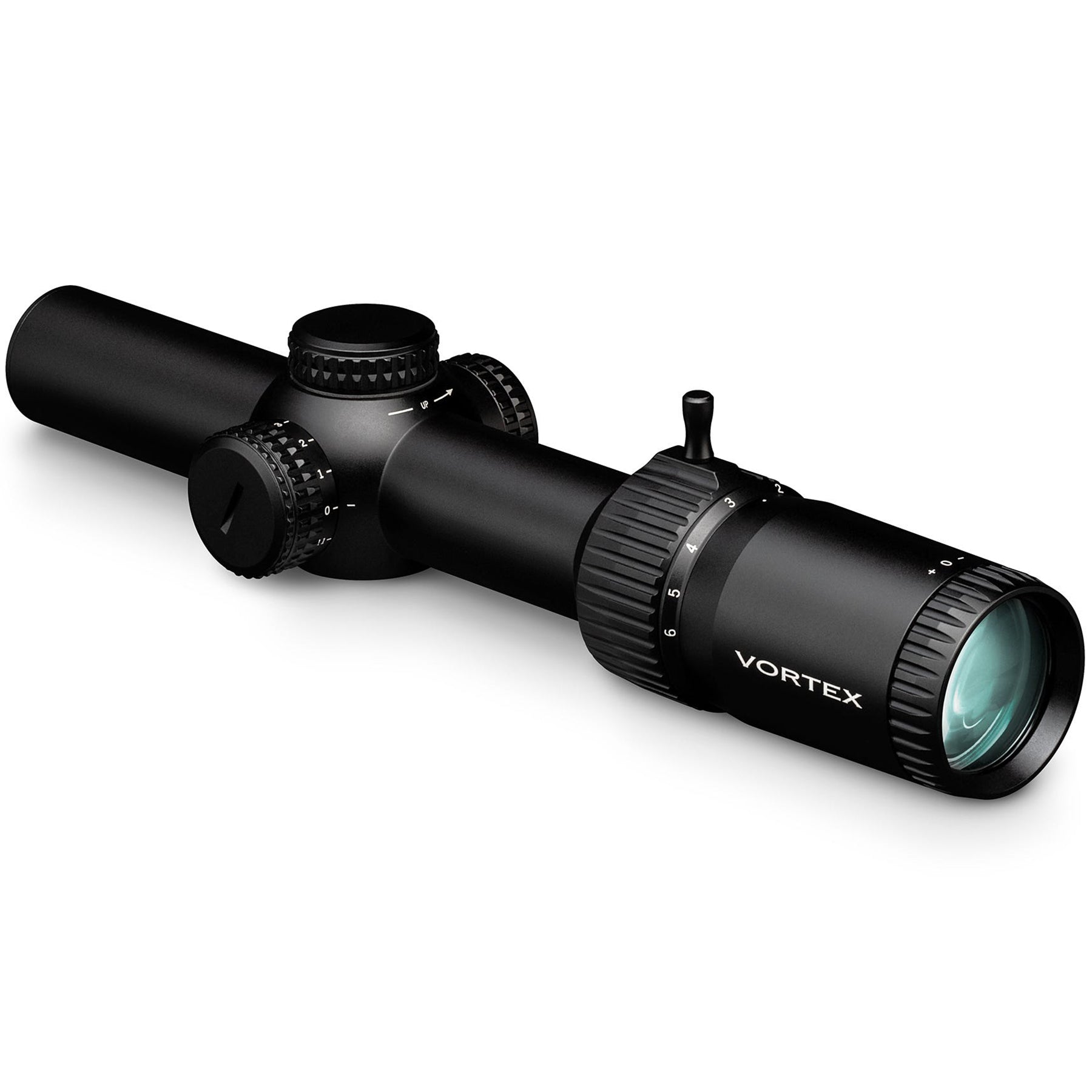

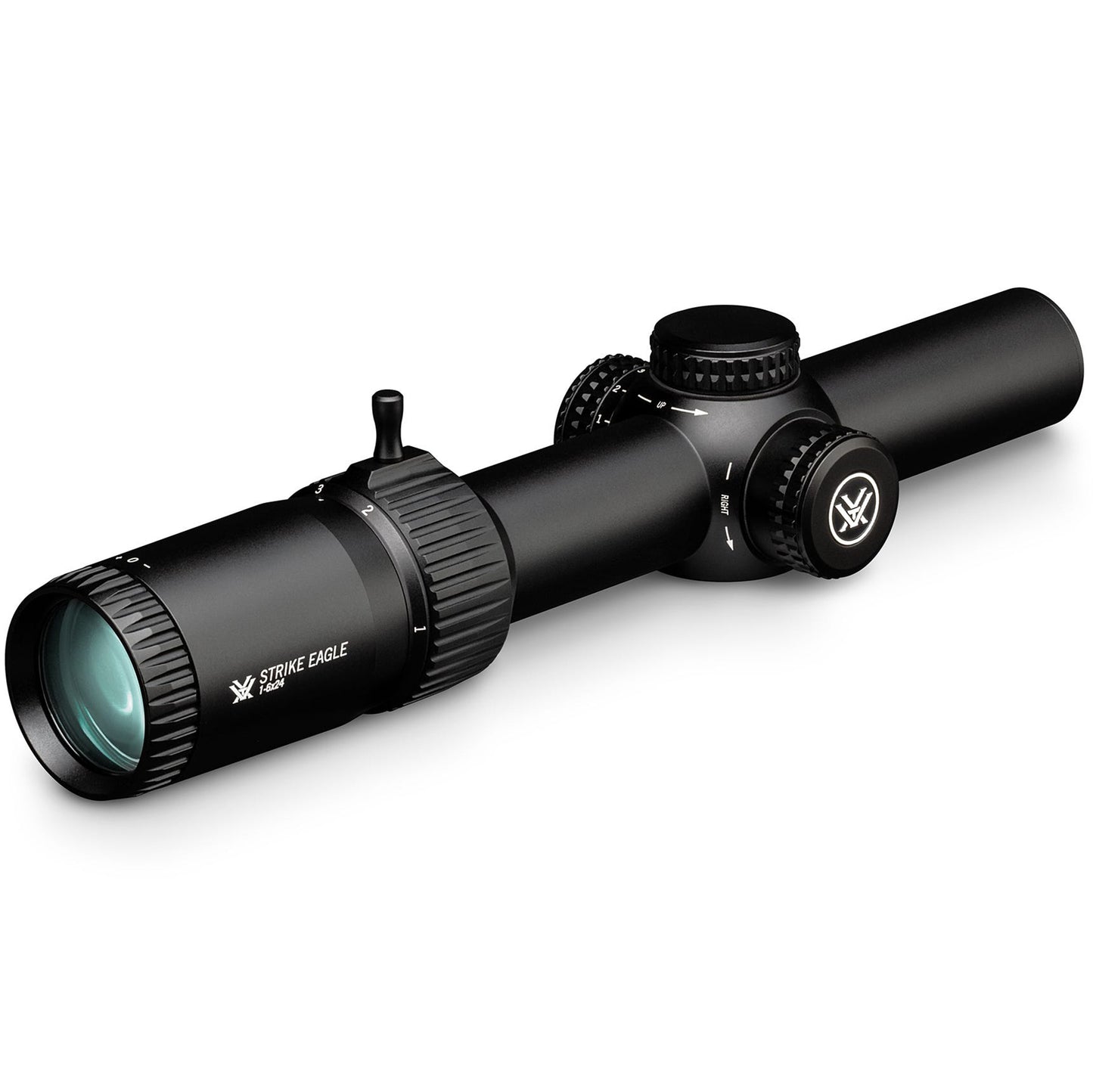

Vortex Strike Eagle 1-6x24 AR-BDC3 - updates for 2020 with a “different generation of strike head” sight, which has removed a number of key changes:
- The correction range has been increased from 120 to 140 MOA .
- The multiplicity change ring is standardly equipped with a variable multiplicity changer (“steering wheel”, PTL - power throw lever).
- The aim of a little bit is important for the leader, for the rahunok of the greater dovzhin.
- The housing is 10 mm longer, and the mounting range is identical for installing rings or monoblocks.

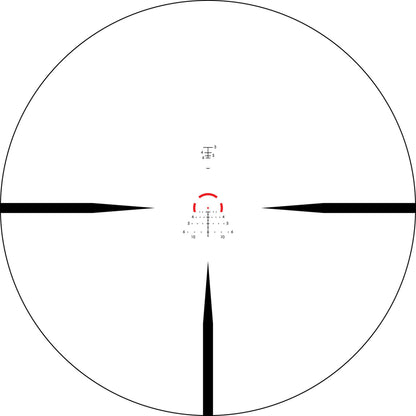

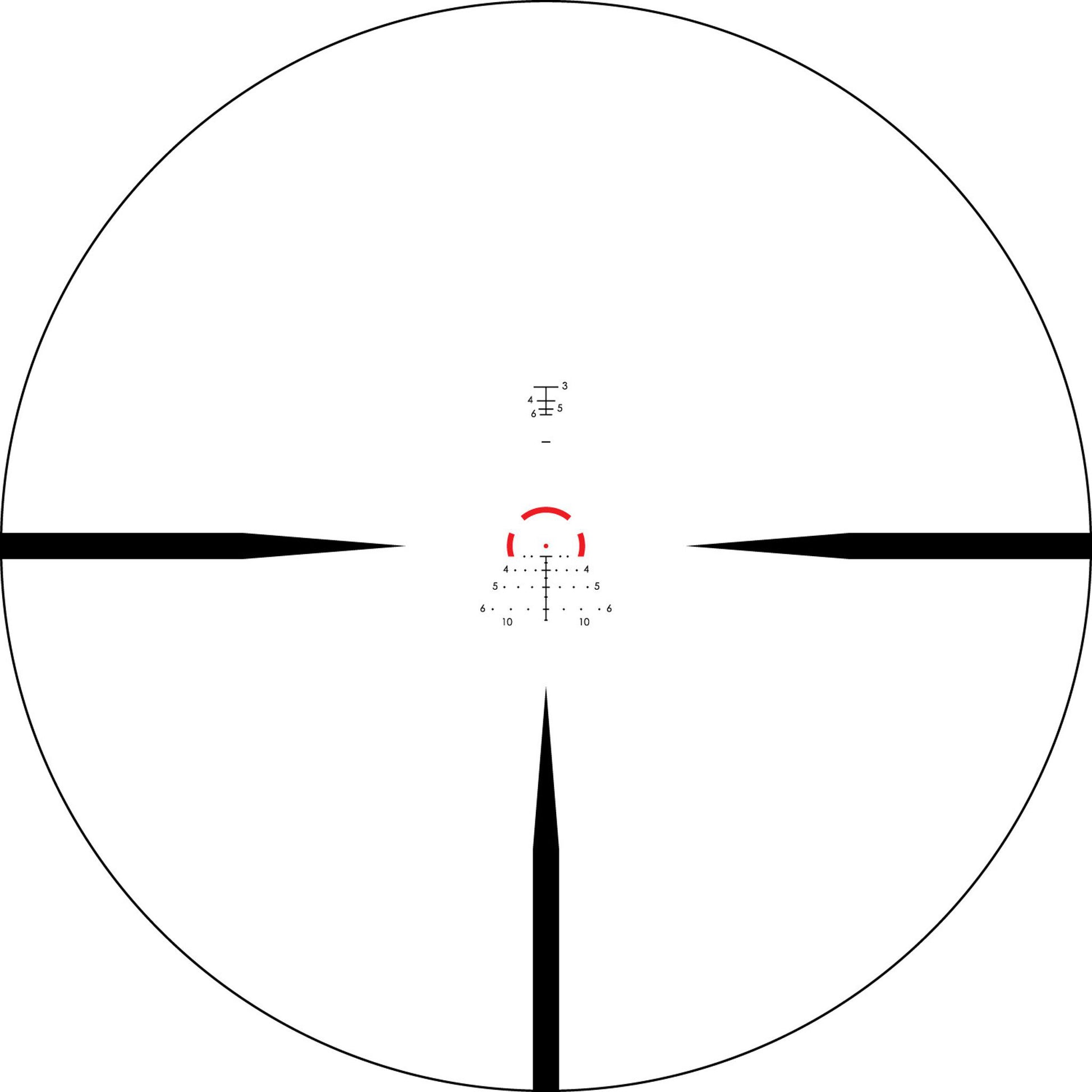

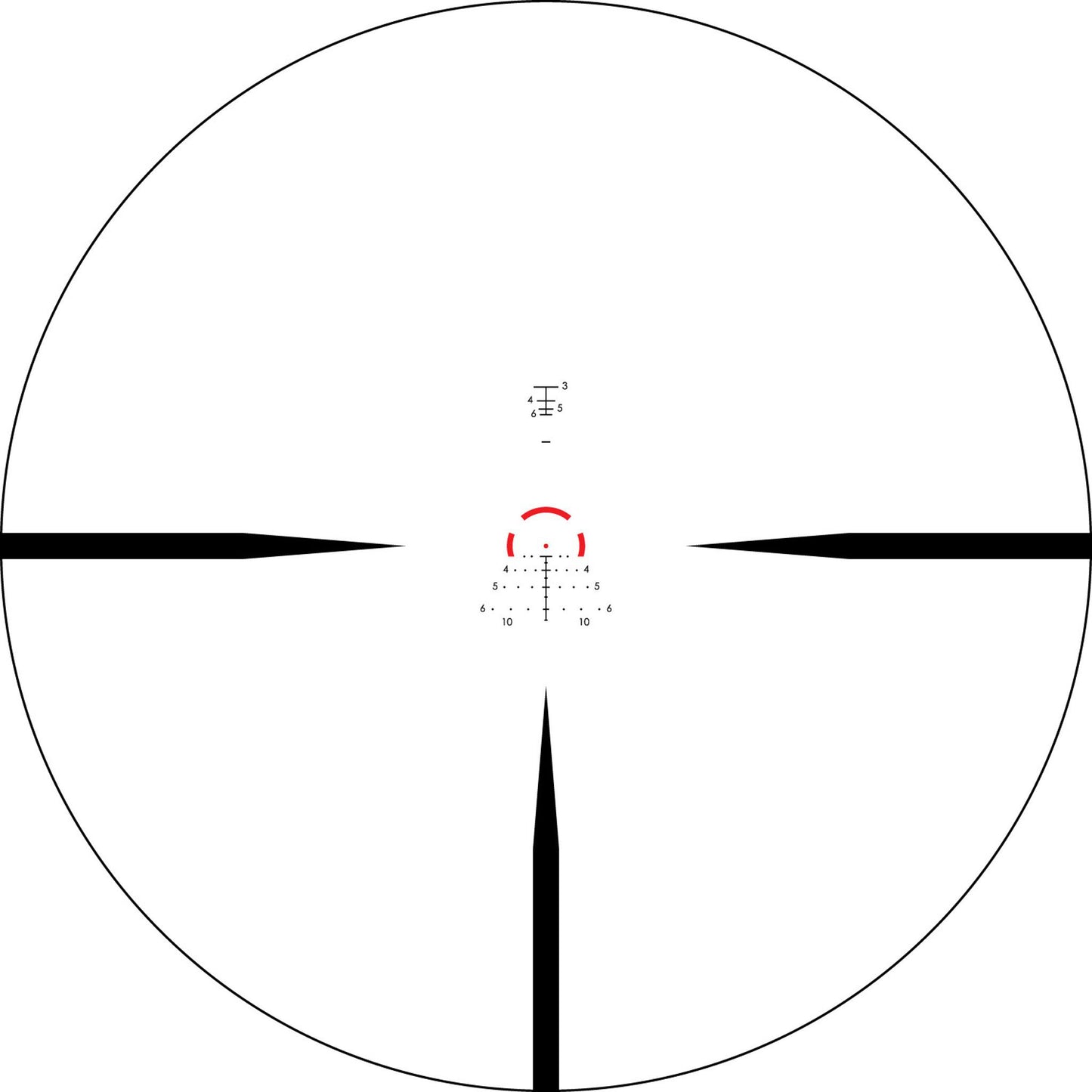

- The aiming mark has been updated and is calibrated for the 5.56 mm cartridge with a long range scale of up to 650 yards - AR-BDC3 .
Partitions for installation on armored vehicles based on M4A1 (AR-15) , Vortex Strike Eagle 1-6x24 optical sight with AR-BDC3 sighting reticle, ballistically marked for 5.56 caliber - standard for AR-15 for guns and sights It has fully brightened high-light optics, sharper images, optimized for low light levels. Solid central tube made of aircraft-grade aluminum alloy. An eyepiece that is easy to focus, close the correction drums. The body is anodized and completely waterproof.
Features of the Strike Eagle 1-6x24 sight
- the price of clicking the mechanism for introducing corrections becomes 0.5 MOA.
- outside the drum wrapping of corrections - 44 MOA (88 clicks).
- Correction range 140 MOA.
- CCW - the sighting reticle is designed to wrap around the directional arrow.
- The aiming mark is at a different focal plane . The scale of the aiming mark becomes unchanged due to changes in the magnification ratio of the image. Aiming at a lower size, the aiming mark can be adjusted to adjust the distance to the mark, and also helps to make corrections for height and wind when shooting at long distances.
- The aiming mark is etched on the surface . It is protected by two glass balls, which guarantees reliability and durability.
- Bagatosharov's enlightenment is covered. The rich-ball coating of the lenses improves the light transmission of the optical elements and also prevents the appearance of glare.
DESIGN FEATURES:
- Diameter of the central tube: 30 mm.
- One-piece body - Ensures maximum consistency of the sight design for high shooting accuracy and captures the most clear image, and also ensures high value and tightness.
- Aircraft-grade aluminum - Construction from a single block of aircraft-grade aluminum ensures flexible construction and rigidity.
- Tightness - The purpose of sealing the rings of the gullies, which crosses the trapped water and saw into the middle of the body.
- Protected against condensation - The sight is purged with nitrogen, which prevents the lenses from being affected by extreme weather conditions and temperatures.
- Impact resistance - The rigid design is reinforced to withstand any impact from shots and impacts.
- Anodized coating - Durable matte finish on the scope body does not give off glare, which helps to maintain the shooter's position.
- Close the correction drums.
SIGHT DIMENSIONS:
L1: 266.7 mm
L2: 73.6 mm
L3: 53 mm
L4: 167.6 mm
L5: 99 mm
H1: 30mm
H2: 43 mm
