Description

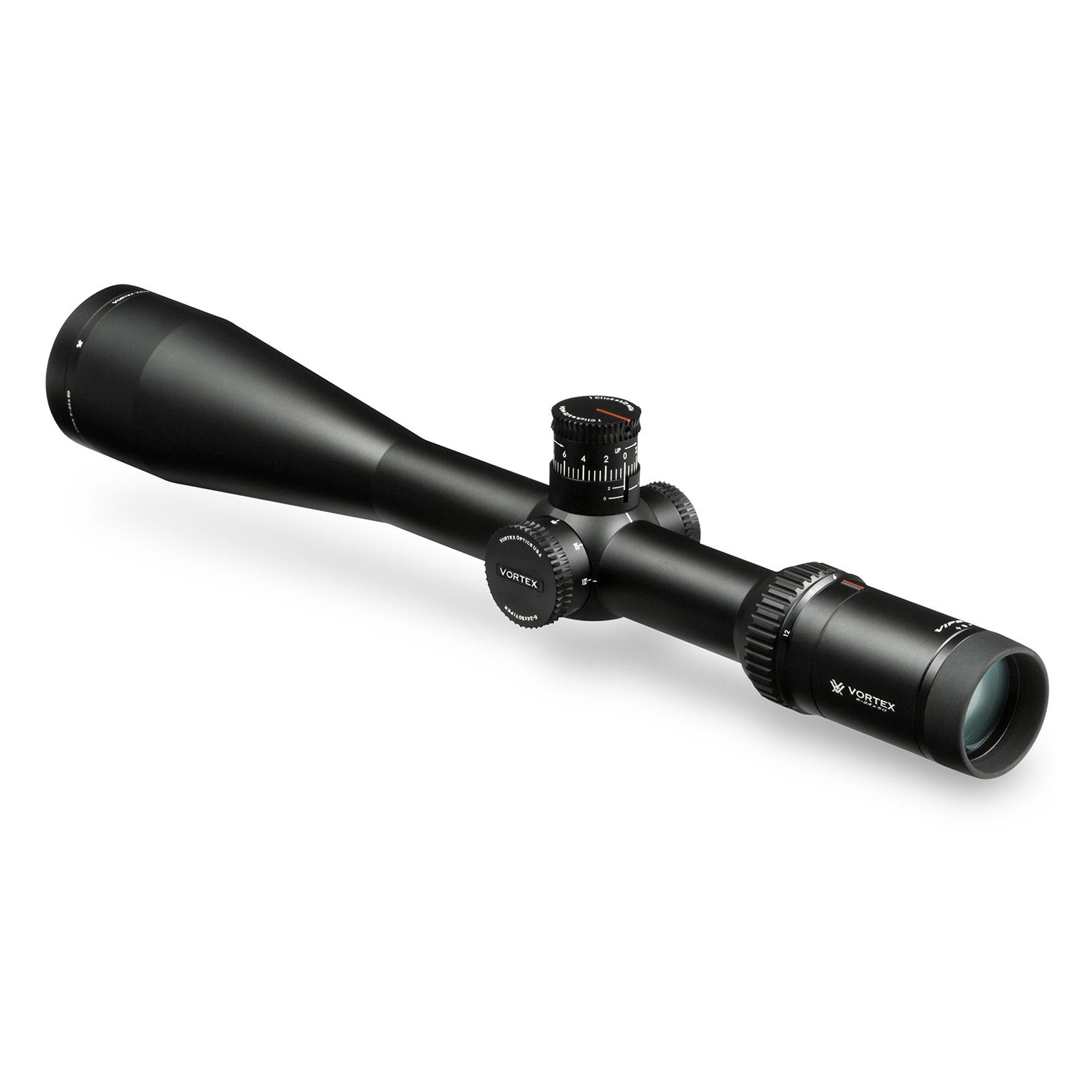

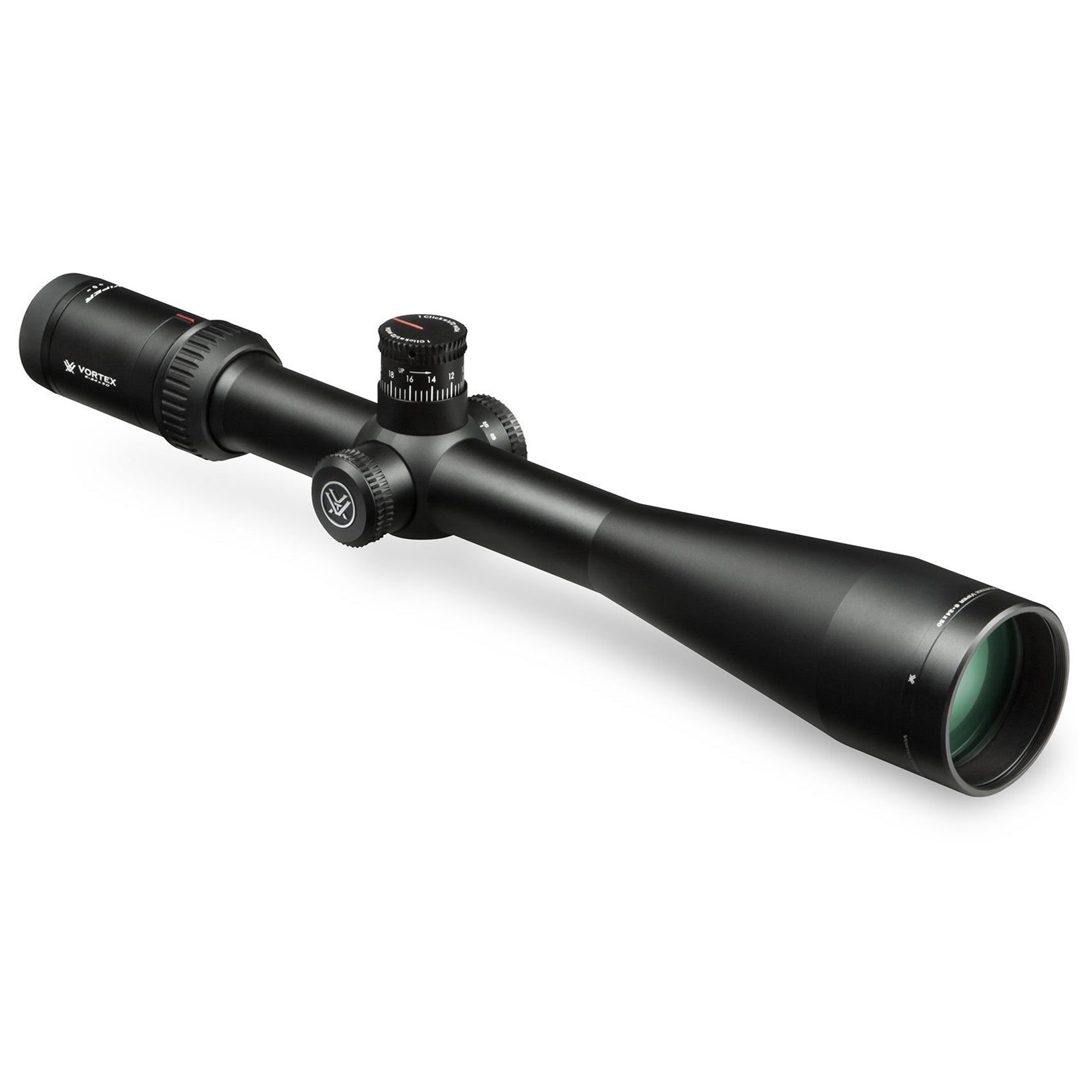

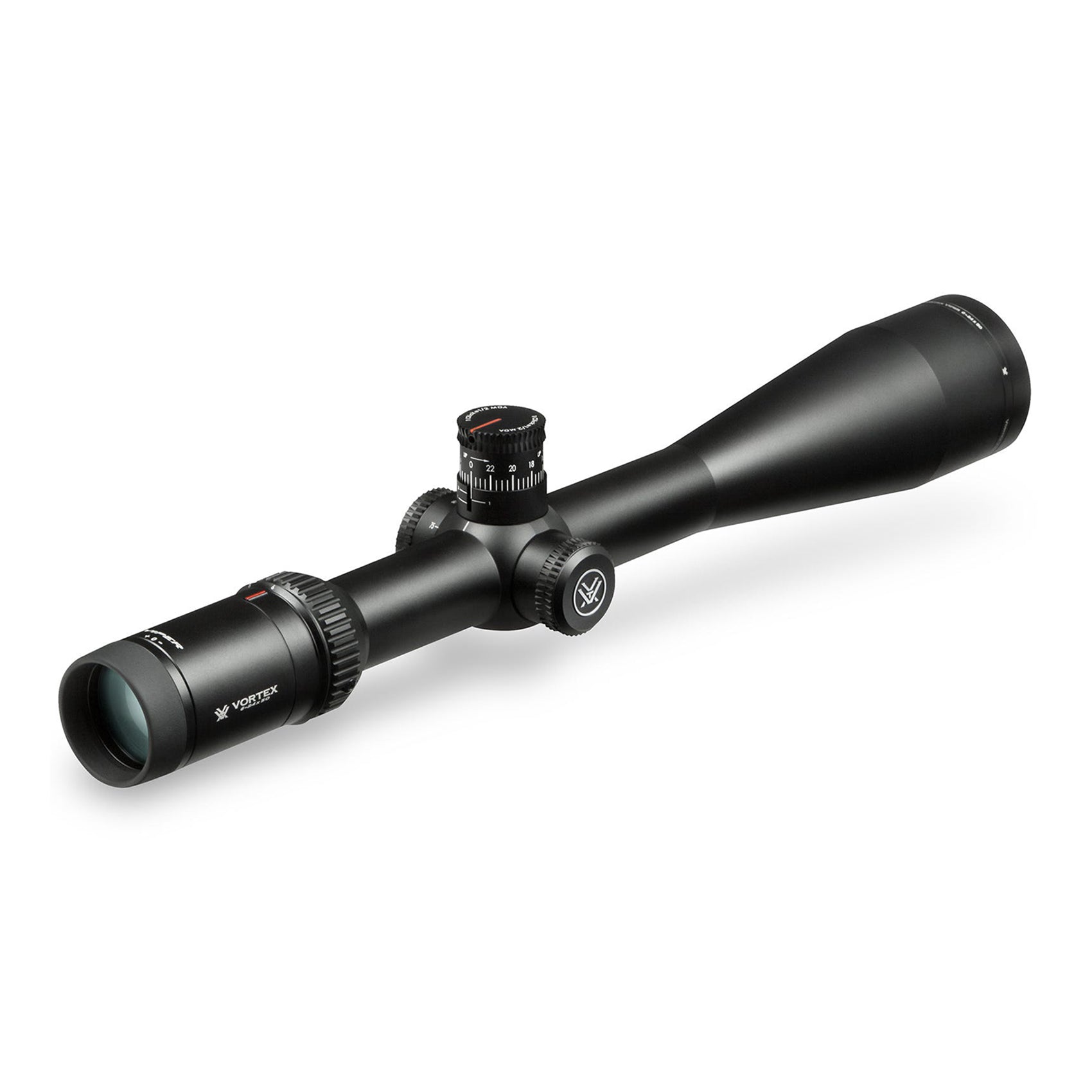

The Vortex Viper HST 6-24X50 (Hunting Shooting Tactical) optical sight is ideal for a wide range of applications. The HST Series sights have the best features from the most popular Viper PST and Viper HS series of sights.
Features of the Vortex Viper HST 6-24X50 sight:
- The 30 mm thin body made of solid aluminum, turned on precision workbenches, will provide a wide range for introducing corrections both in height and horizontally.
- An advanced optical system with highly enlightened optics and 6-24x magnification ensures the versatility of the sight.

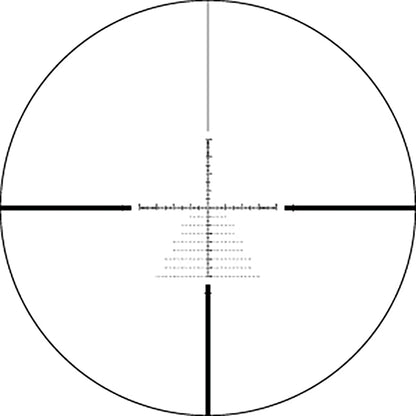

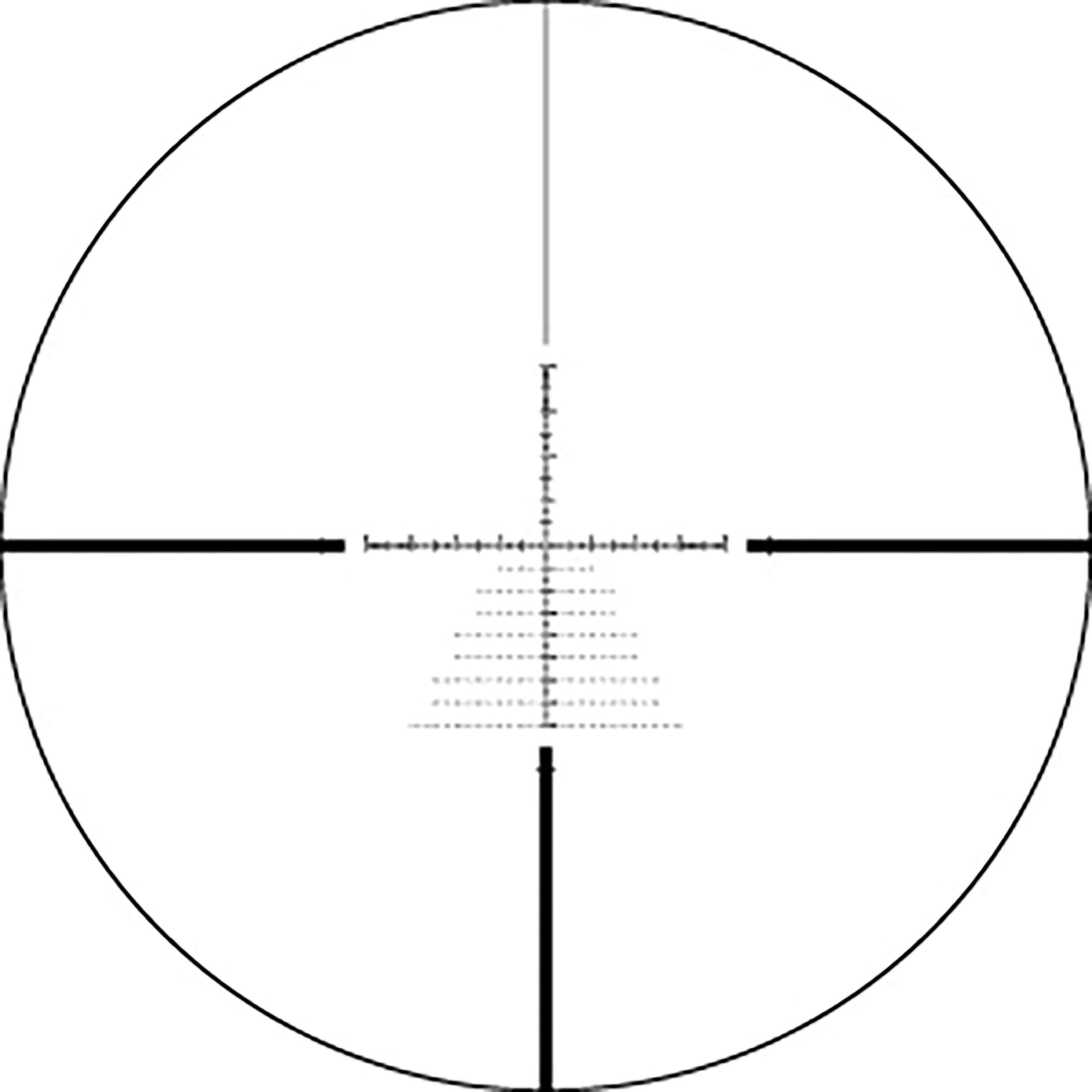

- The aiming reticle is in a different focal plane - the reticle always retains its dimensions, and adjustments to the reticle, as well as the selected distance along the reticle, are possible only at maximum magnification.
- The large eyepiece, with an increased distance to the shooter’s eyes, allows you to instantly catch a target in the lens.
- Tactical correction turrets with the CRS Zero Stop system, as well as a wrap doctor, accommodate fast corrections and allow the shooter to operate both the reticle and the turrets.
- Radius Bar is a proprietary system for adjusting the position of the vertical adjustment drum. The fiber optic guide allows you to instantly determine the position of the drum.
-
Side Focus - adjustments are located on the left side of the sight and are easily accessible from any shooting position. Ensures optimal image focusing and parallax control.
Technical characteristics of the Viper HST 6-24X50 sight:
- Caliber cut: without cut.
- Multiplicity: 6-24.
- Illumination of the aiming reticle: no.
- The diameter of the middle tube of the sight: 30 mm.
- Mounting method: rings and brackets 30 mm.
- Lens diameter: 50 mm.
- Field of view at 100m: 5.9-1.7 m.
- Exit line: 8.3-2.1 mm.
- Distance from the eyepiece to the eye: 101 mm.
- Vidbudova against parallax: Bichna SF.
- Parallax adjustment: from 46 m to infinity.
- Rotating the sighting reticle: different focal area.
- Drum type: open/tactical.
- Adjustment for the grid in MOA:.
- Vertical adjustment range (MOA): 65.
- Windage adjustment range (MOA): 65.
- The price of one click for the adjustment mechanism: 1/4 MOA.
- Correction range per drum wrap: 12 MOA.
- Weight: 624 g.
- Outer eyepiece diameter: 41.4 mm.
- External diameter: 57.4 mm.
- Length: 394 mm.
- Vologozashchist: е.
- Purged with nitrogen/argon: e.
