Description

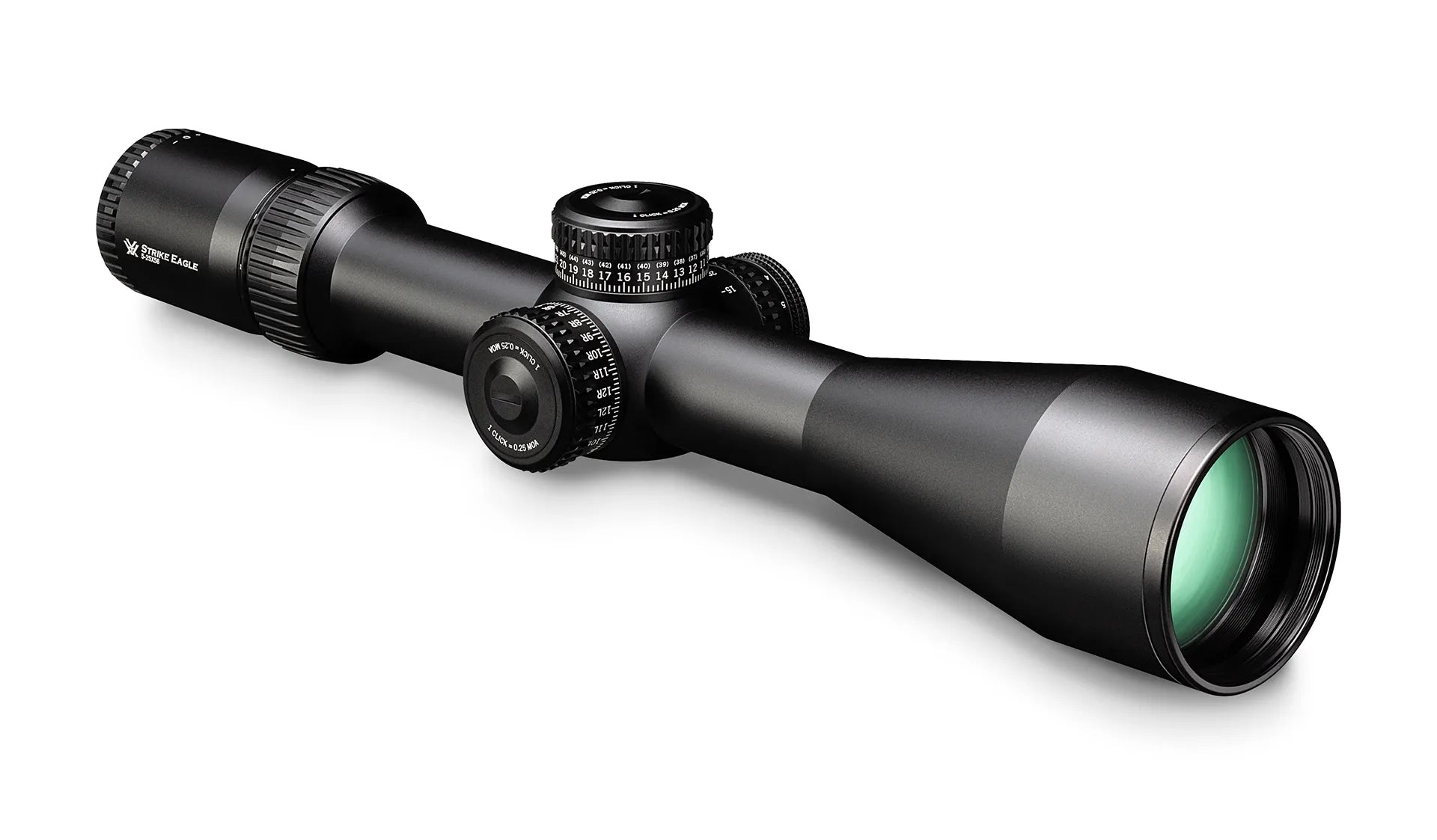

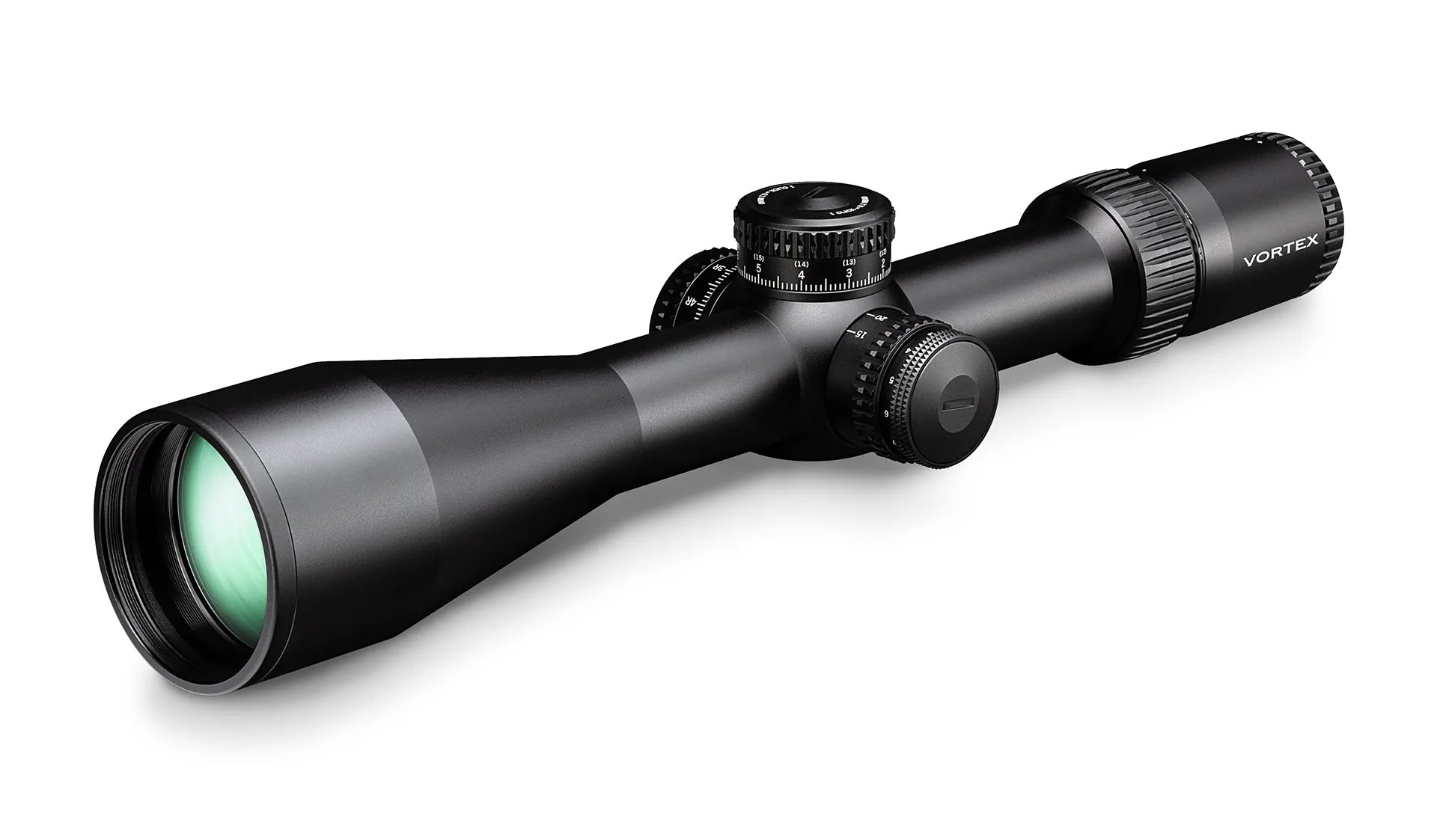

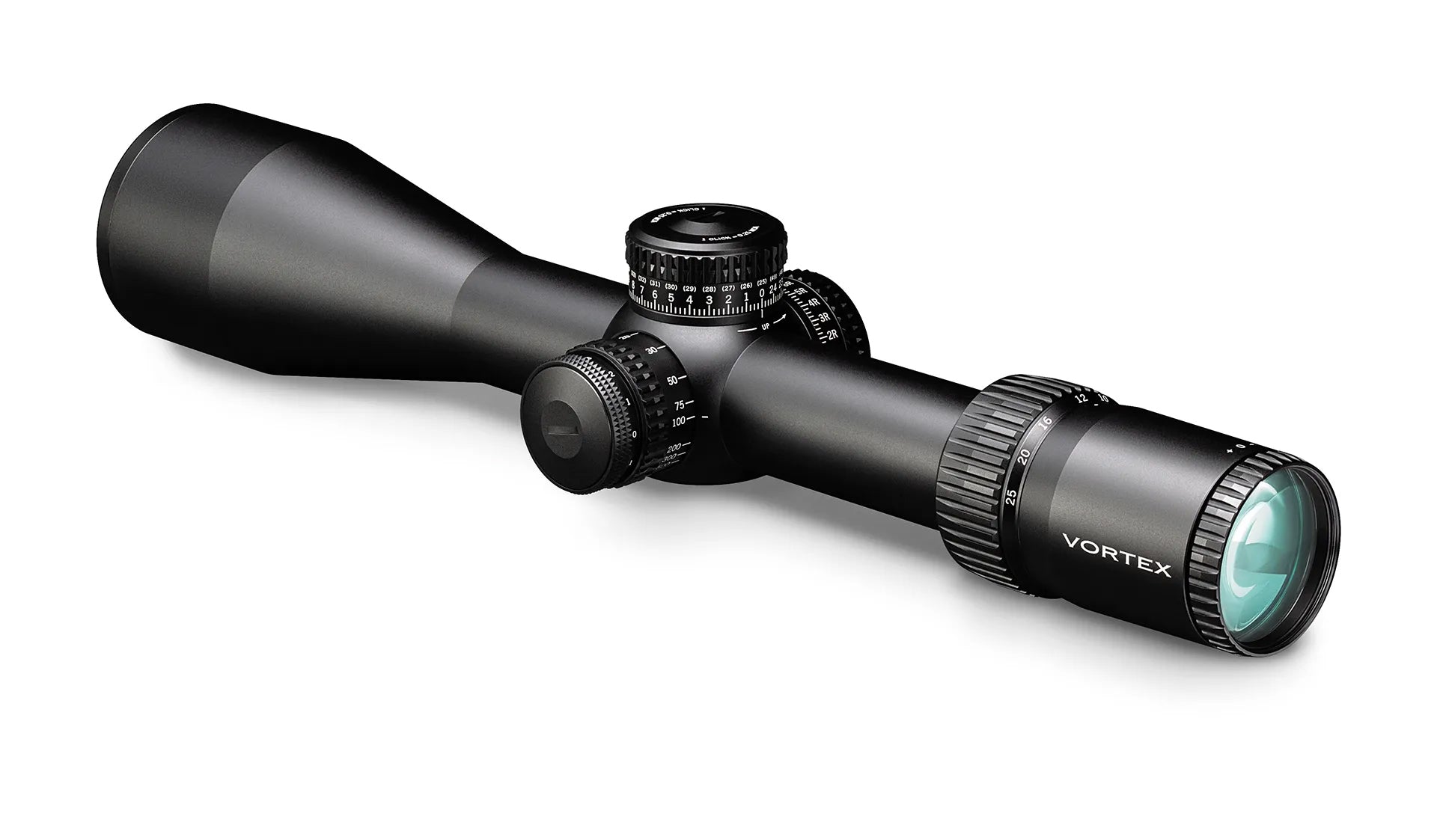

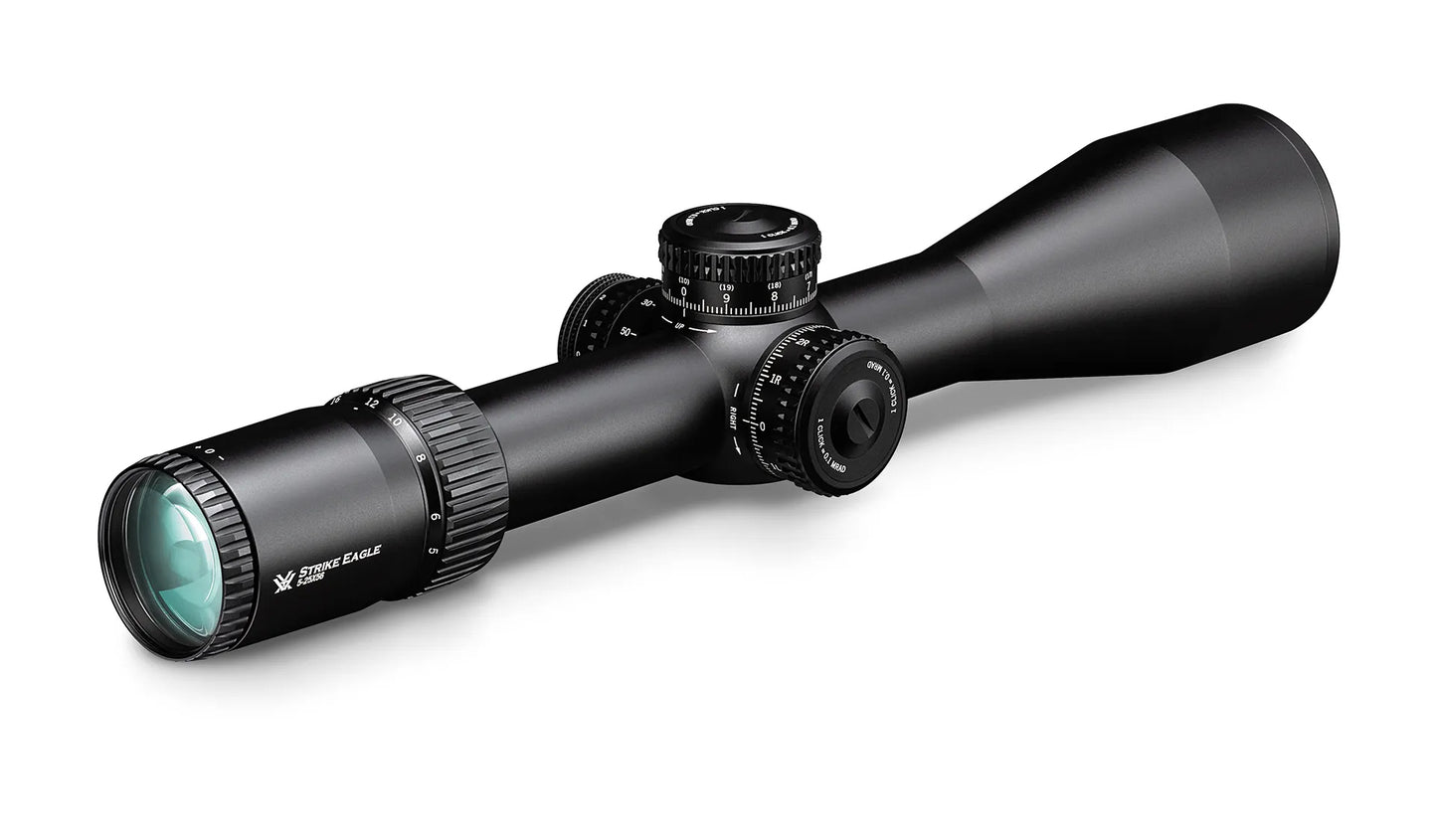

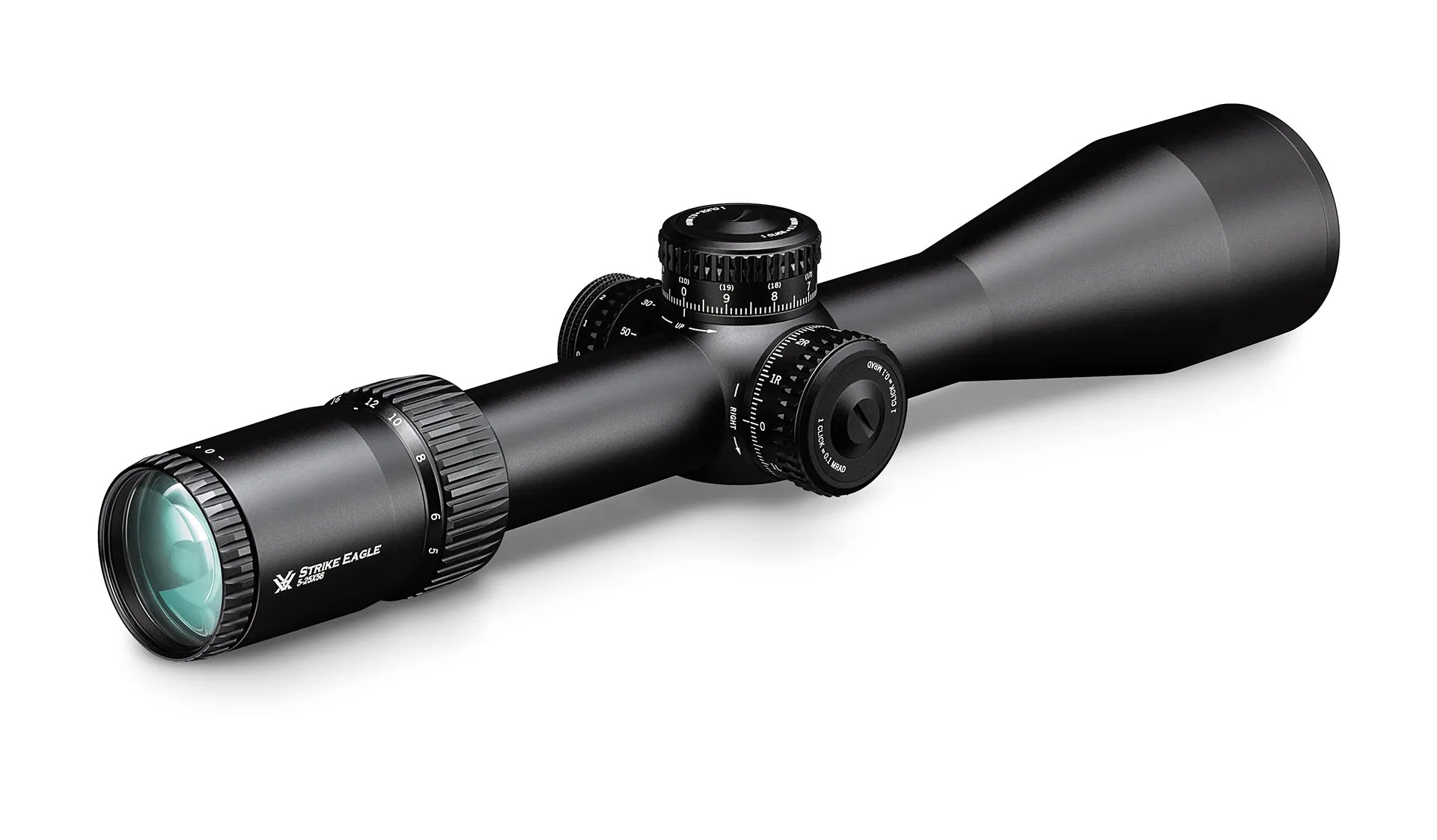

The completely new Vortex Strike Eagle 5-25×56 FFP optical sight is a new word in long-range shooting. Read with extreme clarity from edge to edge and add the first focal plane (FFP) to the grid for easy reading in any case of increased and brightened light. Add the new RevStop Zero system for fast turning to zero and blocking the drums. Be aware of the 34mm tube, which can accommodate a large amount of movement due to height and wind, and it is also important to change the multiplicity in the gear box to change the increase, and You have a strike machine in the distant vicinity, which makes you wonder if you ever shot without it.
Features of the Vortex Strike Eagle 5-25×56 FFP sight:
- A solid pipe with a diameter of 34 mm, made from a special aluminum alloy 6061-T6, vikorized in an aircraft manufacturing facility, ensures increased structural strength and greater width The range of corrections is equal to the sights that can wash a 30 mm pipe.
- With extra-low dispersion (XD), greater precision in the creation of individual images and colors. All lenses are equipped with multi-criteria.
- Reticle in the first focal plane FFP - the scale of the aiming reticle is no longer proportional to the scaled image. The vibrating mesh is effective in case of any increase.
- The precise aiming reticle is etched between 2 glass balls for optimal durability and reliability. Illumination of the grid.
- RevStop™ Zero System - Patented, redesigned design allows for easy zero-stop installation, with the wheel turning to zero after adjusting the turret.
- Absolute waterproofness and exclusion of condensation (targets are purged with argon).
- Tri-ball anodized anti-knock coating on the body ensures high resistance to smudges and keeps the sight clear from the light on the body.
Technical characteristics of the sight:
- Multiplicity 5-25.
- Caliber limit: no.
- Illumination of the sighting reticle.
- Method of fastening the ring 34 mm.
- Lens diameter: 56 mm.
Optical characteristics of the Vortex Strike Eagle 5-25×56 sight:
- Field of vision 91 m: 1.58-7 m.
- The exit zone is 24-4 mm.
- Stand up from the eyepiece to 94 mm.
- Adjustment of parallax from 14 m to infinity.
- Rotating the sighting reticle: first focal area FFP.

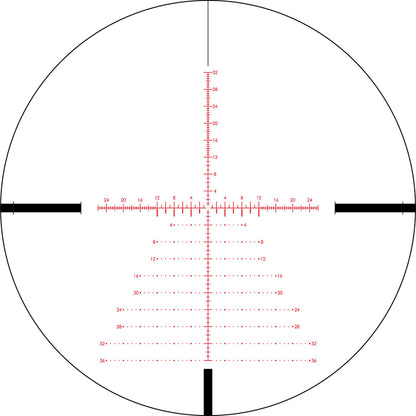

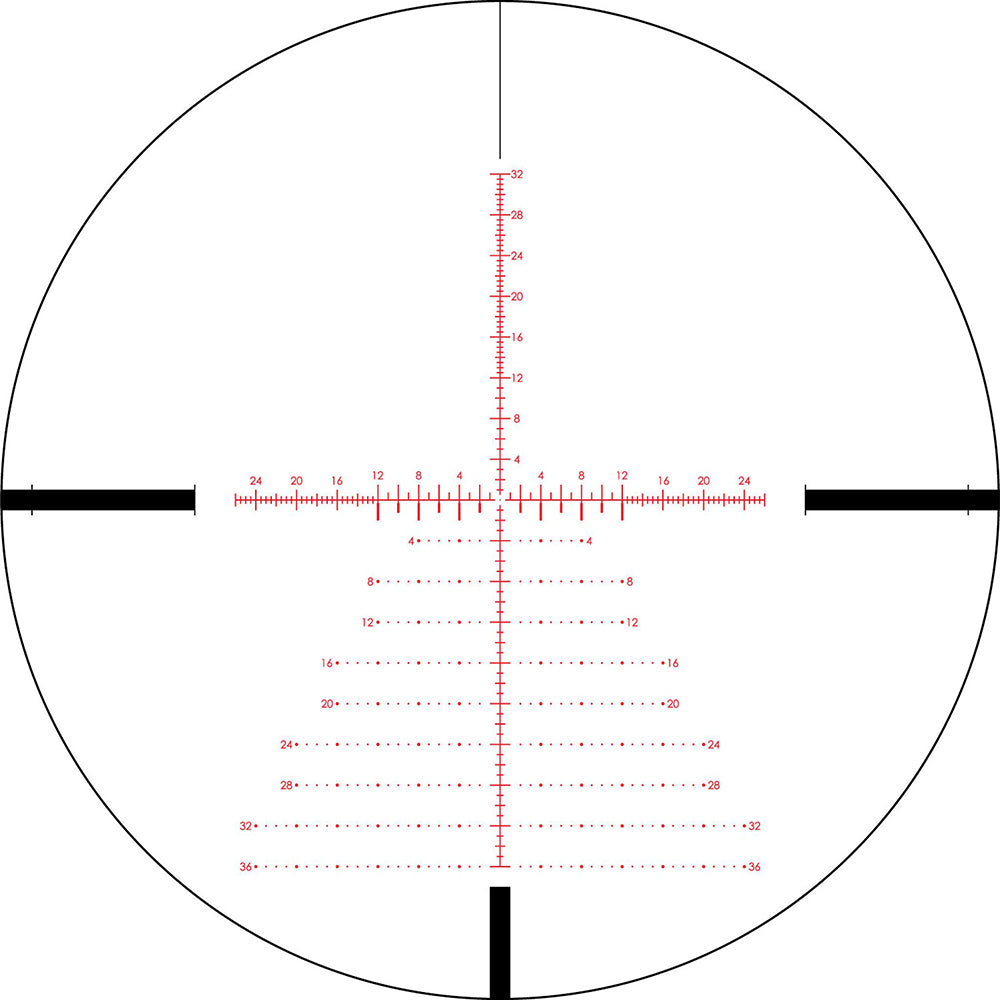

- Reticle type EBR-7C (ballistics).
Mechanism for introducing amendments:
- Drum type - tactical open.
- Clicks-MRAD.
- Vertical adjustment range [MRAD] – 31.
- Horizontal adjustment range [MRAD] – 23.
- The price of one click on the mechanism for introducing amendments [MRAD] is 0.1.
- Drum revolution: [MRAD] - - 10.
Overall dimensions of the sight:
- The diameter of the middle tube of the sight is 34 mm.
- Package value: 1390.
- The outer diameter of the eyepiece is 43 mm.
- External diameter 58 mm.
- Length 371 mm.
Vertical adjustment (height) [MRAD] - 31
Horizontal adjustment (wind current) [MRAD] - 23
Zsuv at full speed [MRAD] - 10
Features: Focus Dovzhina sight, mm: 371 Mesh type: FFP EBR-7C(MRAD) Correction drums, price: 0.1 MRAD (1/4 MOA) Front lens diameter: 56 mm Reticle illumination: Adjustable Minimum multiplicity, x: 5 Maximum magnification, x: 25 Sight tube diameter: 34 mm Mounting included: Without mounting Mounting base: Ring 34 mm Sight type: Optical Section: Sights EAN code: 843829109130 Package weight: 1.4 kg Color: Black Focal area of the aiming reticle: Persha Adjustment for parallax: Fixed Item: 929466 Brand: Vortex
