Description

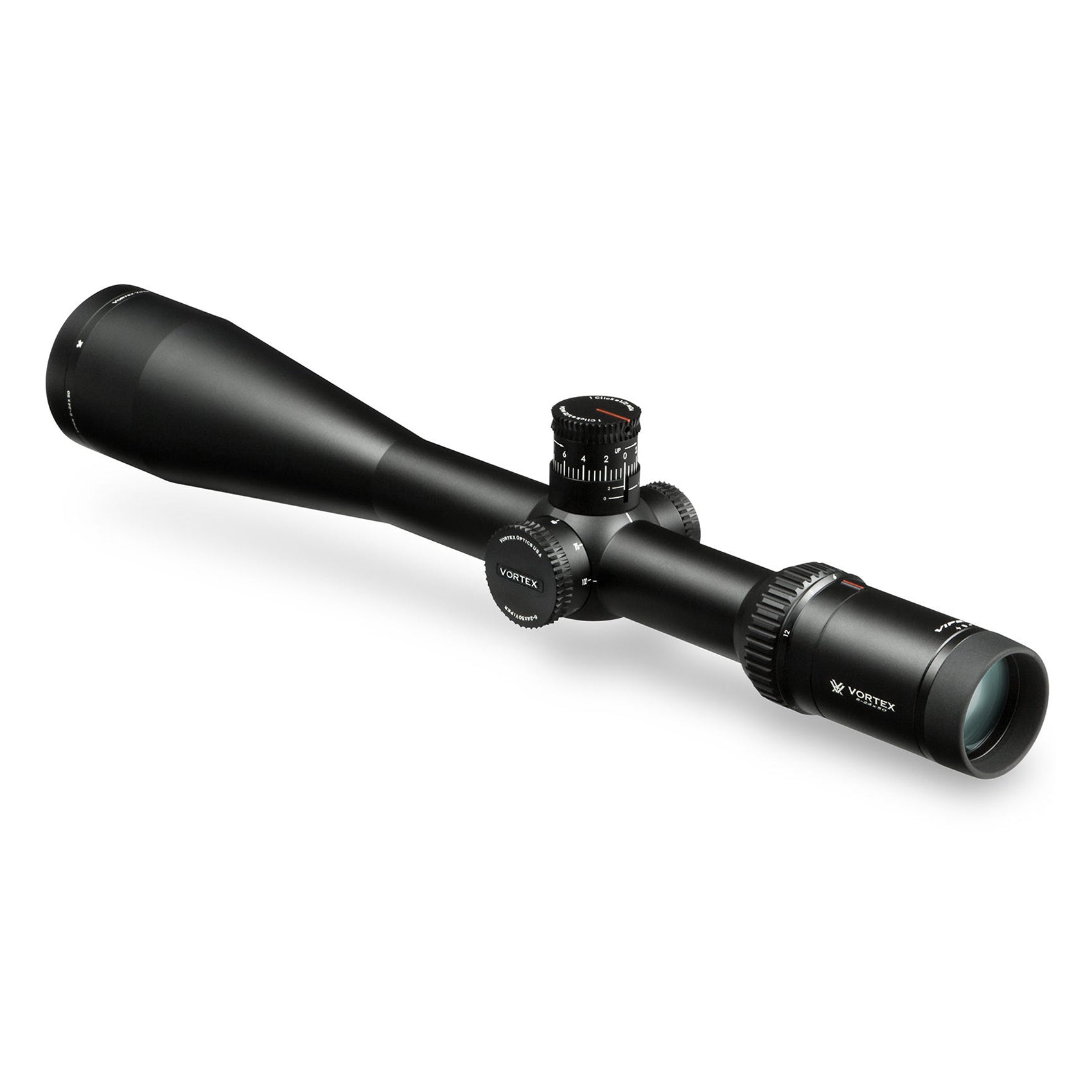

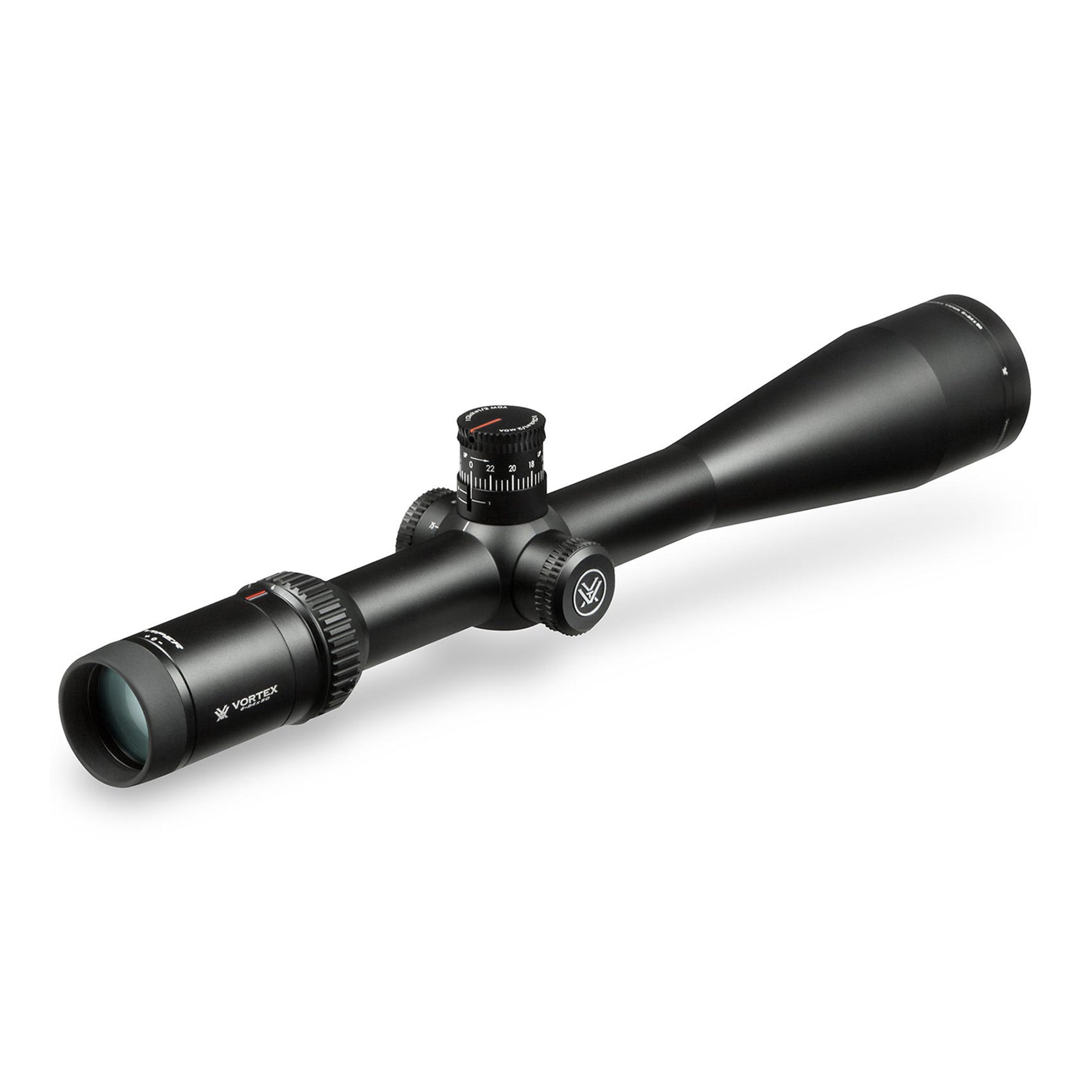

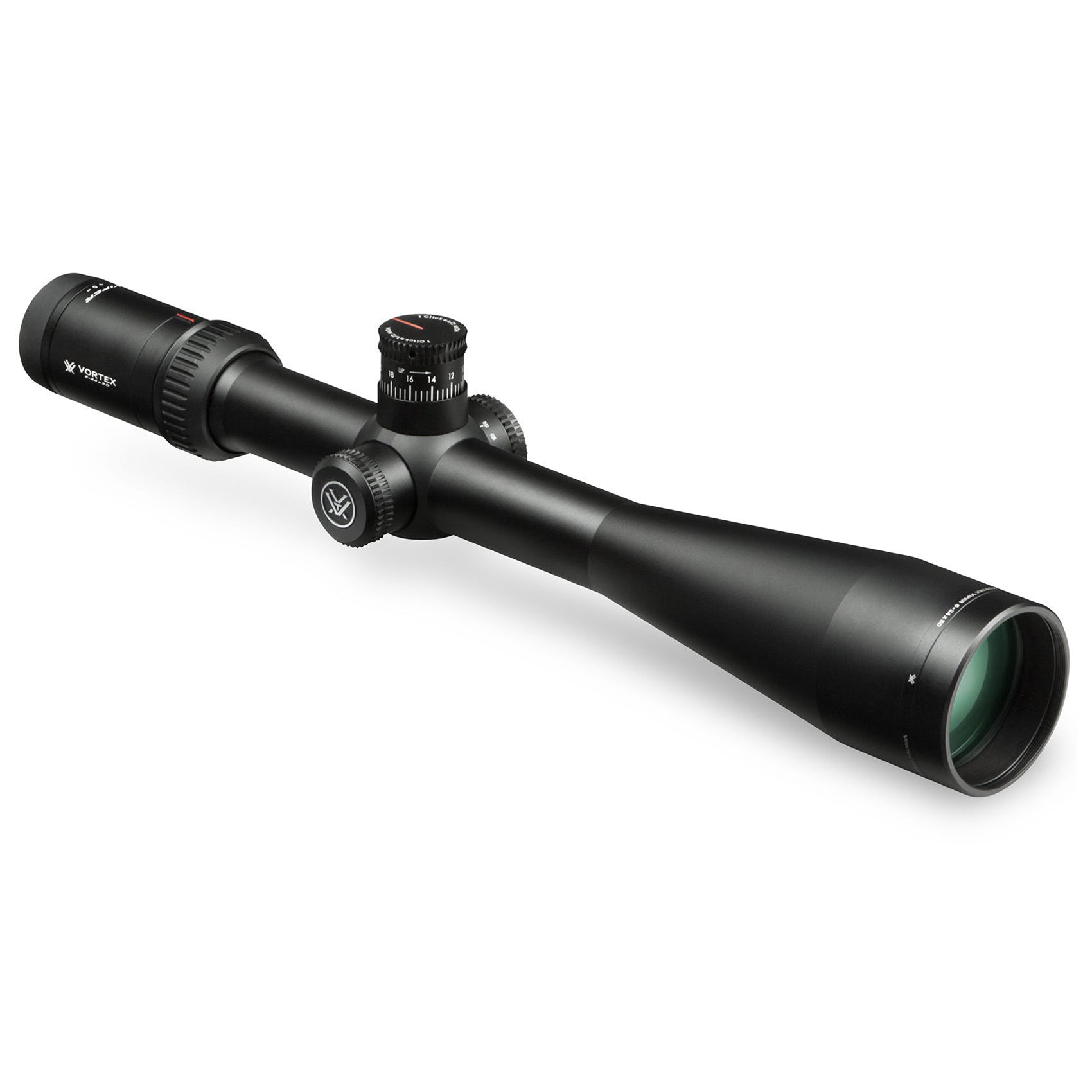

Features of the Vortex Viper HS LR 6-24x50 FFP XLR (MOA) (VHS-4315-LR):
- The 30 mm thin body made of solid aluminum, turned on precision workbenches, will provide a wide range for introducing corrections both in height and horizontally.
- An advanced optical system with highly enlightened optics and 6-24x magnification ensures the versatility of the sight.
- The large eyepiece, with an increased distance to the shooter’s eyes, allows you to instantly catch a target in the lens.
- Radius Bar is a proprietary system for adjusting the position of the vertical adjustment drum. The fiber optic guide allows you to instantly determine the position of the drum.
- Side Focus - adjustments are located on the left side of the sight and are easily accessible from any shooting position. Ensures optimal image focusing and parallax control.
Technical characteristics of the Vortex Viper HS LR 6-24x50 FFP XLR (MOA) sight (VHS-4315-LR):
- Caliber cut: without cut.
- Multiplicity: 6-24.
- Illumination of the aiming reticle: no.
- The diameter of the middle tube of the sight: 30 mm.
- Mounting method: rings and brackets 30 mm.
- Lens diameter: 50 mm.
- Field of view at 100m: 5.9-1.7 m.
- Exit line: 8.3-2.1 mm.
- Distance from the eyepiece to the eye: 101 mm.
- Vidbudova against parallax: Bichna SF.
- Parallax adjustment: from 46 m to infinity.

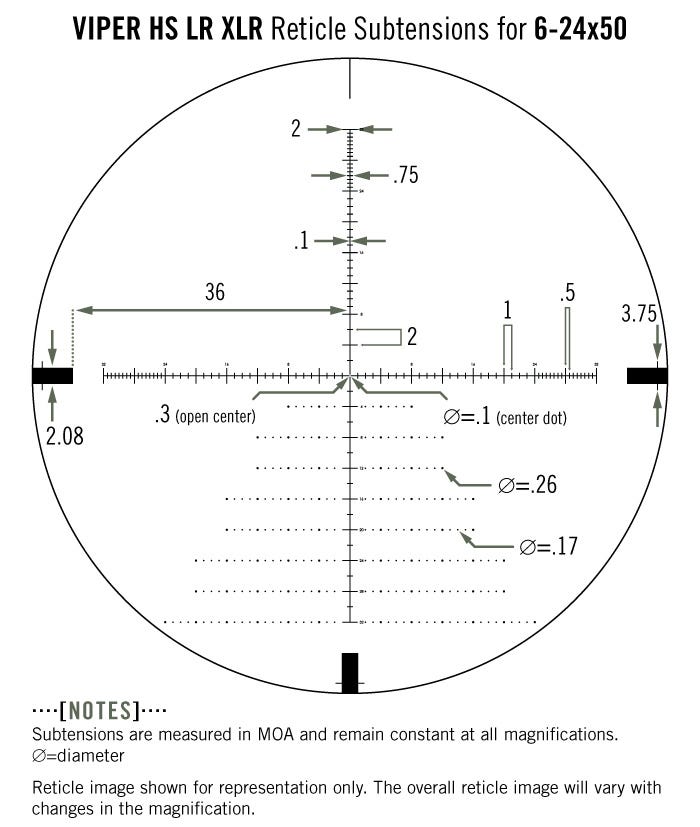

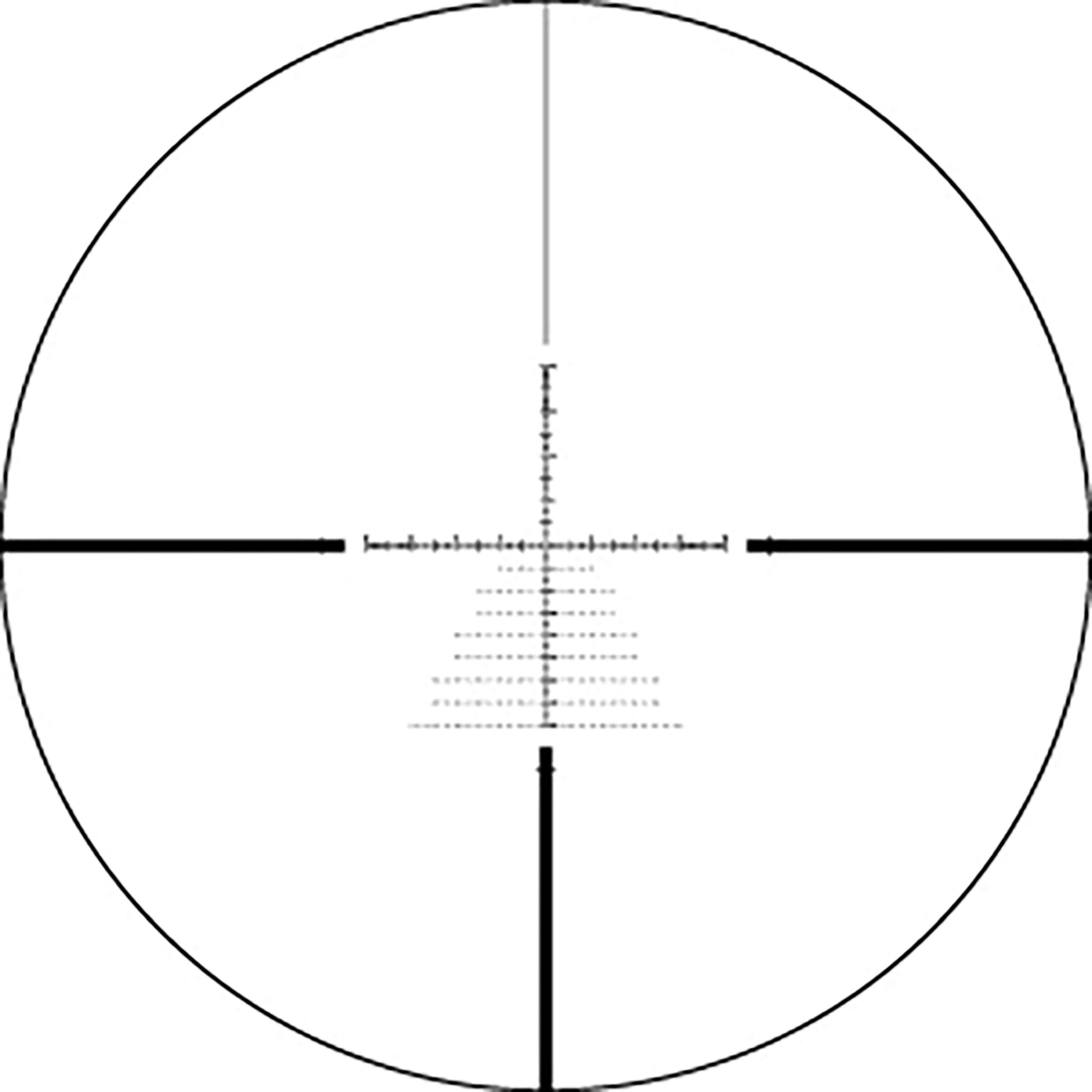

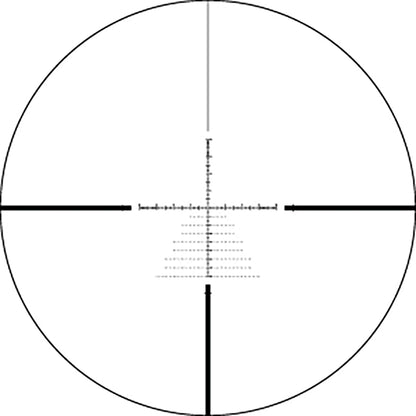

- Rotating the sighting reticle: first focal area.

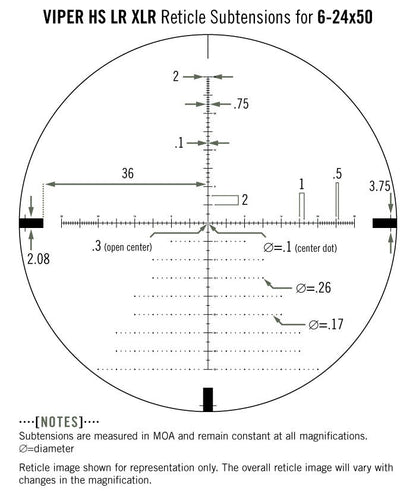

- Adjustment for the grid in MOA:.
- Vertical adjustment range (MOA): 65.
- Windage adjustment range (MOA): 42.
- The price of one click for the adjustment mechanism: 1/4 MOA.
- Correction range per drum wrap: 12 MOA.
