Description

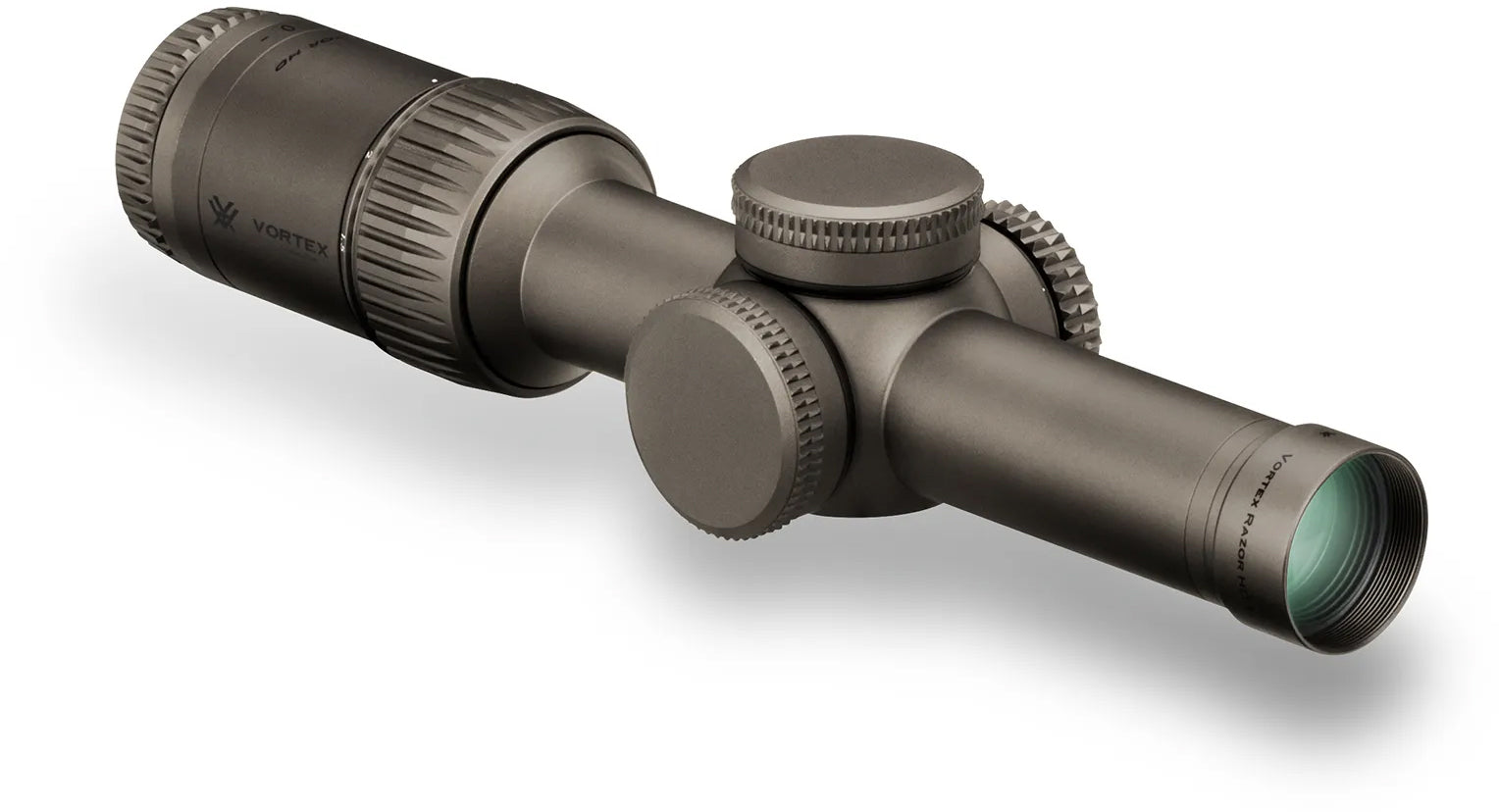

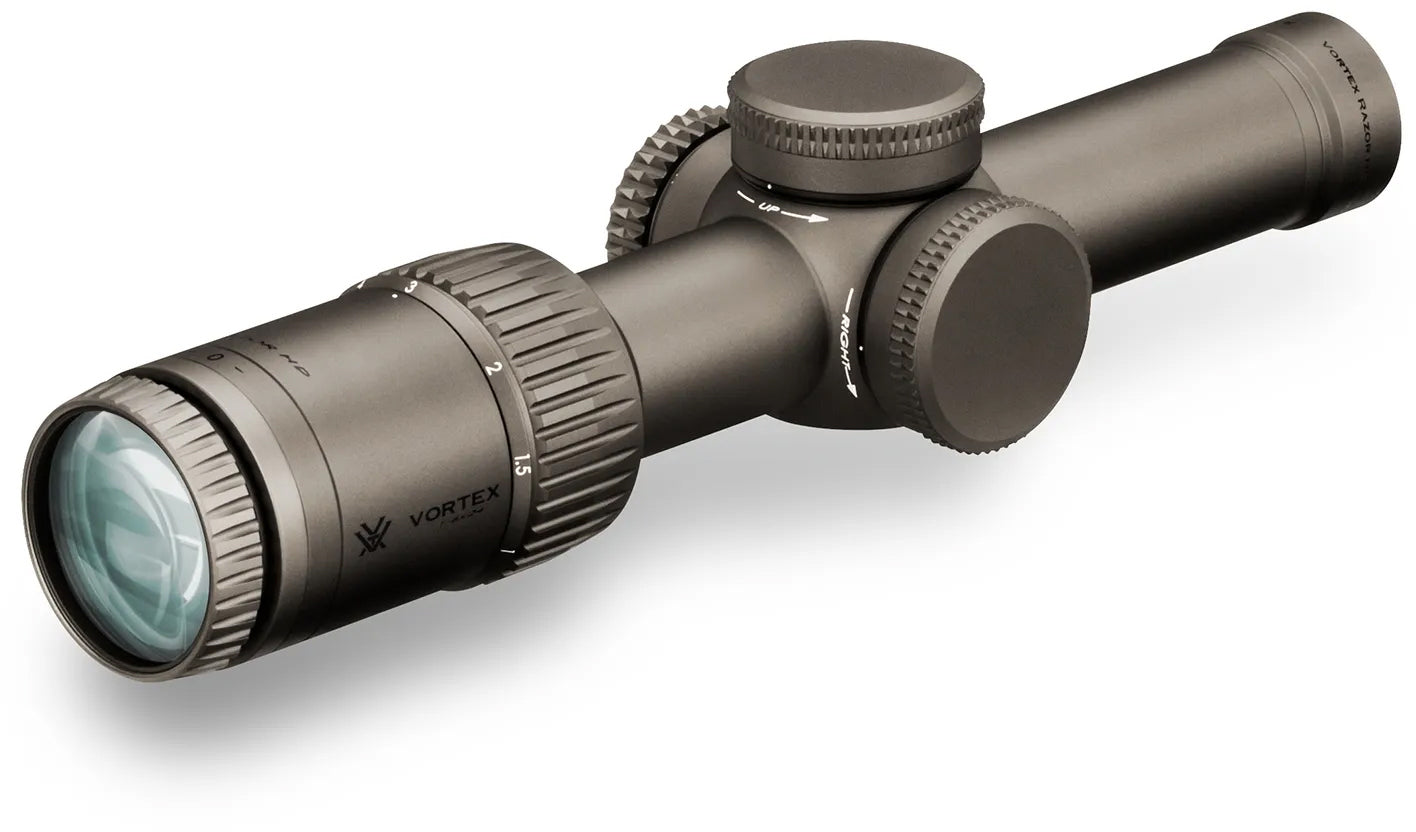

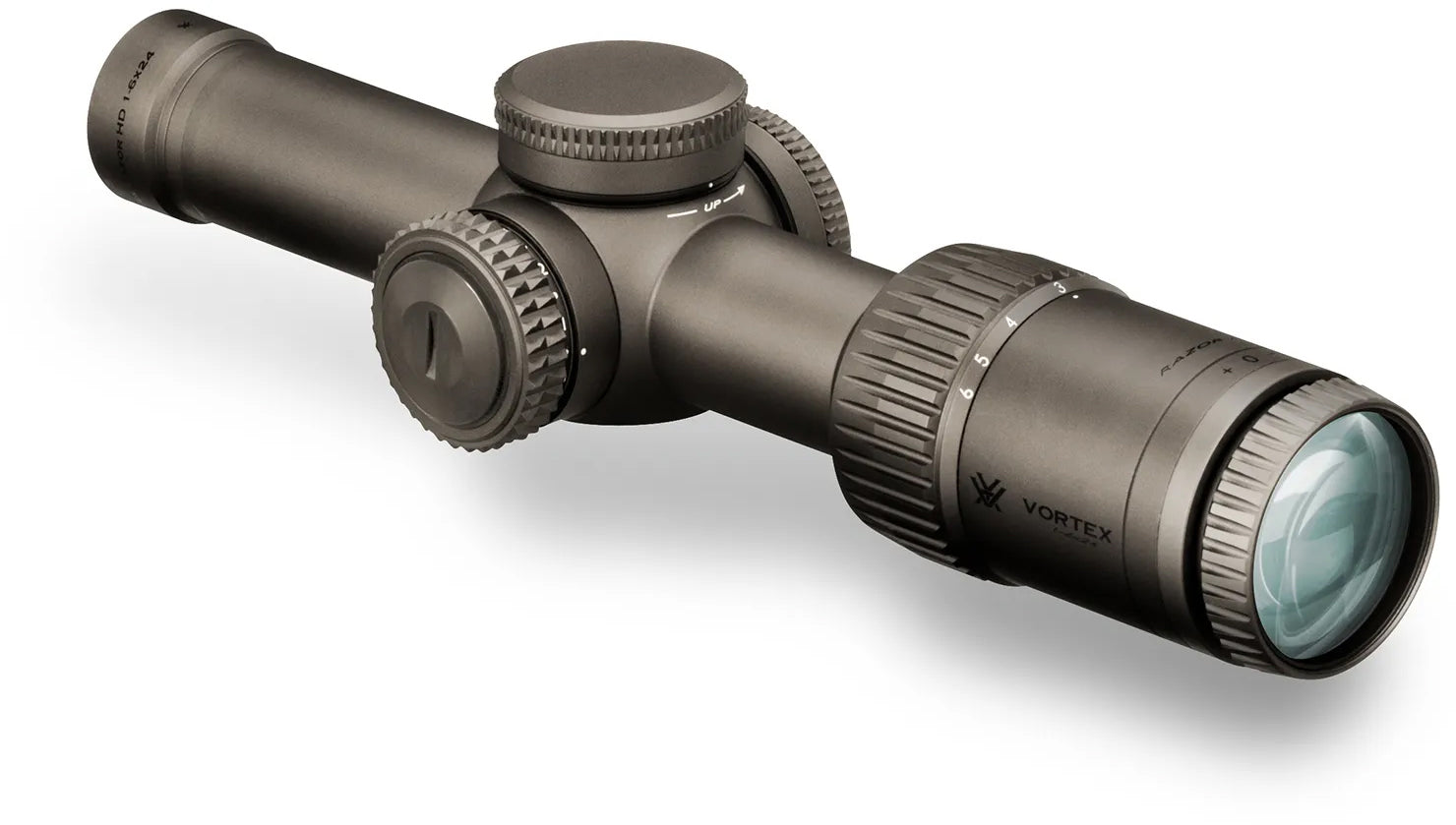

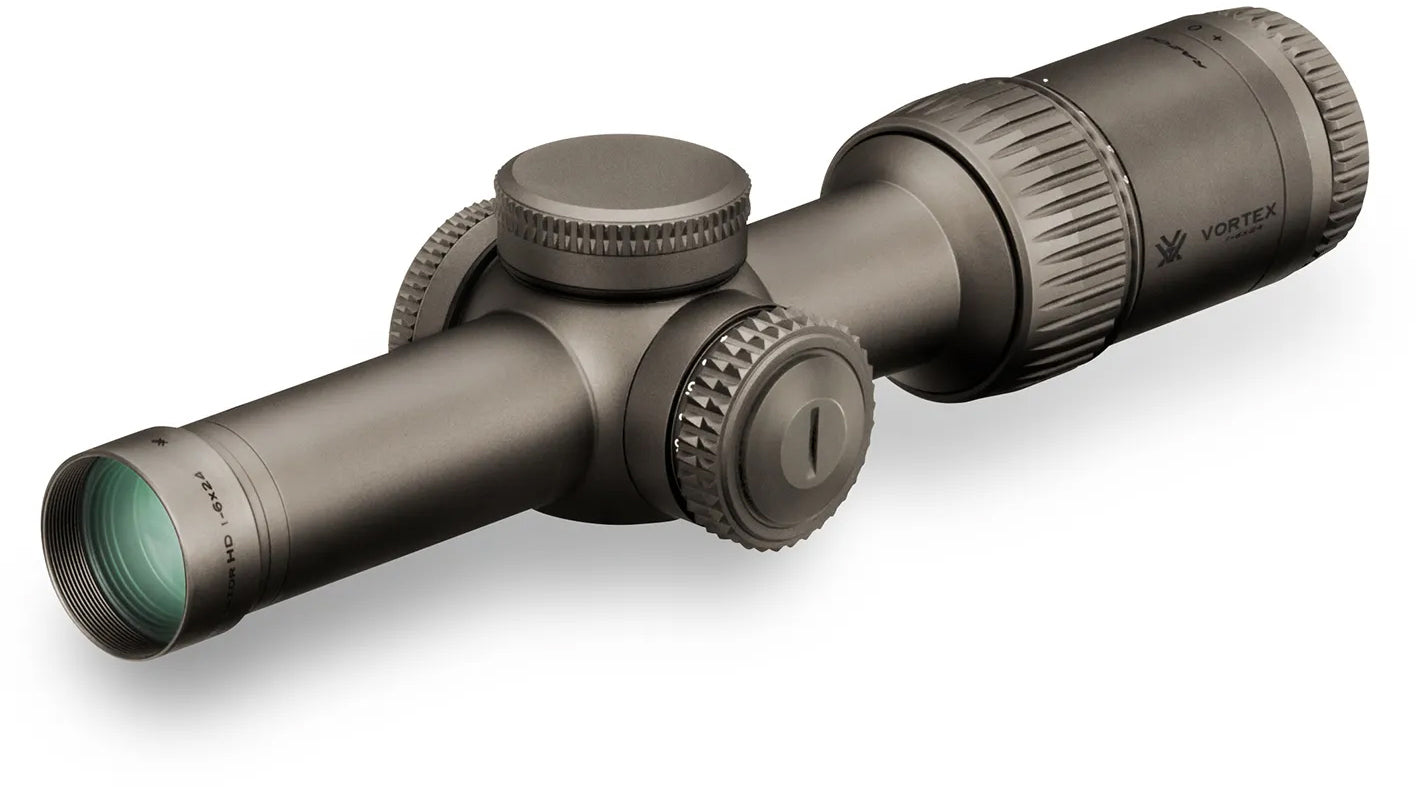

Another generation sight - Vortex Razor HD Gen II-E 1-6x24 VMR-2 (MRAD) (RZR-16009) . Tactical sight with 6-fold enhancement, with a reticle at a different focal plane. The sight was placed behind the front model at 105 grams. The Vortex Razor HD sight of another generation is an ideal optical solution for shooting at short and medium range, which achieves high optical characteristics. The Vortex Razor Gen II-E HD 1-6x24 optical sight provides a high level of clarity and color transfer accuracy. An eyepiece with an optimally distant exit point for the shooter allows for shooting and aiming at the target, making it possible to aim at the same time. The ultra-smooth sight tube has a diameter of 30 mm, made of aircraft-grade aluminum. The adjustment drums are low-profile and have dry caps.

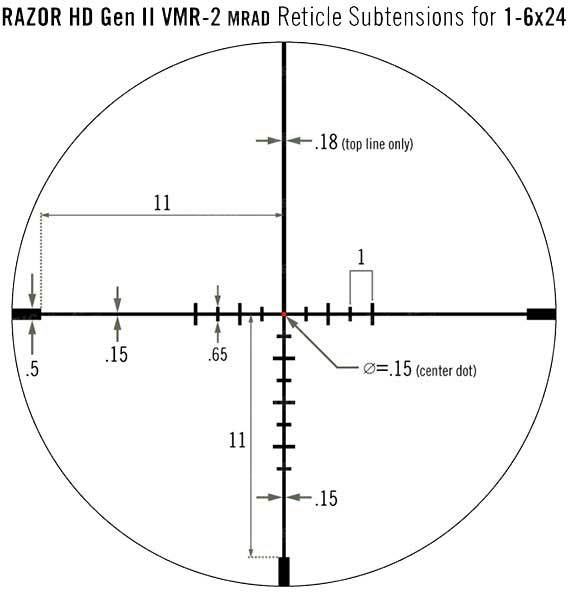

The VMR-2 grid contains well-marked short and long markers. The central point is the backlight. The adjustment drum controls the rotation on the left side of the sight and may 11 adjust the brightness.
Features:
- APO System - Apochromatic (APO) lens system, which is skewed with a narrow flexure pattern, which ensures correct color transmission across the entire visible spectrum. Lenses with a selected index adjust color across the entire visual spectrum.
- Optically Indexed Lenses - Lenses with a narrow lens optimize the sharpness and brightness of the image.
- HD Lens Elements - Premium class with ultra-low dispersion ensures improved color transfer and high image resolution. The fracture coefficient of low-disperse glass is slightly dependent on the light frequency (spectrum). All the light quills break by the same amount of kut. The tightness of the current glass in the lens design makes it possible to avoid such unpleasant aberrations as chromatism. The profitability of such a warehouse is very high, due to which only manufacturers of high-tech optics stagnate their premium-class products.
- XR™ Plus Fully Multi-Coated - Patented anti-glare coating on Vortex XR lenses allows for maximum light transmission and image clarity.
- Plasma Tech - An advanced lens coating process ensures superior durability and effectiveness of the coating.
- Second Focal Plane Reticle - The reticle is moved to another focal plane - the scale of the reticle becomes unchanged when the magnification factor of the image is changed. The size of the aiming mark can be adjusted to adjust the distance to the target, as well as adjustments in height for wind when shooting at long distances.
- Locking Illumination - A central point with bright illumination will ensure precise targeting of any illuminated minds.
- Glass-Etched Reticle - The technology allows you to create folding mesh structures. The aiming reticle is woven between two balls for optimal value and reliability.
- Waterproof - The optics are sealed with reinforced O-rings and are protected from water penetration under the international class IPX7. Being enclosed in a row of 30 lengths per depth of 1 meter does not affect its functionality.
- Fogproof - The device is purged with an inert gas, as a result of which argon is released into this phase, which does not react with other substances, does not allow water vapor to be present in its storage and does not condense on internal surfaces of optics.
- ArmorTek - Superior hydrophobic coating of external optical surfaces, which ensures protection of lenses from smudges, water, oils and dirt.
- Stealth Shadow Finish - Evenly anodized on the body, it provides a matte surface with an anti-glare effect, which helps mask the position of the shooter.
- The diameter of the central tube is 30 mm. The solid body ensures maximum consistency of the entire design of the sight for high shooting accuracy and capturing the most clear image, and also ensures high value and tightness.
- The sight housing is made from a single block of aircraft-grade aluminum for durability and strength.
- The correction drums ensure that the corrections are entered more accurately and the correction scale is also easier to read. The covers will ensure the perfect protection of the drums.
- Changing rubbing system. A heat-treated spacer made of solid steel is molded onto the end of the drum screw. It adheres to the carbide ring on the ejector tube and ensures mutual “metal to metal” contact. This prevents wear from rubbing and deformation of the tip of the screw, which contacts the rector. The design is unique and patented.
- Drum screws improve wear resistance and reduce friction. Leather screws are a product of high-precision milling from a solid piece of copper-silicon alloy, coated with super-smooth dry lubricant. The cutting of these screws is made with a tolerance of no more than 2 microns. The result is ultra-smooth rotation of the drums and more accurate adjustments.
- The tube of the wrapping system is made of copper-silicon alloy, which is resistant to frictional corrosion, which ensures additional durability and durability. The spring of the wrapping system, made from an alloy of chromium and vanadium, resists deformation due to compression and has a low level of metal.
- The quick-focusing eyepiece allows you to easily and quickly adjust the diopter focusing of the aiming mark.
- Adjustment adjustment regulator on the left side of the sight, instructing the drums to introduce corrections in the secure access zone. There are 11 intensity levels, the position of the regulator between the skin levels allows you to turn on the light.
Vertical adjustment range 43 mrad
Horizontal adjustment range 43 mrad Features: Focus Dovzhina sight, mm: 257 Grid type: VMR-2 MRAD Correction drums, price for sale: 0.2 MRAD Front lens diameter: 24 mm Reticle illumination: Adjustable Minimum multiplicity, x: 1 Maximum multiplicity, x: 6 Sight tube diameter: 30 mm Mounting included: Without mounting Mounting base: Rings and brackets 30 mm Sight type: Optical Section: Sights EAN code: 875874009530 Package weight: 1.1 kg Color: Grey Focal area of the sighting reticle: Other Adjustment for parallax: Fixed Item: 930044 Brand: Vortex
