Description

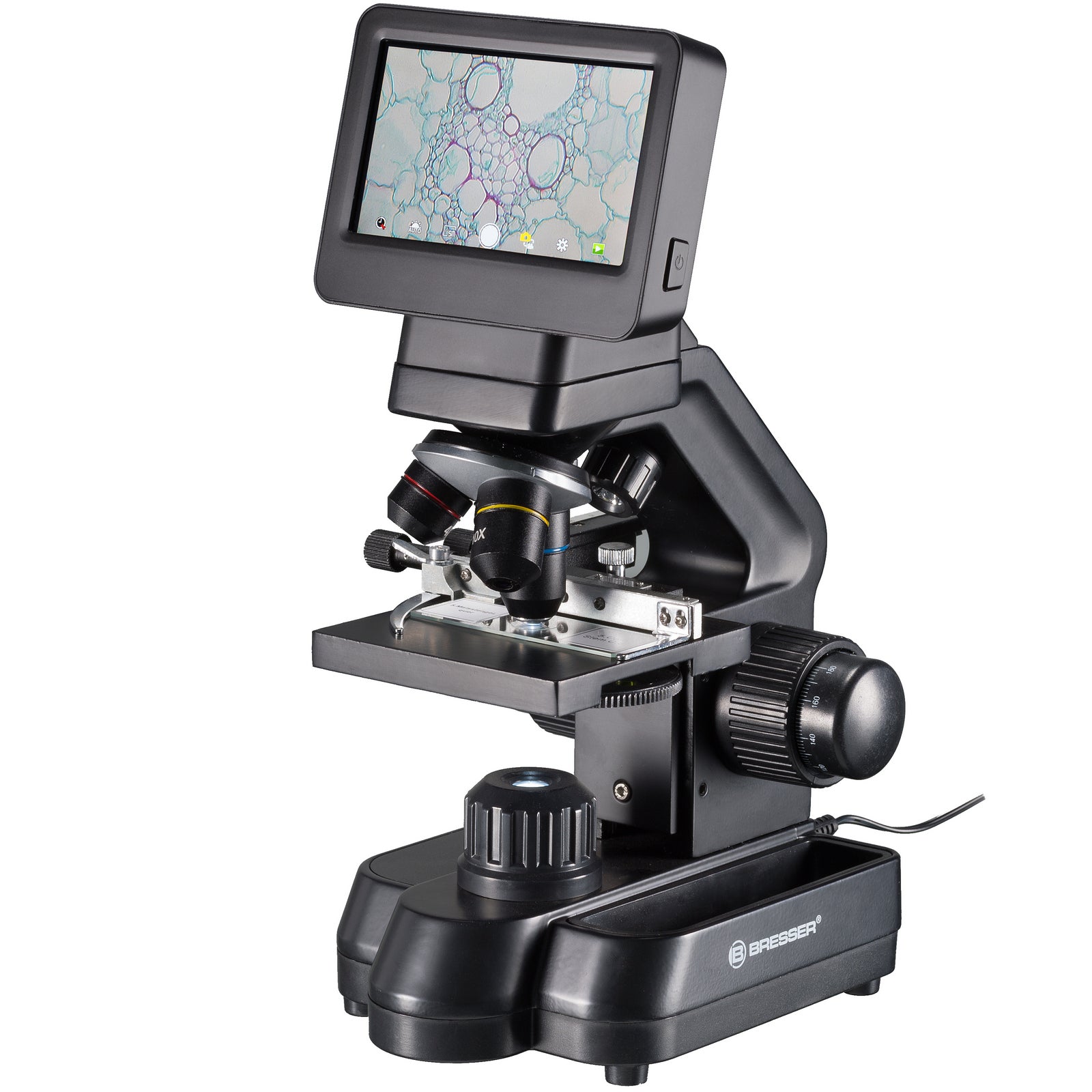

The Bresser Biolux LCD Touch 5MP HDMI 30x-1200x microscope (5201020) fully corresponds to the claims about the current gadget. Now the optical characteristics are supported by the modern capabilities of sensory processing, material display and data transfer using additional HDMI and USB interfaces. This model is ideal for demonstration purposes in the initial process, where the results of monitoring in real time can be presented to groups of people not only on the widescreen 4.35" display of the microscope, but also on an external display, TVs or projectors. Not a less useful microscope for home use, but it is possible to easily record the results on an SD card via an expanded memory slot in JPEG formats with separate storage up to 5 Mp, and MOV with separate FullHD version. The device is additionally equipped with a wide range of accessories and preparations for care.
Classification:
- Type: optical-digital.
- Classification: biological.
- Microscopy method: bright field.
- Function: professional, basic.
Optical characteristics:
- Increase: from 30x to 1200x.
- Optical magnification: 300x (interpolated with a separate screen size of 853x480 pixels).
- Digital enhancement: 4x.
- Increased lenses: 4x, 10x, 40x.
- Eyepiece gain: 7.5x.
- Separate camera size: 5 MP (2592x1944).
- Camera sensor: CMOS.
Design features:
- Attachment: monocular.
- Subject table: rokhomiy, with preparations with micrometric supports and nonius.
- Focus: coarse, fine (price 0.01 mm).
- Lighting: light (switch on and pass light), separately, with tension adjustment.

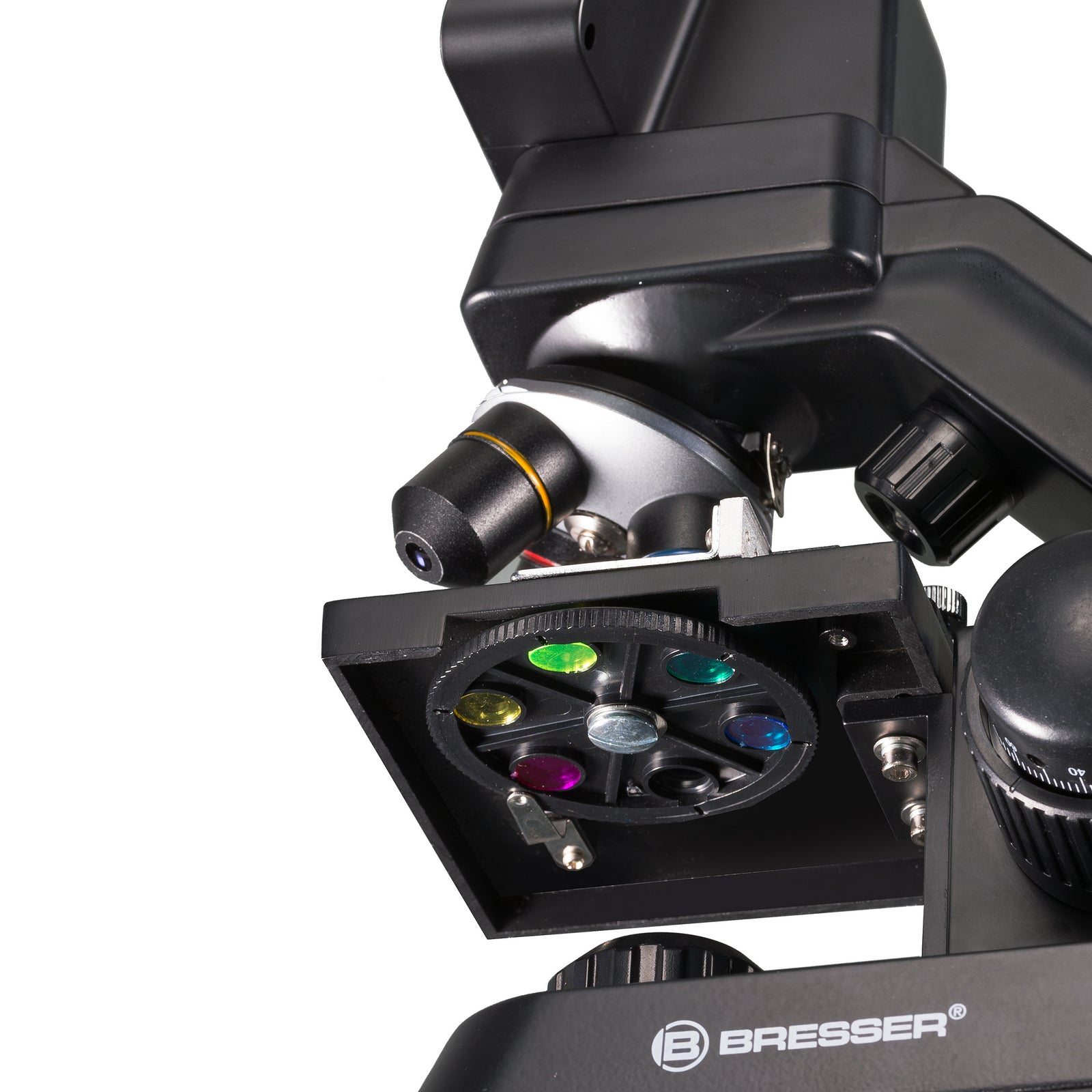

- Aperture with five light filters.
- Interface: HDMI, USB.
- Memory card slot: SD, SDHC (up to 32 GB).
- File format: JPEG, MOV.
- Camera sensor: CMOS.
- Separate camera size (photo): 5 MP (2592x1944).
- Separate camera (video): HD 1280x720 Pixel (60 fps), Full HD 1920x1080 Pixel (30 fps).
- Display: color touchscreen LCD 4.35".
- Language menu: English, German, Chinese.
Living:
- Electrical cut-off level: 220/240V.
The Bresser brand represents a wide selection of traditionally clear microscopes of any complexity, from child models to specialized laboratory equipment.
This model can be successfully used for biological purposes for the purposes of settling initial deposits and home equity. The device is ideal for schools and universities where it is necessary to demonstrate the results of caring for a group of people.
Instead of using a burnt-out LED backlight, the microscope can be used to observe opaque images at low magnifications. And adjusting the brightness of the lighting allows you to concentrate on the required amount of light.
The combination of digital and optical zoom allows magnification up to 1200x, which makes it possible to prevent the introduction of bacteria and resolve fine details down to tenths of a micron. Mechanisms of coarse, fine focusing, as well as micrometric adjustment of the object stage will clearly be easier to investigate at great increases. An aperture with five light filters helps to maintain the image at a given level of light, while achieving high contrast.

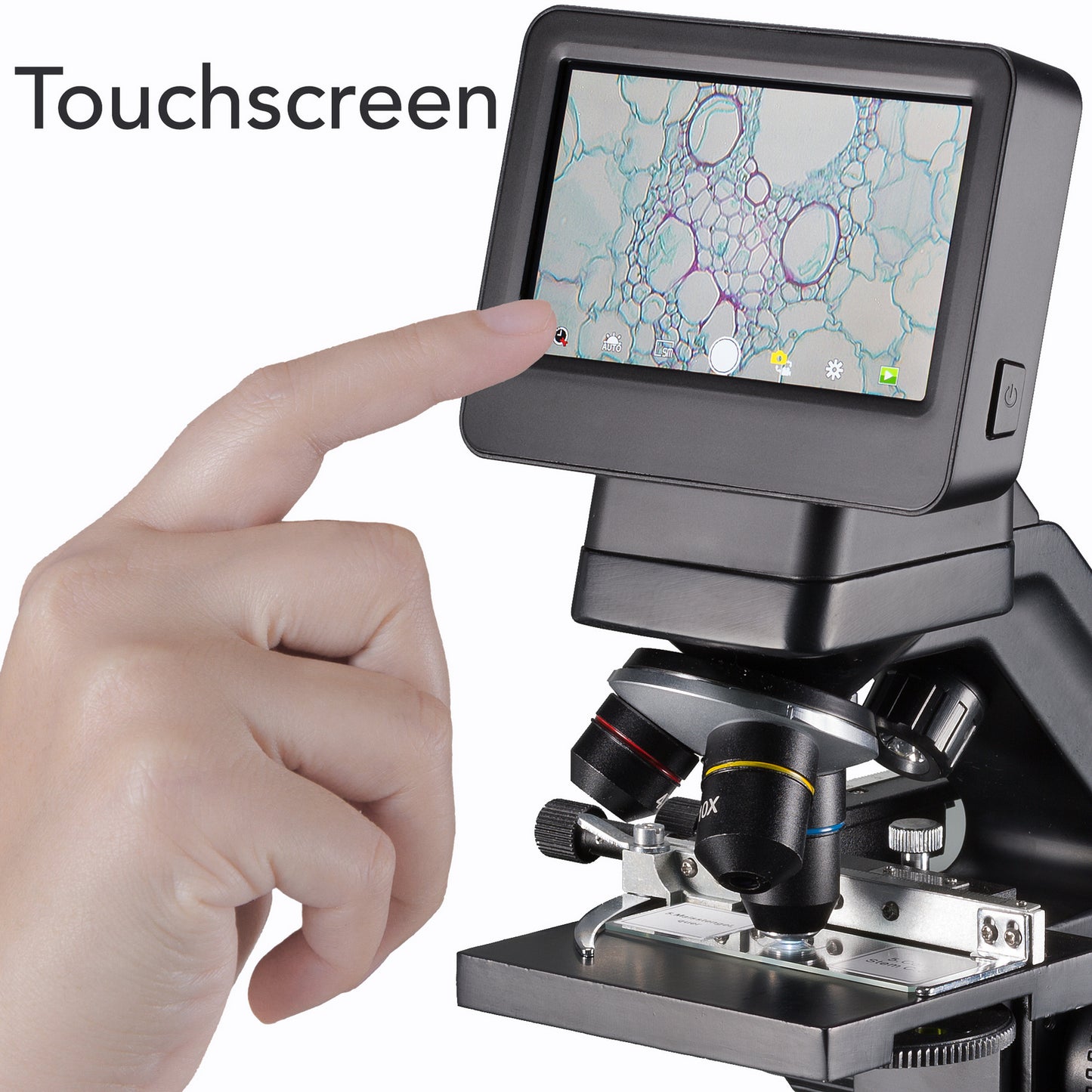

Since the optics operate in a primarily mechanical way, image control and documentation of the results are carefully controlled using touch control via the display screen. In this way, control becomes more manual, intuitive and informative. Any precautions can be saved by viewing a photo or video on a memory card, then transferring it via an additional USB cable to a personal computer. In addition, you can set a regular photography interval, which allows you to prevent the growth process of microorganisms. Video mode provides additional adjustments, such as color correction of the video, etc. (TV, projector, monitor), or HDMI output and power cord included with the kit.
A wide variety of images, a set of accessories for preparation, combined with modern digital technologies and clear multi-coated optics, make research not only as simple as possible, but as efficient as possible.
Objectives: 3 pcs.
Eyepiece: 1 piece (wake up)
Slides prepared: 5 pcs.
Item stock: 10 pcs.
Covers: 10 pcs.
Incubator
Set of accessories for preparation
Microtome
Volumes with images: 4 pcs.
Chohol
HDMI cable
USB cable
Power supply adapter 5V, 2A Zhivlennya: 220 / 240 V Lighting: Light (with a light and a light to pass), separately, with pressure adjustment Focus: Grube Tonke Subject table: Rukhomiy, with a preparation guide with micrometric supports and a vernier Head: LCD display Function: Professional, basic Eyepiece gain: 7.5x Larger lens: 10x 40x 4x Microscope magnification: 30x - 1200x Class: Biological Type: Optical-digital Type: Microscopes Weight: 1.2 kg Package weight: 2.9 kg Dimensions: 170 x 295 x 140 mm EAN code: 4007922070902 Dzherelo zhivilnya: Merezha 220 V Interface: HDMI, USB Number of lenses: 3 Item: 928558 Brand: Bresser
