Description

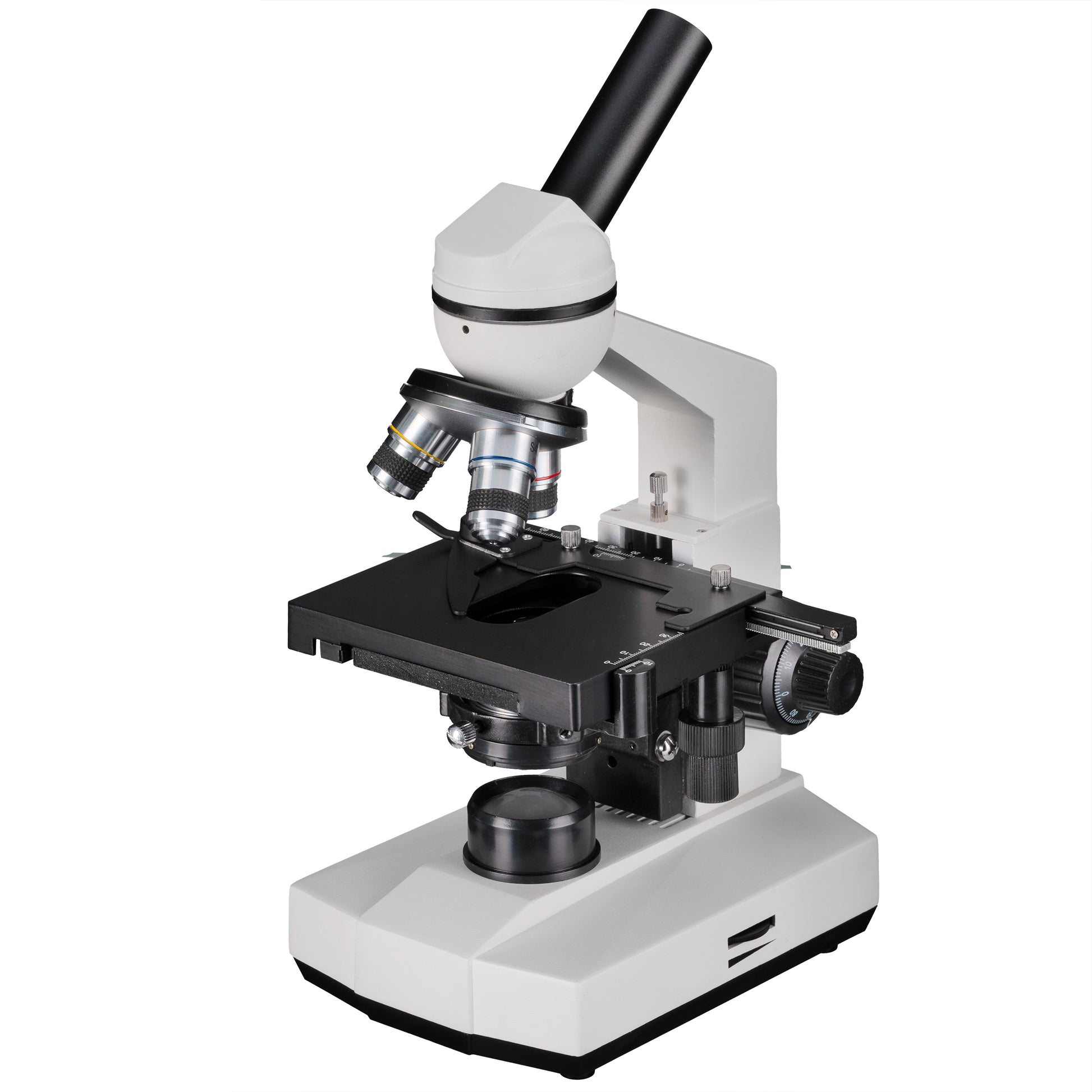

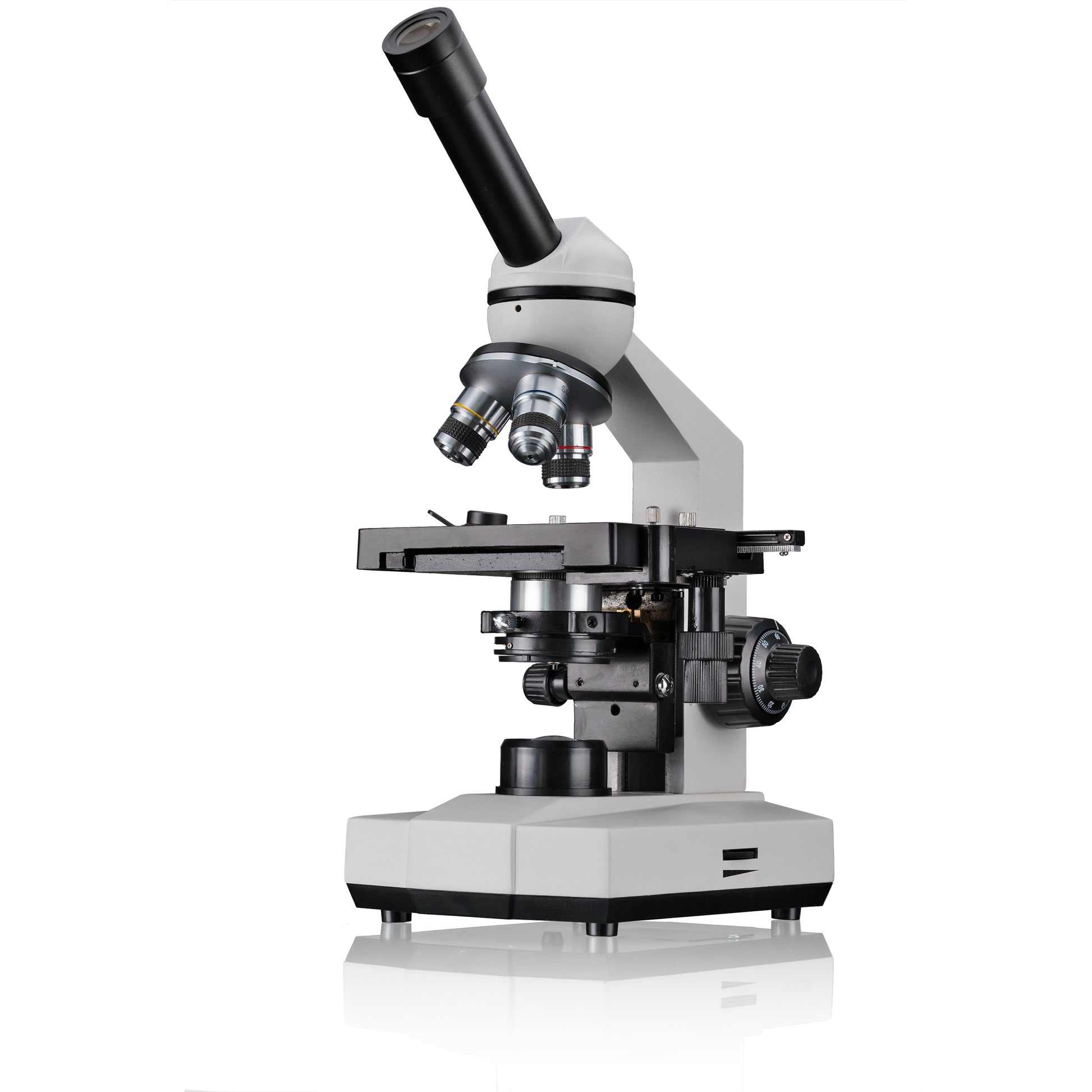

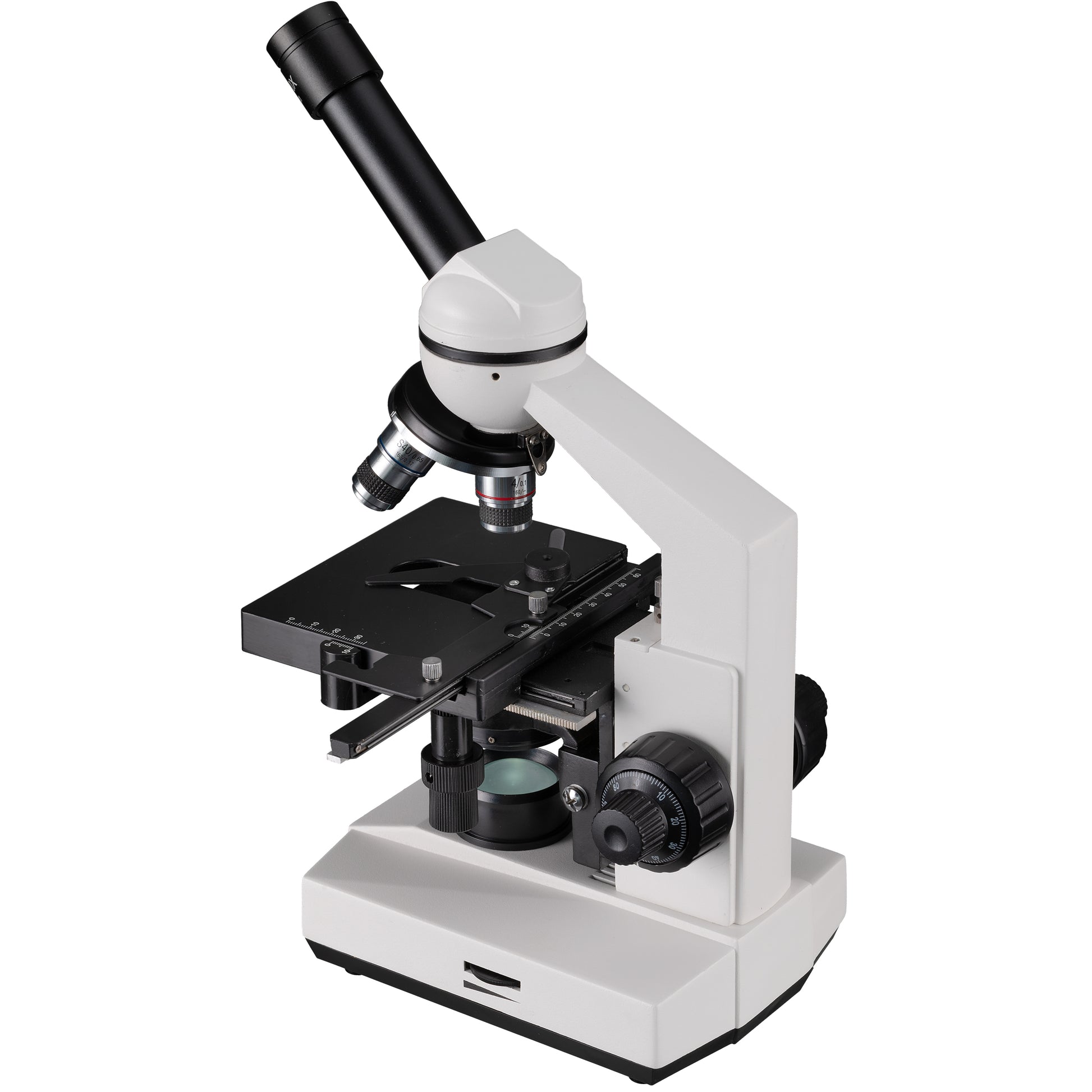

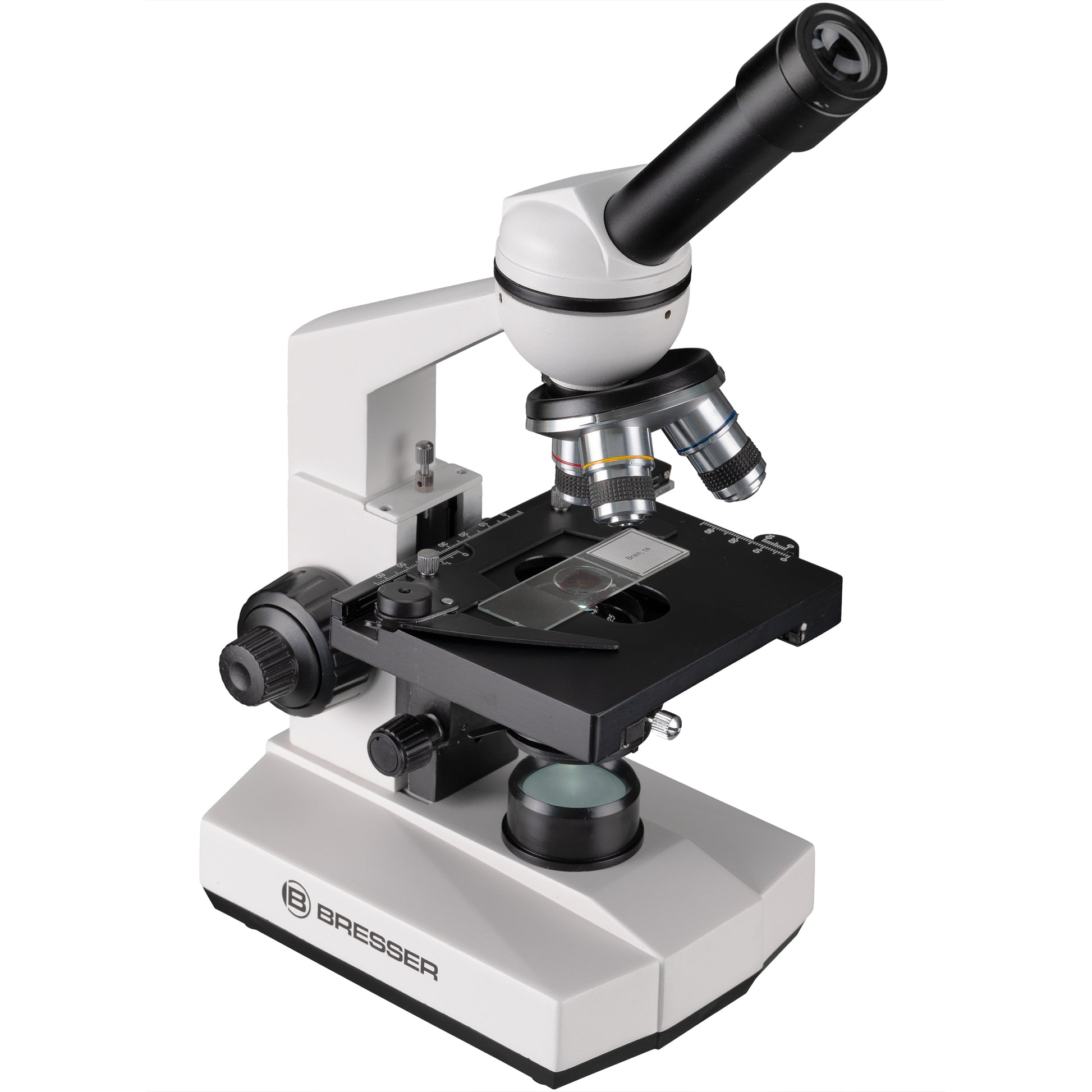

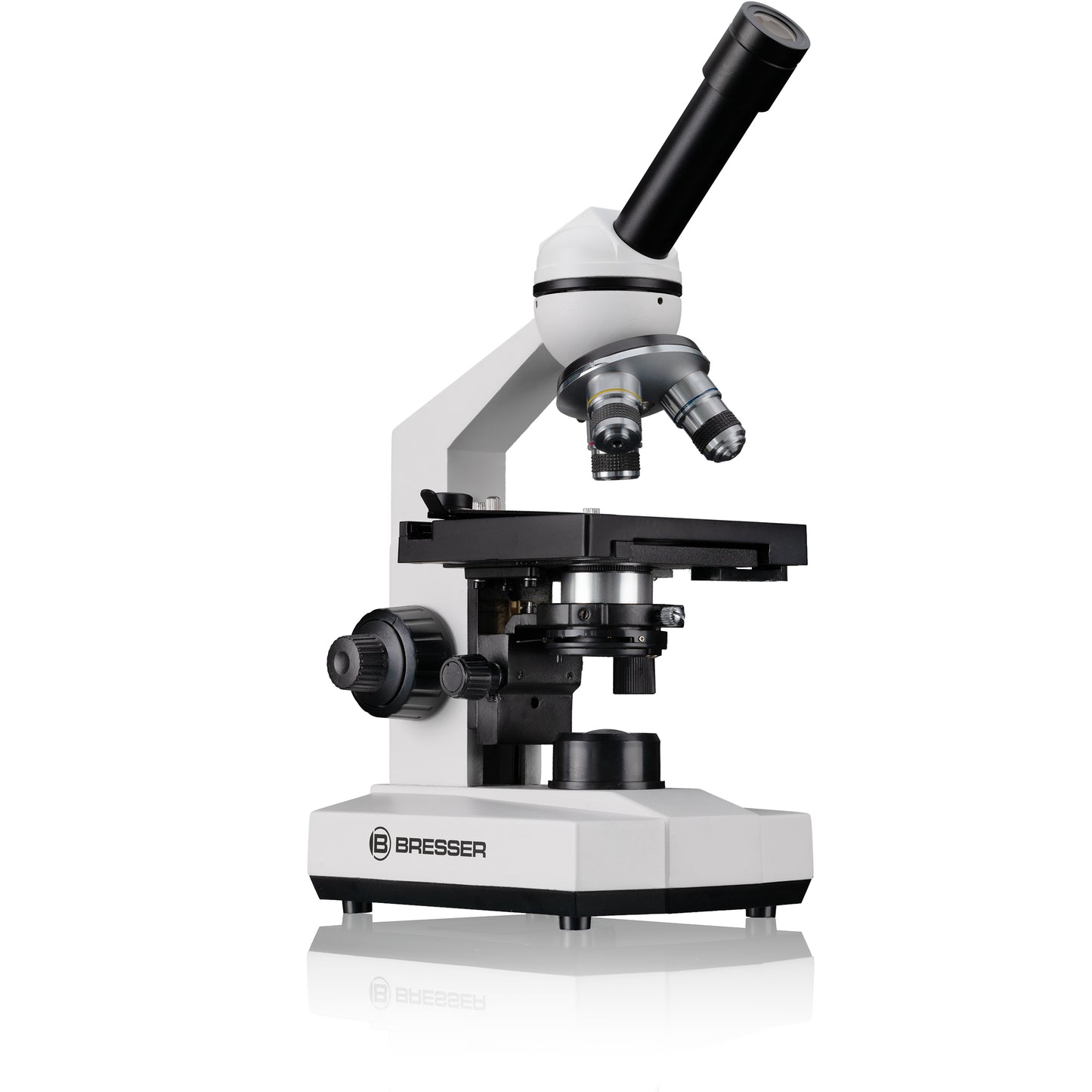

The Bresser Erudit line of microscopes has characteristics that are comparable to professional microscopes. Biological microscopes in this series are supplied in handy plastic cases. Virobnik added that the Bresser Erudit Basic Mono 40x-400x microscope with an adapter for a smartphone + case (5102100) ensures good image brightness, which is supported by a wide-angle eyepiece, lenses that meet the DIN standard, LED switch and Abbe condenser. The handiness of the process is achieved especially by the smooth flow of all loose knots and the provision of all standard adjustments to the powerful microscopes of this level. Monocular head, tilted at 45º, easily and smoothly wraps in a horizontal plane and allows you to carry out observation in any position without moving the device in the open space, preserving the image high vigor. The turret has mounting sockets for three lenses according to DIN 4x, 10x and 40x (spring-loaded). The eyepiece that comes with the kit has a wide-cut design and provides a wide field of view. If necessary, large-scale microscopes can be equipped with additional eyepieces and lenses. The LED will ensure uniform illumination of the drug with light and correct color rendering. The directness of the illumination is regulated by an Abbe capacitor with a numerical aperture of NA 1.25, which allows for optional high magnification lenses (up to 100x). The condenser is pre-centered at the factory and has two fastening screws, which allow for any necessary adjustments. If necessary, precautions need to be taken near the dark field, you can install a dry Bresser condenser or a Bresser dark-field oil condenser. The amount of light is regulated by an iris aperture diaphragm (allows you to smoothly, steplessly adjust the light intensity). Under the diaphragm there is a filter outlet for filters with a standard diameter of 32 mm. A rugged object table with preparation, micrometric fine and coarse adjustments, the ability to attach two eyes at the same time, ensures the most accurate positioning of the object under the microscope lens and its movement in the plain. The microscope is powered by replaceable batteries of the widest standard size AA (Alcaline) 1.5 V (replacement batteries AA Ni-Mg 1.2 V are allowed. In this way, the microscope can remain in the field The microscope is supplied in a personal plastic case. a set of ready-made slides, object and cover materials. In addition, the package includes an adapter for a smartphone (tablet). The adapter is attached to the microscope tube and allows you to take photos and videos with the head or front camera of the gadget. The smooth back side of the smartphone is securely attached to the adapter without any suction cups (it is recommended to remove the front camera if the smartphone has a corrugated back surface).
| Manufacturer code: 922745 Parameters: Package dimensions: 35 x 15 x 20 cm Warranty: 12 months Brand registration country: Germany Country of origin for product: China Equipment: Microscope: metal bodyLenses: (4/0.10 160/-; 10/0.25 160/0.17; 40/0.65 160/0.17): 3 pcs.
Eyepiece: 1 piece WF10x/18mm

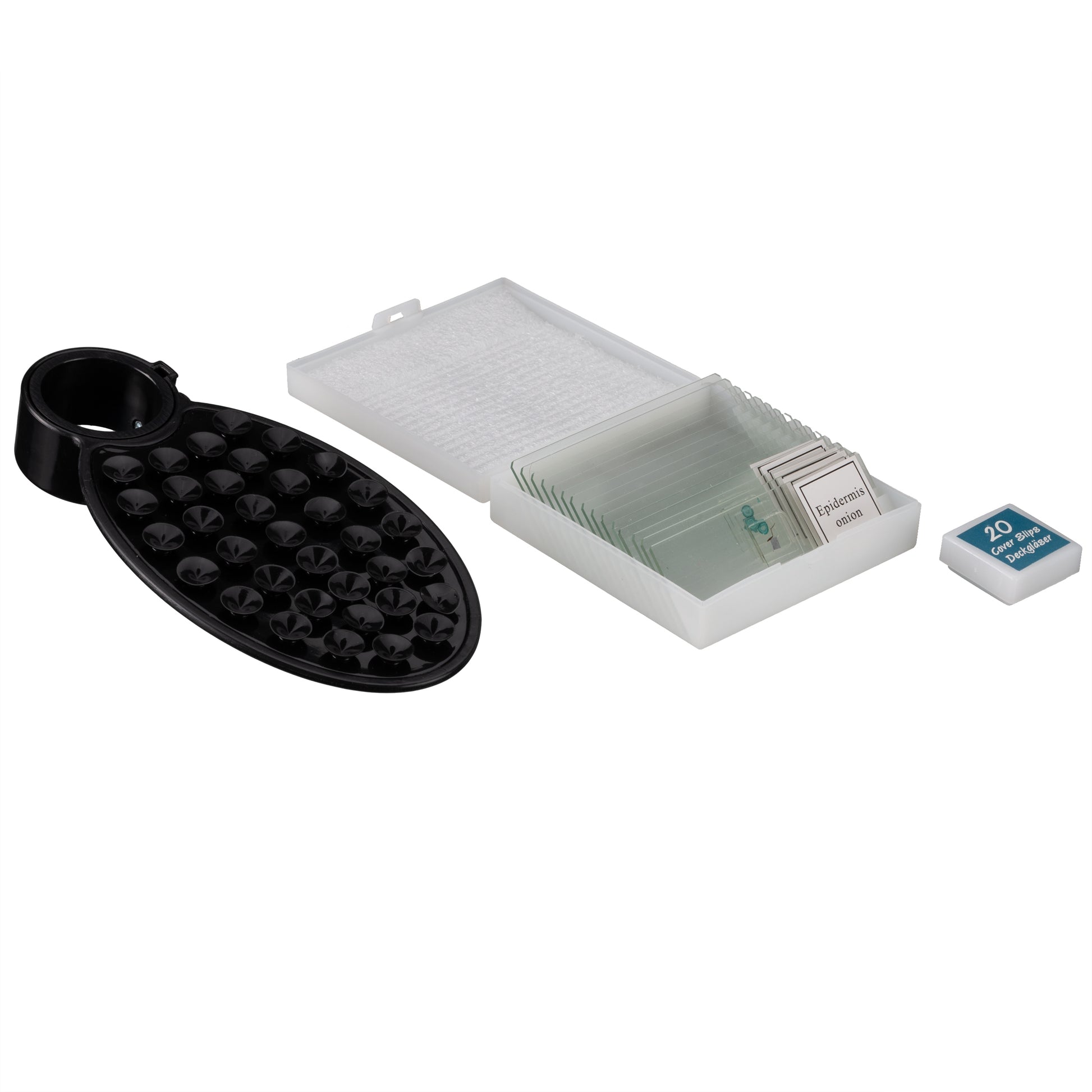

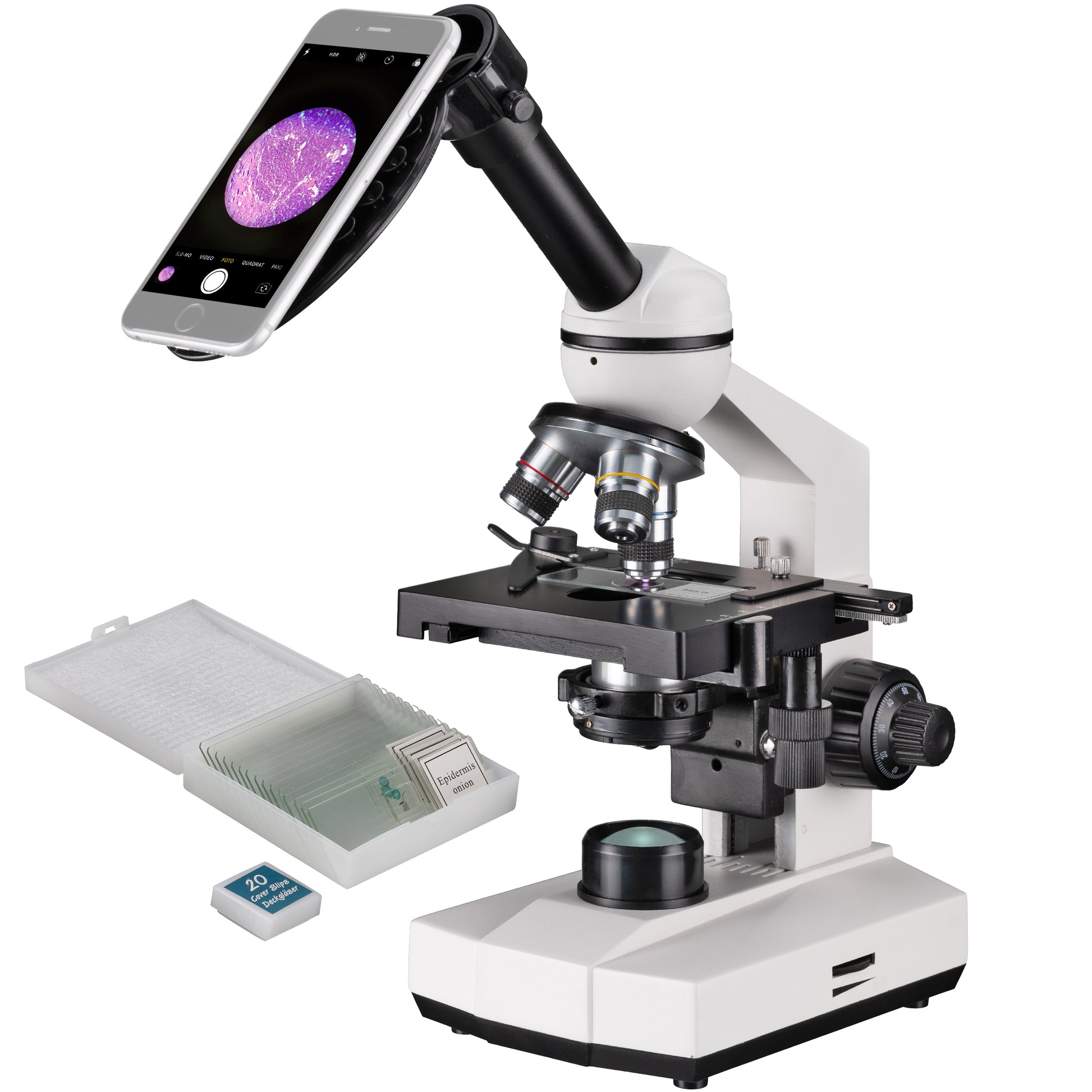

Adapter for smartphone camera
Items: 10 pcs.
Curved slope: 15 pcs.

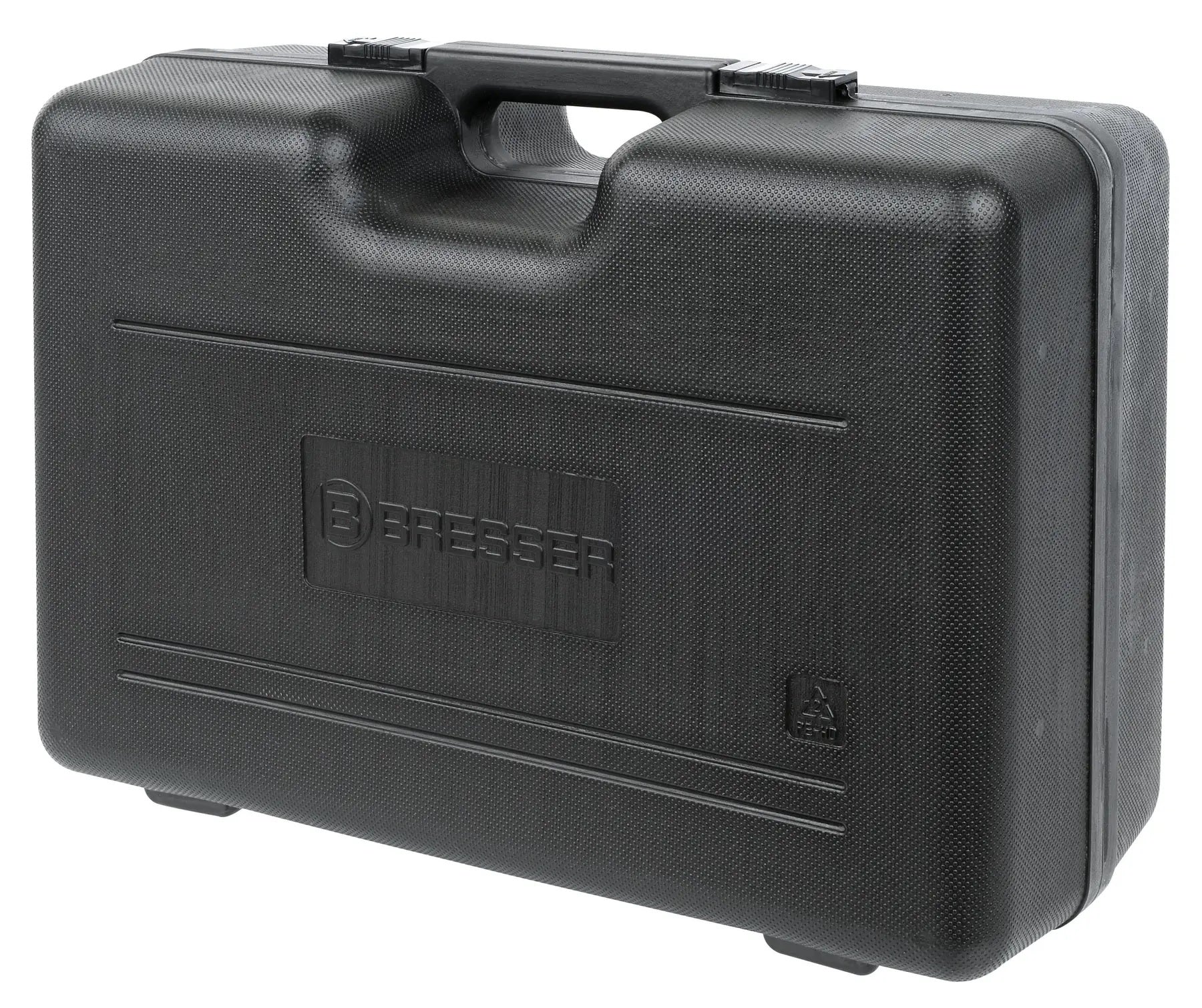

The case is plastic. Zhivlennya: Batteries Illumination: Light LED (light to pass through) Focus: Grube Tonke Subject table: Coordinate with a preparation guide and micrometric adjustments along both axes. Nahil: 45 º Rotation: 360 º Head: Monocular Function: Professional, basic Eyepiece magnification: 10x Large lens: 4x, 10x, 40x Microscope magnification: 40x - 400x Class: Biological Type: Optical Type: Microscopes Weight: 2.34 kg Package weight: 5.8 kg Size: 335 x 130 x 180 mm EAN code: 4007922030760 Dzherelo life: Batteries Number of lenses: 3 Item: 922745 Brand: Bresser
