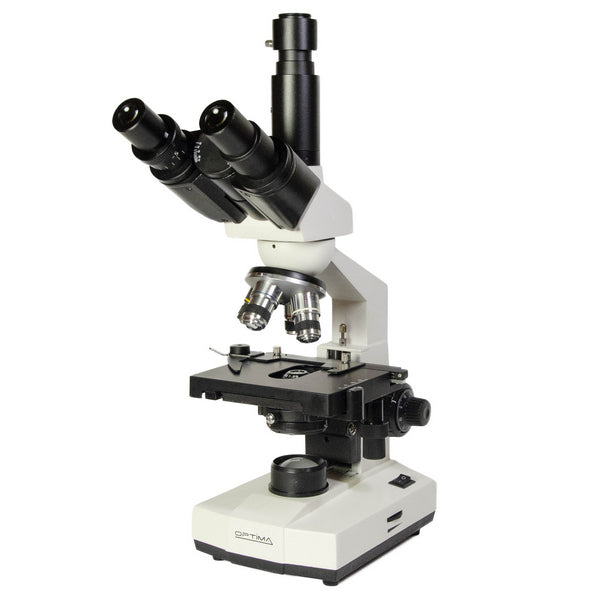

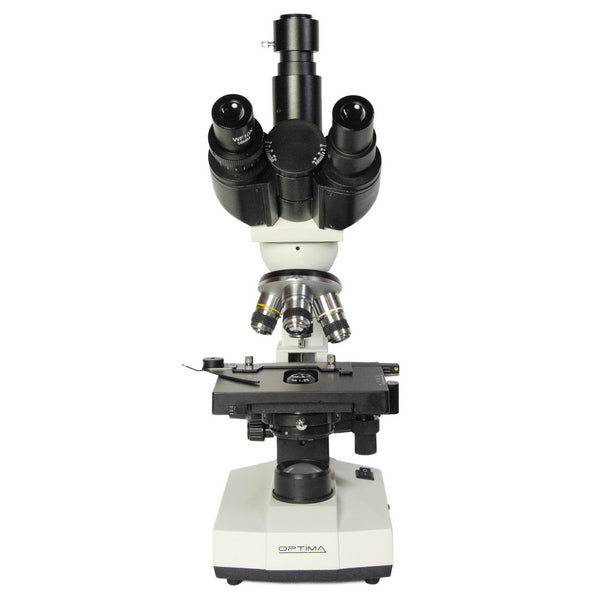

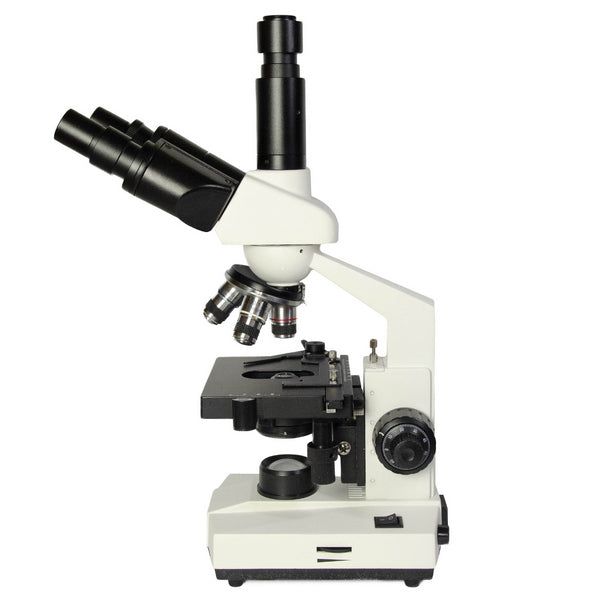

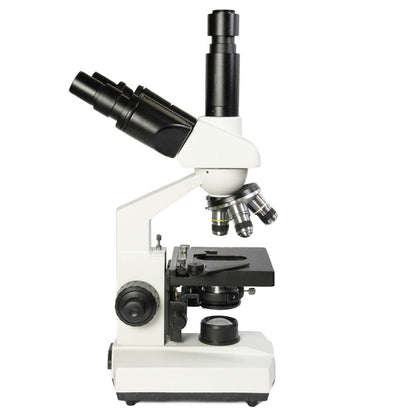

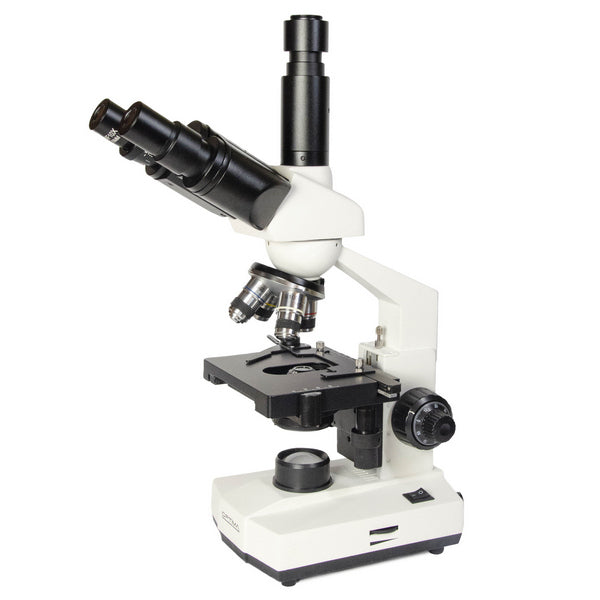

Description
Regardless of those whose Optima Biofinder Trino 40x-1000x is primarily intended for primary purposes, its optical and design characteristics are entirely suitable for use in laboratory grade applications and allow for a wide range of applications Be careful in the bright field. This model does not require additional equipment for most microbiological research, and can be used by students, researchers and laboratory assistants in the basic configuration. The trinocular design allows you to mount a digital camera for video recording and is also handy for careless situations. The light control and focusing of the Abbe condenser with an iris diaphragm ensure a high level of image resolution at maximum magnifications. Coaxial screws, macro and microfocusing, and micrometric supports of the object table allow for precise focusing on the required area of the eye. The microscope's metal body and humic feet ensure durability and image stability under hourly care. All Optima microscopes come with an extended three-tier warranty.
Microscopy method: bright field
Design features:
- Body: metal.
- Turret head: for 4 lenses.
- Lenses: DIN standard, optical glass with anti-illumination coating.
- Lens correction level: achromat.
- Attachment: trinocular (turn 360º, retract 30º).
- Regulation of the interaxial region: 48-75.
- Diopter adjustment: ±5 on the left eyepiece.
- Optical length of the tube: 160 mm.
- Eyepieces: optically angled, wide-field (linear field of view 18 mm) with anti-reflective coating.
- Mounting diameter of eyepieces: 23.2 mm.
- Subject table: rukhomiya 125x110 mm, with a preparation guide with micrometric supports and a vernier (price for the bottom 0.1 mm).
- Range of movement of preparations, mm: 65x25.
- Focusing: coaxial, coarse, fine (price 0.013 mm).
- Illumination: LED, pass through light (LED 0.5W, 6300K).
- Brightness adjustment: smoother.
- Condenser: Abbe NA 1.25, height adjustable.
- Aperture diaphragm: iris.
- Trimach of filters, mm: 32.
- Possibility of installing a digital camera using standard C-mounts.
Additional accessories:
- Eyepiece Optima A-002 WF 16x (23 mm).
The Optima Biofinder Trino 40x-1000x microscope is an ideal tool for advanced students and one of the largest available trinocular microscopes for early laboratory research. Thanks to its trinocular design, the microscope makes it possible to simultaneously document observations on a digital camera.
The combination of wide-field eyepieces and four lenses will provide an increase in the range of 40 to 1000 times. All optical elements (lenses, eyepieces and condenser) are preserved. Wide-field eyepieces have a coating that illuminates and provides greater contrast and even clarity of images across a wider field of view. Achromatic lenses according to DIN standard are insured for work with a 0.17 mm curved edge. The spring-loaded design of the forty-fold and hundred-fold lenses prevents damage to the drug and the lenses themselves at their mutual maximum proximity.
Properly illuminated objects play just as important a role as the quality of the optics. This model allows you to monitor the light field method in the light you need to pass through, and is equipped with a light-emitting diode illuminator, which makes it as close as possible to daylight. The Abbe condenser in this model is focused, equipped with an iris diaphragm and has a numerical aperture of N1.25, which allows you to correctly highlight the image and achieve the necessary contrast. Vikorist and immersion oil for 100x objective and oil condenser, you can reach the maximum separation capacity while maintaining maximum power. The filter range allows you to use standard light filters with a diameter of 32 mm to enhance the spread of song characters or to remove diffuse light.
The body of the microscope is made of metal, which provides not only reliability of the design, but also greater strength and humid support legs, ensuring greater stability of the device and extinguishing microvibration. The trinocular attachment with an adapter for C-mount digital cameras is indispensable for routine care and reduces eye fatigue. It is tilted at 30°, smoothly rotates 360°, allowing you to carry out observation in any manual position, as well as handle the microscope in a number of ways without moving the microscope in space.

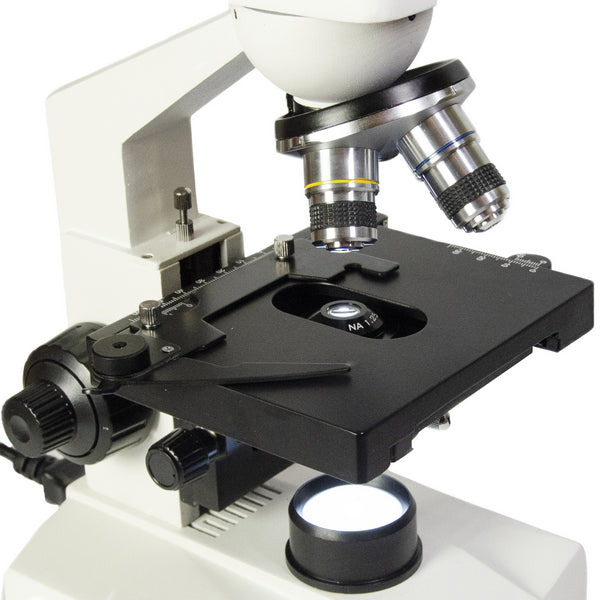

The microscope ensures precise positioning of the object under the lens due to the presence of micrometric precision focusing screws with a 0.005 mm edge, and preparations with micrometric supports and a vernier. The table is painted black.
Optima Biofinder Bino 40x-1000x is a professional optical instrument for large initial investments at the price of a home microscope. Everything that is necessary for microbiological research in a bright field for a teacher or student is included in the configuration of this model.
The combination of wide-field eyepieces and four lenses will provide an increase in the range of 40 to 1000 times. All optical elements (lenses, eyepieces and condenser) are preserved. Wide-field eyepieces have a coating that illuminates and provides greater contrast and even clarity of images across a wider field of view. Achromatic lenses according to DIN standard are insured for work with a 0.17 mm curved edge. The spring-loaded design of the forty-fold and hundred-fold lenses prevents damage to the drug and the lenses themselves at their mutual maximum proximity.
Properly illuminated objects play just as important a role as the quality of the optics. This model allows you to monitor the light field method in the light you need to pass through, and is equipped with a light-emitting diode illuminator, which makes it as close as possible to daylight. The Abbe condenser in this model is focused, equipped with an iris diaphragm and has a numerical aperture of N1.25, which allows you to correctly highlight the image and achieve the necessary contrast. Vikorist and immersion oil for 100x objective and oil condenser, you can reach the maximum separation capacity while maintaining maximum power. The filter range allows you to use standard light filters with a diameter of 32 mm to enhance the spread of song characters or to remove diffuse light.
The body of the microscope is made of metal, which provides not only reliability of the design, but also greater strength and humid support legs, ensuring greater stability of the device and extinguishing microvibration. The trinocular attachment with an adapter for C-mount digital cameras is indispensable for routine care and reduces eye fatigue. It is tilted at 30°, smoothly rotates 360°, allowing you to carry out observation in any manual position, as well as handle the microscope in a number of ways without moving the microscope in space.
The microscope ensures precise positioning of the object under the lens due to the presence of micrometric precision focusing screws with a 0.005 mm edge, and preparations with micrometric supports and a vernier. The table is painted black.
Optima Biofinder Bino 40x-1000x is a professional optical instrument for large initial investments at the price of a home microscope. Everything that is necessary for microbiological research in a bright field for a teacher or student is included in the configuration of this model.
Lenses: DIN achromatic (4/0.10 160/-; 10/0.25 160/0.17; S40/0.65 160/0.17 (spring loaded), S100/1.25 160/0.17 OIL (spring loaded):
Eyepieces: WF10/18, (wide-angle): 2 pcs.
Covers of eyepiece tubes: 2 pcs.
Adapter for digital camera C-mount: 1 pc.
Preparations with micrometric supports and nonius: 1 pc.
Chemical polypropylene cover: 1 piece
Blue filter, 32 mm: 1 pc.
Immersion oil, 5 ml: 1 bottle
Protector: 1 pc.
Merger cord: (100-240V, drive length: 1.45 m): Cable TV
Instructions in Ukrainian Zhivlennya: 220 / 240 V Illumination: Light LED (light to pass through) Focus: Coaxial Coarse Thin Subject table: Rukhomiy with preparation guide with micrometric supports and nonius Nahil: 30 º Rotation: 360 º Head: Trinocular Function: Professional, basic Eyepiece magnification: 10x Larger lens: 4x, 10x, 40x, 100x Microscope magnification: 40x - 1000x Class: Biological Type: Optical Type: Microscopes Weight: 3.245 kg Package weight: 3.89 kg Dimensions: 415 x 180 x 130 mm EAN code: 4820234480050 Dzherelo zhivilnya: Merezha 220 V Number of lenses: 4 Item: 927311 Brand: Optima
