Description

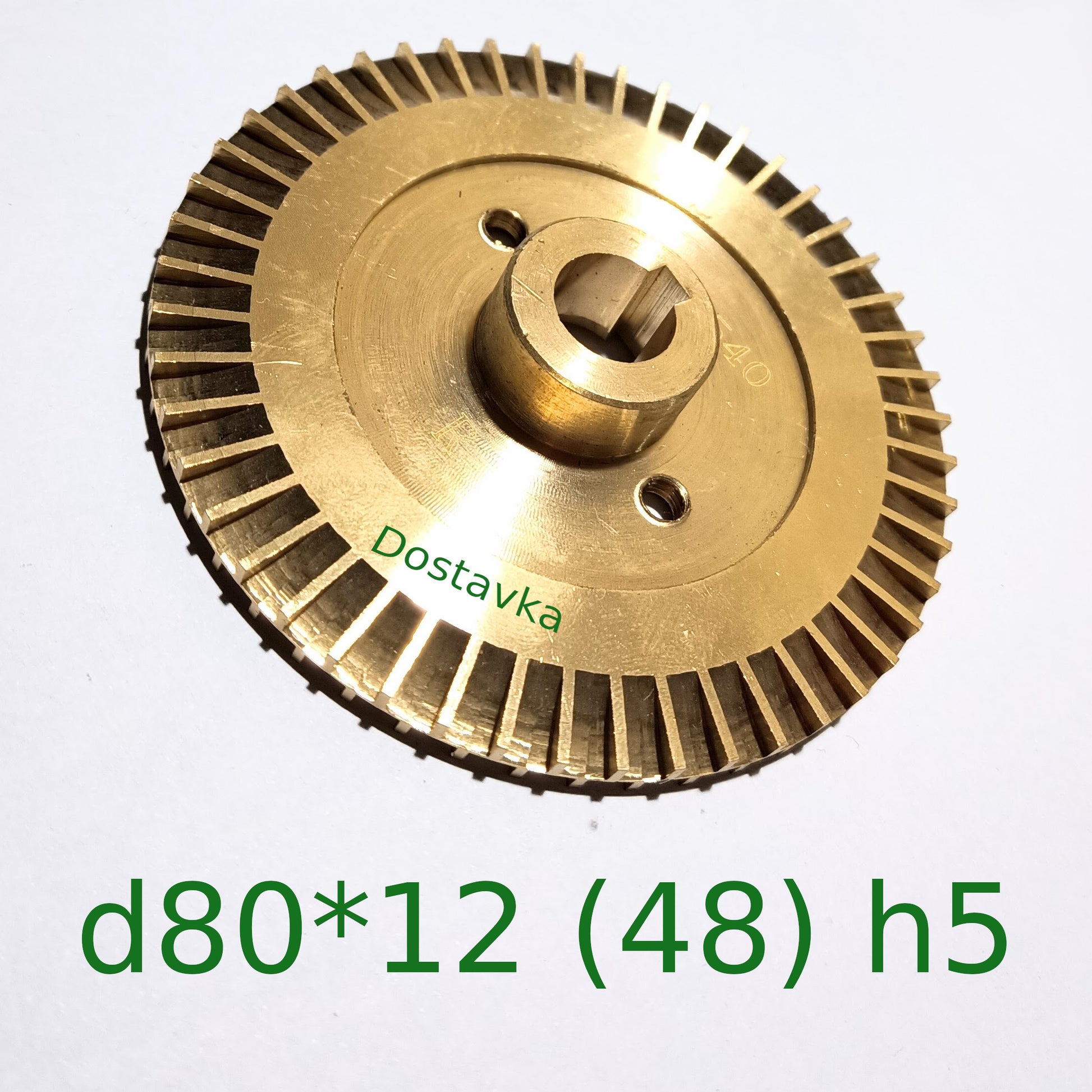

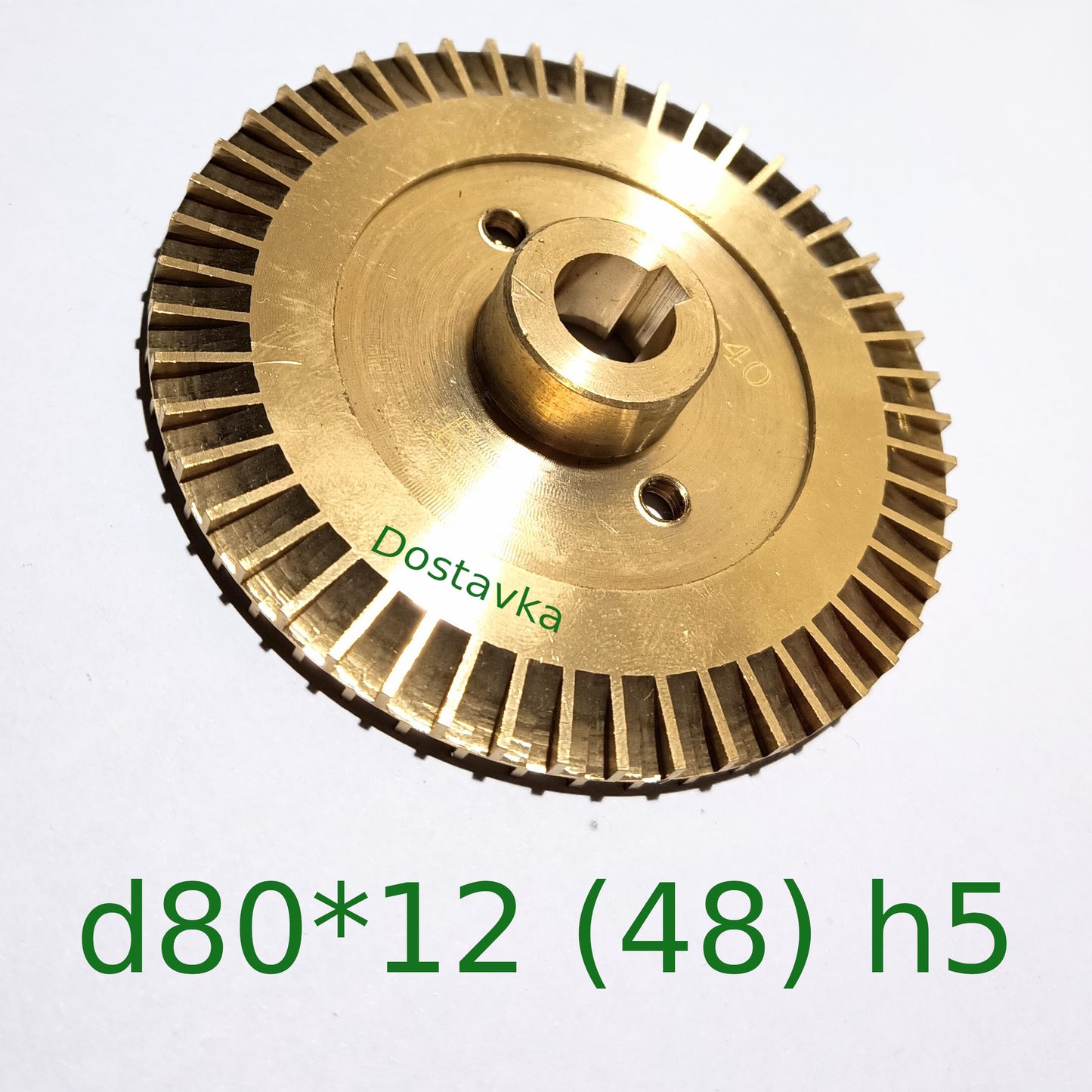

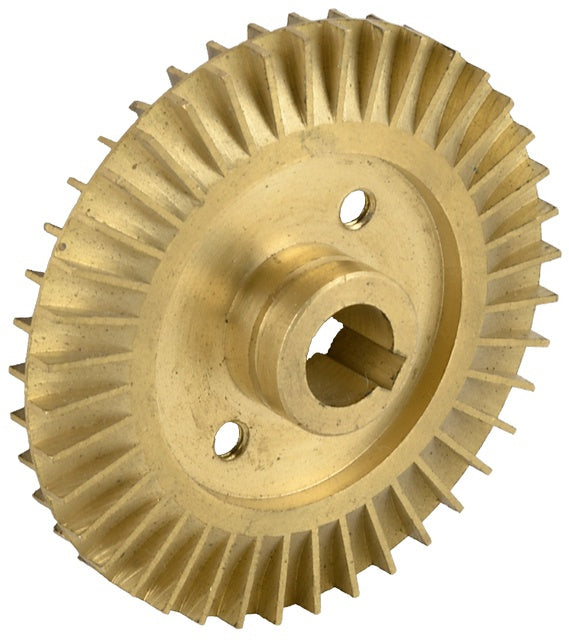

Brass impeller d80*12 (48) h5 for surface vortex pumps AQUATICA 775135 (775135003)
Outer diameter 80 mm
Inner diameter 12 mm
The height of the blades is 5 mm

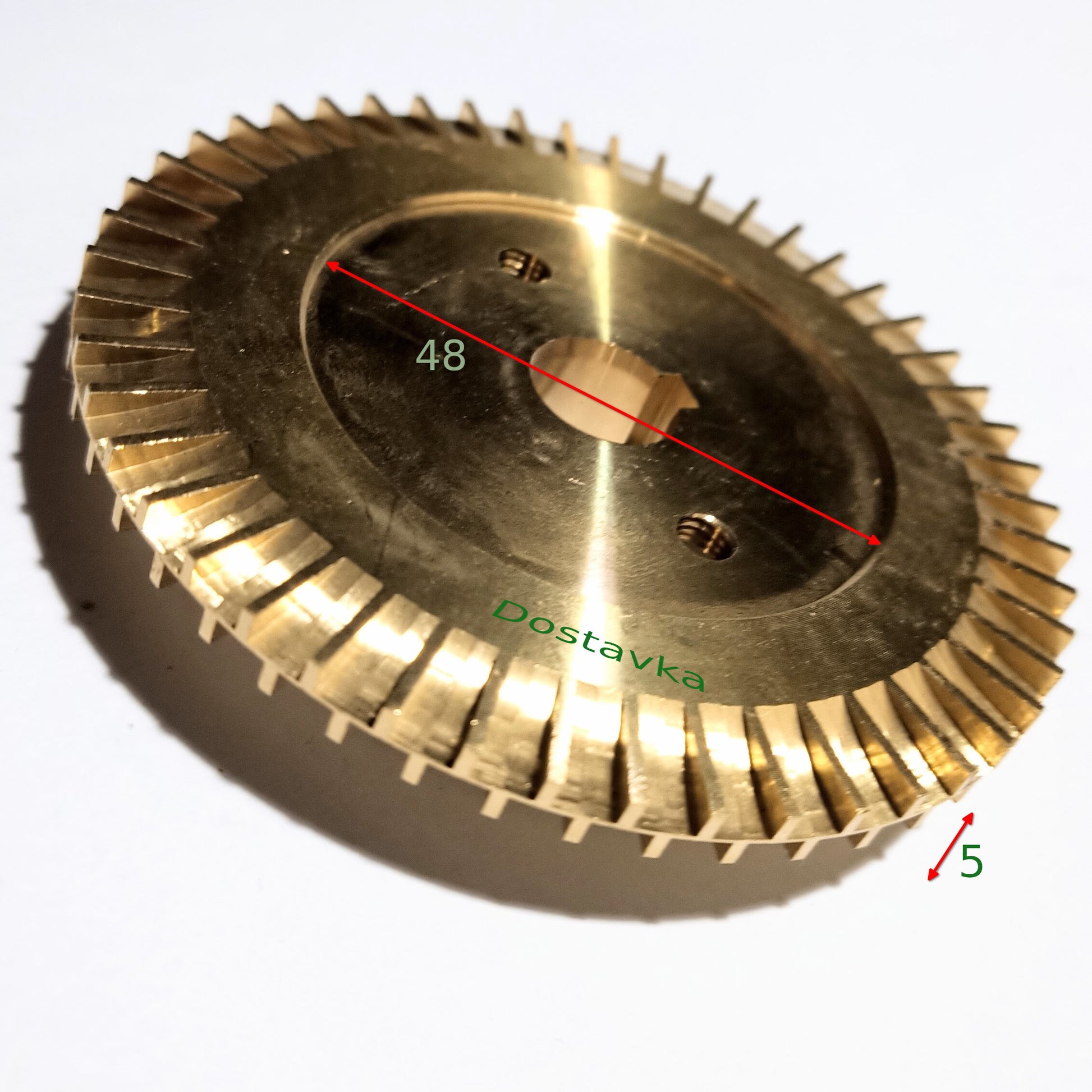

Internal recess 48 mm

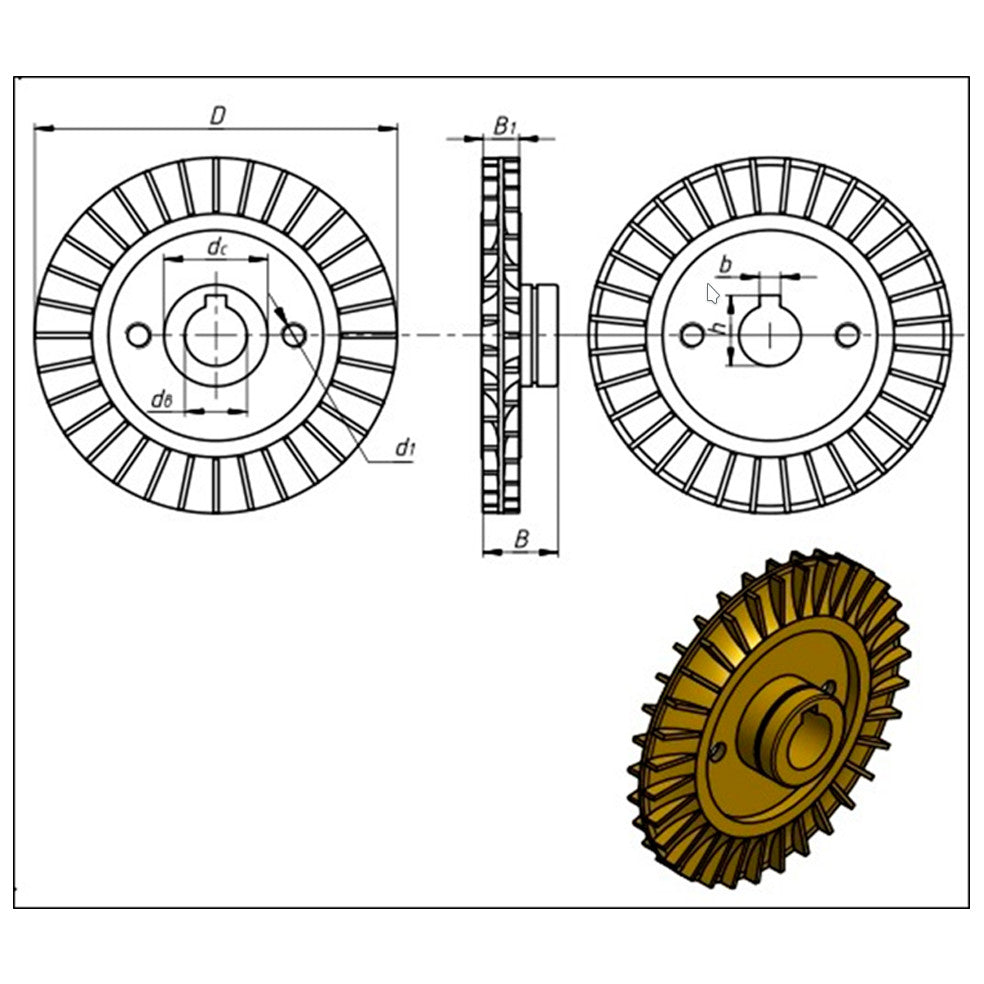

Dimensions according to the drawing:
- D - 80 mm
- dc - 21mm
- dв - 12 mm
- d1 - M5
- B - 13mm
- B1 - 5mm
- b - 4 mm
- h - 13.8 mm
